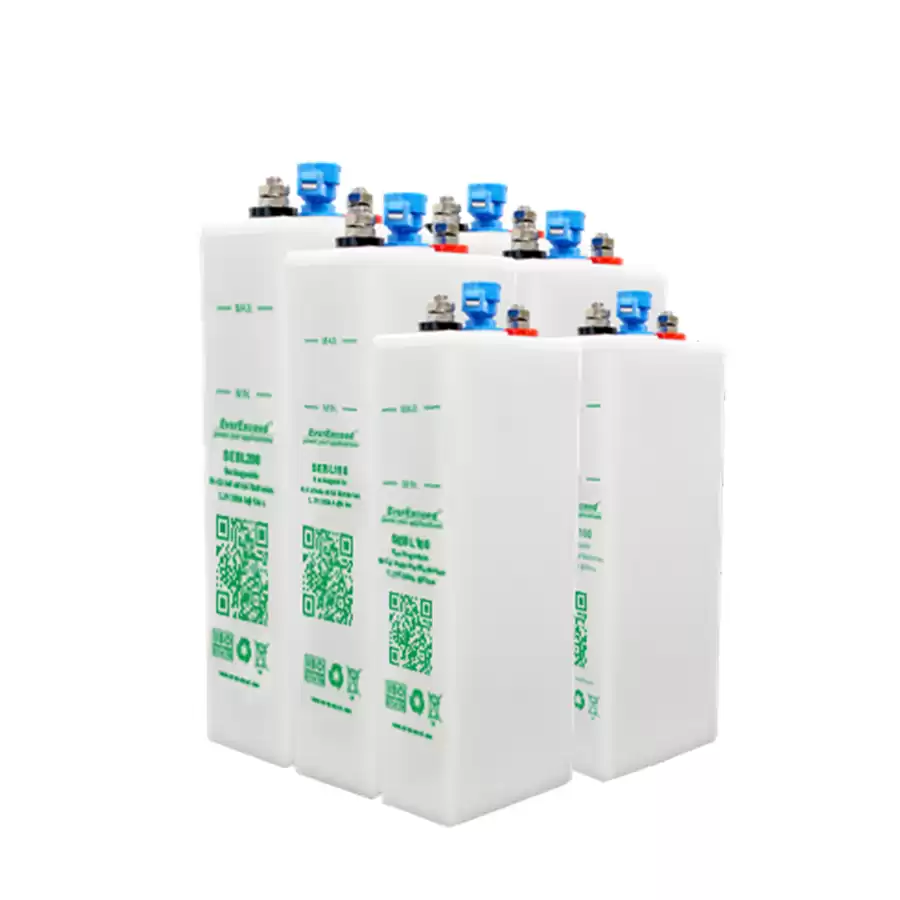

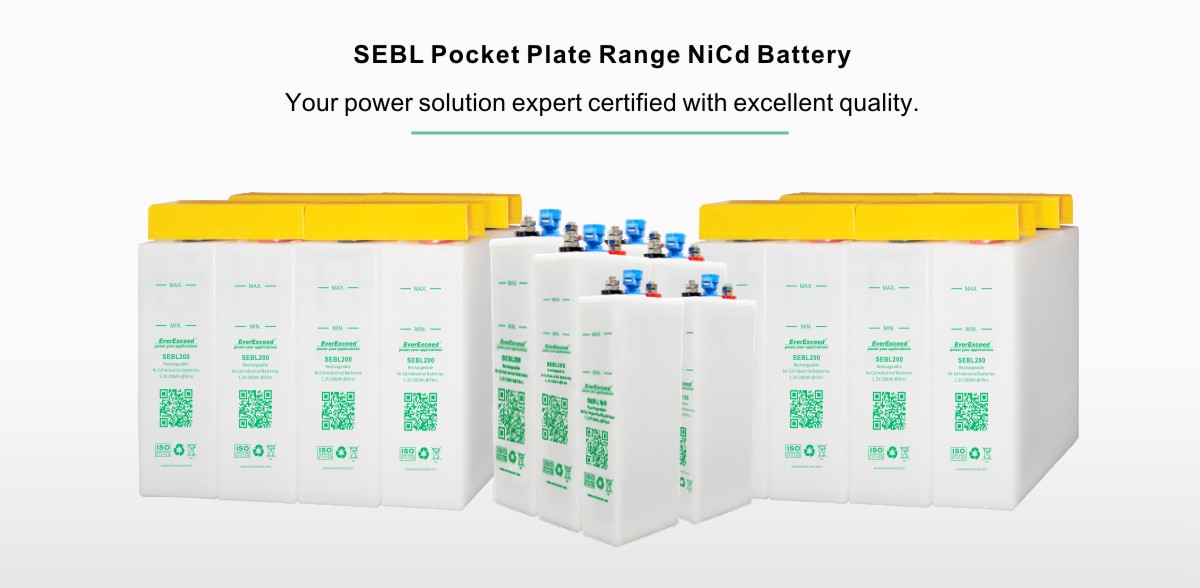

SEBL Sealed low Maintenance Pocket Plate Range NiCd Battery

EverExceed pocket type nickel cadmium battery has been supplied stable and reliable battery solution for many industrial power applications. Our block batteries function in a wide range of temperatures, resist electrical abuse, shock and vibrations and need only basic maintenance. This ensures a low total cost of ownership (TCO) over a life cycle that can last 20 years or more.


  • UsageTelecommunication, power plant, substation back-up power, railway lighting power and other emergency back-up power supplies.
  • CertificatesTUV;IEC;ROHS;DEKRA
  • OEM/ODM ServiceYes, customized
  • Rated Capacity(Ah)10Ah-1200Ah
  • Rated Voltage(V)1.2V
  • ModelSEBL Series



Technical features:











High float-charge efficiency

High reliability

High performance
The battery adopts high perfomance positive and negative active materials, improving the charging efficiency of positive and negative electrodes, reducing the float-charge voltage of the battery, under the lower float charge voltage

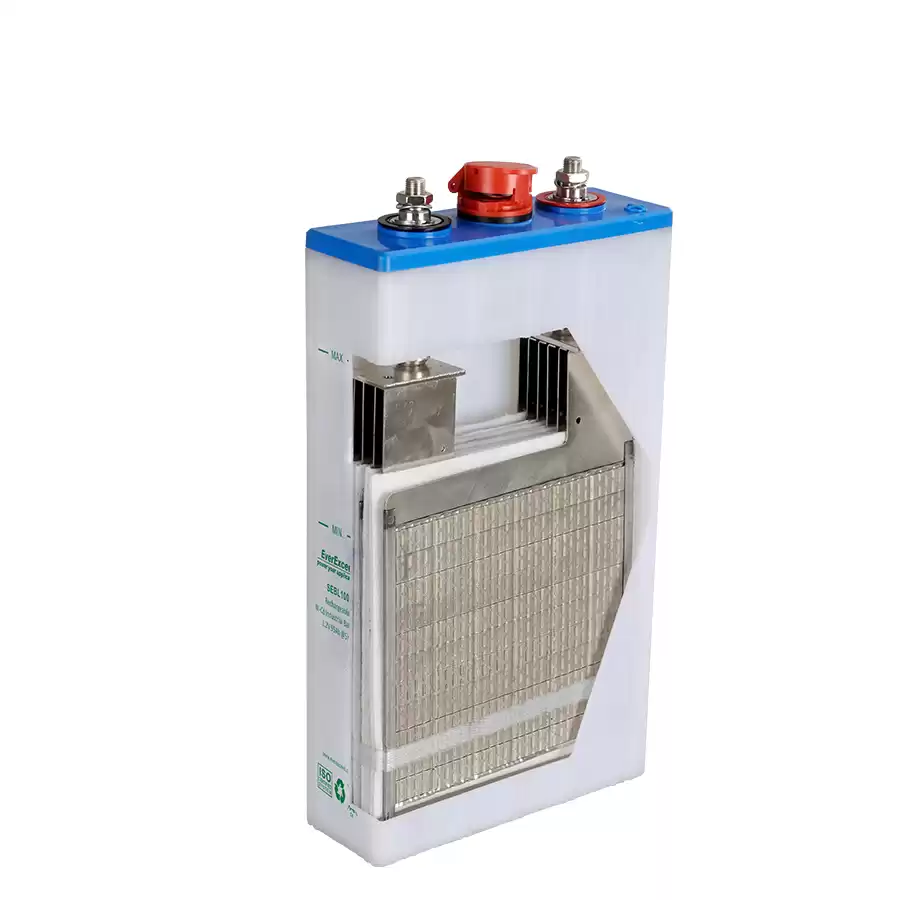

The positive and the negative plates of the battery adopt pocket type plates and pasted plates of high mechanical strength, and the container adopts semi-transparent engineering plastic materials of anti-impact and anti-aging. The container and the lid are welded together by intelligent heat welding machine, which is assuring the sealed structure reliability of battery

The battery adopts optimized design , which can produce high performance battery. Extraordinary temperature advantage and wide operating temperature range (-50°C to +70°C)










Low maintenance
Robust structure
Long service life

Adopts "valve-regulated vent plug technology", therefore, the water consumption is low, the electrolyte is rich. Within service life, the battery top up time up to 3~5 years due to EverExceed excellent valve-regulated feature


High tolerance to rough handling and mechanical abuse due to strong components & robust construcation

Up to 20+ years completely faithful service. No replacement cost & no downtime










Low discharge rate

Assured quality

Long cycle life
The discharge time for 3h to 100h;  Rated capacity range:10~ 1200Ah

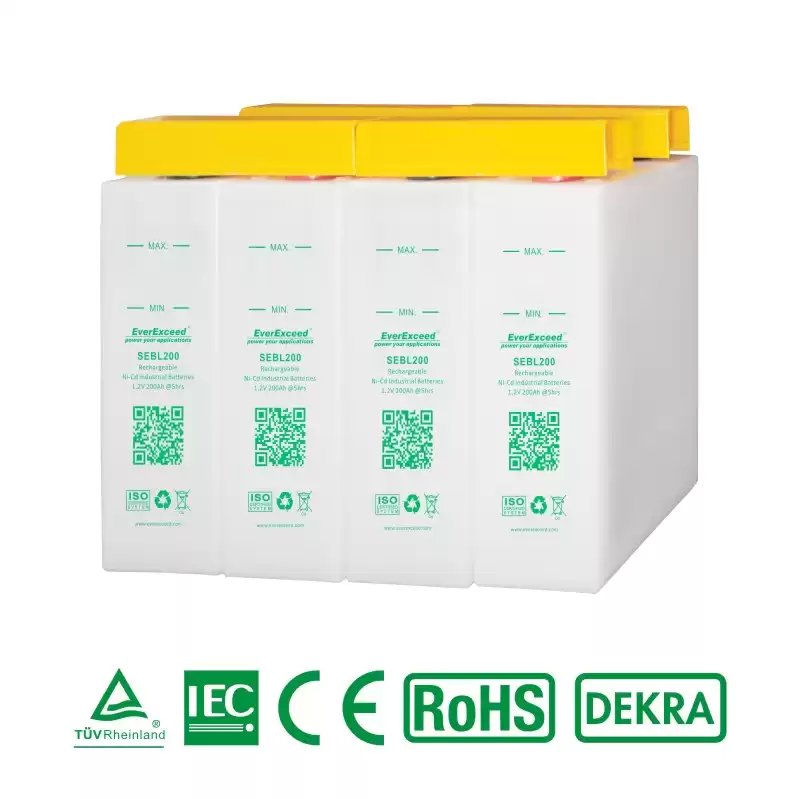

Authorative TUV, CE certificates and IEC60623,IEC62259 test reports

1300 cycles @20°C @80% DOD

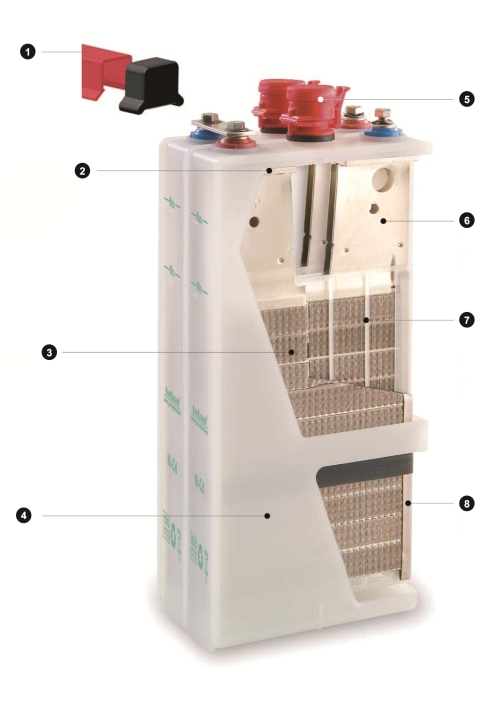

①Protective cover
To prevent external short-circuits;

In line with EN50272-2(safety) with ip2 level;


②Plate groups bus
Connects the plate tabs with the terminal post;

Plate tabs and terminal post are projection-welded to the plate groups bus;


③Plate

Horizontal pockets of double-perforated steel stirps;


④Cell container

Material:translucent transparent polypropylene;


⑤Flame-arresting vents

Material: polypropylene;


⑥Plate tab

Spot-welded both to the plate side-frames and to the upper edge of the pocket plate;


⑦Separating grids
These separate the plates and insulate the plate rames from each other;

The grids allow free circulation of electrolyte between the plates;


⑧Plate frame
Seals the plate pockets and serves as a current collector.



Applications:


• Telecommunication, power plant, substation back-up power, railway lighting power and other emergency back-up power supplies.

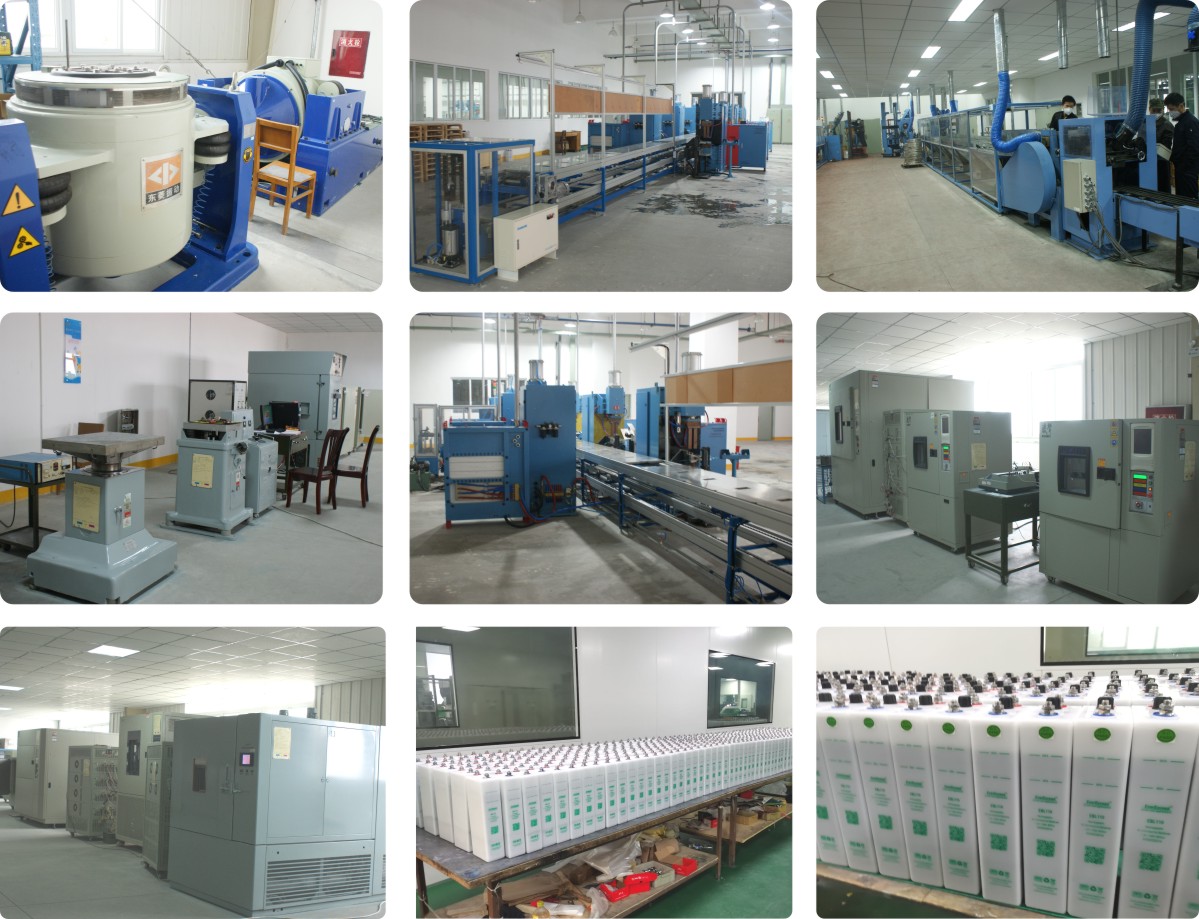

Factory:
