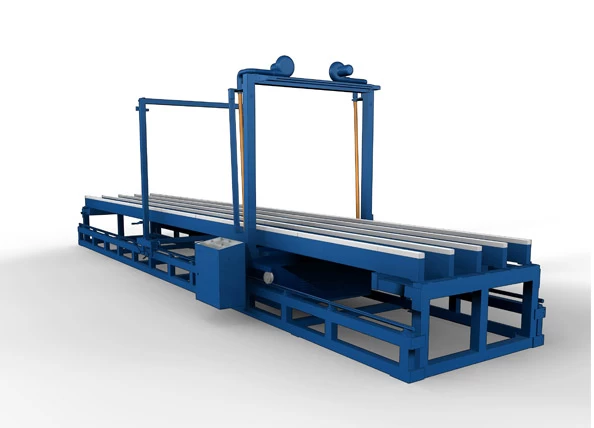

Semi-automatic EPS block cutting machine


Function:

1. The machine is made of quality steels, those guarantee a high long life, well engineered structure.

2. Noise free working environment, smooth cutting process.

3. Simple operation, user friendly.

4. Step motor enables this machine to do both vertical and horizontal cutting.

5. Safety focus.

6. Precision is guaranteed.


Technical data

Subjects Unit HS-VIB-2000 HS-VIB-3000 HS-VIB-4000 HS-VIB-6000 HS-VIB-8000
Cutting size mm 2100×1300×1250 3100×1300×1250 4100×1300×1250 6100×1300×1250 8150×1300×1250
Mini thickness mm 5 5 5 5 5
Cutting speed mm/s 10-20 10-20 10-20 10-20 10-20
Power capacity KW 8.22 8.22 8.22 8.22 8.22
Overall size mm 4030×2000×2370 5030×2000×2370 6030×2000×2370 8030×2000×2370 10100×2000×2370
Weight T 1.5 1.6 1.7 2 2.5

Note: this information is for reference only, further details to be confirmed with the company.
