Features

1.This series screen printing machine can print tubes and jars from one color to six color, equipped automatic loading and unloading systems, mechanical devices combined with PLC control.

2.Adopted main components from Rexroth, Schneider, SMC, Mitsubishi etc; Mechanical parts made by CNC dirtctly from CAD design.

3.Adopted touch screen interface. Quick setup & quick toolings change.

4.Adopted with No-object No-printing system, auto counter, safety guard, out of working alarm device and auto separating device for faulty printing.

5.Auto optical registration system, pre-printing & after printing coating systems. Can be equipped by order.

Technical data

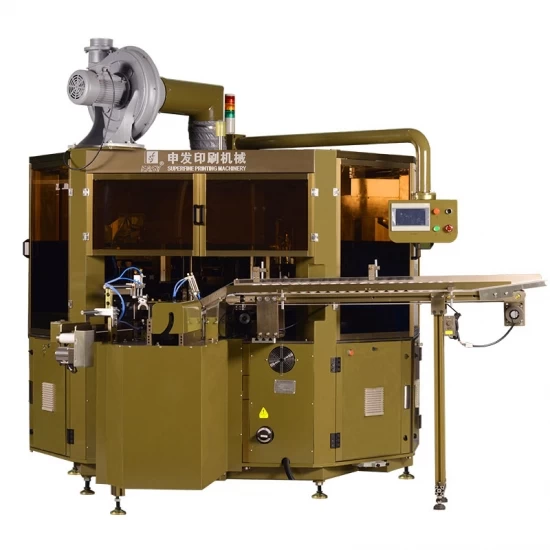

Model:SF-SR320

Product size : φ（16-60）x L(50-220)mm-----Tube

                   φ（20-80）x H(20-55)mm----Jar

Max. speed:60pcs/min

Air pressure:5-6bar

Dimensions:2900x2300x2500mm

Power:AC 380V 50/60Hz 18Kw

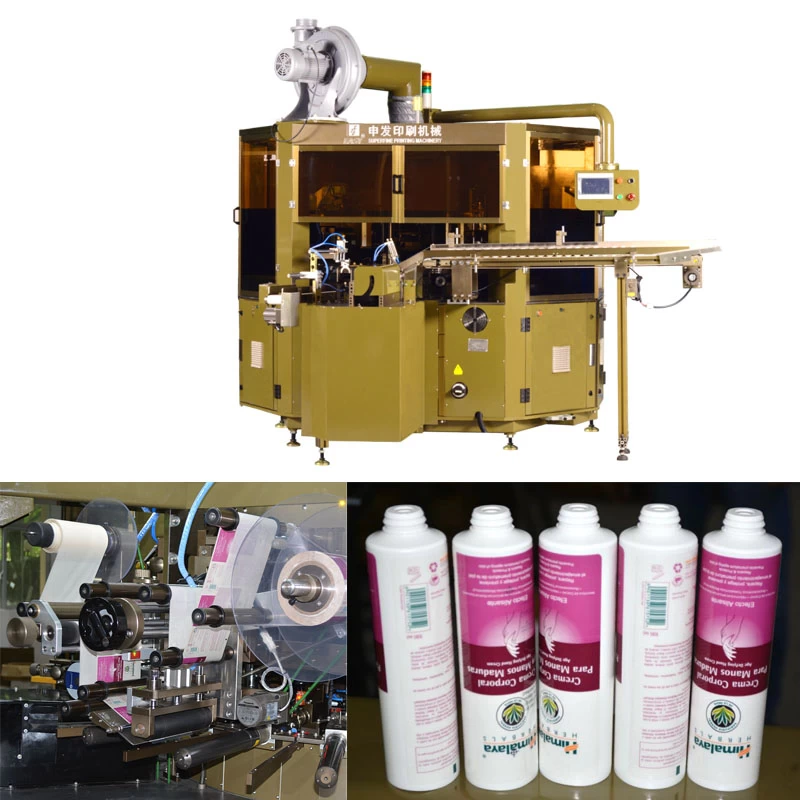

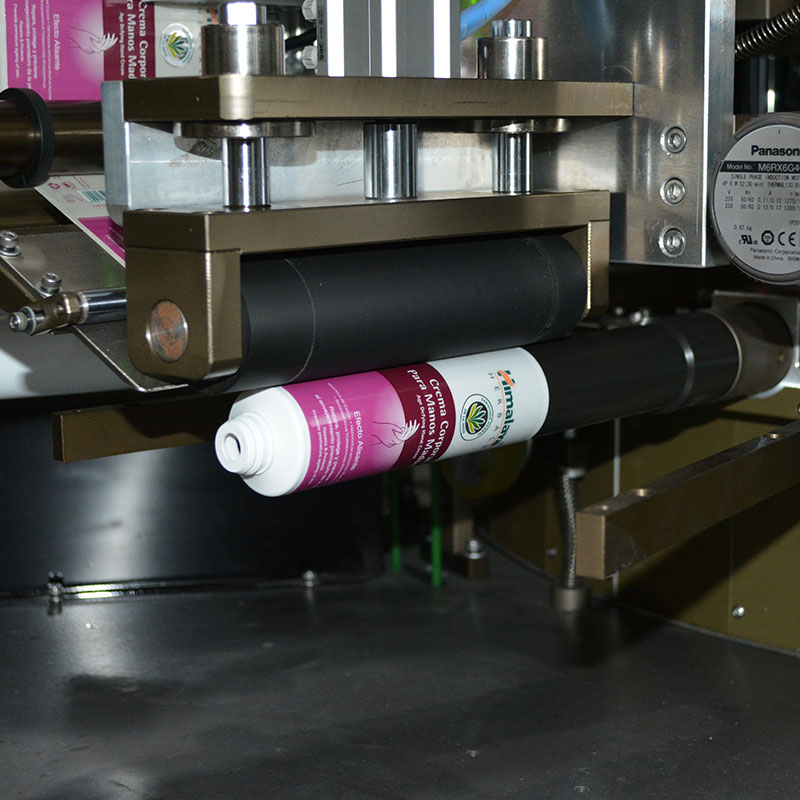

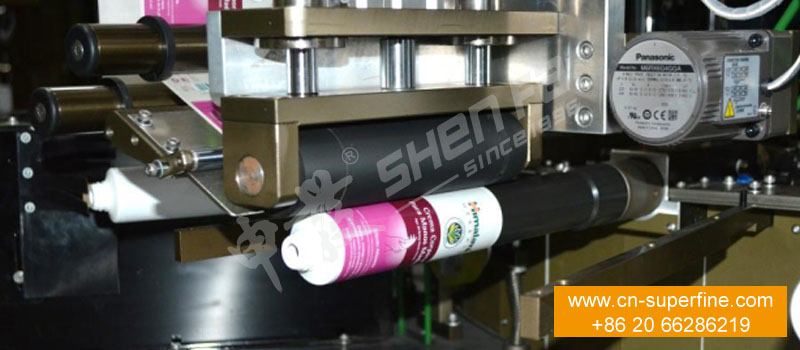

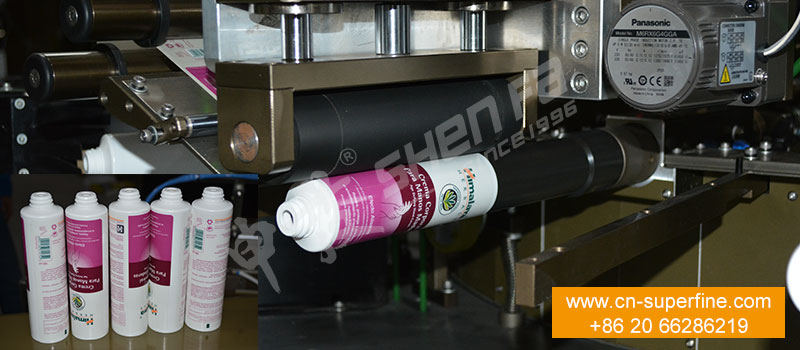

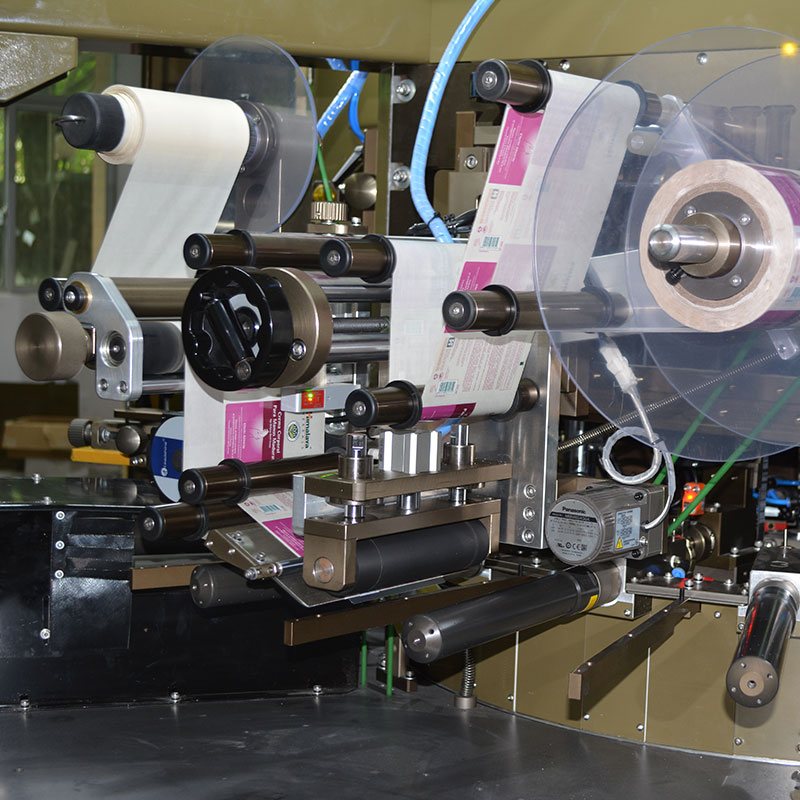

Machine detail and samples

Machine running video
