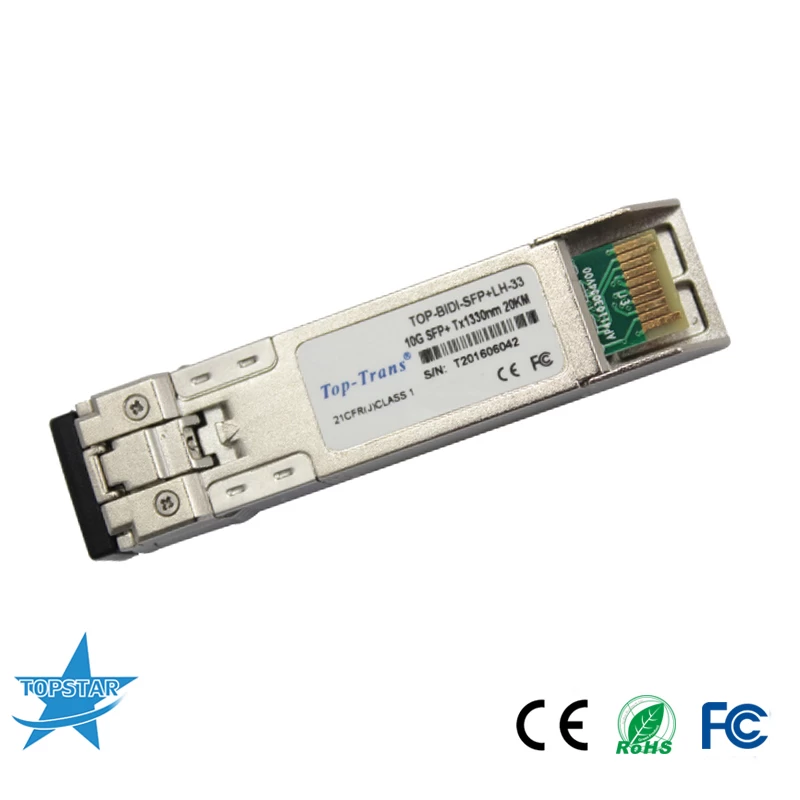

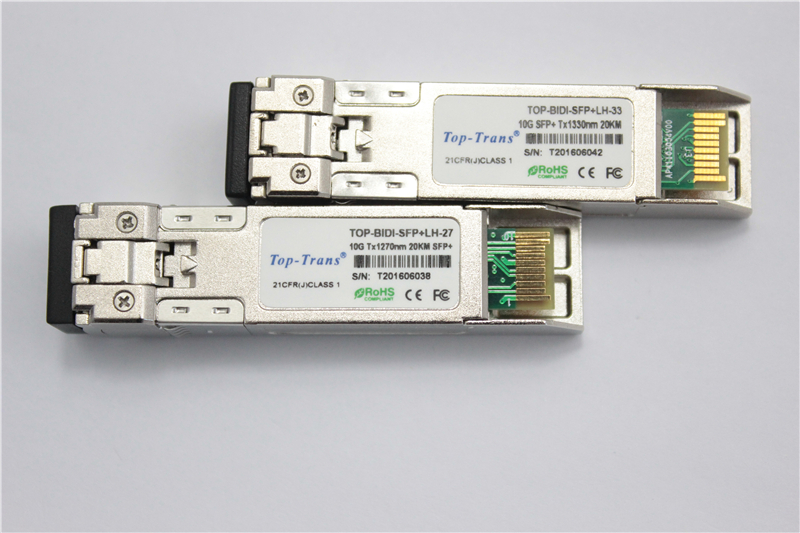

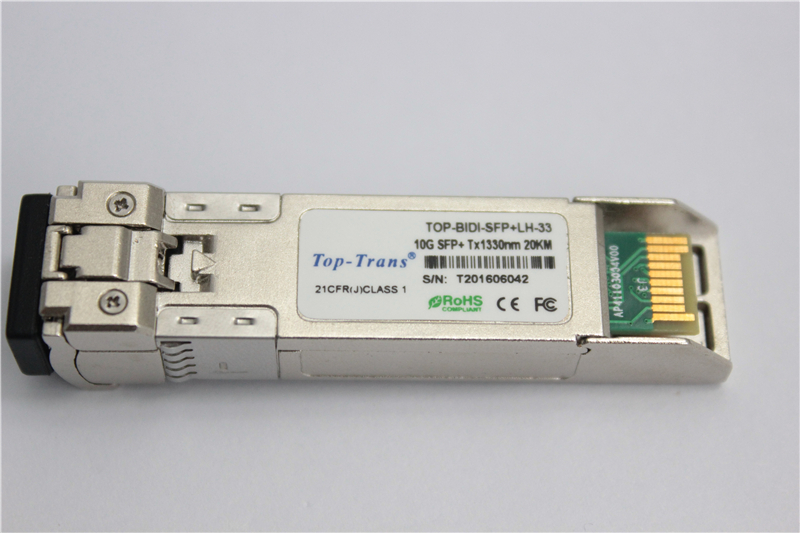

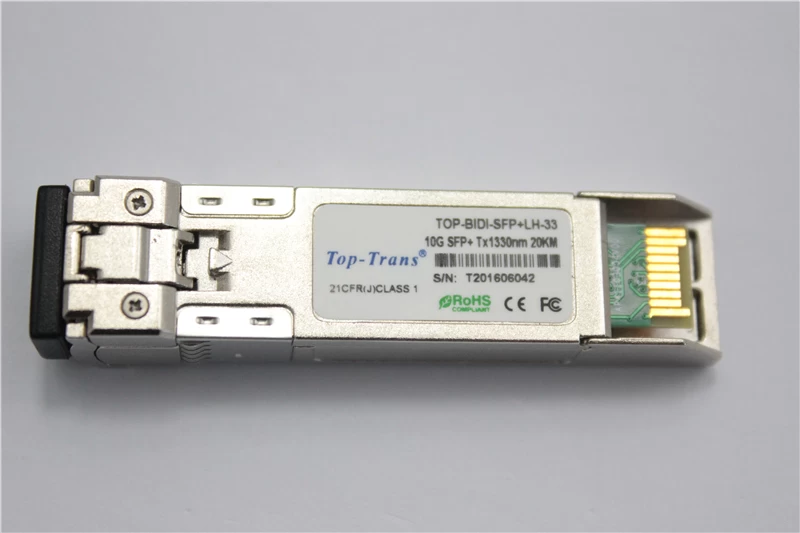

SFP Media Converter 10G Tx1330/Rx1270nm 20km BIDI Cisco Router


SFP+ 10G 20KM 1330 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gbps, it designed to be compliant with SFF-8472 and SFP+MSA. The module data link up to 20km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.



  • WavelengthTx1330/Rx1270nm
  • Distance20km
  • Data Rate10G
  • Temperature0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Warranty3 Years
  • ConnectorSingle port LC/SC

SFP Media Converter 10G Tx1330/Rx1270nm 20km BIDI Cisco Router

10G 20km BIDI SFP


PRODUCT FEATURES

● SFPMS A package with duplex LC connector

● Very low EMI and excellent ESD protection

● Digital Diagnostic Monitor Interface

● Hot pluggable

● 10Gb/s serial optical interface

● Up to20km distance

● Compliant with SFP+MSA

● High transmission margin

● +3.3V single power supply

● Below<1.5W power consumption

● SFP mechanical interface



APPLICATIONS

● 10GBASE-BX at 10.3125Gb/s

● 10GBASE-BX at 9.953Gb/s



STANDARD

● SFP+MSA Compliant

● SFF-8472reversion9.5compliant

● IEEE802.3-2005compliant

● Telcordia GR-468-COREcompliant

● FCC47CFRPart15,ClassBcompliant

● FDA21CFR1040.10and1040.11,class1compliant

● RoHS compliant


Professional Service

1.Quality: Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


2.Compatibility: 100% testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


3.Warranty: If cargoes have any problem, just provide related photos or DDM screen shot, we support 1 month unconditional return, 1 year replacement or repair. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.


4.Customized label and package , OEM and ODM service offered



Product Tags 10g bidi sfp          10g bidi sfp+          10g bidi sfp+ module          10g bidi sfp+ manufacturers          10g bidi sfp+ suppliers          Brocade 10G Bidi SFP+          10g sfp+ bidi 80km          10g sfp+ bidi 40km          10g bidi 30km sfp+
