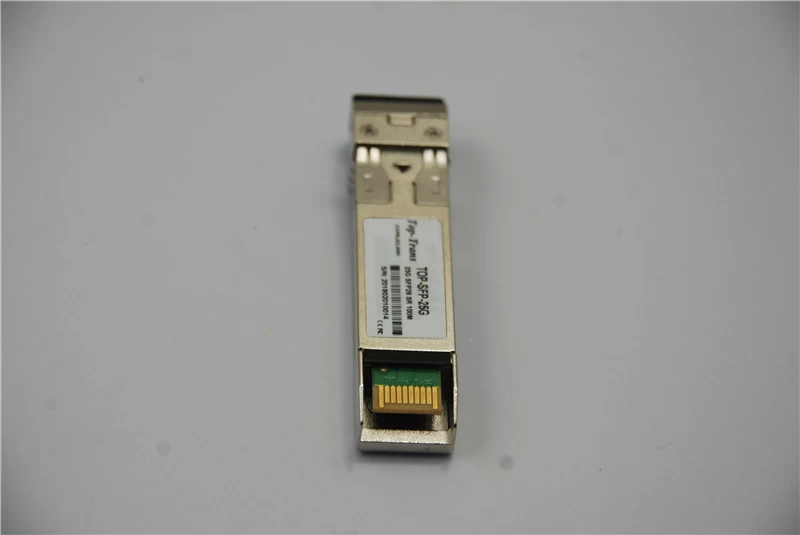

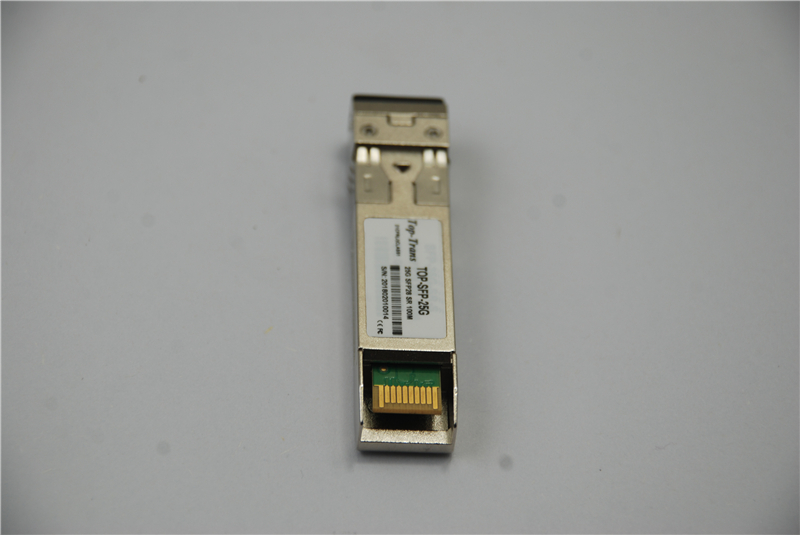

SFP Programmer Write 25G 850nm 300m Optical Transceiver Module ISP Network
Features
-
Hot-pluggable SFP28 form factor
-
Supports 25Gbps data rate
-
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
-
850nm VCSEL laser and PIN photo-detector
-
Internal CDR on both Transmitter and Receiver channel
-
Duplex LC receptacle
-
Single 3.3V power supply
-
Power dissipation < 1W
-
Digital diagnostics functions are available via the I2C interface
-
RoHS-6 compliant
-
Commercial case temperature range: 0°C to 70°C
Applications
-
25GBASE-SR Ethernet
-
32G Fiber Channel
Professional Service
1.Quality: Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.
2.Compatibility: 100% testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.
3.Warranty: If cargoes have any problem, just provide related photos or DDM screen shot, we support 1 month unconditional return, 1 year replacement or repair. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.
4.Customized label and package , OEM and ODM service offered

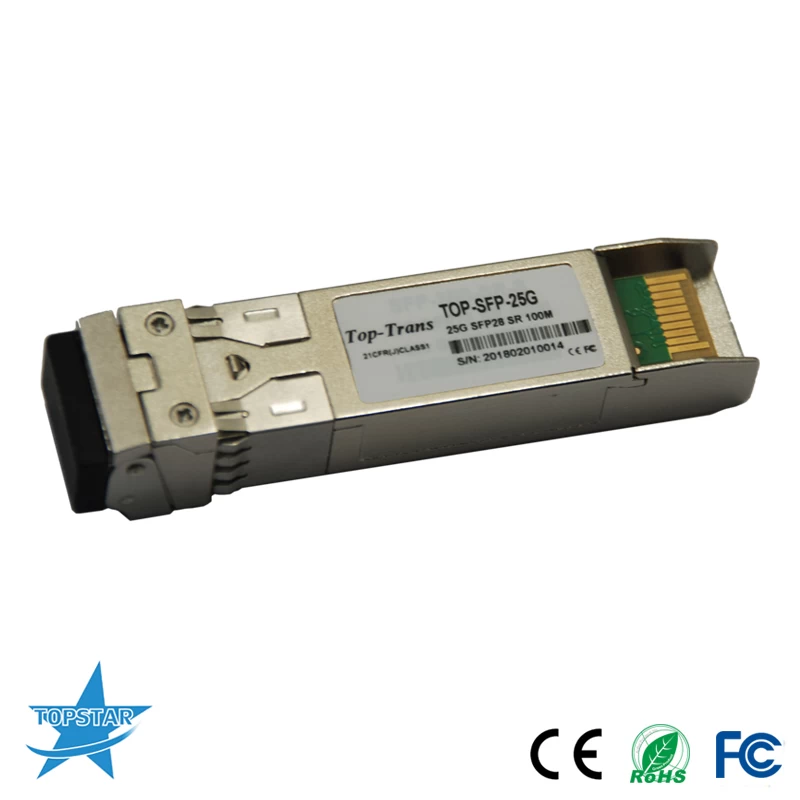

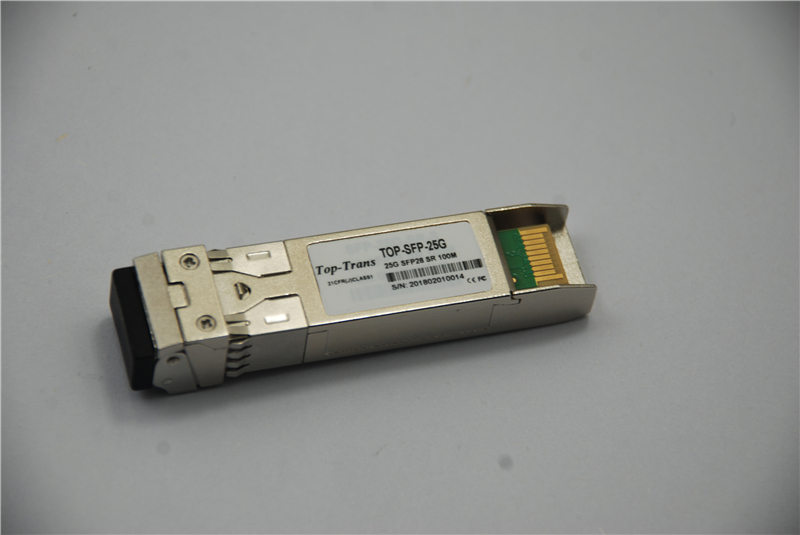

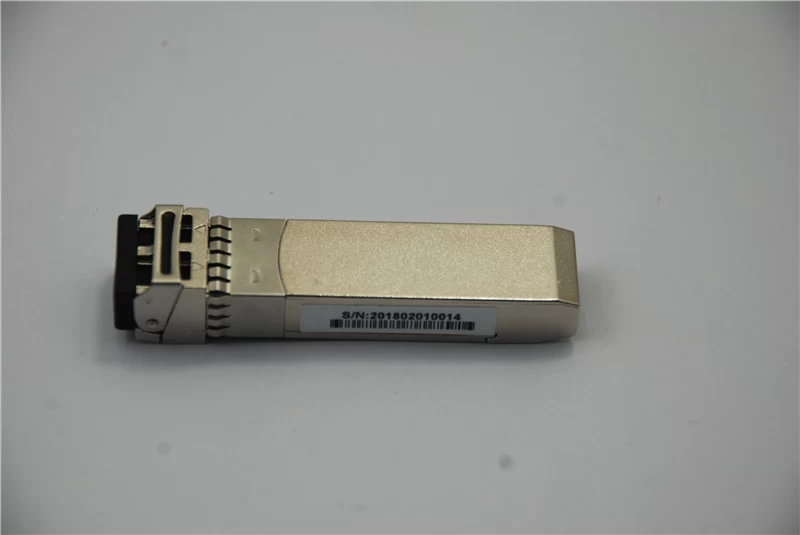

Product Part Number:TOP-SFP28-25G-SR
Description: 25Gbps, 850nm; SFP28, OM4,MMF 100m, DDM 0ºC ~ +70ºC
