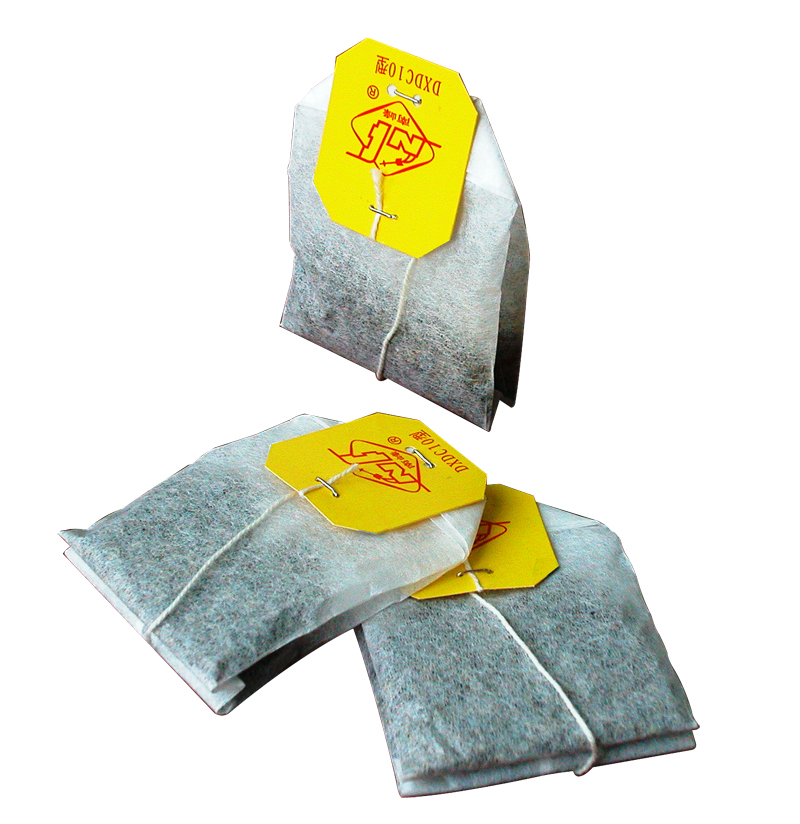

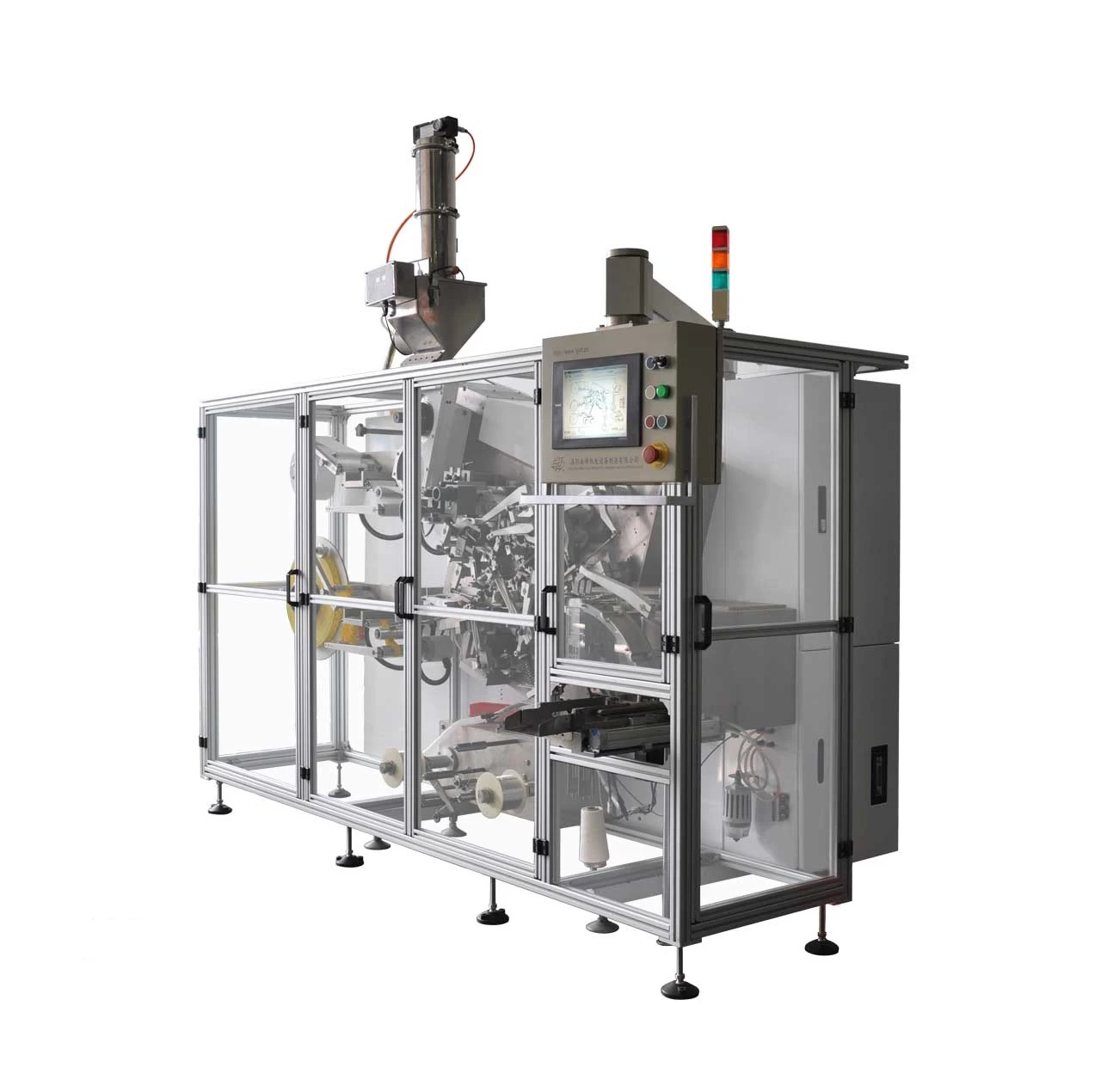

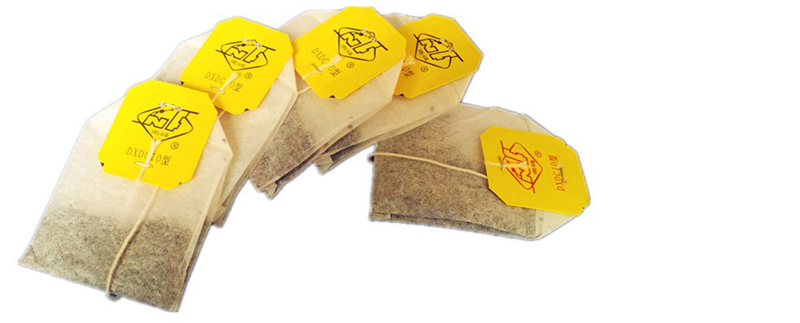

The machine SG-10 is a kind of automatic tea bag machine for th packing of tea and similar Chinese herbs / Flower tea.It makes double chamber tea bags which are cold-sealed.The machine links up hard label and thread with staple,and the tea bags are pushed out and packed into box manually after counting.The packing materials are non-heat-sealed filter paper,label,thread and staple.
|
Capacity
|
120±10bags/min
|
|
Max.Dosage
|
10 cm³ (adjustable)
|
|
Degree of accuracy
|
±5%
|
|
Bag dimensions
|
45mm×60mm or 40mm×60mm
|
|
Tag dimensions
|
28mm×32mm
|
|
Thread length
|
148mm±5mm
|
|
Size of staple
|
13mm (5mm after folding)
|
|
Volume of hopper
|
13dm³
|
|
Air pressure
|
0.6MPa
|
|
Air consumption
|
300L/min
|
|
Voltage
|
3 phases 380V / 3 phases 220V
|
|
Frequency
|
50Hz
|
|
Total power
|
total 10Kw,Max.8 Kw
|
|
Overall dimension
|
3.500m×1.500m×2.400m
|
|
Net Weight
|
4000kg
|
|
Gross weight
|
4250kg
|
|
Option
|
Envelope packing machine
|
