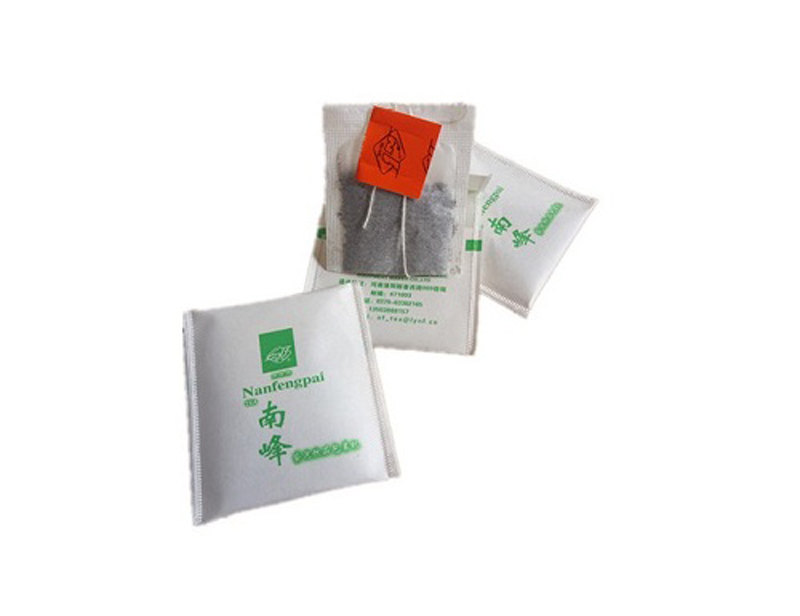

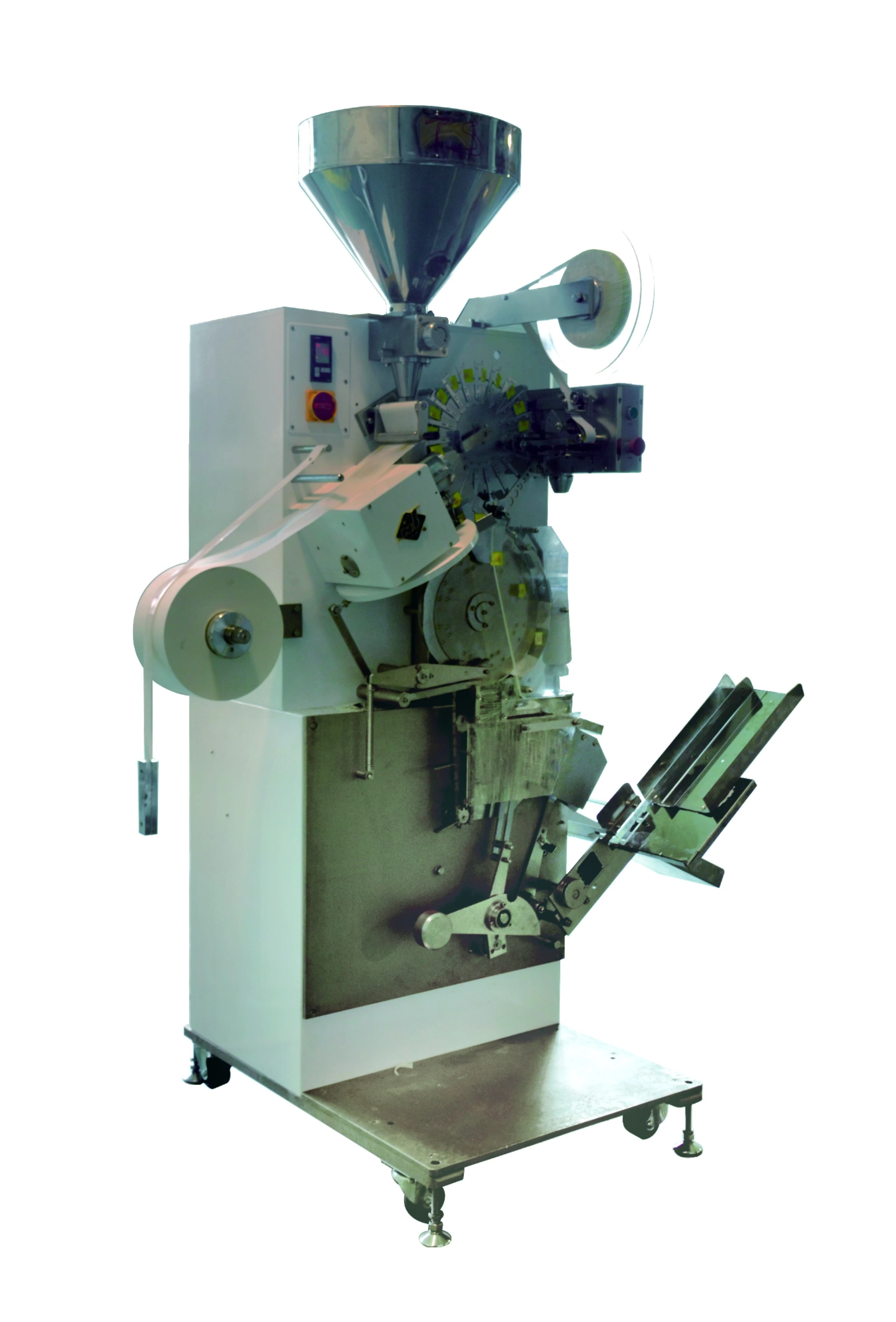

Model SG-6 tea bag packing machine is electromechanical integration of packing machine for the pharmaceutical,health care,food and other industries.It can pack 20 meshes to 60 meshes or bulk non-viscidity granular materials,such as CTC black tea,green broken tea,herbals into the bag.To achieve quantitative material cutting,cotton thread and adhesive labels,bag sealing,outer bag sealing,automatic counting and other functions of high-speed packing machines.This machine continuous steady speed can reach 110 bags/min and it is taken to a series of anti-oil,anti-pollution measures.The packed tea bag meet food standards'requirements.The cold sealing of envelope paper most use in oversea market.
|
Capacity
|
110bags/min
|
|
Max.Dosage
|
6 cm³
|
|
Size of tea bag (L×W)
|
62.5mm×50 mm
|
|
Size of envelope (L×W)
|
70mm × 65mm
|
|
Width of filter paper
|
125mm
|
|
Tag dimensions
|
28mm ×24mm
|
|
Thread length
|
210mm
|
|
Envelope materials
|
paper of 70g/㎡,one side smooth and the other side rough
|
|
Voltage
|
AC 380V
|
|
Total power
|
1.5 KW
|
|
Overall dimension
|
1.700m ×0.900m × 2.000m
|
|
Carton dimensions
|
1.220m × 1.140m×1.967m
|
|
Net Weight
|
640kg
|
|
Gross weight
|
800kg
|
|
Options
|
1) Stirrer 2) Heat sealable tag device 3) Pneumatic vacuum feeder 4) Modification cutter tool
|
