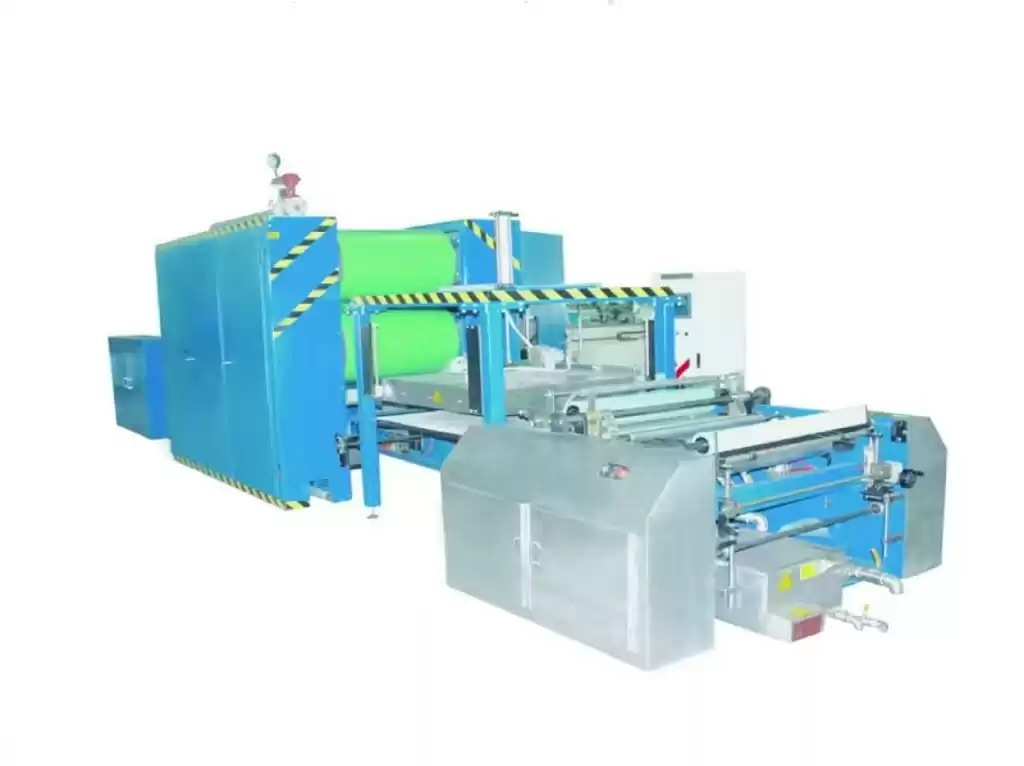

SGA168 Four-unit (Precision) Sectional Warping and Sizing Combined Machine

Sectional Warping and Sizing Combined Machine

Facebook Twitter Pinterest LinkedIn 分享
  • Warping width:2200mm
  • Fabric axle disc diameter≤1000mm
  • Drum cone angle ratio:1:8
  • Braking distance:≤3m
  • Warp-rebeaming speed:20-100m/min
  • Warp-rebeaming tension:6000N
  • Displacement accuracy:0.001-9.999mm,stepless adjustable
  • Warping speed:8~150m/min(using speed of 120m/min) (determined by the variety)
  • Bobbin creel: spindle distance: 300x300mm  (can be customized)
  • Ends in warp:0-560 (can be customized)
  • Max. evaporation capacity: 300kg/hr (0.3NPa≤vapor pressure≤0. 35HPa)
  • Infrared pre -drying: carbon fiber infrared quartz electric heating tube, 9X2KW
  • Technological requirements: take variety of 50D-72F for example: sizing rate:10~11%，mosturecontent:0.8~1.4%
  • Outline dimension:29500x8800x2700(mm)
