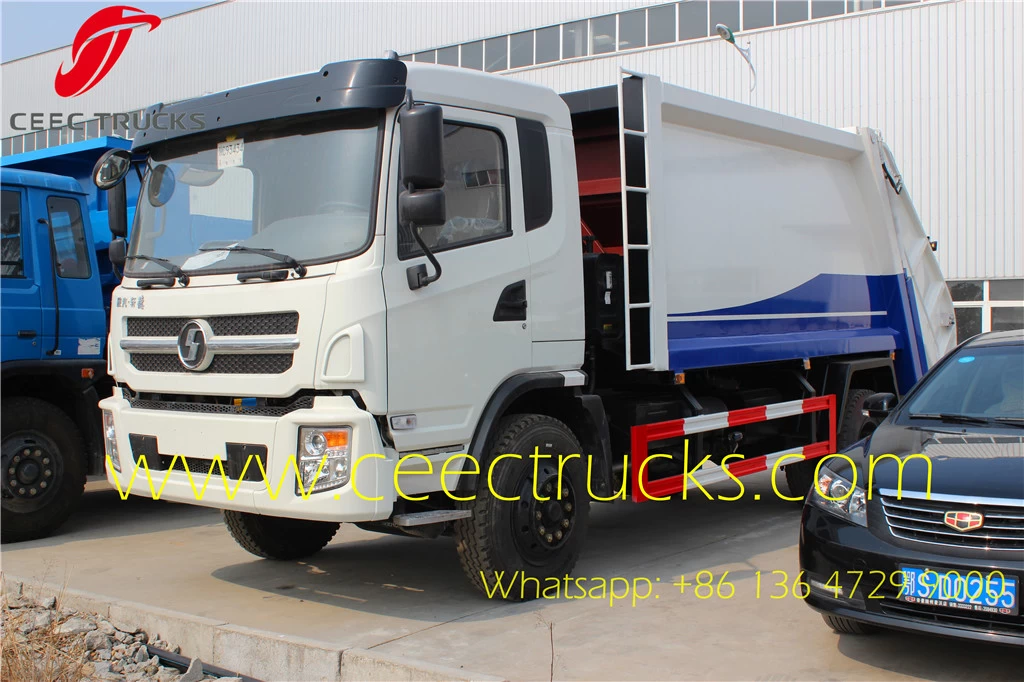

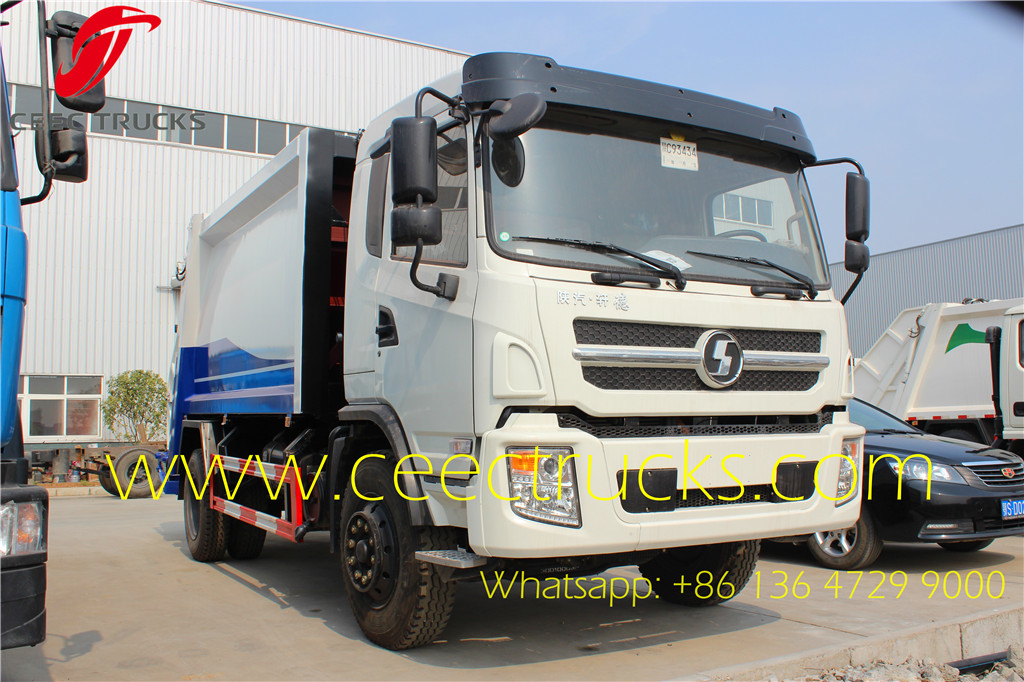

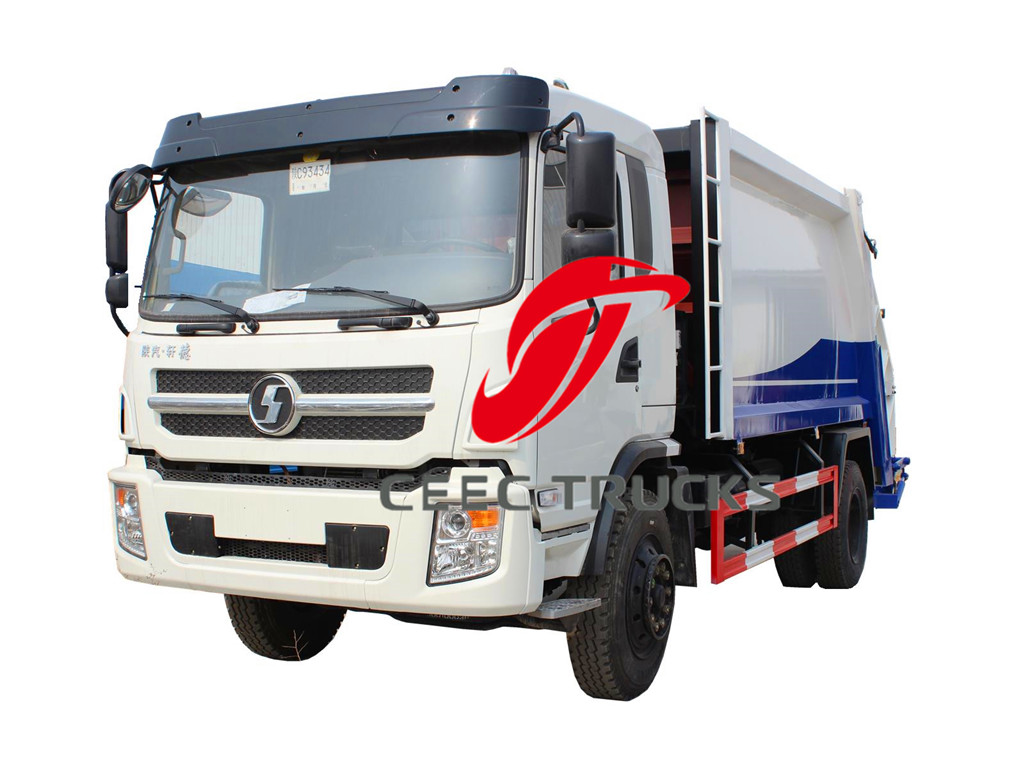

SHACMAN 12 m³ garbage compactor

Waste collection compactor trucks 12 CBM capacity. SHACMAN 6 wheel chassis, best quality YUCHAI 210HP engine, 5-shift manual gearbox, TOP design carbon steel compactor body, thickness for side and floor 5mm, all painting and logos required



Professional compression garbage truck manufacturer CEEC TRUCKS can supply Isuzu refuse compressor truck, beiben heavy duty compactor truck, dongfeng waste management trucks, etc. and our 4 CBM trash compactor truck, 8 CBM refuse compressed vehicle and 16CBM compressor garbage trucks are widely export Phillippines, Dominica, Myanmar, Malaysia, Kenya, Tanzania, South Africa, Fiji, Ecuador, etc.



SHACMAN 12 CBM compressed refuse tanker vehicle supplier

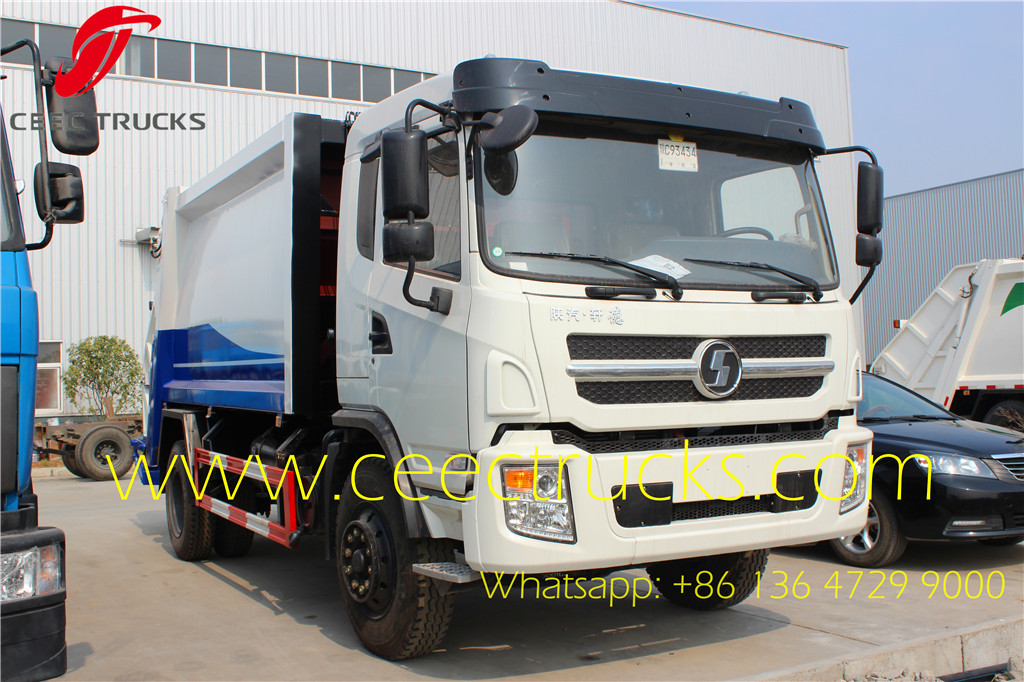

SHACMAN 12 cbm refuse compactor truck



Features for SHACMAN 12 m³ refuse compactor trucks:

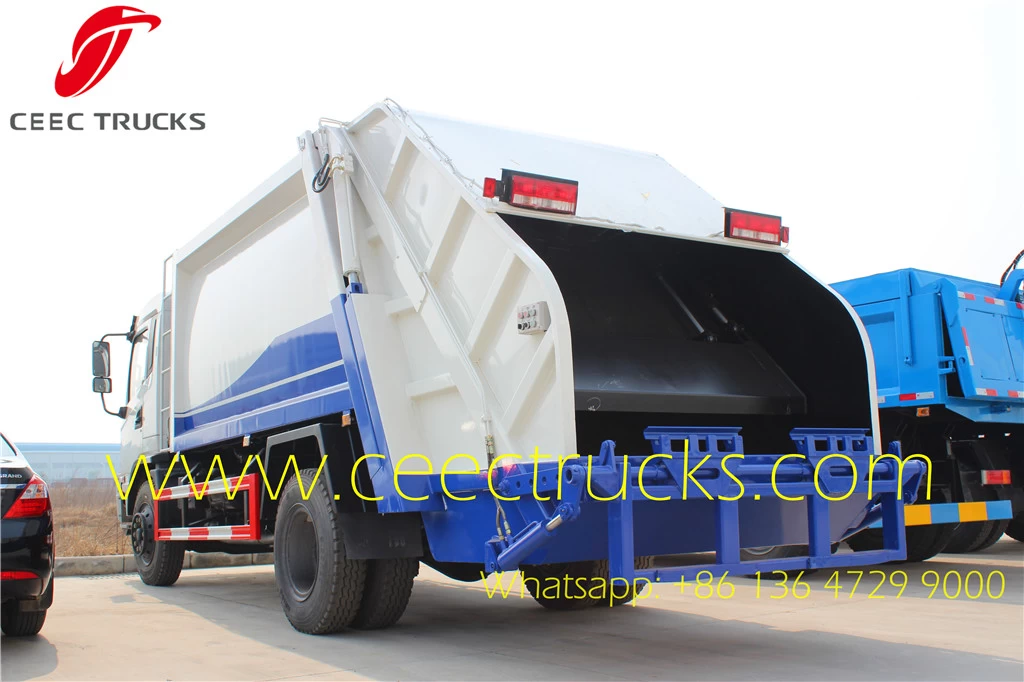

1,Can load 240L(single bin)or 360L standard garbage bins with hydraulic operation system. One truck can deal with lots of garbage bins, used to collect living garbage can transport the waste to the waste stations.

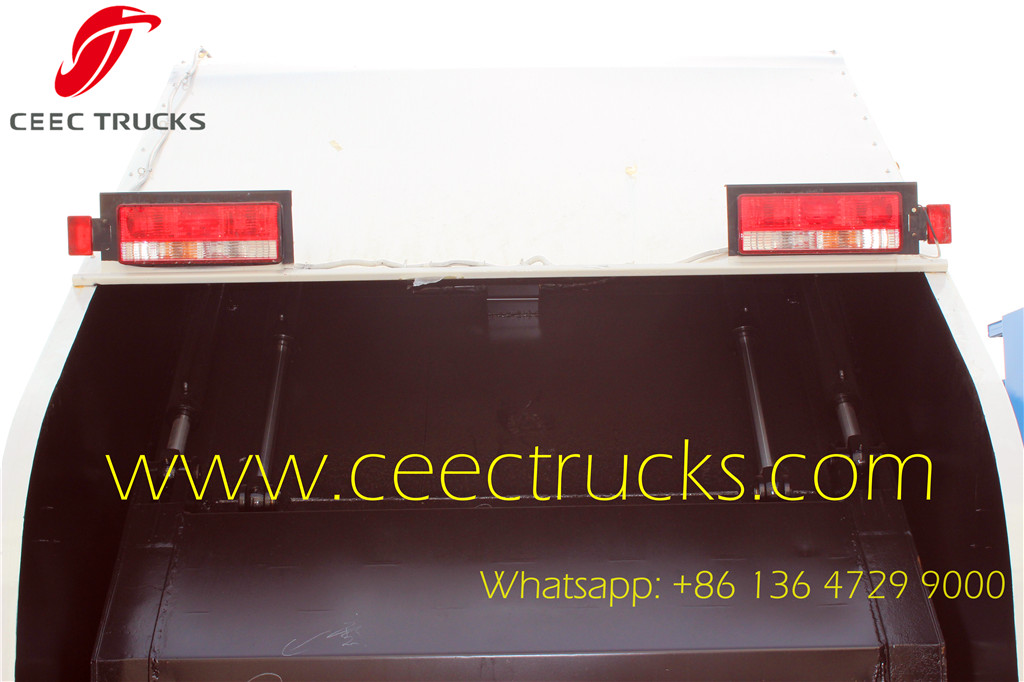

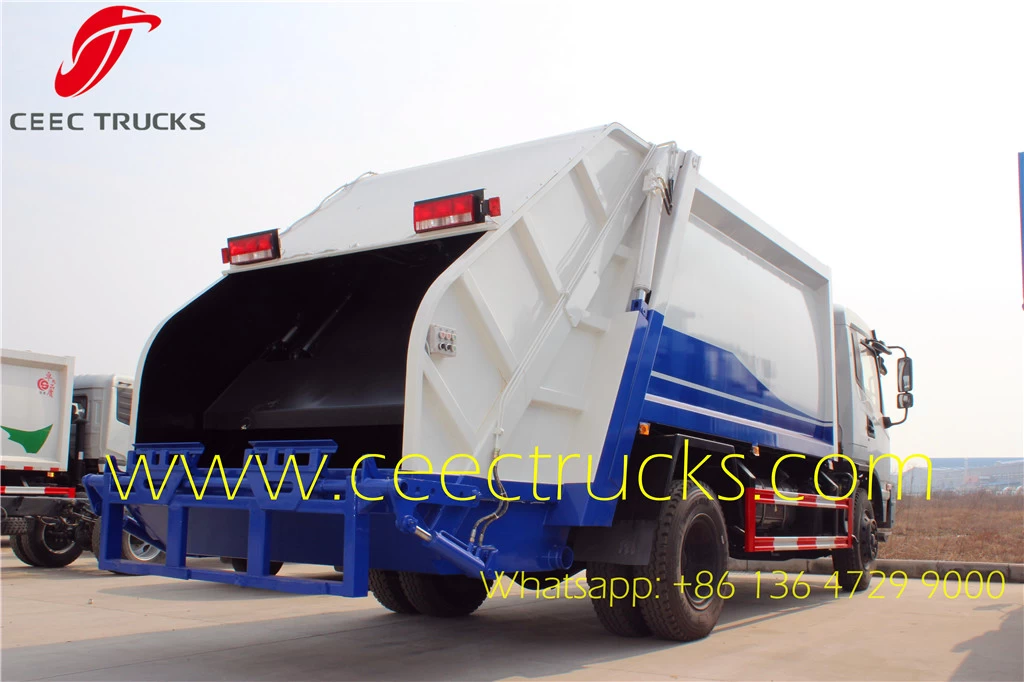

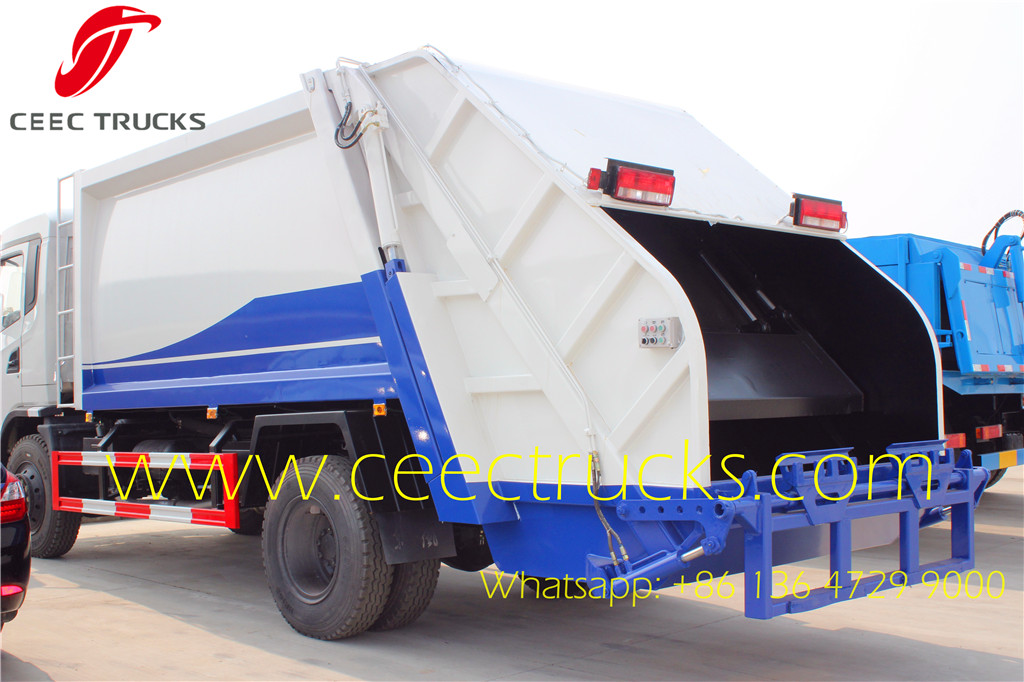

2,With manual and automatic control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient. Rear door can open and self dumping.

3, The garbage truck we produce has the advantages of simple structure, convenient operation, high efficiency, high degree of mechanization and manpower saving.

4, The modified part can be separated from chassis, so it is easy to maintain and the mobility & readability of the truck are kept.

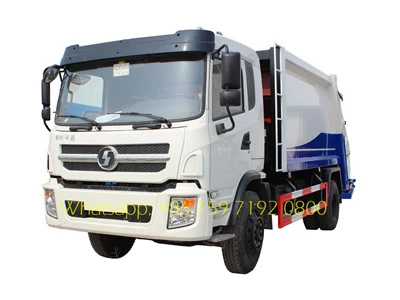

SHACMAN 12 CBM compactor trucks



Lowest price best selling models mainly as below: 5 CBM garbage compactor trucks, 8 CBM compressed garbage truck, 12 CBM refuse compression truck, 20 CBM trash compactor trucks. with ISUZU, Dongfeng, Foton, Dongfeng chassis LHD / RHD for optional.

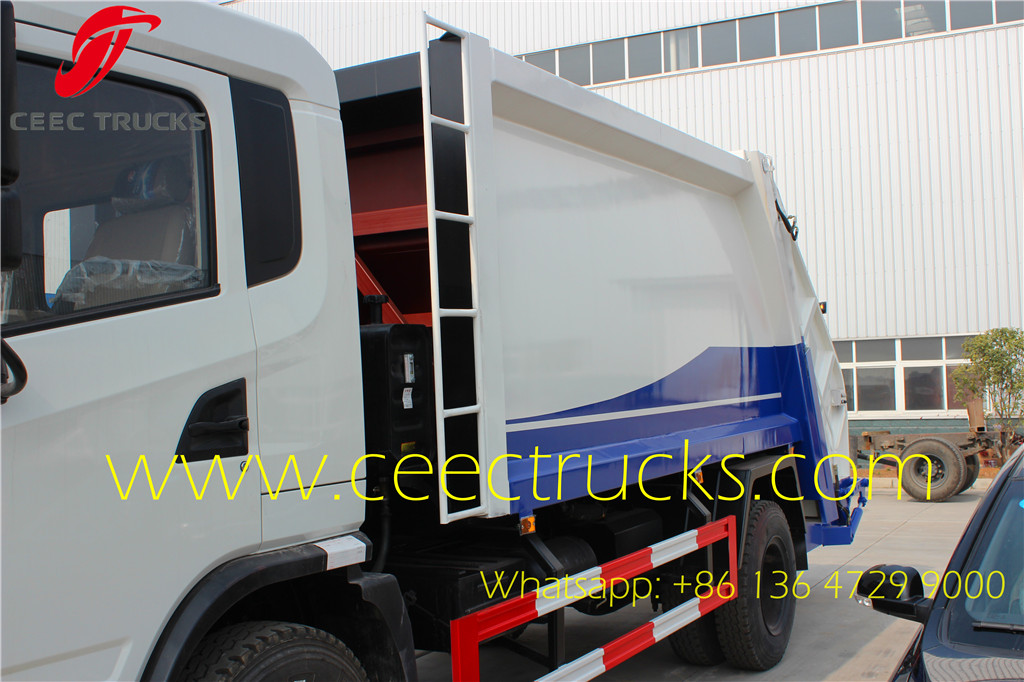

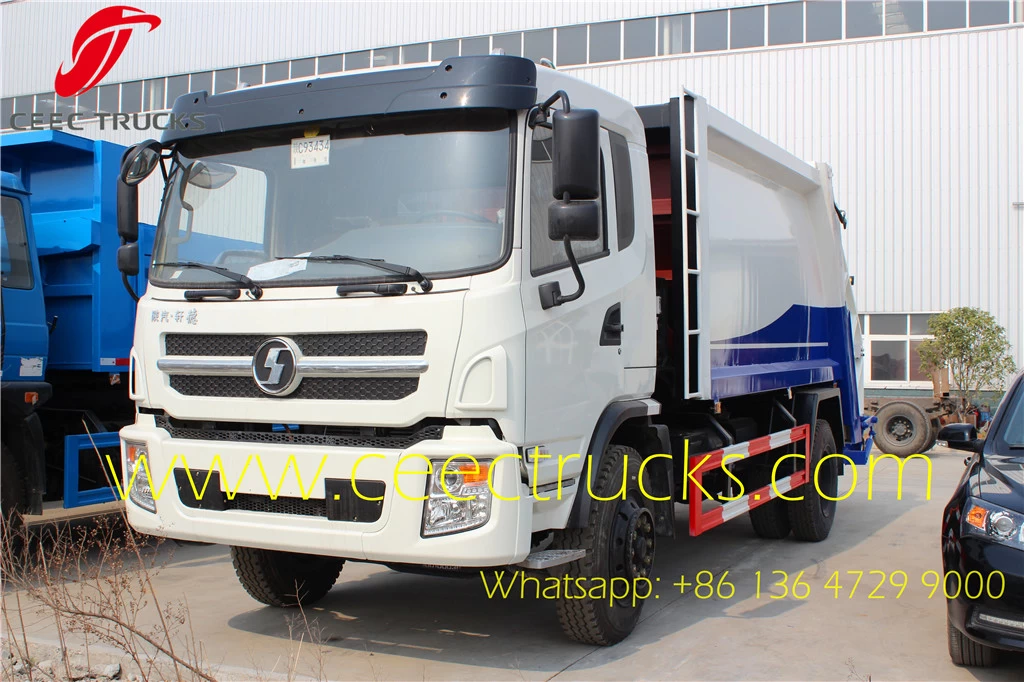

SHACMAN 12 cbm refuse compactor trucks sale



SHACMAN 12 cbm refuse compactor trucks sale



SHACMAN 12 cbm refuse compactor trucks sale



SHACMAN 12 cbm refuse compactor trucks sale



Similar Key Words: SHACMAN garbage compactor trucks, China 12 CBM trash compressor trucks, rubbish collection compactor, waste management trucks, SHACMAN 12000 liters compactor trucks, Africa garbage compactor, bin lorry supplier



Main specification

Product model and name

CEEC5160ZYS  12CBM SHACMAN compactor garbage truck

Gross weight(Kg)

16000

Drive type

4X2, LHD

Curb weight(Kg)

10505

Overall dimension(mm)

8850X2500X3150

Approach/departure angle(°)

20/12

Cab seats

3

Axle No.

2

Front/rear hang(mm)

1450/2800

Axle load(Kg)

6000/10000

Wheelbase(mm)

4500

Max speed(Km/h)

90





Chassis specification

Chassis model

SX3160

Manufacturer

ShanXi Shacman Motor Co., Ltd

Brand name

SHACMAN

Dimension(mm)

7790×2460×2840

Tyre specification

10.00-20

Tire No.

6+1(one spare tire)

Steel spring number

8/10+8

Front track base(mm)

1940

Fuel type

Diesel

Rear track base(mm)

1860

Emission standard

Euro III

Transmission

5 forward gear, 1reverse gear

Cab

Single row, Luxurious interior trim with power steering and A/C

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

YC6J210N

GuangXi YuChai Engine Co.,Ltd

6494

155(210HP)

Performance

Box volume

12-14cbm

Box material

Q235

Box dimension

Side 4mm,buttom 4mm

Operation control system

Manual + Automatic

Main Characteristic

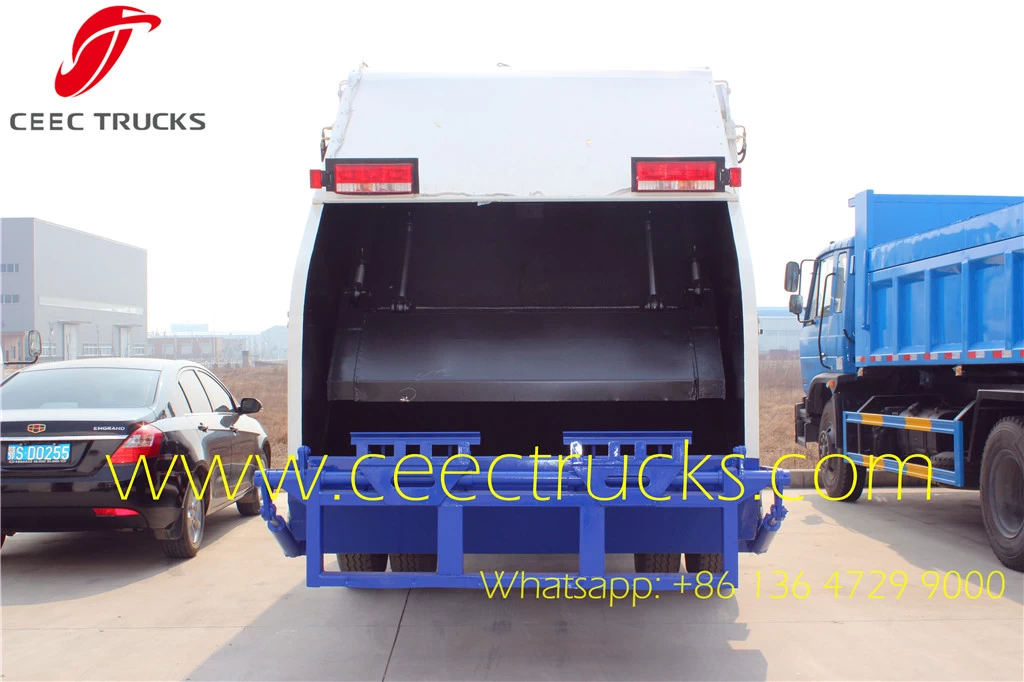

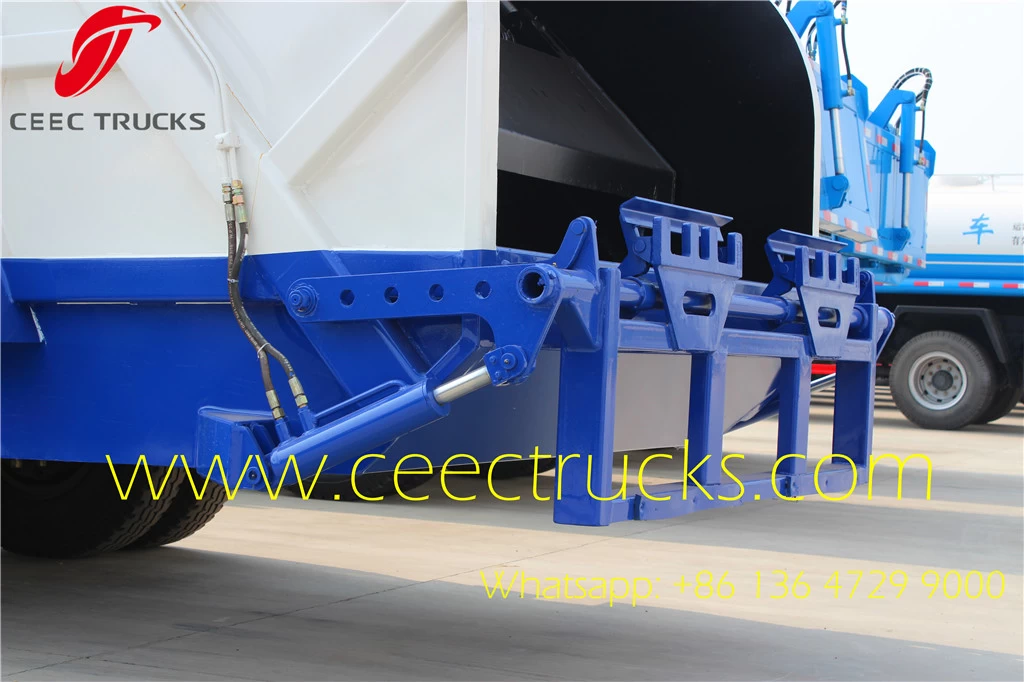

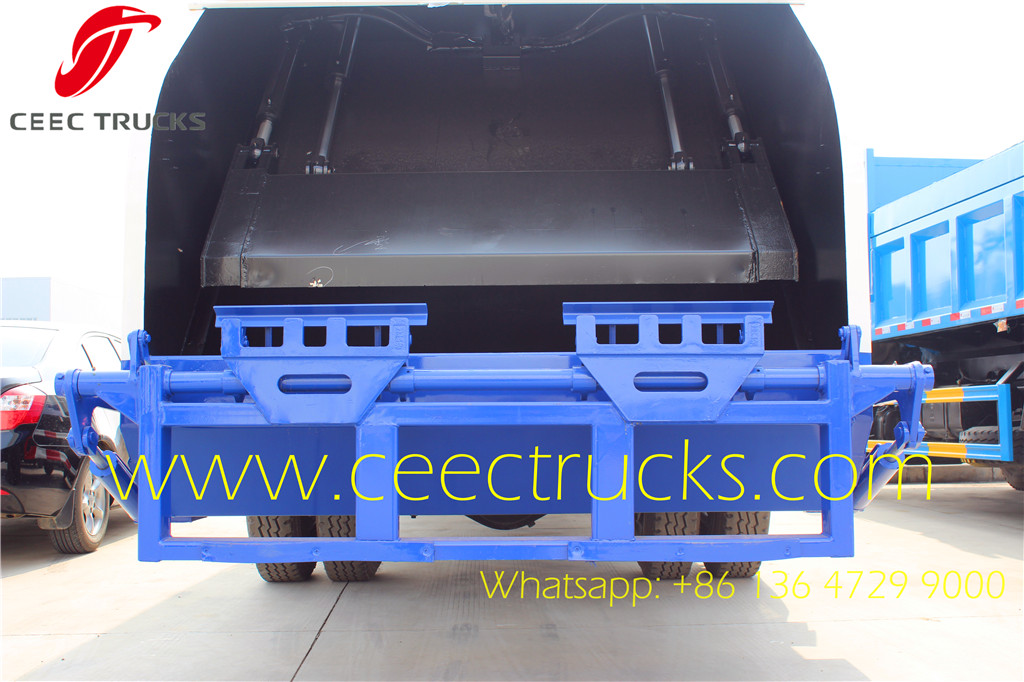

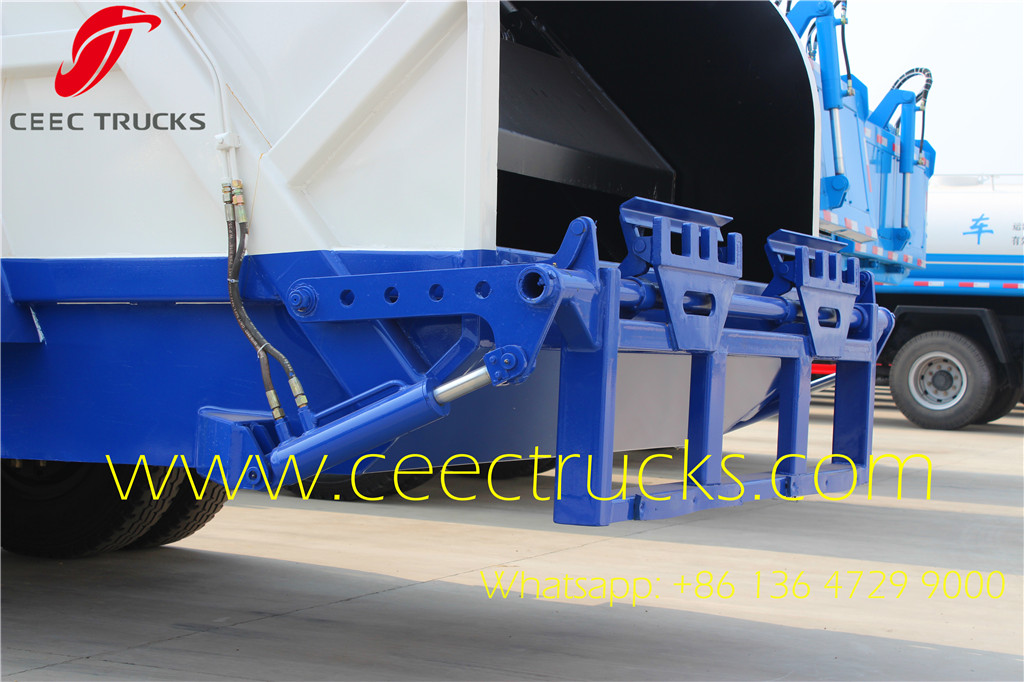

1,Can choose 240L(single bin, double bins)or 360L,660L,1100L standard lifting and turnover device(plastic or steel garbage bin), can also choose ground hopper ,swing arm device or other kinds of loading device.

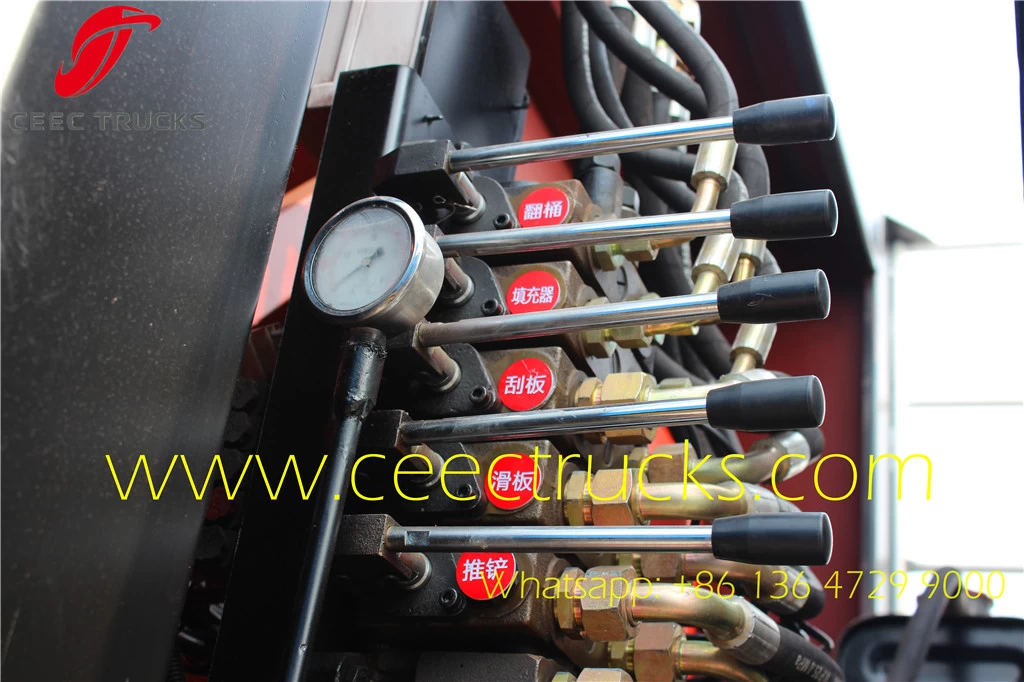

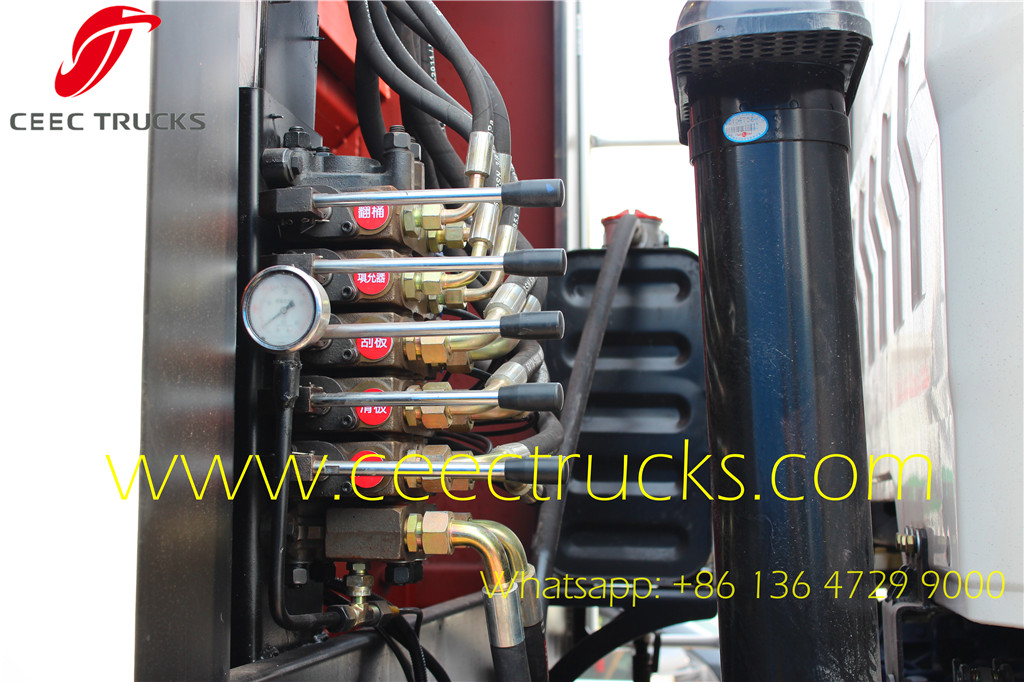

2,With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient. With working device of emergency braking stop button.
3,Garbage body use frame design, elegant, strong structure, large effective capacity.

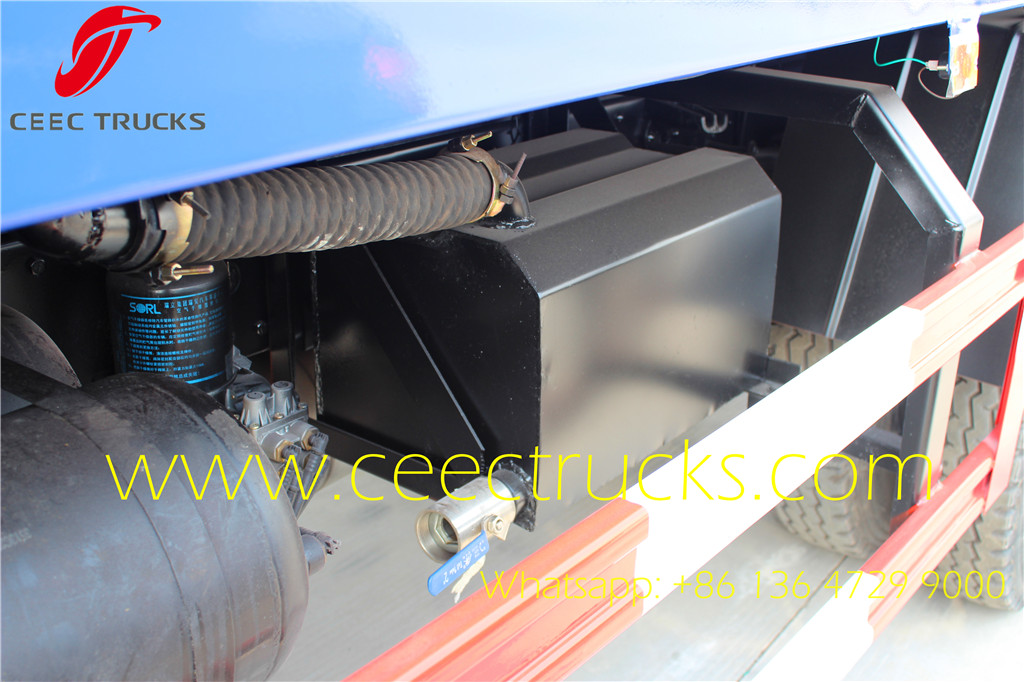

4,Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks.

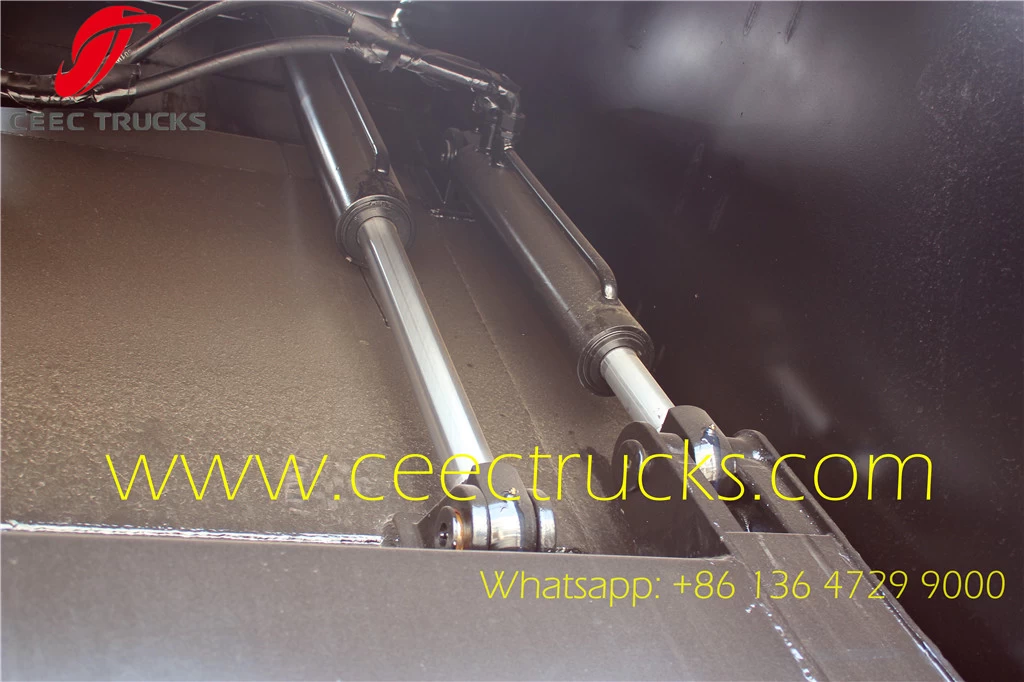

5,Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600~800kg/m3 after compression.



SHACMAN 12 cbm refuse compactor trucks sale



SHACMAN 12 cbm refuse compactor trucks sale    SHACMAN 12 cbm refuse compactor trucks sale



2016 newly model Garbage compactor trucks on sale
