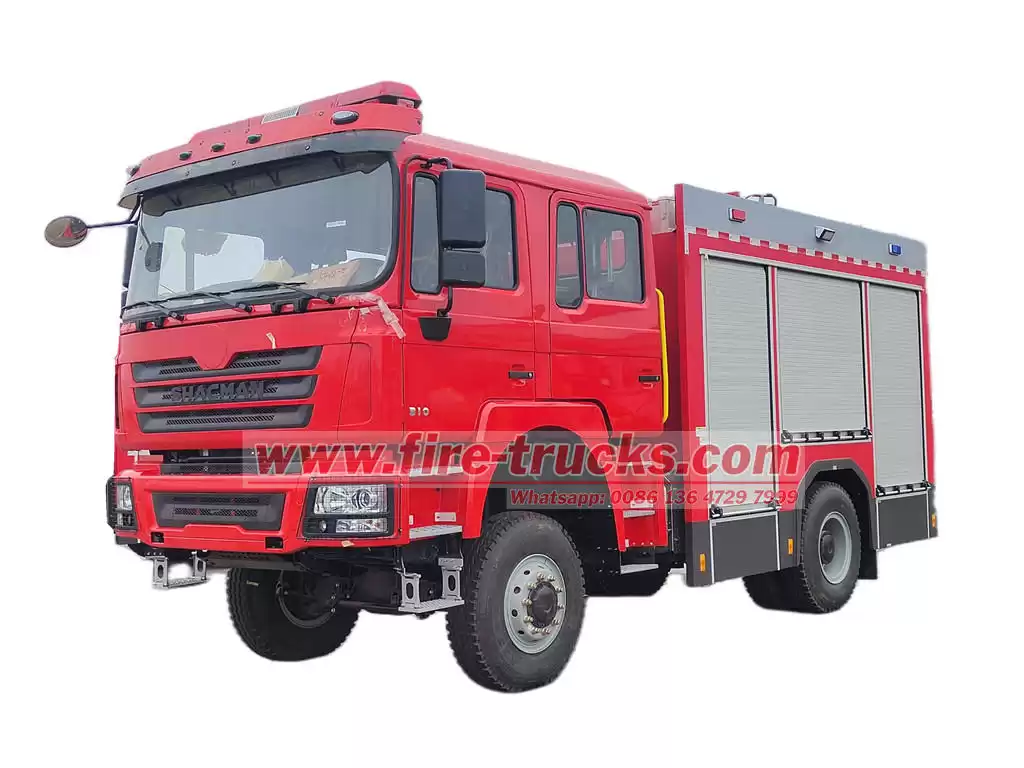

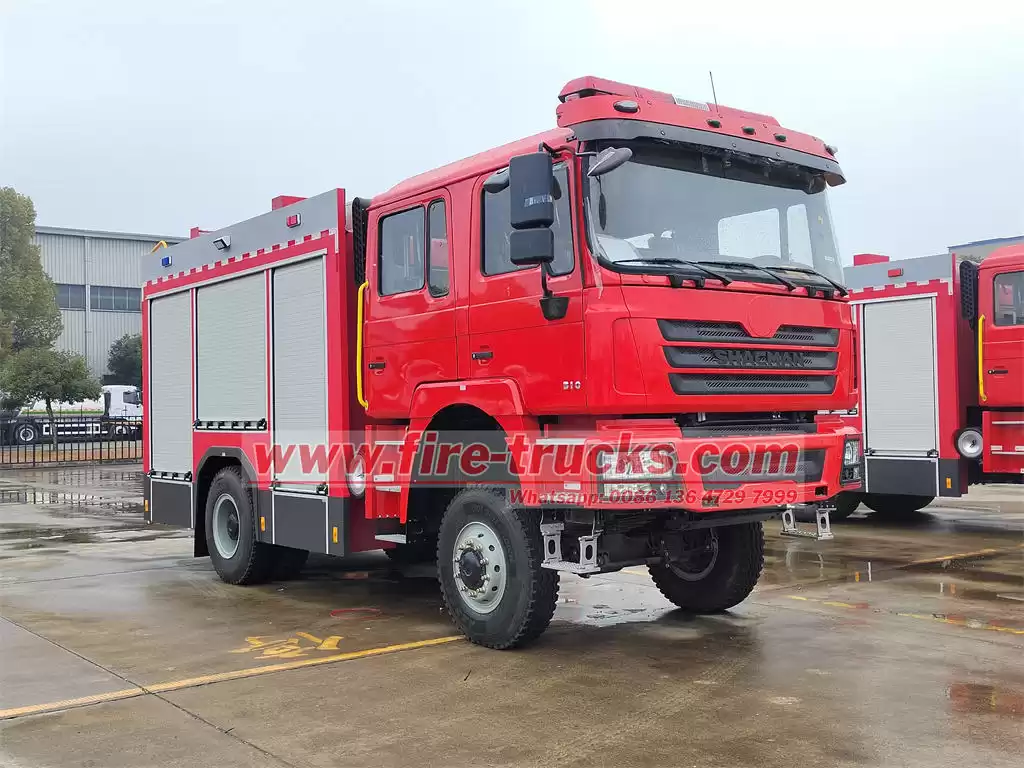

The SHACMAN 4×4 water fire truck is a multifunctional special vehicle designed for firefighting and rescue missions, integrating efficient fire suppression, rapid response, and the ability to navigate complex terrains. As a heavy-duty fire truck with 4×4 all-wheel drive, it is not only suitable for urban firefighting tasks but also plays a crucial role in complex environments such as forests, mountainous regions, and oil fields. Its core function is to quickly extinguish fires and control their spread through a large-capacity water tank and high-efficiency firefighting equipment, while providing firefighters with a safe and reliable operating environment.

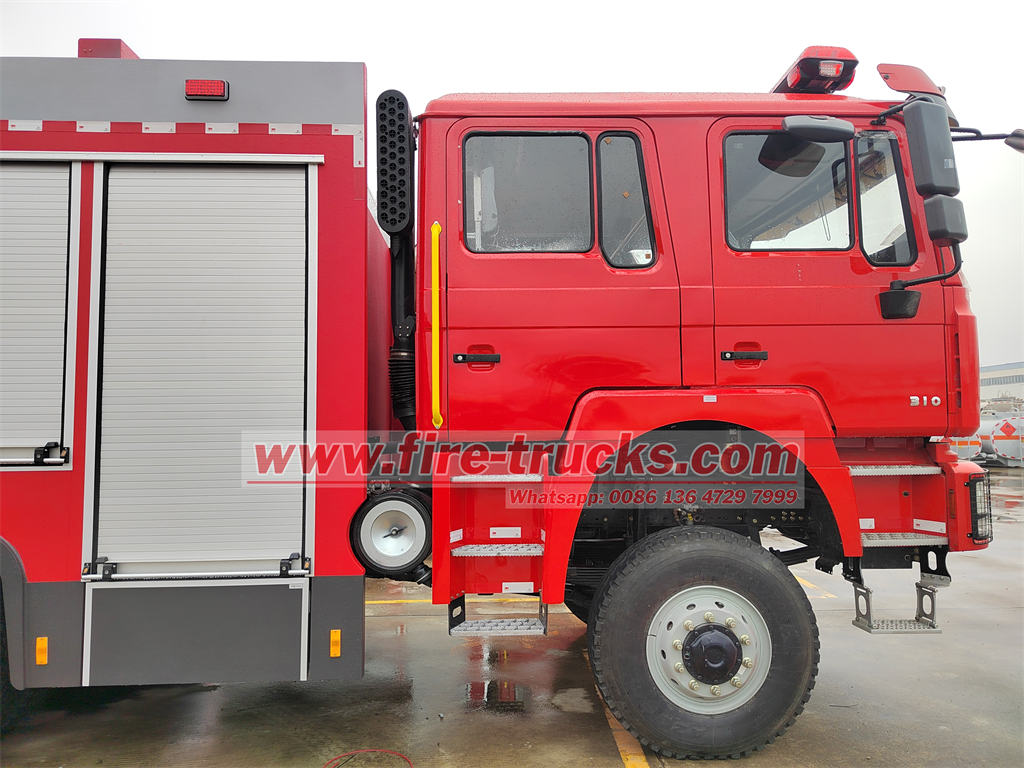

The chassis of the SHACMAN 4×4 fire tender truck is the SHACMAN F3000 double-row cab design, equipped with an air conditioning system to provide a comfortable working environment for firefighters. The cab can accommodate five firefighters (2+3 seating arrangement), ensuring efficient teamwork. The vehicle is powered by the WP10.310E32 engine, a 6-cylinder diesel engine with a displacement of 9726 ml, a maximum output of 310 horsepower (228 kW), and a maximum torque of 1250 N·m, complying with EURO 3 emission standards. Paired with the FAST 9-speed transmission, the vehicle maintains smooth power output and high fuel efficiency in various road conditions.

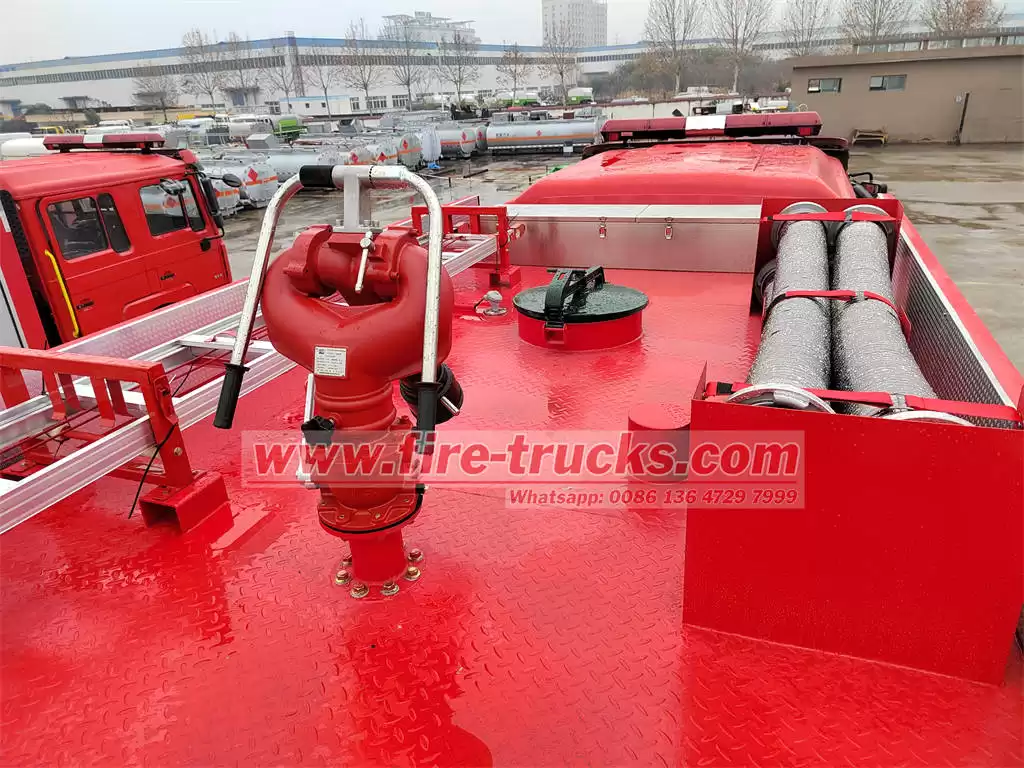

One of the core advantages of the SHACMAN 4×4 fire truck is its super-large-capacity water tank. With a capacity of up to 6000 liters, the water tank is made of high-quality carbon steel and treated with anti-corrosion coatings, ensuring durability and resistance to corrosion. The vehicle is equipped with a CB10/60 centrifugal fire pump, with a rated flow of 60 liters per second and a maximum suction depth of 7 meters, enabling rapid water extraction and efficient firefighting. Additionally, the vehicle features a PS8/60W fire monitor, with a rated flow of 60 liters per second, a rated pressure of 0.8 MPa, an elevation angle of up to 70°, a depression angle of up to -30°, and a range of over 70 meters. Whether for close-range firefighting or long-distance water discharge, the SHACMAN 4×4 water tender fire truck is fully capable.
In addition to its core firefighting equipment, the SHACMAN 4×4 water tender fire truck is equipped with various auxiliary devices, further enhancing its rescue capabilities. The vehicle is fitted with a high-brightness lighting system, ensuring efficient operation in nighttime or low-visibility environments. The alarm system and communication equipment enable the vehicle to respond quickly in emergencies and coordinate with other rescue units. Furthermore, the vehicle is equipped with a variety of tools and equipment, such as fire hoses, demolition tools, and first aid kits, providing comprehensive support for firefighters.
Product Specifications
|
Product Name
|
SHACMAN 4×4 water tender fire truck
|
|
Driving Type
|
4×4, left hand drive
|
|
WEIGHT
|
|
Gross Vehicle Weight
|
18000 kg
|
|
Curb Weight
|
11000kg
|
|
Dimensions
|
|
Wheelbase
|
4600 mm
|
|
Overall Size
|
8500x2500x3650 mm
|
|
Front/rear overhang
|
1765/1890 mm
|
|
ENGINE
|
|
Engine Model
|
WP10.310E32
|
|
No of Cylinder
|
6
|
|
Displacement
|
9726ml
|
|
Max Output
|
310HP (228KW)
|
|
Emission Standard
|
EURO 3
|
|
Rated Speed
|
2200 rpm
|
|
Max. torque
|
1250 N.m
|
|
DRIVE TYPE
|
|
Transmission
|
FAST 9 speeds, 9 forwards,1 reverse
|
|
Steering
|
With power steering
|
|
Brake
|
Air brake
|
|
Front axle/rear axle
|
6.3T/13T
|
|
CAB
|
|
Cabin
|
SHACMAN F3000
|
|
Configuration
|
With A/C
|
|
Seat quantity
|
Double row, 2+3 seats
|
|
TIRE
|
|
Tire specification
|
12.00R20, 6+1 pcs
|
|
Upper body
|
|
Water Tank Capacity
|
6000 liters
|
|
Tank Material
|
Q235 carbon steel, stainless steel is optional
|
|
Pipe Material
|
Q235 carbon steel
|
|

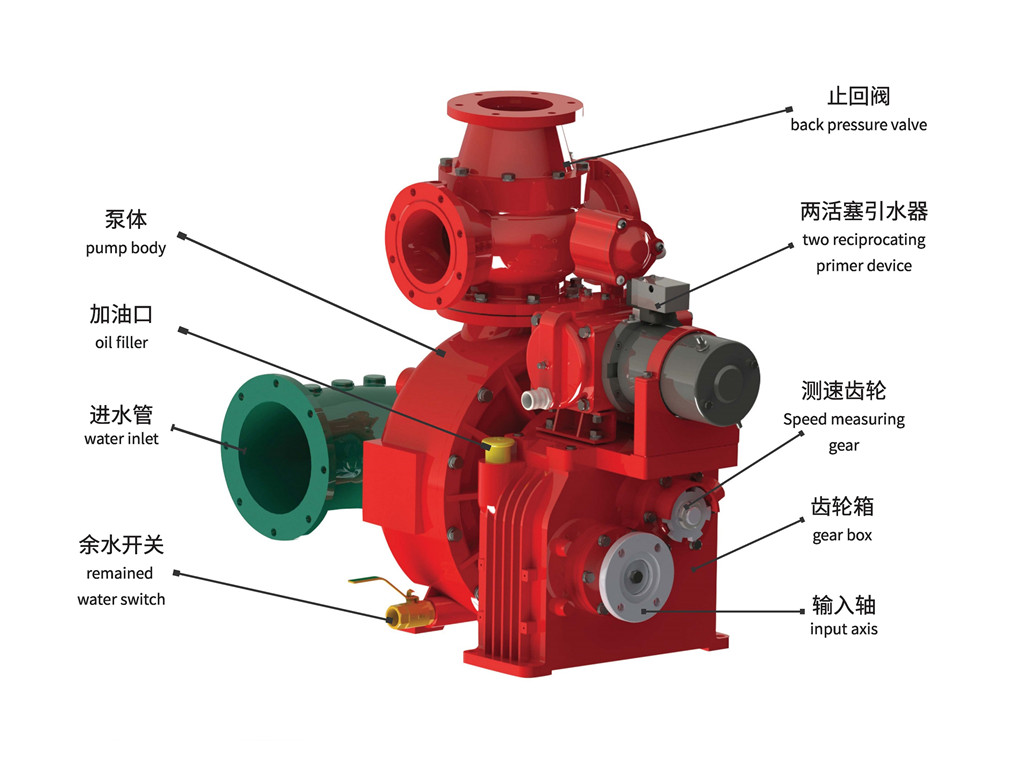

Fire Pump
|
Model: CB10/60
|
|
Type: Centrifugal fire pump
|
|
Rated flow: 60L/s @1.0MPa
|
|
Rated outlet pressure: 1.0 Mpa
|
|
Max. suction depth: 7m
|
|
Fire Monitor
|
Model: PS8/60W
|
|
Rated flow: 60L/s
|
|
Rated pressure: 0.8 Mpa
|
|
Elevation angle: ≥70°
|
|
Depression angle: ≤-30°
|
|
Range: ≥70 m
|
Product Drawing
Product Features

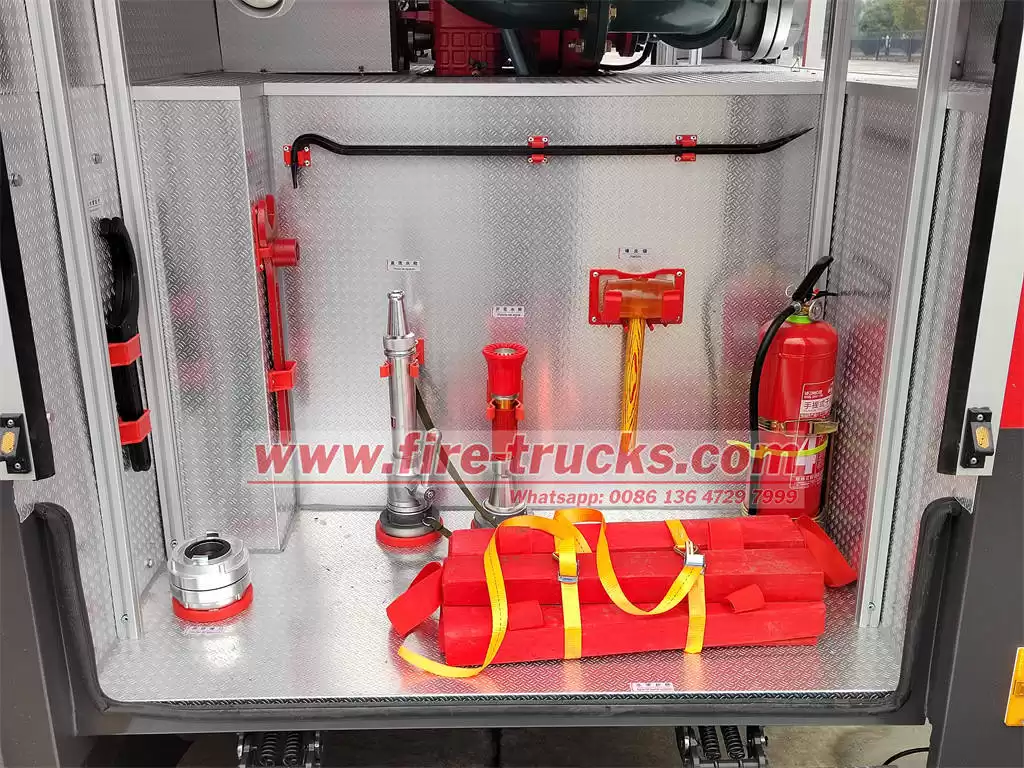

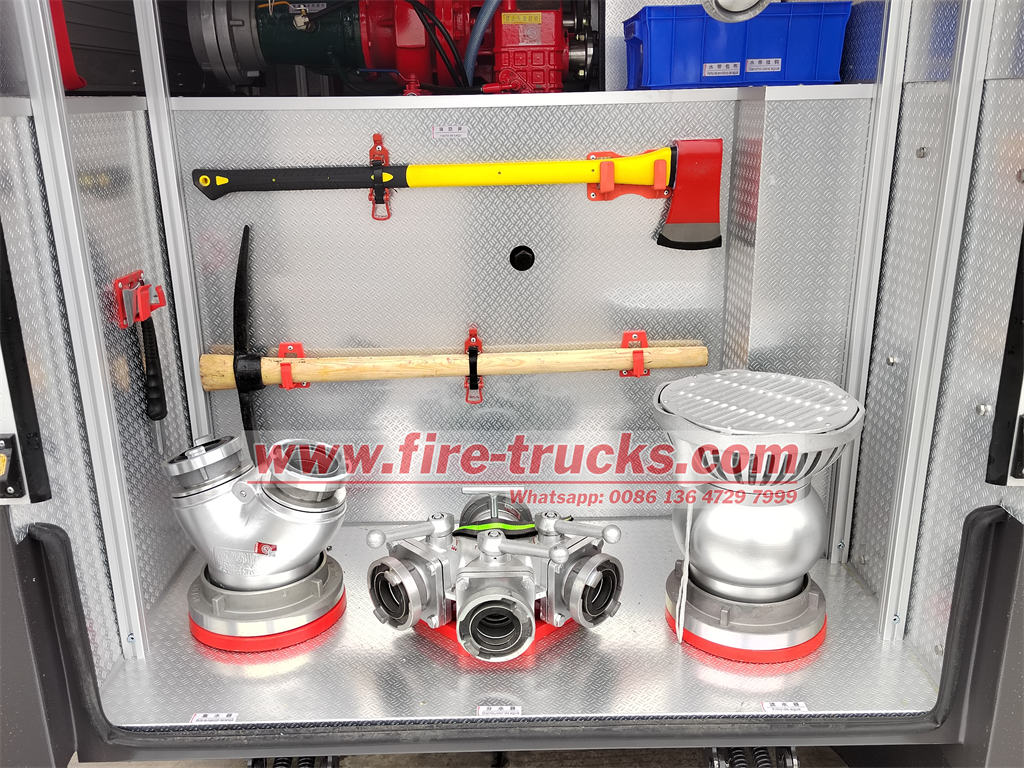

The equipment room is equipped with a variety of fire hose connectors and various fire-fighting equipment.

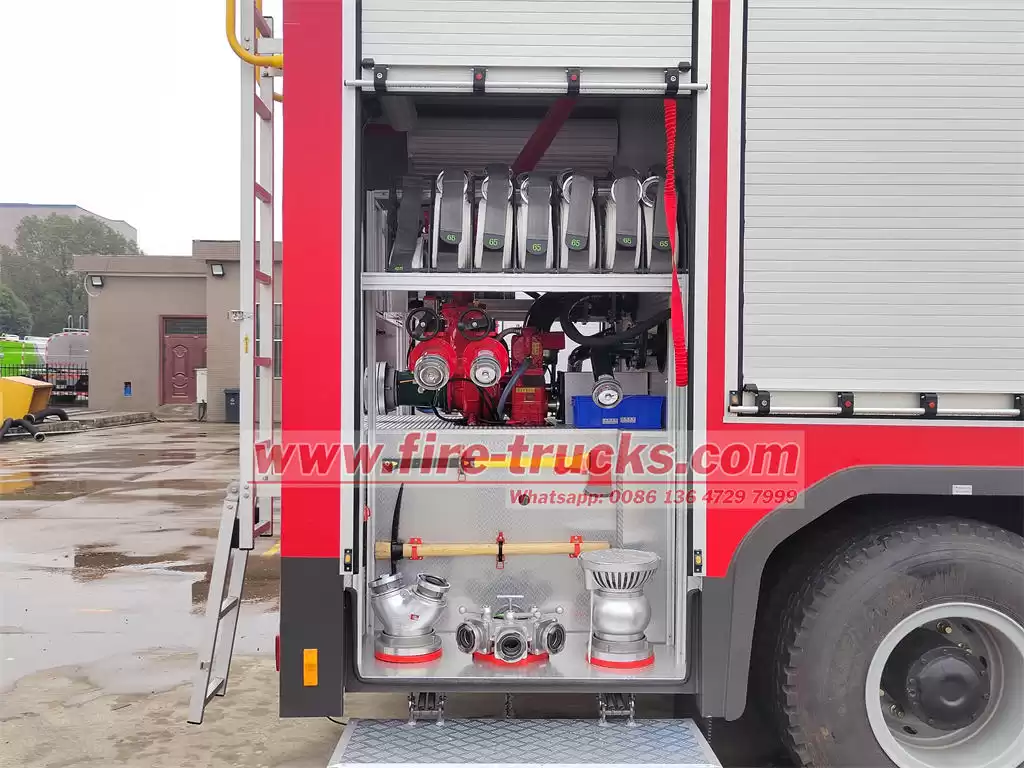

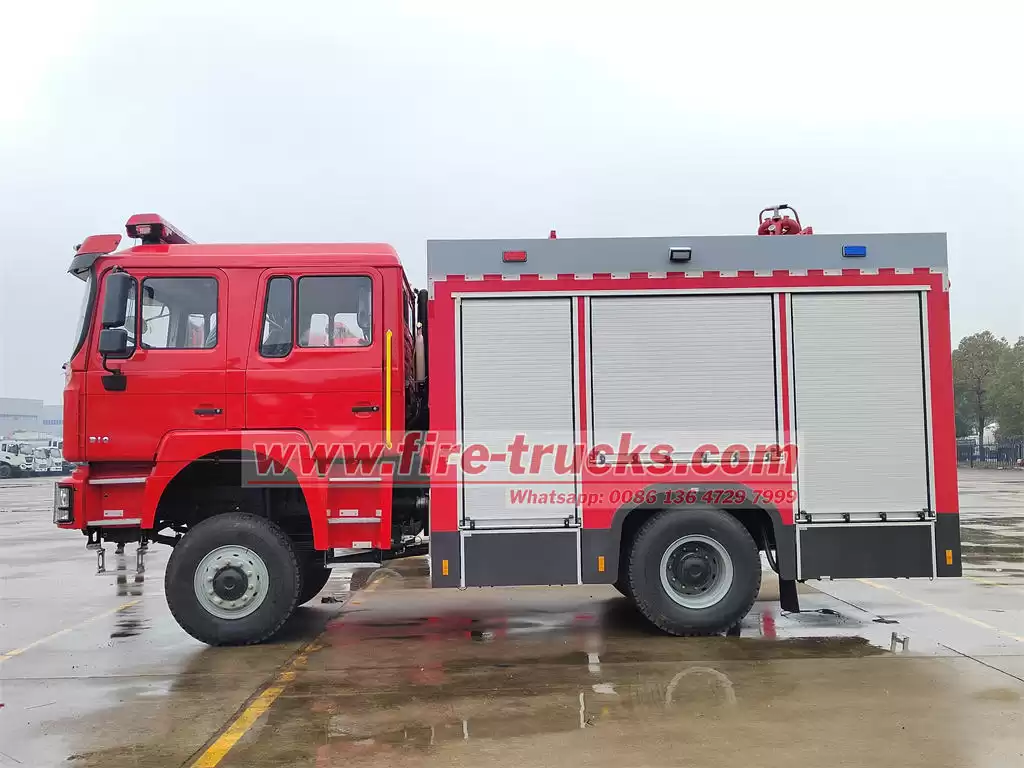

The pump room is installed at the rear, with aluminum alloy rolling shutter doors on both sides and the back, and lighting and common equipment installed inside

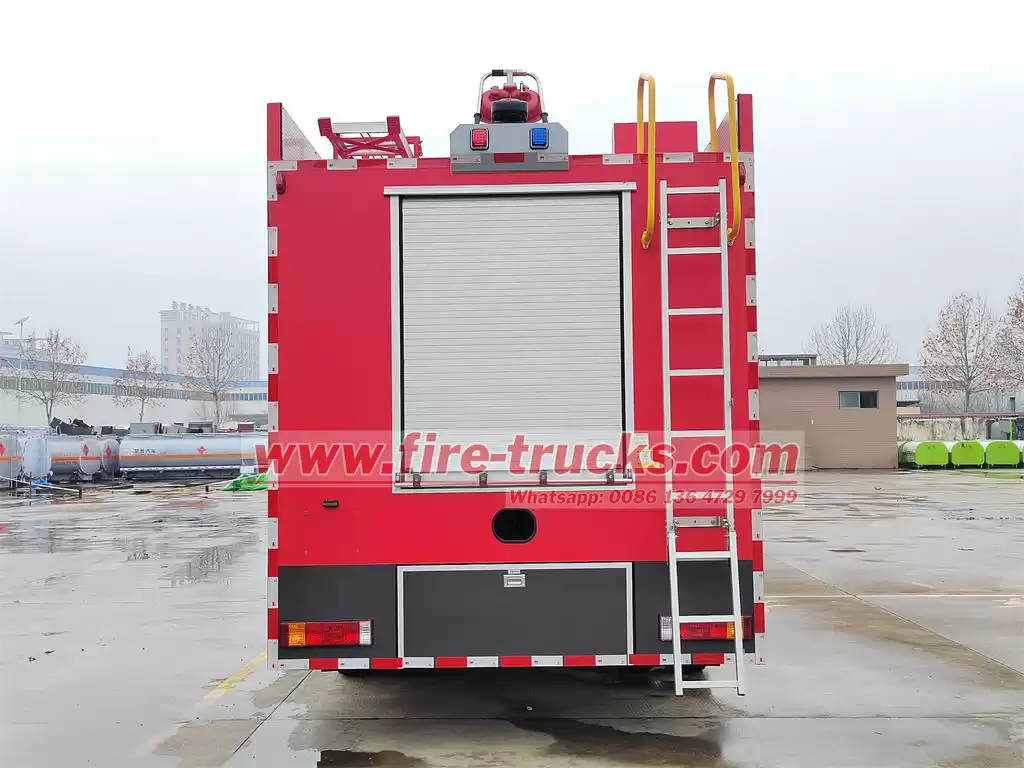

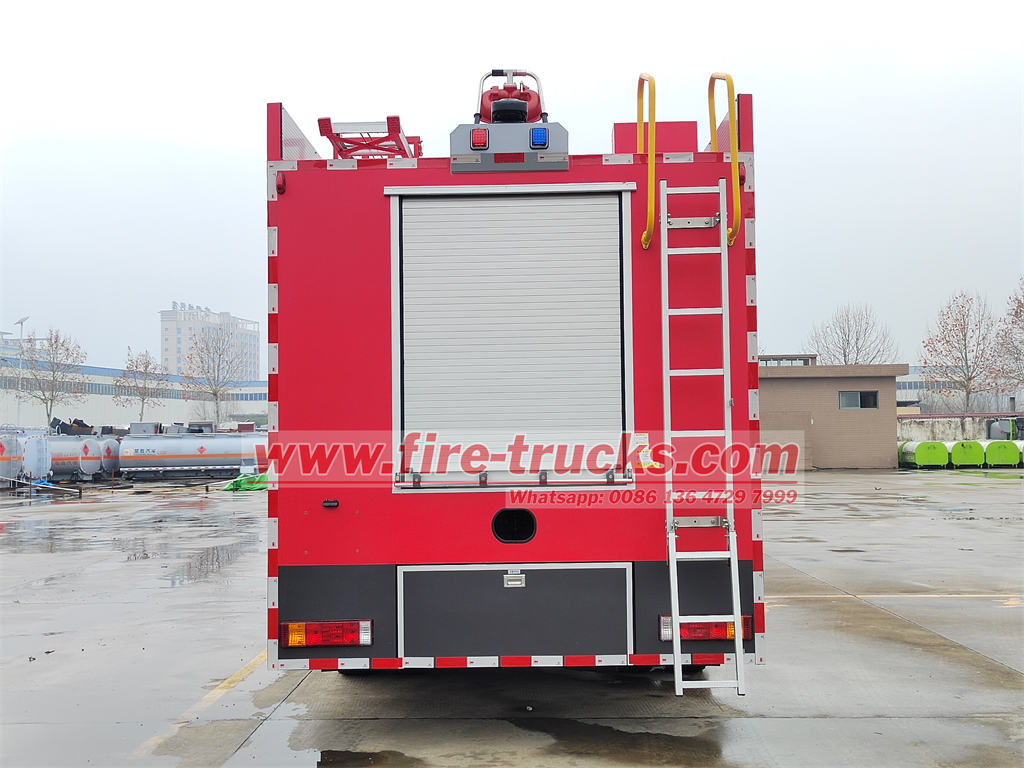

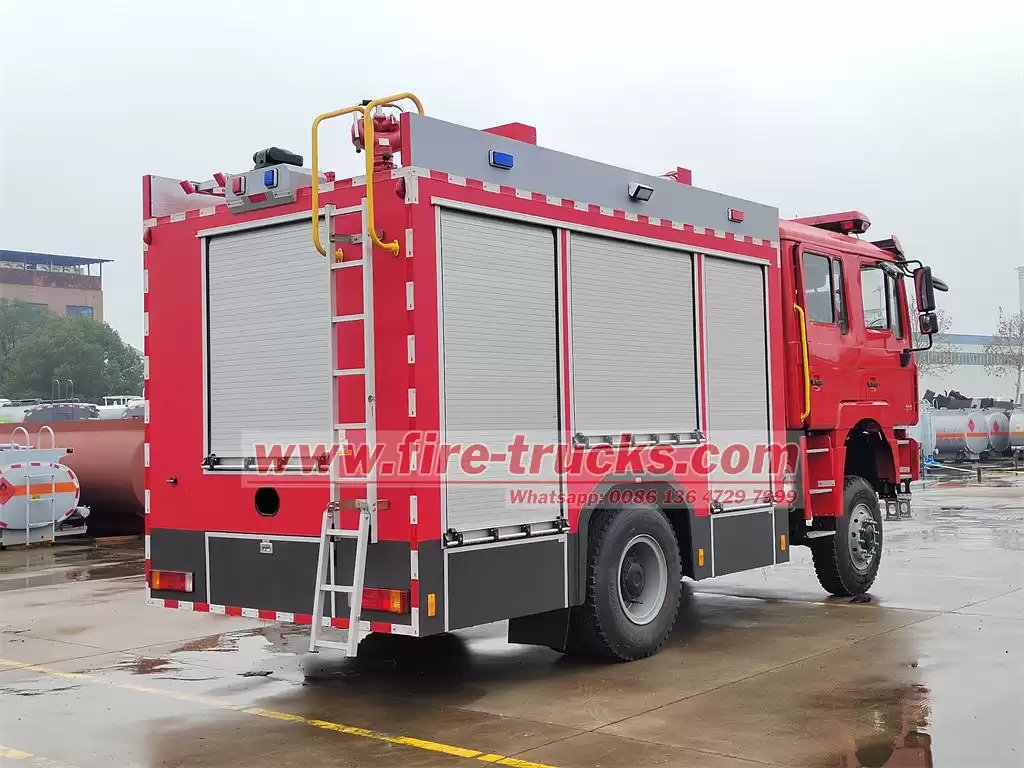

The rear of the vehicle is equipped with a two-section aluminum alloy flip ladder, which is no more than 450mm from the ground when in use.
Intelligent control system, intuitive management of the working status of each component, simple operation
