Product name: Sheet Metal Roof Top Ridge Cap Roll forming Machine

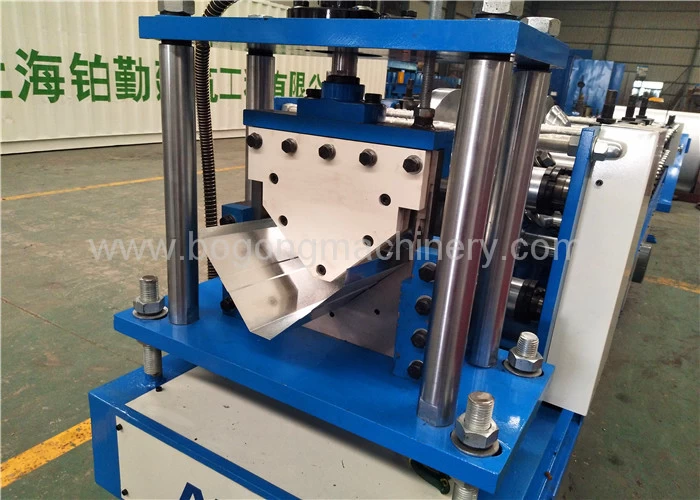

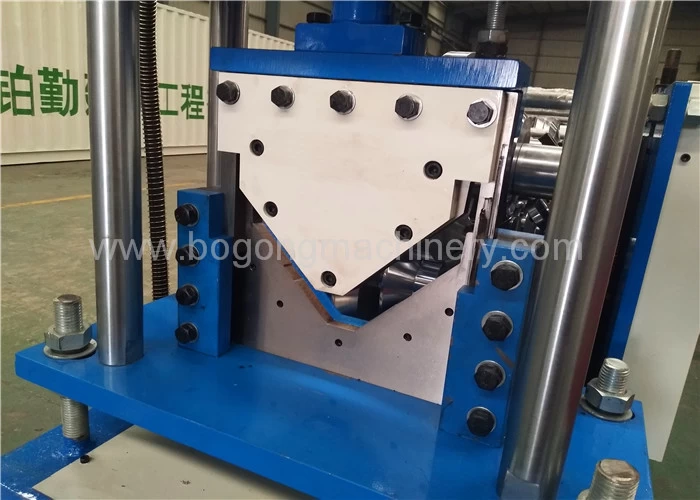

This sheet metal roof top ridge cap roll forming machine is gutter design, not round arc type with tiles design, but it is the same application on roof top as ridge cap. We choose two piece of of cutting blades to cut off, no waste.

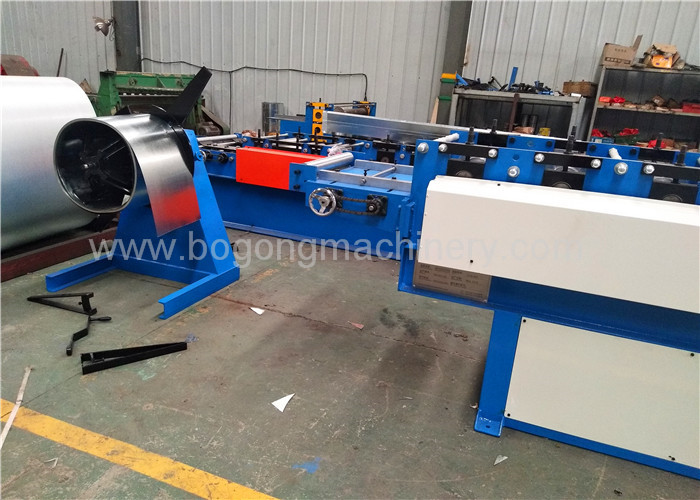

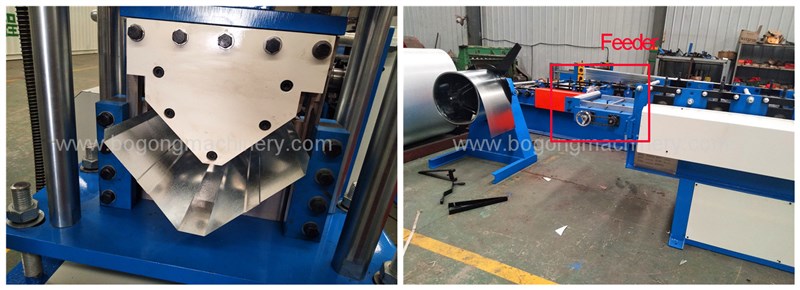

At the beginning of sheet metal roof top ridge cap roll forming machine line, there is feeding rollers together with feeding table, good for feeding steel coil into roll forming machine section, the trip stop guider has been design, it can be used for adjusting different material width a little to make it suit for roll forming line.

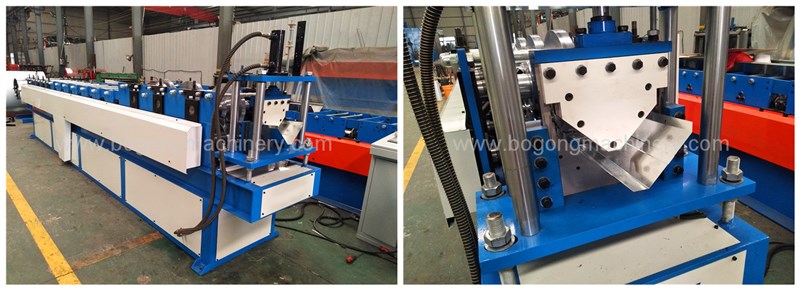

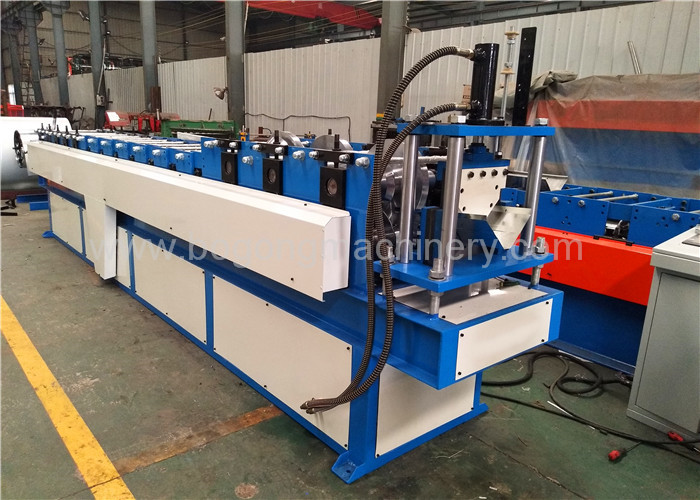

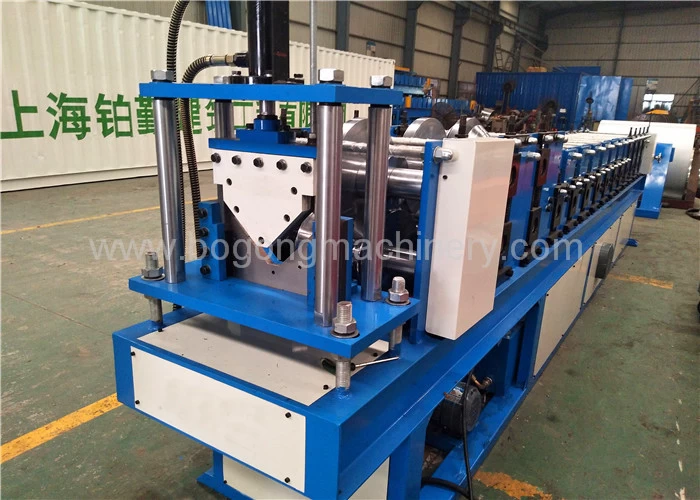

This is a portable design of metal roof ridge cap roll forming machines, 12 steps roll forming. Automatic produce, PLC control cutting length, quantity and producing speed., hydraulic system to cut off.
Technical Parameters
|
Parameters
|
Specification
|
|
Voltage
|
380V/50HZ/3PH or customized
|
|
Driving Motor
|
5.5KW
|
|
Forming Steps
|
12 steps
|
|
Working Speed
|
15-18m/min
|
|
Thickness for Steel
|
0.4-0.6mm
|
|
Shaft Diameter
|
75mm
|
|
Shaft Material
|
High grade 45# forged steel
|
|
Roller Material
|
G45# steel, CNC lathe,polished and chrome plated
|
|
PLC Cabinet
|
Schneider, Delta
|
|
Encoder
|
Omron
|
|
Sprocket Wheel
|
45 steel high-frequencies quench
|
|
Cut-off System
|
Post cutting, no waste cutting
|
|
Cutting Blade Material
|
Cr12 steel
|
|
Machine Frame Material
|
Fine welded structural steel;
|
|
Roofing Material
|
PPGI, GI steel G330-550
|
|
Painted Color
|
Blue+Orange Or Customization
|
|
Overall Size
|
7500*850*1350mm
|
|
Weight
|
3000KGS
|
Our product range includes a wide range of ridge cap forming machine, ridge cap metal tile forming machine, ridge cap roofing machine and rain gutter roll forming machine. Welcome to inquiry!
