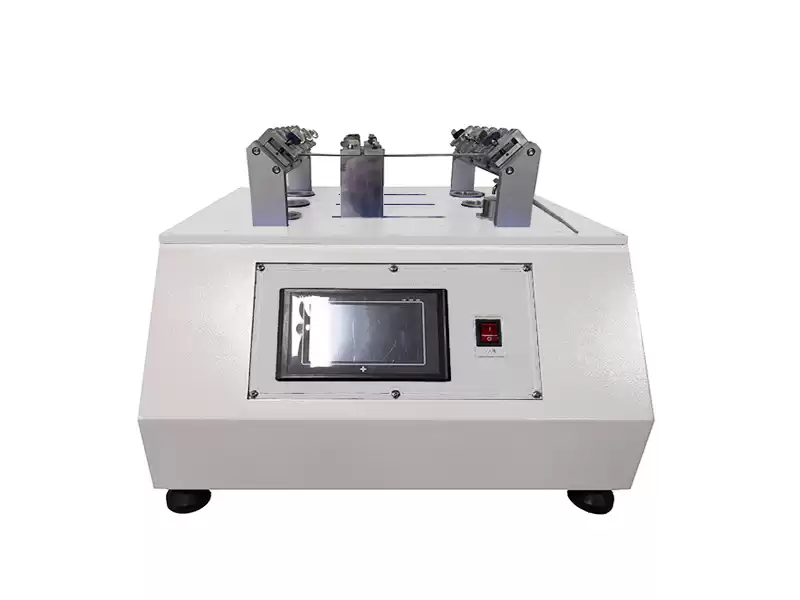

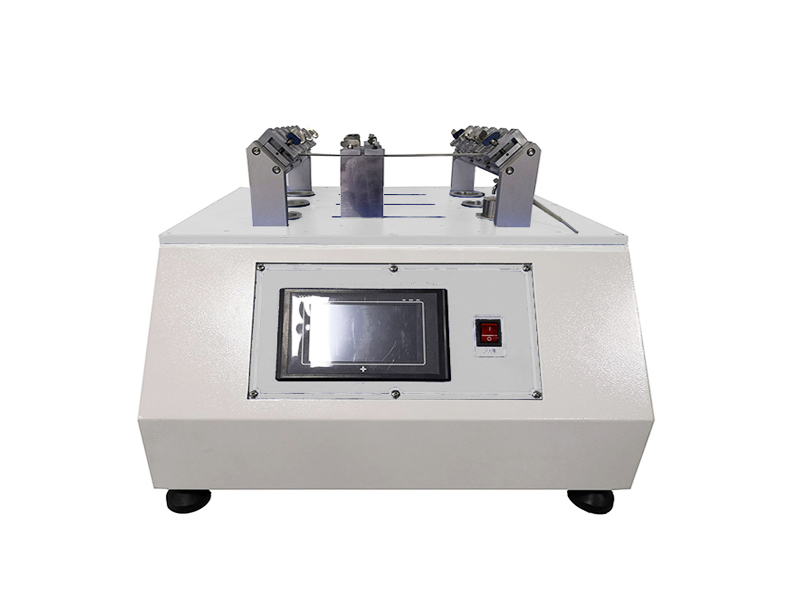

Shoe Lace Against Eyelets Abrasion Tester

Shoe Lace Against Eyelets Abrasion Tester is intended to determine the abrasion resistance of shoelace against the eyelets.

Test Standards

SATRA TM93

Parameters

Model AT-F3025-A
Test stations 6
Load(weights) 455g±5g, 6pcs  4.46N
Traveling 76±2mm
Test speed 100±5cpm
Fiberboard 25×25mm
Eyelet Brass: Ф4.5mm  Fiberboard inner diameter: 5.0±0.2mm
Counter LCD dispaly, 0~999,999
Dimension 55×56×40cm
Weight 62kg
Power supply 1Phase, AC 220V±10%, 50/60Hz

If you are looking for more lab testing equipment, please feel free to contact .
