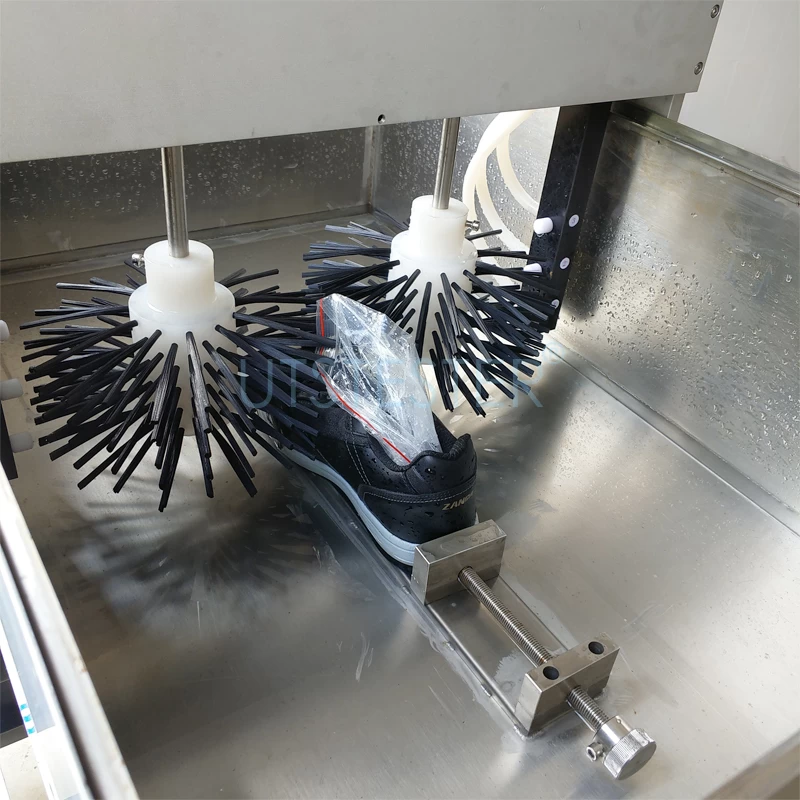

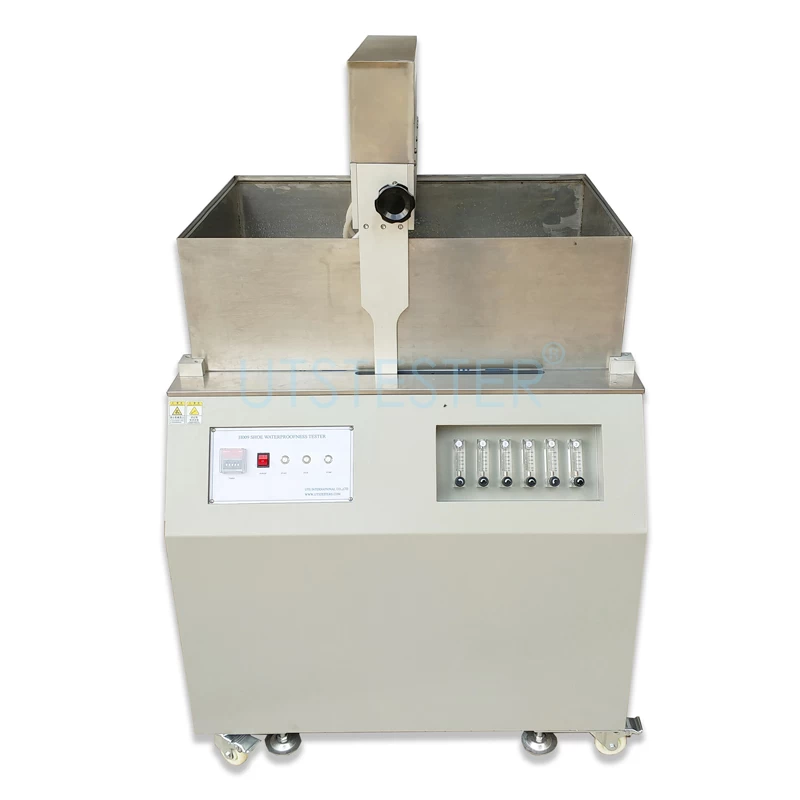

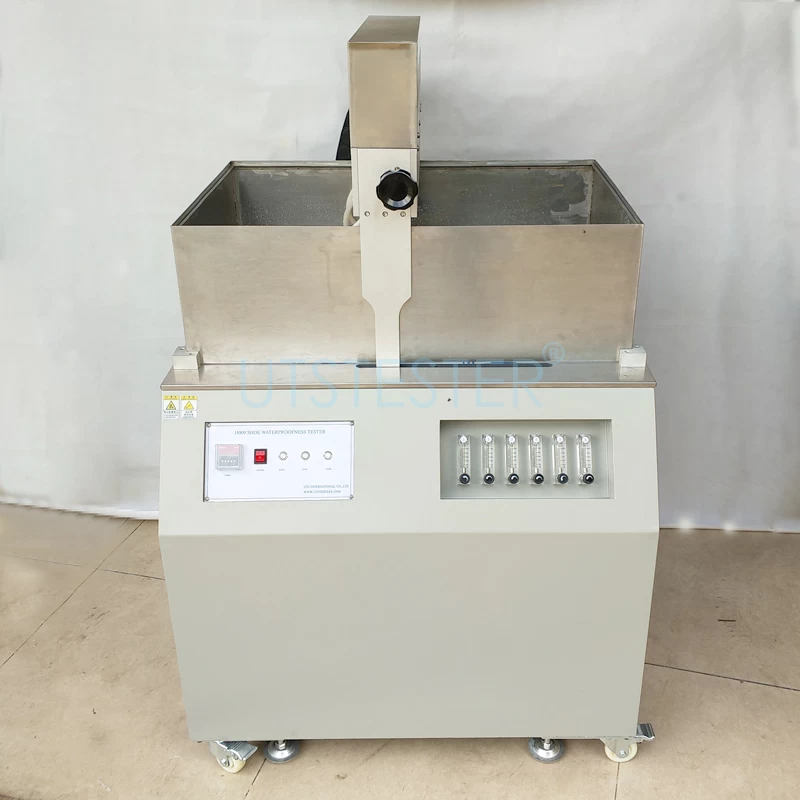

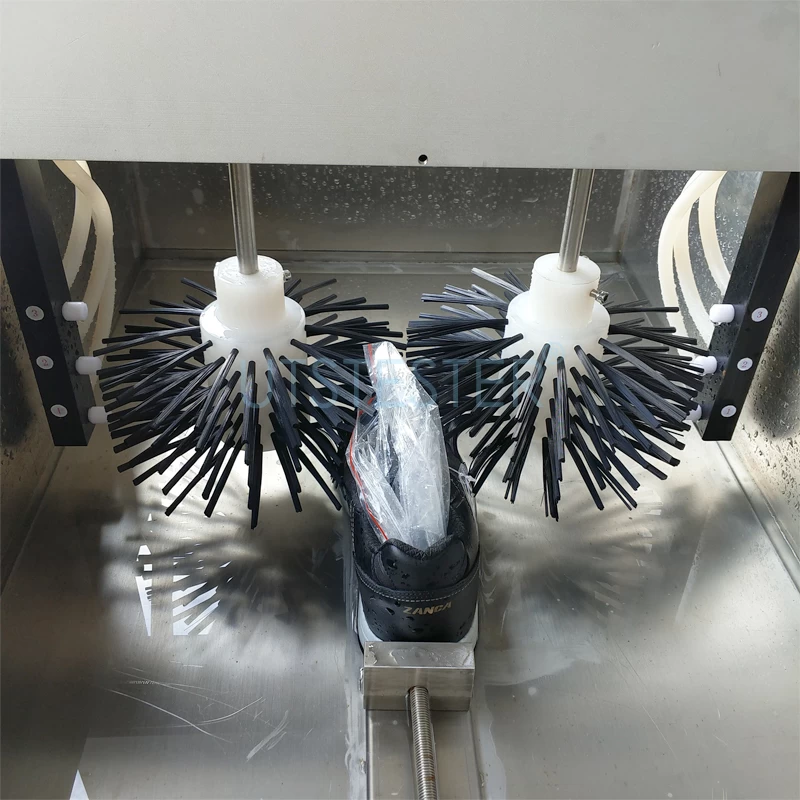

H009 Shoe Waterproofness Tester is to determine the waterproofness property for finished shoes. Within the specified depth of water, whole shoe will be mechanically brushed by rotary wet brush, so as to measure the water penetration property for finished shoe.

Test Principle

Within the specified depth of water, whole shoe will be mechanically brushed by rotary wet brush, so as to measure the water penetration property for finished shoe.

Standards

ISO 20344

GB/T 20991-2007 section 5.15.2

AS/NZS 2210.2 section 5.15.2

Features

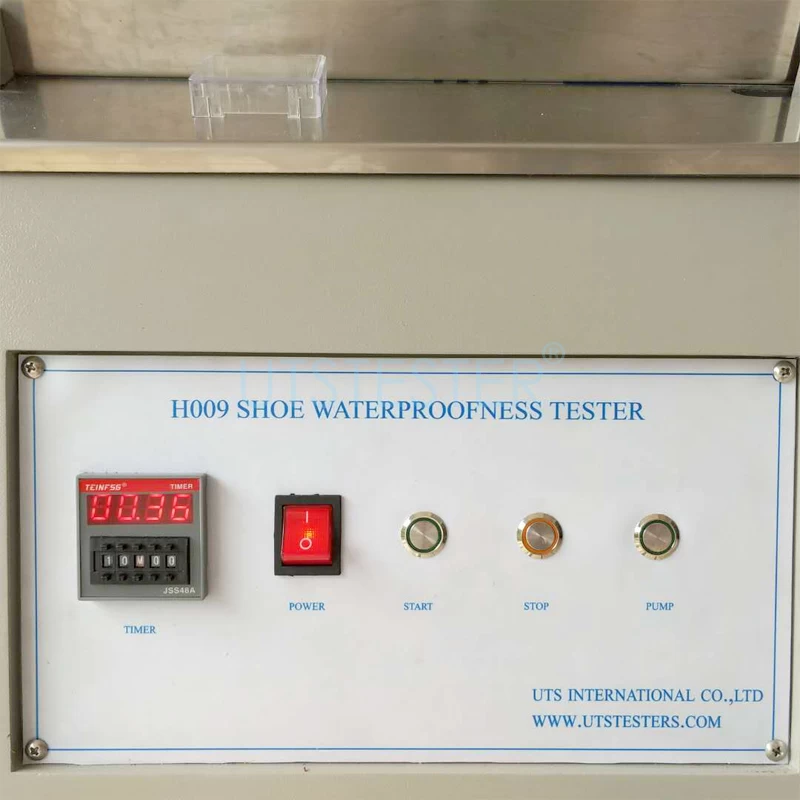

1. Testing times can be set on the panel, real impact times can be displayed as well.

2. Machine stop automatically when test times completed. And counter stop counting.

3. Easy operation: Easy understandable operational process.

4. Comply with test standards GB/T 20991-2007 section 5.15.2, AS/NZS 2210.2 section 5.15.2.

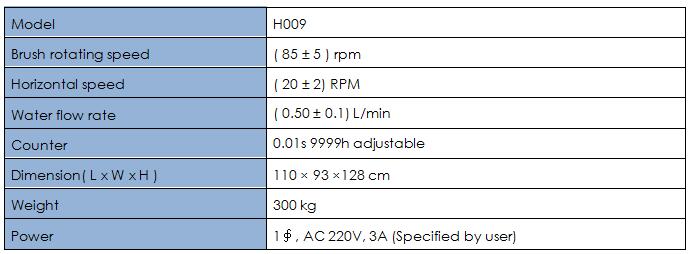

Key Parameters

Application

H009 Shoe Waterproofness Tester is applicable to the determination of:

all kinds of finished shoes.
