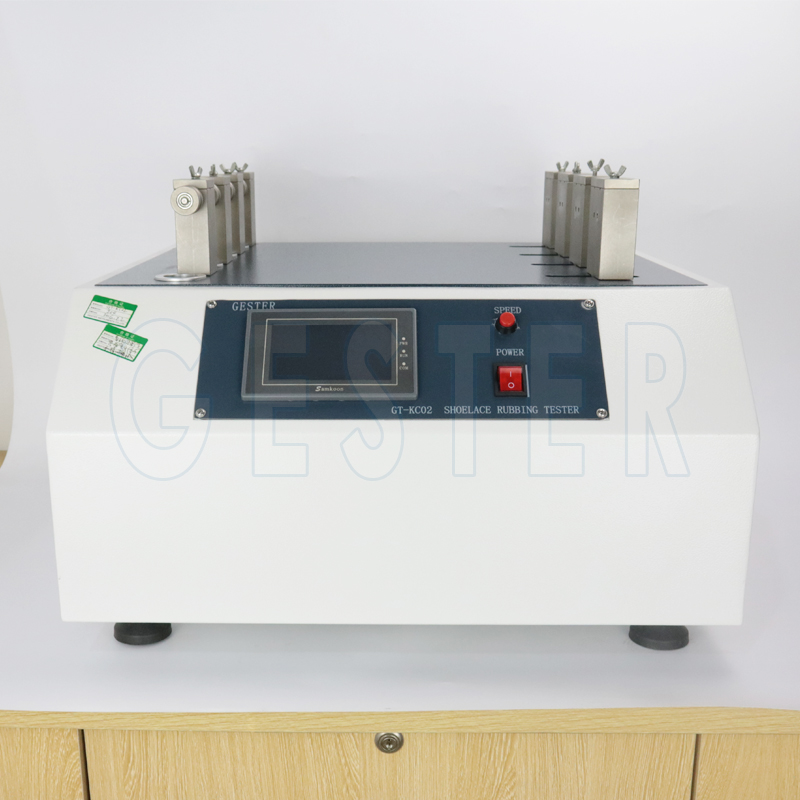

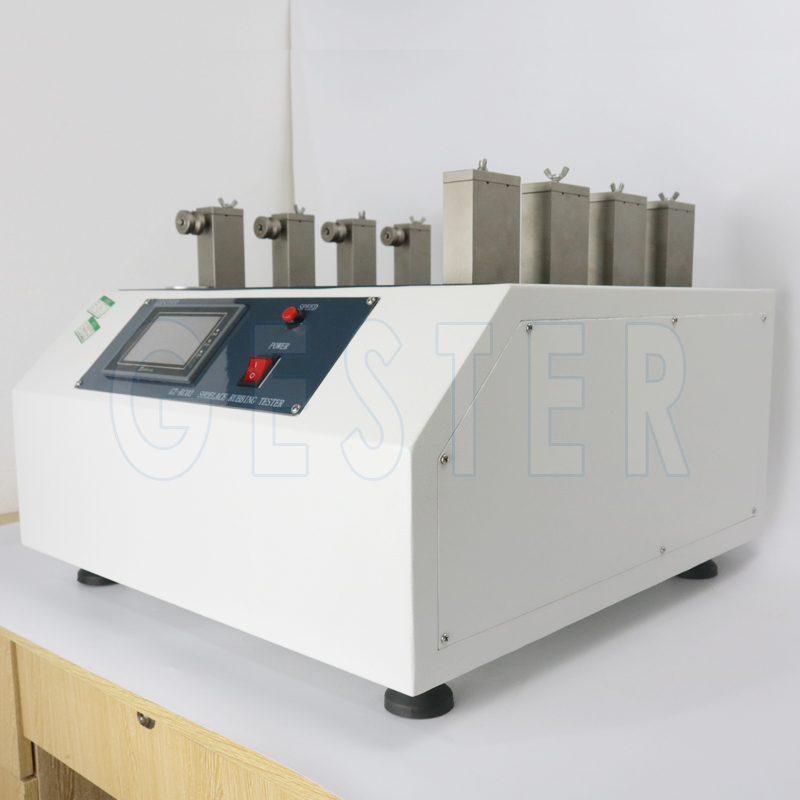

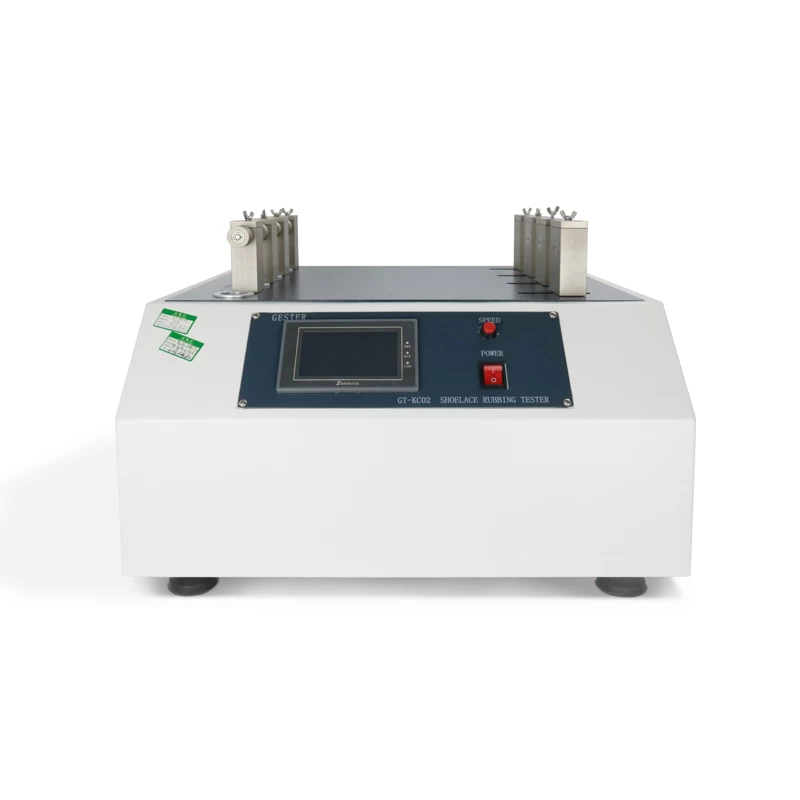

Shoelace Rubbing Tester GT-KC02
Product Introduction
|
Application:
This Shoelace Rubbing Tester is used to test the abrasion resistance for shoelace of cotton, hemp, chemical fiber or other materials.
Standards:
DIN 4843; SATRA TM 154; ISO 22774; QB/T 2226; GB/T 3903.36
|

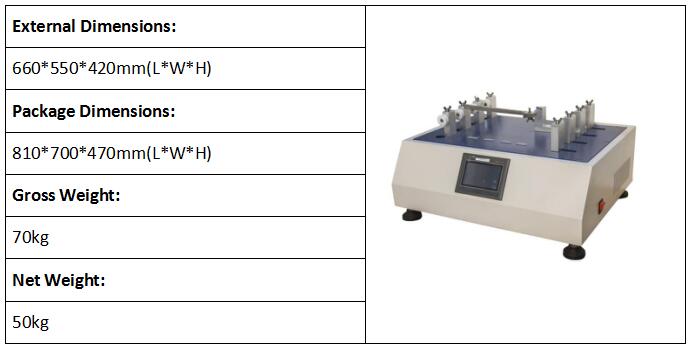

Dimensions
Principle

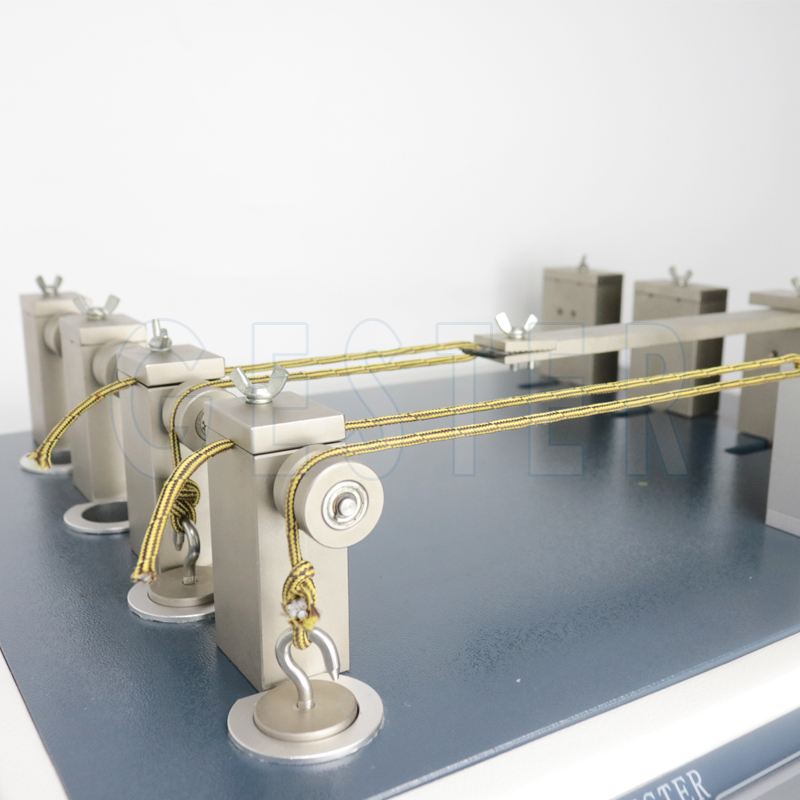

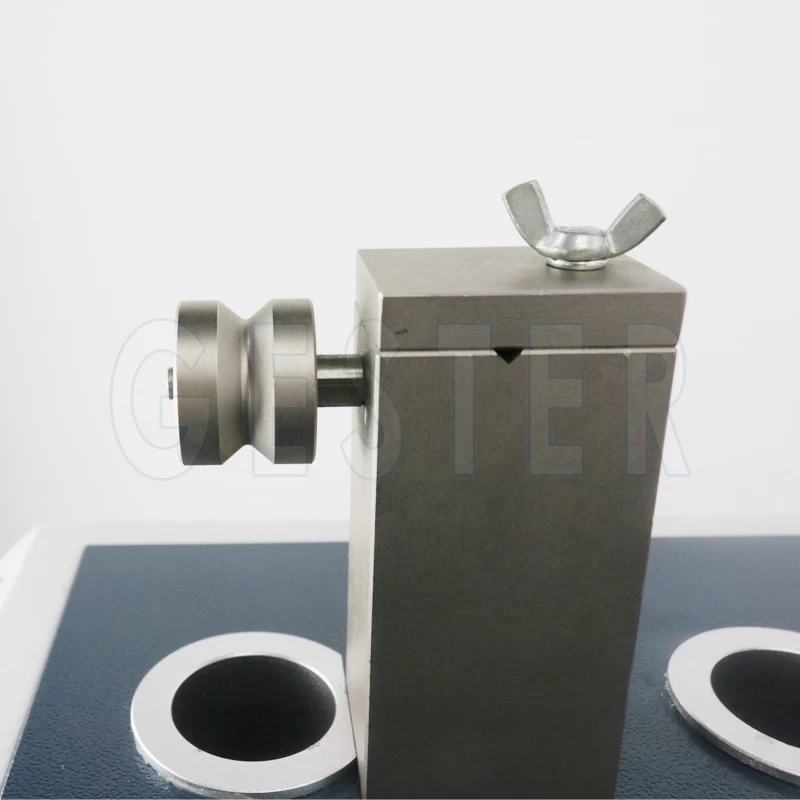

Take two shoelace, mutually hook in the middle. Clamp the both ends of the shoelace at the movable fixture of shoelace rubbing tester, which can make reciprocating linear motion; clamp one end of the other shoelace on the corresponding fied fixture and another end of the shoelace round by a fixed pulley and hanging the a weight. Make the two shoelace abrasion each other by reciprocating linear motion. Then check the wear resistance, when the machine run up to pre-set times, the machine stop.
Key Specifications
Model
|
GT-KC02
|
Test position
|
4 groups
|
Control
|
Touch-screen control, 0~999,999
|
Min. Separation between movable and fixed fixtures
|
280 ±50 mm
|
Movable fixture stroke
|
35± 2 mm
|
Test speed
|
60 ± 6 cyles/min
|
Profile board
|
Angle 52.5degree; Length120 mm
|
Stainless metal strip
|
W: 25mm, L: 250mm
|
Weight
|
250 ± 3g
|
Power supply
|
1∮AC 220V 50/60HZ
|
Dimensions ( L x W x H )
|
66 x 58 x 42cm
|
Weight
|
50 kg
|
Standards
|
DIN 4843
SATRA TM 154
ISO 22774
QB/T 2226
GB/T 3903.36
|
Application Industry
All kinds of shoelace materials can be tested on the Shoelace Rubbing Tester GT-KC02.
