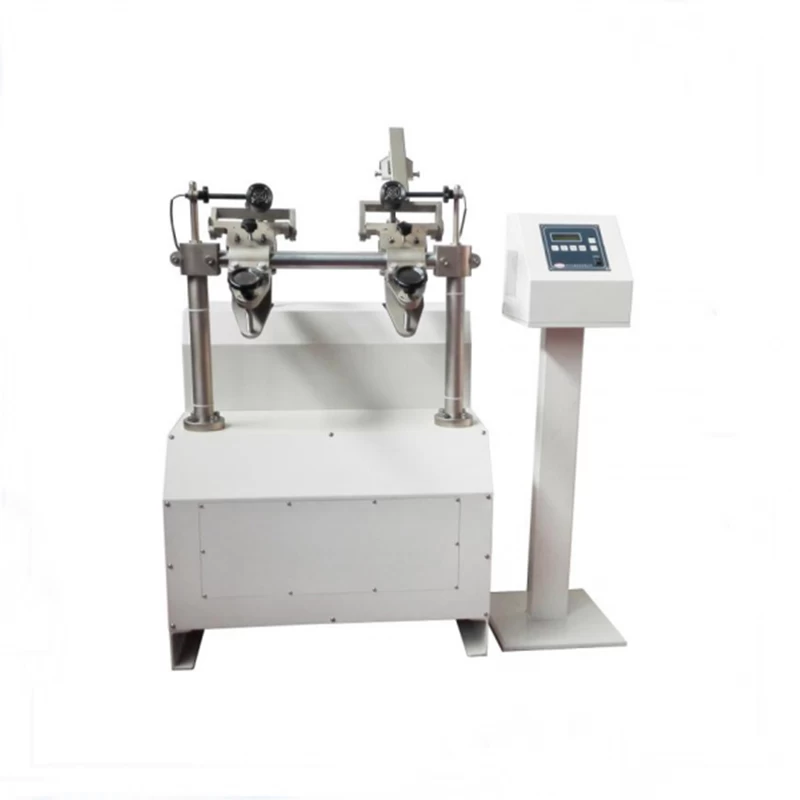

Shoes Flexing Tester GT-KA01-3

Shoes Flexing Tester is used for determine the flexing resistance for whole shoe or shoe sloe(sheet) at room temperature.

Flex the specimen under a specified angle and frequency to assess its cracking degree and observe the change of it`s upper.

Facebook Twitter Pinterest LinkedIn 分享

Shoes Flexing Tester GT-KA01-3


Product Introduction

Application:

Shoes Flexing Tester is used for determine the flexing resistance for whole shoe or shoe sloe(sheet) at room temperature. Flex the specimen under a specified angle and frequency to assess its cracking degree and observe the change of it's upper.

Standards:
GB/T 3903.1

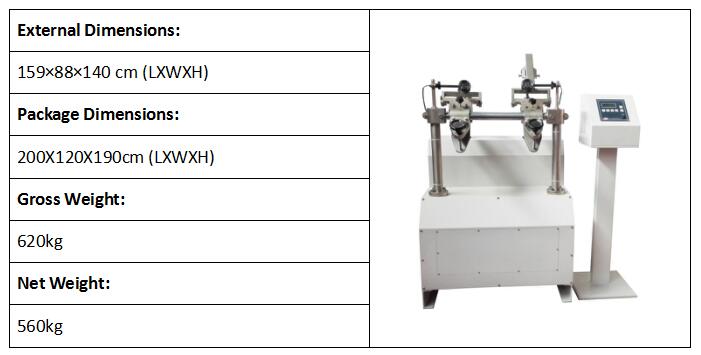

Dimensions
Shoes Flexing Tester

Feature
1. The number of flex cycles can be set and displayed on the control panel;
2. The counter and the machine will stop automatically when the set value has been reached;

3. The protective shield is equipped for safety operation and noise reduction;

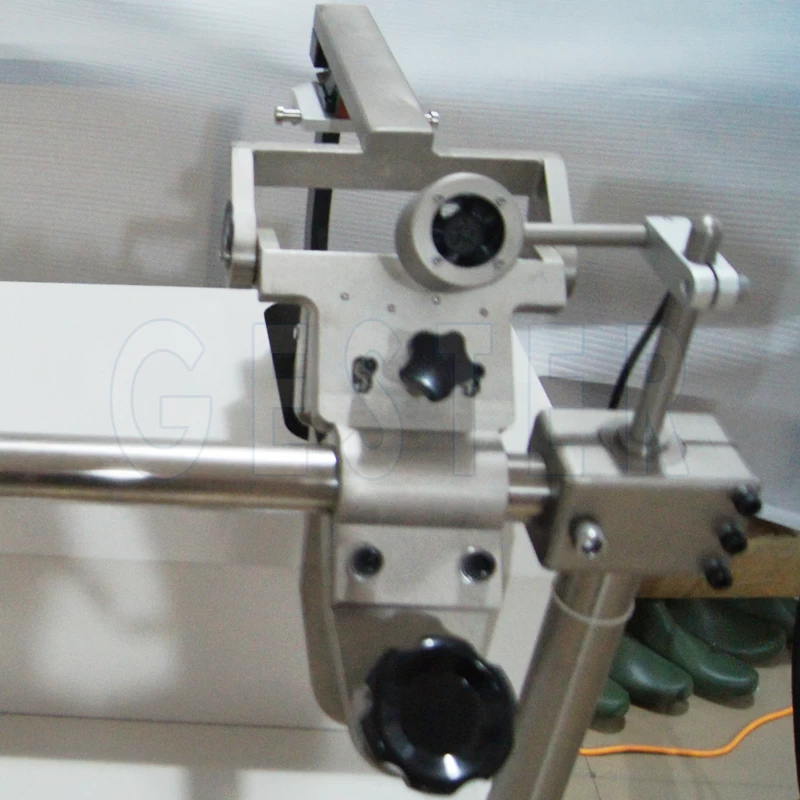

4. A fan is installed on each set of clamps to prevent shoes from changing characteristics caused by high temperature during flexing.


Key Specifications

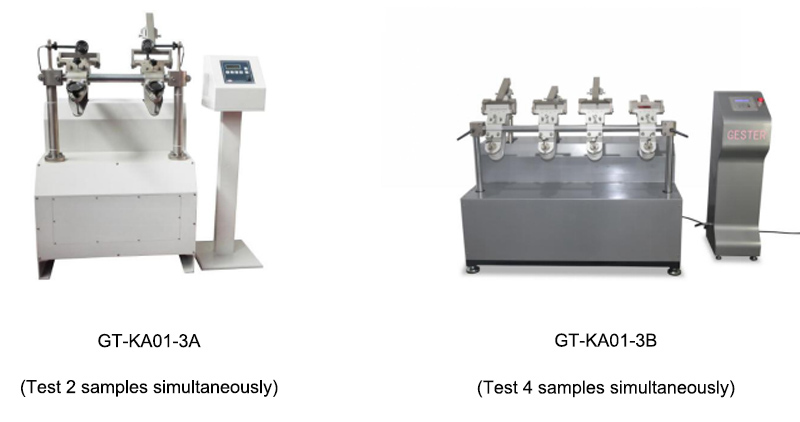

Model

GT-KA01-3A

GT-KA01-3B

Test position

2

4

Bending angle

0~55 degree

Counter

Touch screen control

Bending speed

230 ± 10 rpm (adjustable)

Power supply

1∮AC 220V 50/60HZ 8A

Dimensions (L x W x H)

159×88×140 cm

209×88×140cm

Weight

560 kg

750kg

Standards

GB/T 3903.1

Standards accessories

2 Pairs

Shoe last (Size 35, Size 44 or by customer requires)



1pc

Power line



1pc

Chisel cutter（5mm）

Option accessories

Optional

Calipers (accuracy 0.02mm)



Optional

Shoe last (Size 36, 37, 38, 39, 40, 41, 42, 43)


Shoes Flexing Tester GT-KA01-3



Application Industry
All the shoes blow can be tested on the Shoes Flexing Tester
