Shutter Door Guide Roll Forming Machine

Accuracy Profile




            Roller

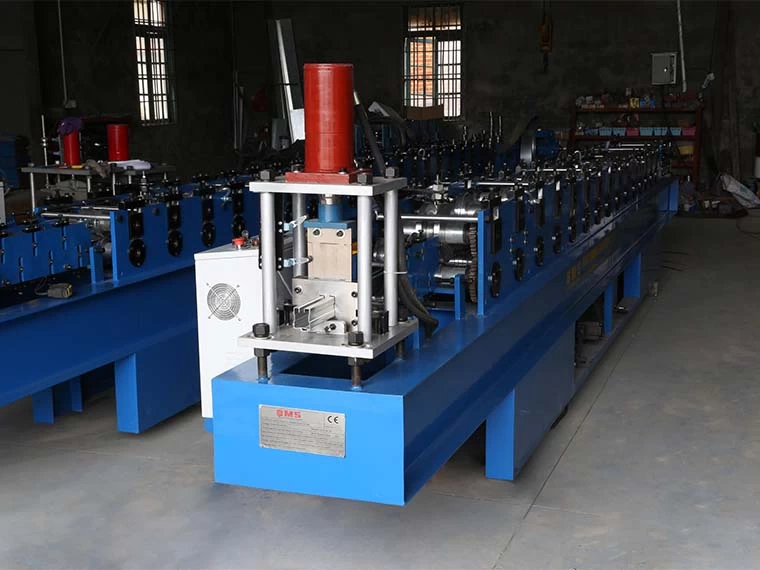

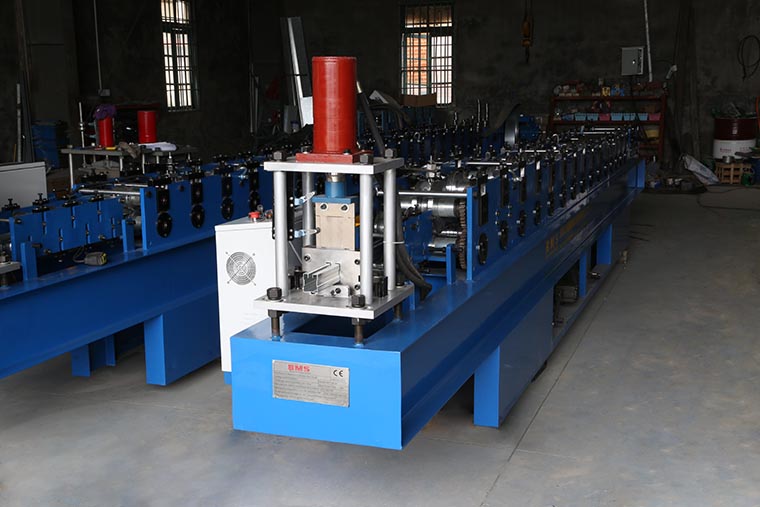

Shutter Guide Rail Roll Forming Machine



Roller Shutter Guide Rail Roll Forming Machine

Click here to check the video:http://www.rollformingmachinerychina.com/roller-shutter-guide-rail-roll-forming-machine_n89





1.Main features of Roller Shutter Door Roll Forming Machine


    The advantages of Shutter Door Guide Roll Forming Machine are as follows:

    1.Accuracy profile

    2.Save space,more convenient.

    3.Easy operation, low maintenance cost

    4.Stable and durable


2.Detailed Images of Shutter Door Guide Roll Forming Machine


    Machine Parts

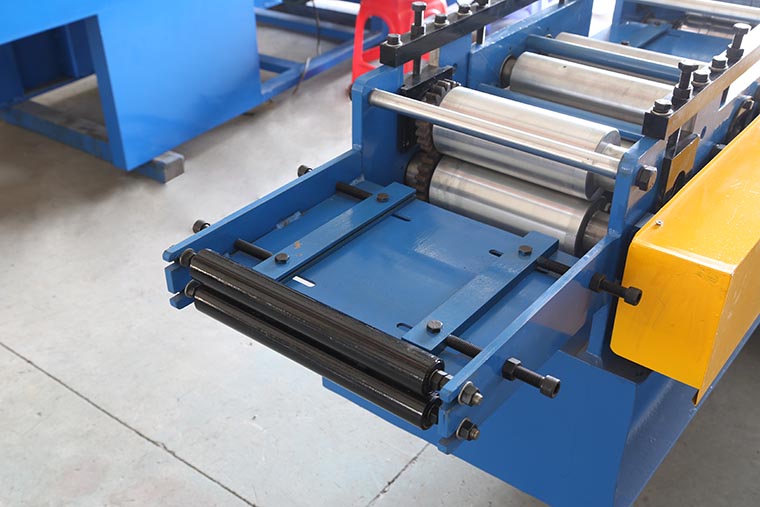

        1)Shutter Door Guide Roll Forming Machine feeding guide

        Brand: BMS    Original: China



Roller Shutter Guide Rail Roll Forming Machine

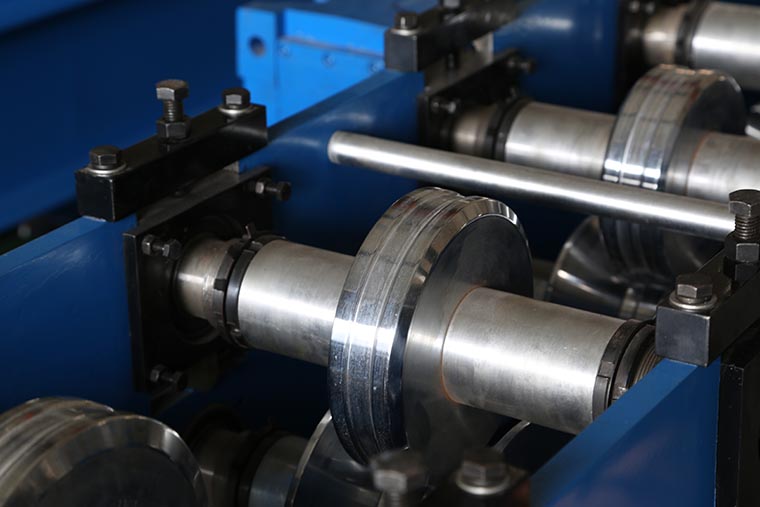

        2) Shutter Door Guide Roll Forming Machine rollers

        Rollers manufactured from high quality 45# steel , CNC lathes, Heat Treatment.

        With black treatment or Hard-Chrome Coating for options.

        Body framemade from 300# H type steel by welding



Roller Shutter Guide Rail Roll Forming Machine

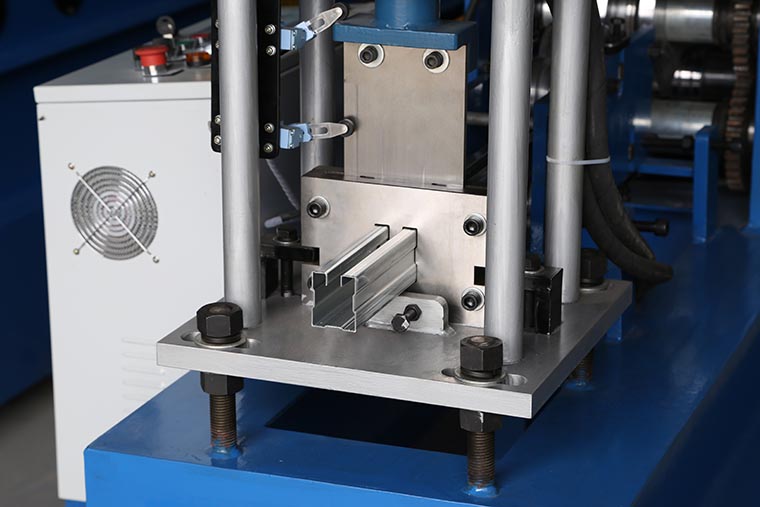

       3) Shutter Door Guide Roll Forming Machine post cutter

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding


 Roller Shutter Guide Rail Roll Forming Machine



        4) Shutter Door Guide Roll Forming Machine Sample Display



 Roller Shutter Guide Rail Roll Forming Machine



        5) Roller Shutter Door Roll Forming Machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 300 mm, coil ID range 470mm±30mm

        Capacity: Max. 3 Ton





        6) Shutter Door Guide Roll Forming Machine run out table

        Un-powered,one unit



Other detailes of roller shutter guide rail machine



Shafts manufactured from 45#,Main shaft diameter=φ45/57mm,precision machined

Motor driving,Gear chain transmission,14/19 steps to form

Main motor: 4KW/5.5KW ,Hydraulic motor :2.2KW/3.75 KW

Frequency speed control. Forming speed approx.12-15m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Taiwan DELTA/SHILIN,Encoder brand:Japan Koyo/OMRON)



Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



For the more detail  check the video on youtube




After-sale service of Shutter Door Guide Roll Forming Machine



1. The warranty of Shutter Door Guide Machine

    is 18months after the client receives the machine.

    Within the 1.5 years, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 30 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
