39SDM024DCCBN 16101-174R/12 | voltage input module
PLC Autocontroller | Sales Manager May | Wechat id: dcsfcs
Focus on Modules: Trusted Industrial Discrete Interfaces

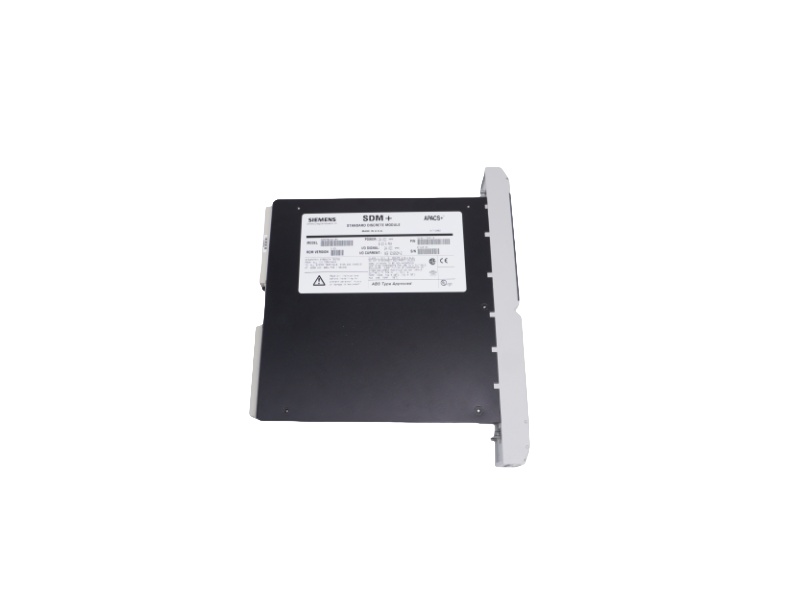

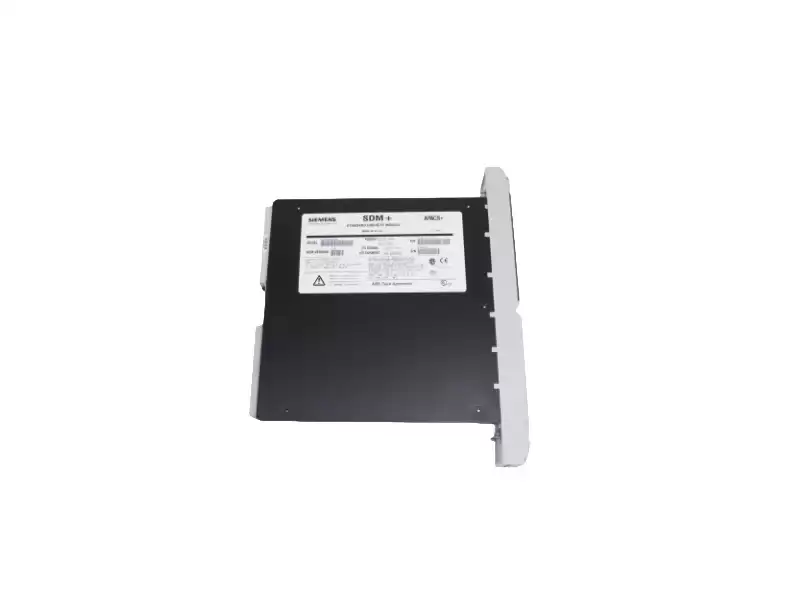

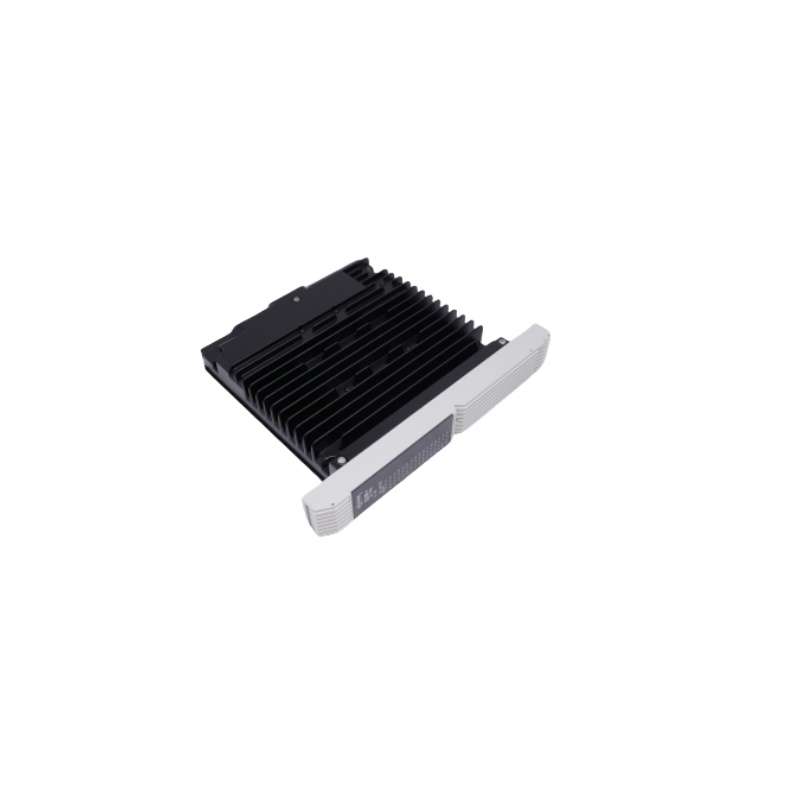

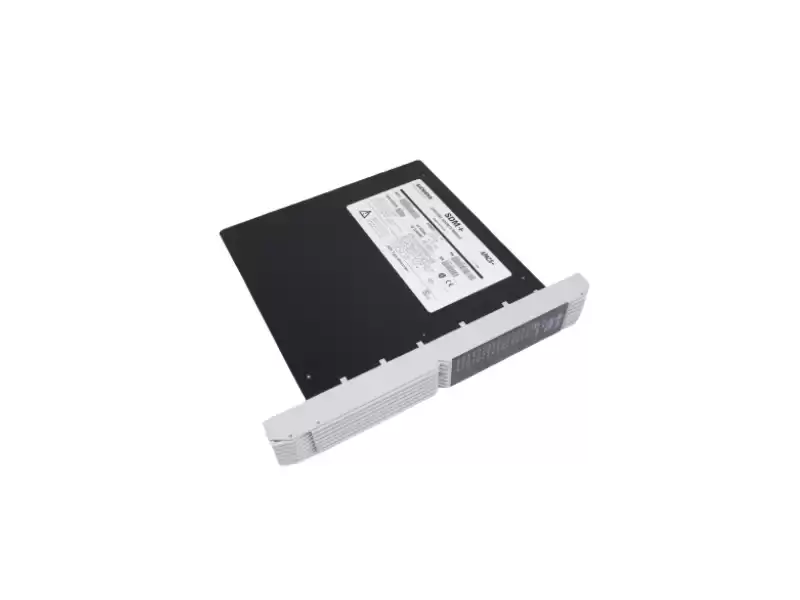

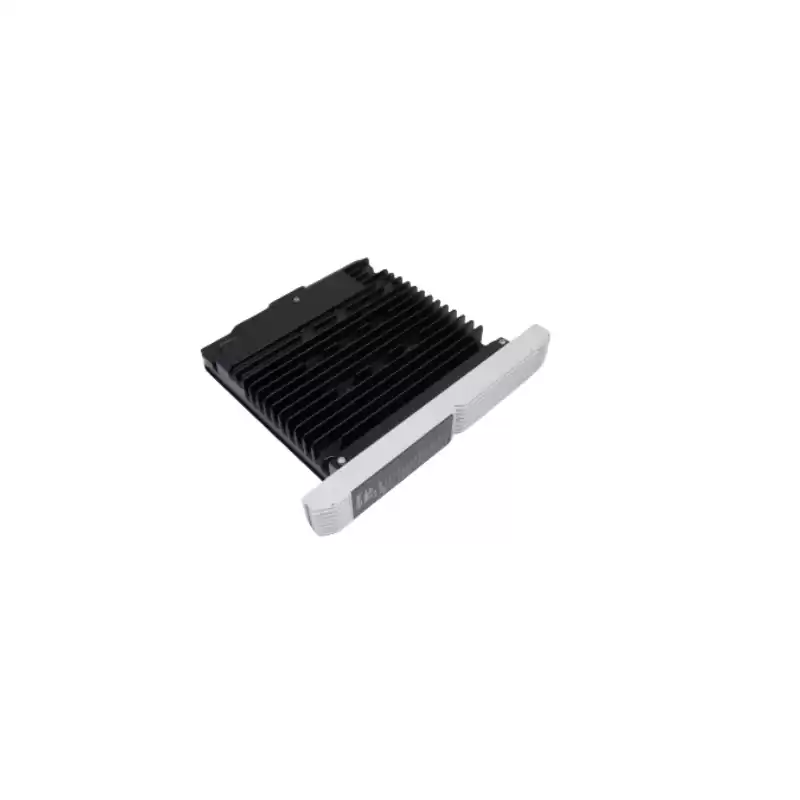

The 39SDM024DCCBN / 16101-174R/12 Standard Discrete Module (SDM) plays
a key role in Siemens, Moore, and APACS series DCS/PLC systems, providing digital
signal input/output interface conversion.
Key Technical Specifications
l Model: 39SDM024DCCBN
l Series: SDM+ / APACS / Moore / Siemens Standard Discrete Module
l Main Application: Provides discrete input/output/pulse output interface channels for PLC/DCS systems
l Channels: 32 (configurable as input/output/pulse output)
l Input Type: Current source/sinking (the interface receives signals from the positive power supply)
l Output Type: Voltage sourcing output with single-channel fuse protection
l Channel Protection: Each output channel has a replaceable fuse to protect other channels in the module in the event of a short circuit.
Module Advantages and Application Scenarios
◼ Advantage 1: Flexible Channels and Free Configuration
The 32 channels can be flexibly configured as input, output,
or pulse output to meet diverse field control needs.
◼ Advantage 2: Single-Channel Protection for Safety and Reliability
Each output channel has independent fuse protection. If a circuit malfunction
occurs in one channel, it will not affect other channels, improving system
reliability and maintainability.
Application Examples
Petrochemical/Chemical Plants: Monitoring and Control of Discrete Quantities such as Switches, Valves, and Liquid Level Alarms
Water Treatment/Sewage Plants: Pump Start/Stop, Gate Control, and Status Monitoring
Power/Energy Equipment: Status Signal Acquisition and Protection Interlock Signal Input/Output
Process Control Systems: Interfaces with DCS or PLC Systems as a Field I/O Expansion Module
