Overview

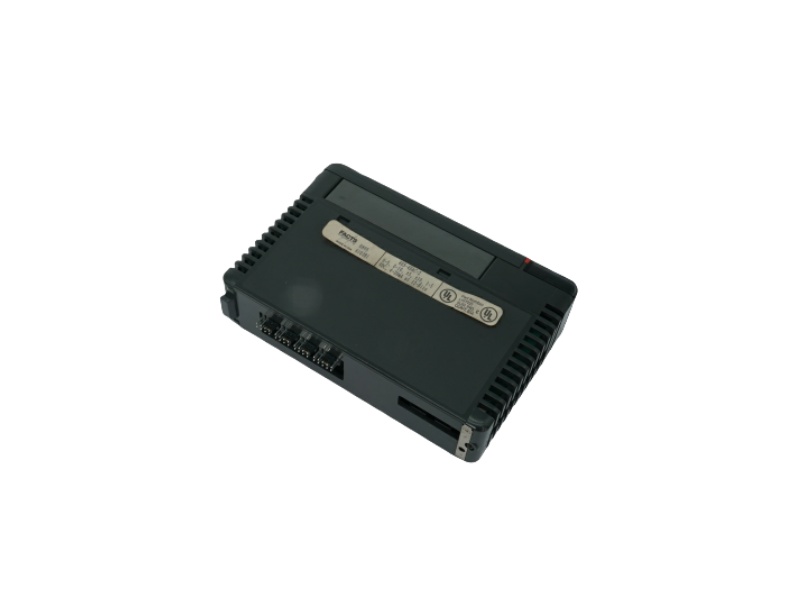

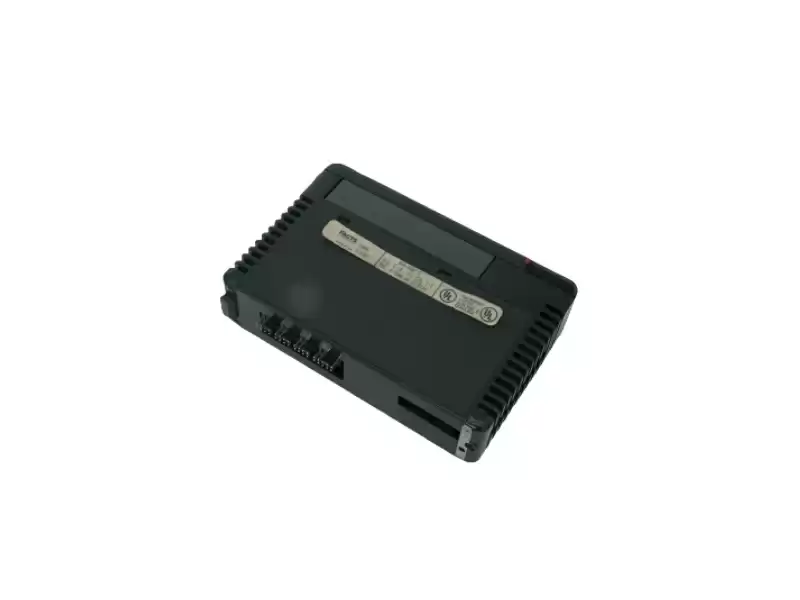

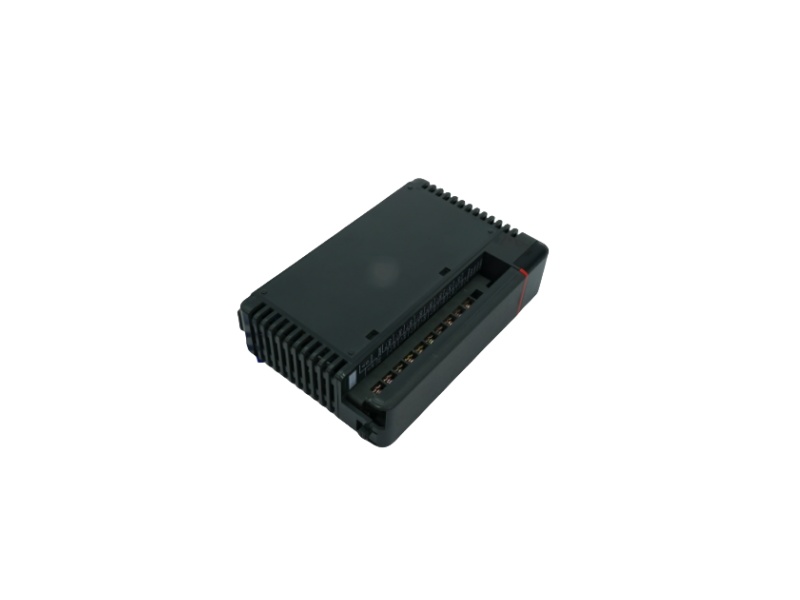

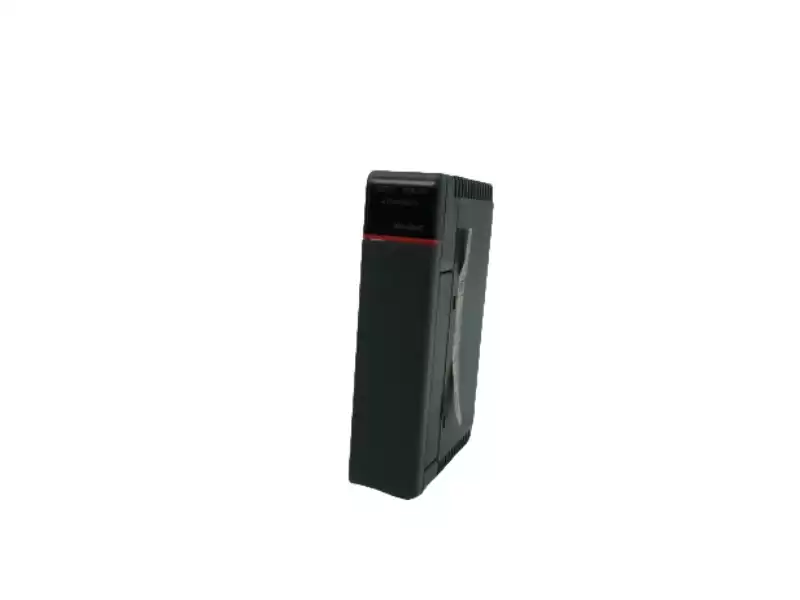

The 405-8ADC is an analog input card from the Siemens/Texas Instruments TI 405 series.
This module provides 8 channels of analog input and supports the acquisition of voltage or current
signals. It is a key unit for connecting analog quantities (such as temperature, pressure, current, and voltage) to a PLC for acquisition, monitoring, and processing.
Core Specifications
|
Electrical
|
Value
|
|
Part Number
|
405-8ADC
|
|
Type
|
Analog Input Card
|
|
Channels
|
500 VDC conductor-to-shield
|
|
Impedance
|
100 Ω ±5 % @ 1 MHz
|
|
Delay
|
<1 ns m⁻¹ (Triconex lab)
|
Why it matters
Multi-Channel Analog Input Acquisition
The module supports 8 analog inputs, enabling simultaneous monitoring of multiple physical quantities and facilitating centralized acquisition and processing.
12-Bit Accuracy
Provides 12-bit resolution for high measurement accuracy, making it suitable for medium-precision analog control scenarios.
Strong Compatibility
Seamlessly integrates into the TI 405 control system and works with other TI modules (such as the CPU, digital I/O, and analog output modules).
Space-Saving Design
The module's relatively compact size fits into standard module racks, saving space in control cabinets.
Typical Application Scenarios
Ø Process Control Systems: In the chemical, petrochemical, food, and pharmaceutical industries, these systems collect analog signals such as temperature, pressure, flow, voltage, and current, and feed them back to the control system for control and adjustment.
Ø Energy Monitoring/Power Management: Monitor electrical parameters such as voltage, current, and power, and transmit analog signals back to the PLC for energy consumption statistics, alarms, and control.
Ø Automated Production Lines: Collect analog signals from auxiliary equipment (such as temperature and force control systems, and sensor monitoring systems).
Ø Building Automation/HVAC Systems: Collect analog signals for feedback input in scenarios such as environmental monitoring, temperature and humidity control, and pump systems.
