What it is

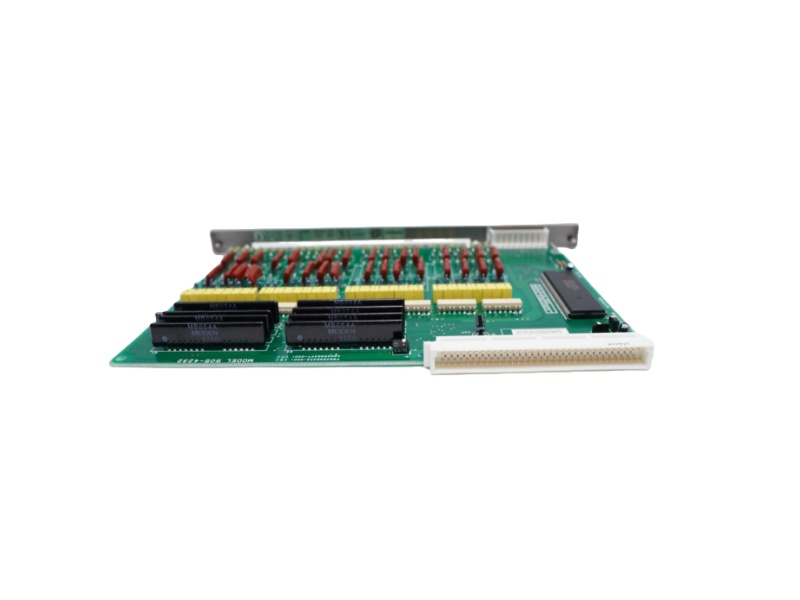

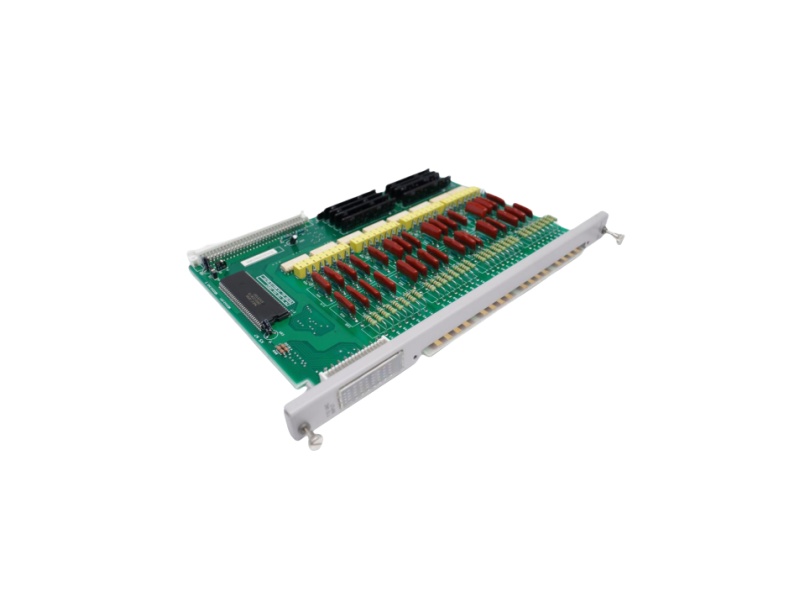

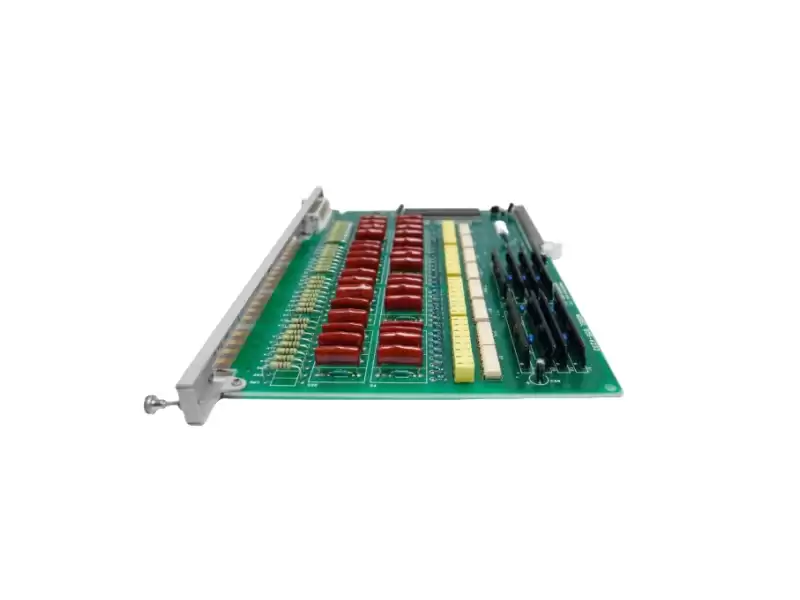

The 505-4232 is a 32-point digital input module designed by Siemens for the SIMATIC TI 505 PLC series.
It supports an input voltage range of 79–132 V AC and is suitable for a variety of industrial applications.
Key features include:
Ø Multi-channel output: A single module provides eight independent analog outputs, suitable for controlling multiple actuators or circuits.
Ø Voltage/current compatibility: Outputs 0-10 V or 0-20 mA signals to meet diverse device interface requirements.
Ø High precision and stability: 12-bit resolution and isolation ensure accurate and interference-resistant output signals.
Ø Excellent compatibility: Designed specifically for the SIMATIC TI/505 series, it's an easy replacement or upgrade for legacy systems.
Ø Easy integration: Use as an analog output expansion module to expand control capabilities in legacy automation systems.
Technical Specifications
Model 505-4232
Type: Digital Input Module
Input Channels: 32
Input Voltage Range: 79–132 V AC
Input Current: Approximately 15 mA per channel
Input Type: Floating
Noise Filtering: Enhanced Noise Filtering
Optical Isolation: Optical isolation per channel
Applicable PLC Series: SIMATIC TI 505
Typical Applications and System Integration
l High Input Density: 32 input points, suitable for applications requiring a large number of digital inputs.
l Enhanced Noise Filtering: Effectively suppresses electromagnetic interference, ensuring stable system operation.
l Optical Isolation: Optically isolated per channel, improving system immunity.
l Floating Input: Accommodates a variety of input signals, providing flexible configuration options.
