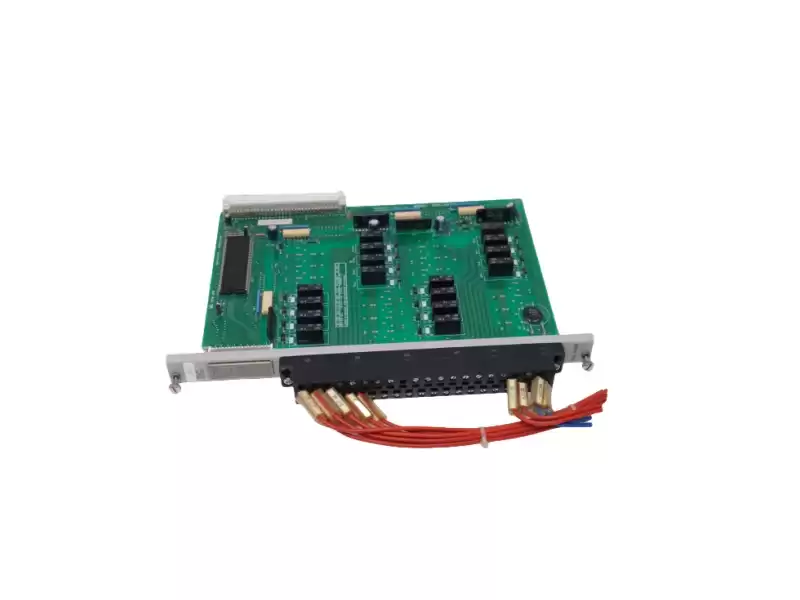

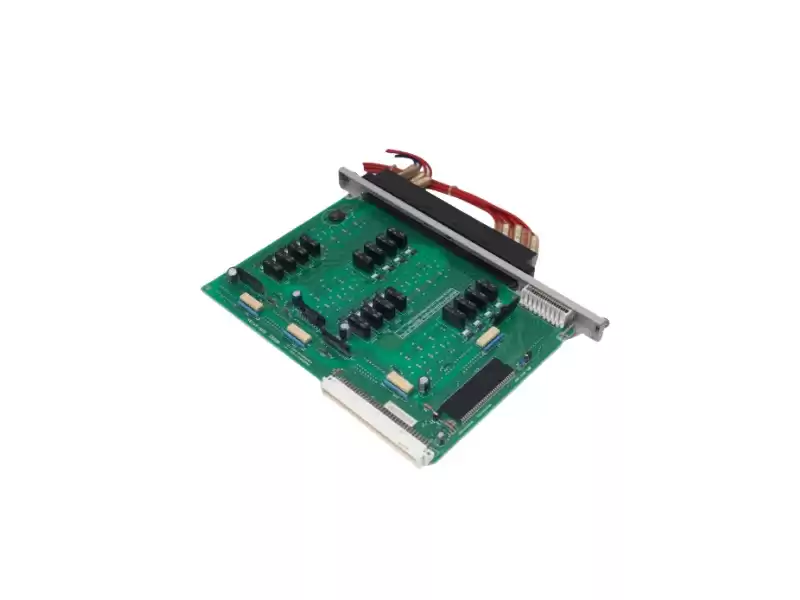

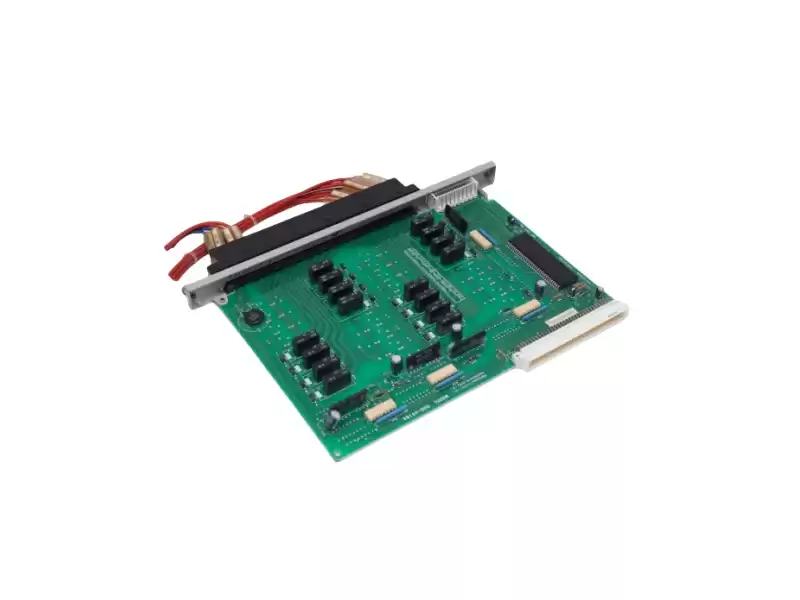

505-4916A Overview

The Siemens 505-4916A relay output module is a high-performance digital output module for the Siemens

SIMATIC TI 505 series PLCs. Designed specifically for industrial automation systems, it provides reliable

electrical isolation switching and is widely used to control relays, indicator lights, solenoid valves, and other field devices.

Key Technical Specifications

Number of output channels: 16

Output type: Relay contact (normally open)

Control method: Independent control of each output

Voltage range: 20–265 V AC; 4.5–30 V DC

Load capacity: 2.0 A (resistive load); 1.0 A (AC inductive load); 0.88 A (DC inductive load)

Wiring method: 16-point terminal block

Dimensions: Single-width module

Ambient temperature range: -20°C to +60°C

Functions and Applications

This relay output module provides 16 independently controlled relay contact outputs, suitable

for managing field devices such as relays, solenoid valves, and indicator lights. Its wide voltage range

and high load capacity make it suitable for a wide range of applications in industrial automation control systems.
