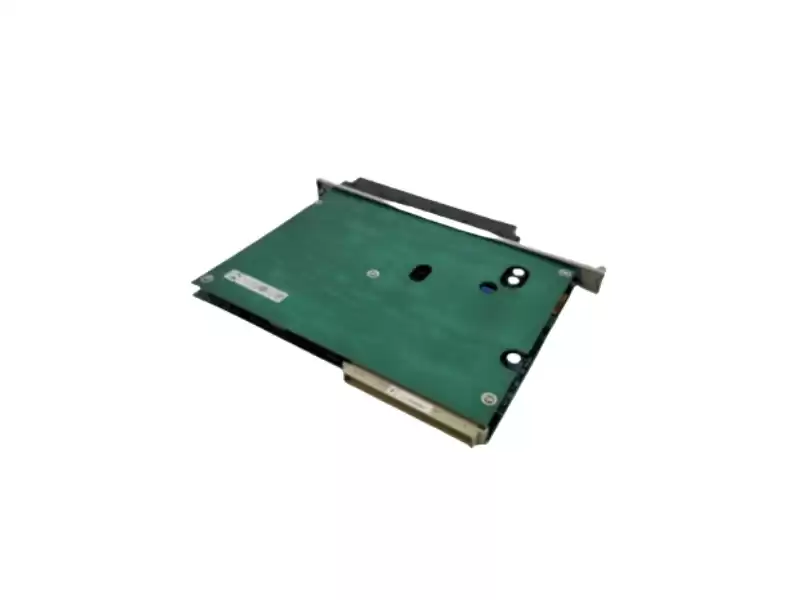

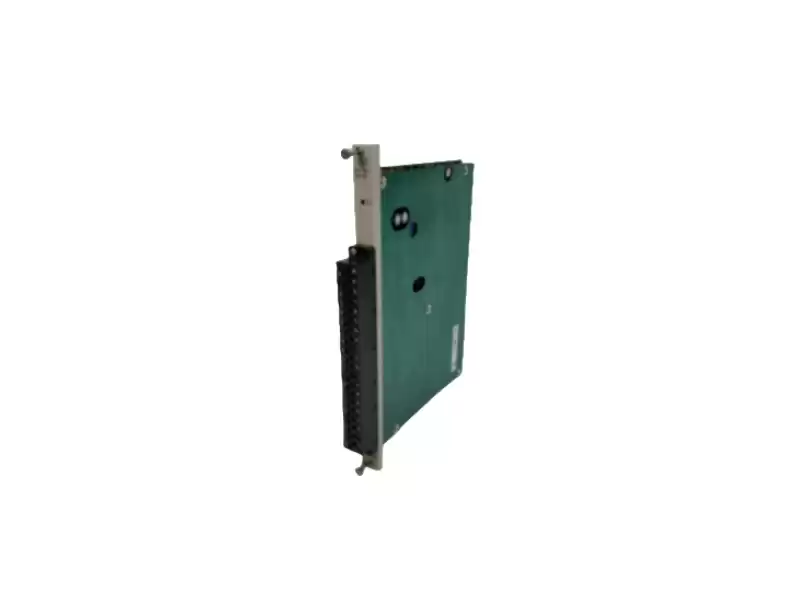

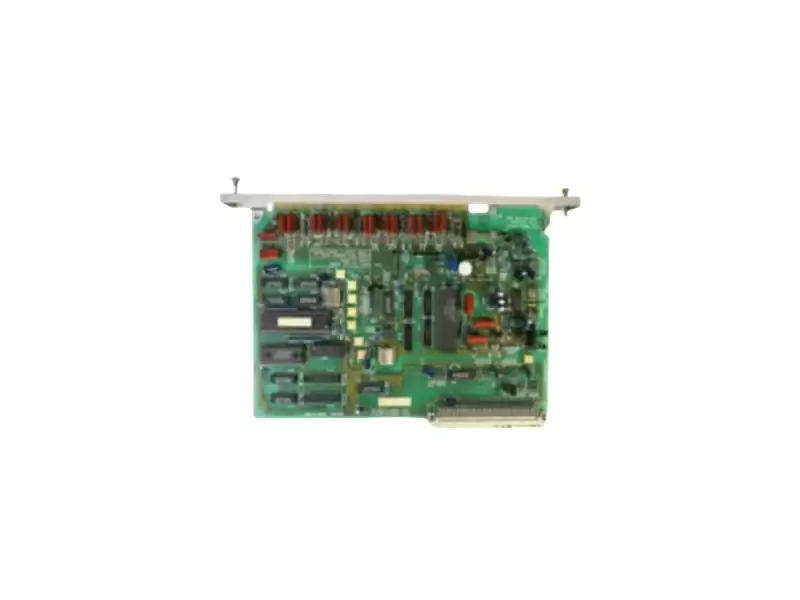

SIEMENS 505-6108A analog signal input

PLC Autocontroller |20 years of experience specializing in automation equipment

505-6108A | analog signal input

PLC Autocontroller | Sales Manager May| Wechat id: dcsfcs

Overview

In industrial automation systems, accurate analog signal input is crucial for monitoring

key parameters such as pressure, flow, and temperature. The Siemens 505-6108A is an 8-channel

analog input module designed for the SIMATIC TI 505 series PLC and is widely used in various automation control systems.

Core Specifications

Number of channels: 8 analog inputs

Input ranges: 0–5 VDC, ±5 VDC, ±10 VDC, 0–20 mA

Resolution: 12 bits

Isolation: Channel-to-backplane isolation

Power requirement: 24 VDC

Temperature range: -20°C to +60°C

Environmental protection: IP20

Features

Ø Multi-Channel Input: A single module provides eight independent analog inputs, suitable for multi-point monitoring applications.

Ø Multiple Input Ranges: Supports various input modes, including 0–5 VDC, ±5 VDC, ±10 VDC, and 0–20 mA, to meet the needs of different devices.

Ø High Resolution: 12-bit resolution ensures accurate data conversion.

Ø Isolated Design: Channel-to-backplane isolation effectively reduces electromagnetic interference and improves system stability.

Ø No External Power Supply Required: The module does not require an external user power supply, reducing system complexity.

Ø Strong Compatibility: Can replace dual-width modules (such as the PPX:505-6108) without wiring changes.

Other models of the same brand

All products are brand new and original,with a 12-month warranty.
