6AV3627-1QL00-0AX0  Overview

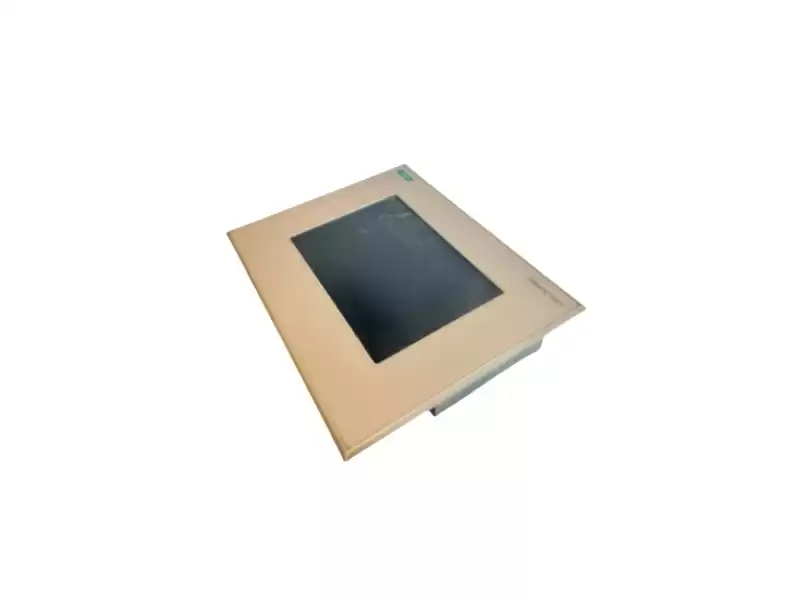

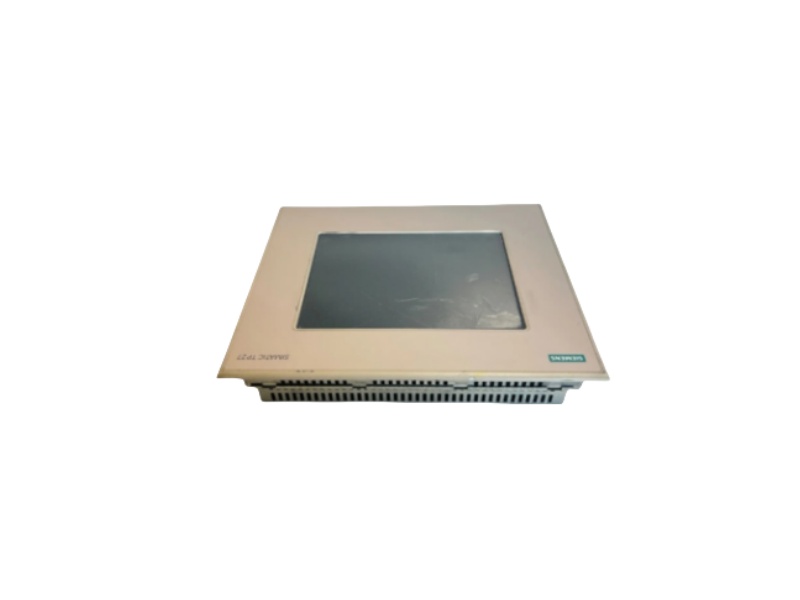

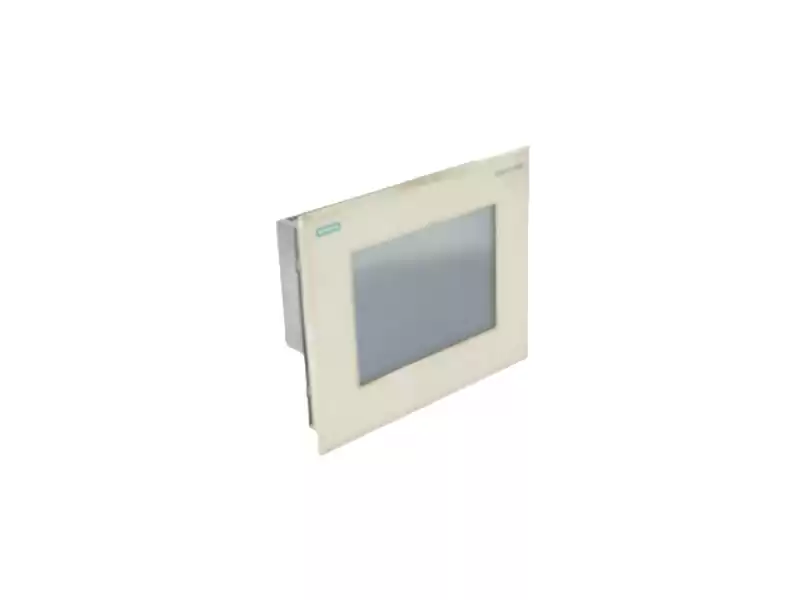

The Siemens 6AV3627-1QL00-0AX0, also known as the SIMATIC TP27-10, is a high-performance

touch panel designed for industrial automation. It features a 10.3-inch STN color LCD display with a

resolution of 480x640 pixels and supports multiple communication interfaces, making it suitable for integration with SIMATIC S7 series PLCs.

Key Technical Specifications

Display Type: STN Color LCD

Screen Size: 10.3 inches

Resolution: 480 x 640 pixels

Touch Type: Resistive touchscreen

PLC Connections: TTY, RS232, RS422, RS485 (maximum 12 Mbit/s)

Memory: 1 MB Flash EPROM

Power Requirements: 24 VDC (range: 20.4–28.8 VDC)

Power Consumption: Typical: 6 W

Mounting: Vertical, maximum tilt angle: 35°

Function Highlights

l High-resolution display: Provides clear graphics and text for enhanced operator interface visibility.

l Multiple communication interfaces: Supports TTY, RS232, RS422, and RS485 interfaces, meeting diverse industrial communication needs.

l Large-capacity memory: Equipped with 1 MB Flash EPROM, it supports more complex applications and data storage.

l Compact design: Suitable for industrial environments with limited space and easy installation.
