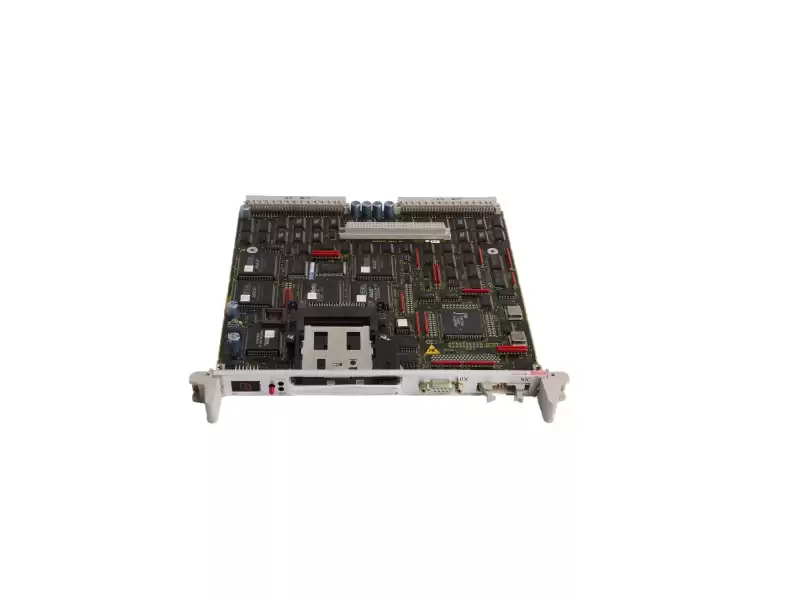

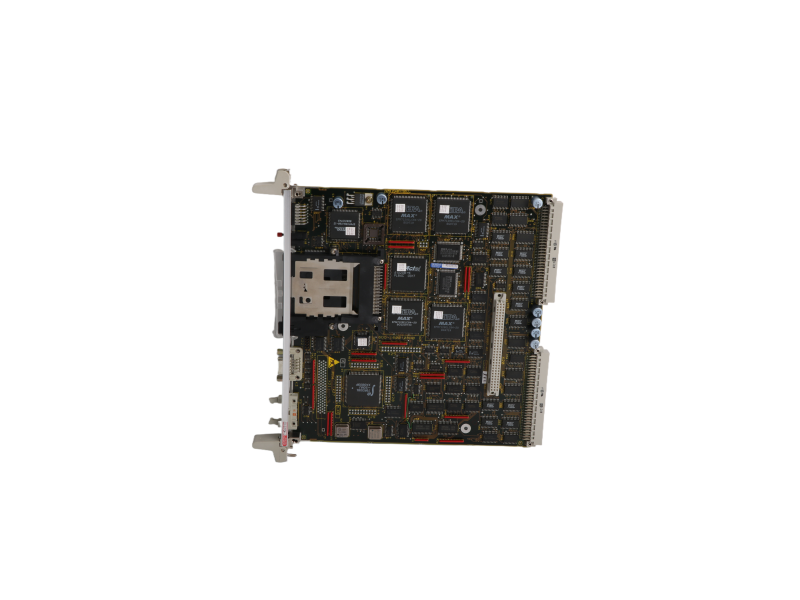

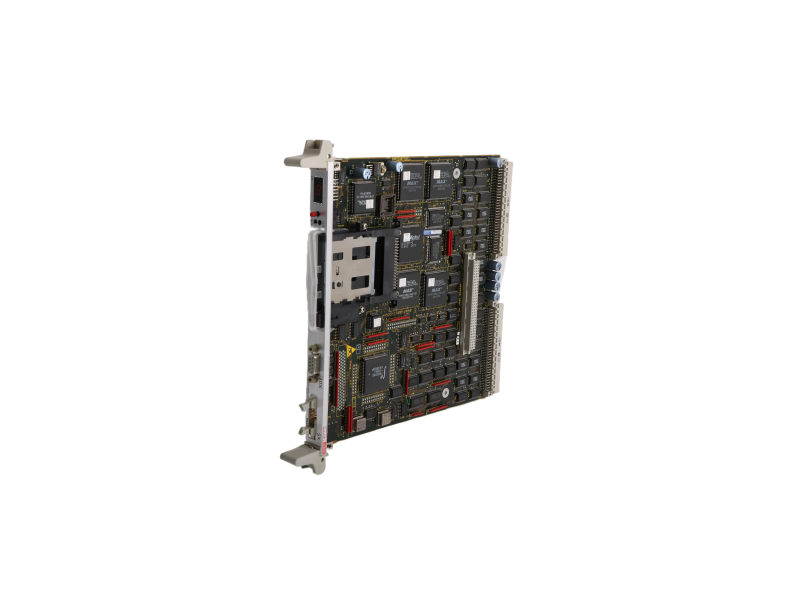

Quick-Look:SIEMENS 6DD1600-0AH0 – PM4 Processor Module
Brief introduction
6DD1600-0AH0 is the PM4 CPU for SIMADYN D racks.
It runs 32-bit RISC code at 32 MHz and handles open-/closed-loop control loops with 0.1 ms cycle time .
Quick Specs
• Memory 4 MB DRAM (program) + 64 kB SRAM (battery-backed diagnostics)
• I/O on-board 8 binary inputs (4 interrupt-capable)
• Interfaces RS-232 (DUST1), L-bus, C-bus
• Power 24 V DC ±10 %, 2.5 W
• Temp –20 °C … +60 °C
• Certifications CE, UL, cULus
Typical Fit
• High-speed steel-mill drives
• Hydro governor control loops
• Compressor anti-surge systems
Ready-to-Ship SIMADYN-D Kit
|
Part Number
|
Description
|
|
6DD1600-0AH0
|
PM4 processor (this unit)
|
|
6DD1610-0AH0
|
MS5 2 MB Flash-EPROM memory
|
|
6DD1610-0AH2
|
MS52 8 MB Flash-EPROM memory
|
|
6DD1640-0AC0
|
PROFIBUS-DP interface module
|
|
6DD1681-0EB1
|
24 V DC 10 A power supply
|
|
6DD1681-0AE5
|
RS-485 cable, 3 m
|
|
6DD1681-0CA2
|
Battery module, 10-year backup
|
|
6DD1681-0AG0
|
DIN-rail mounting kit
|
All items factory-sealed, ready for same-day dispatch from PLC Autocontroller.
