Need-to-Know Sheet: SIEMENS 6DD1600-0BA1
Email: ab@mooreplc.com | Same-day Dispatch
First Glance

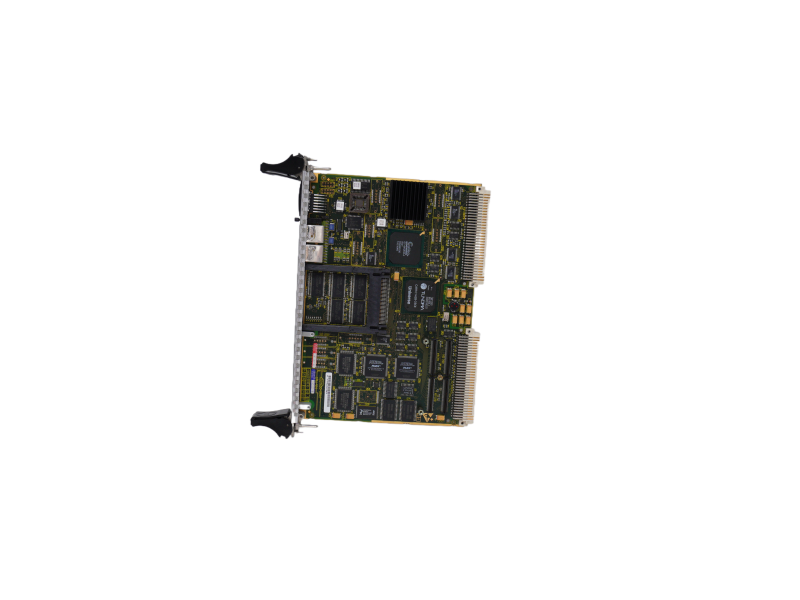

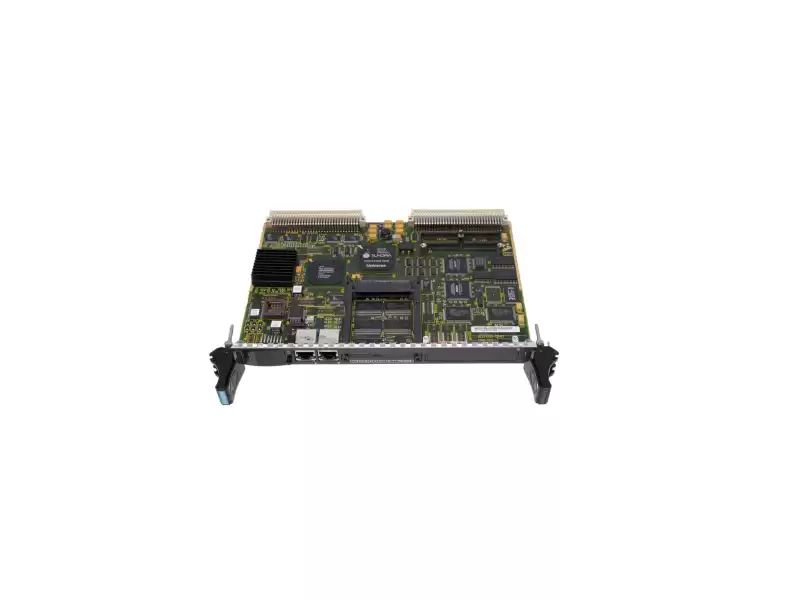

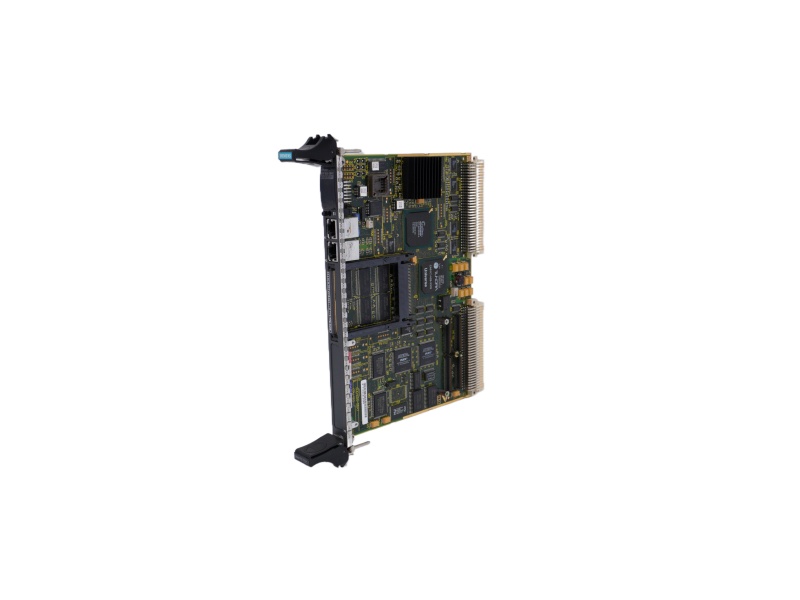

6DD1600-0BA1 is the PM5 CPU card that turns any SIMADYN D rack into an ultra-fast motion brain for cranes, test benches, and rolling-mill drives.
Vital Stats
• 32-bit RISC, 32 MHz, 4 MB DRAM
• 0.2 ms control loop, 0.4 ms task cycle
• 24 V DC, 6 W – runs cool in tight panels
• –25 °C … +70 °C, CE / UL / CSA
• 100 × 160 mm DIN-rail plug-in
Where It Shines
• Overhead crane position loops
• Hydraulic press force control
• Engine-dyno throttle rigs
Plug-and-Play Spares
|
Part Number
|
Function
|
|
6DD1600-0BA1
|
PM5 CPU (this card)
|
|
6DD1610-0AH0
|
2 MB Flash-EPROM
|
|
6DD1610-0AH2
|
8 MB Flash-EPROM
|
|
6DD1640-0AC0
|
PROFIBUS-DP interface
|
|
6DD1681-0EB1
|
24 V 10 A supply
|
|
6DD1681-0CA2
|
Battery module
|
|
6DD1681-0AE5
|
RS-485 cable 3 m
|
Need a quote?
Email: ab@mooreplc.com
All items factory-sealed, same-day dispatch worldwide.
