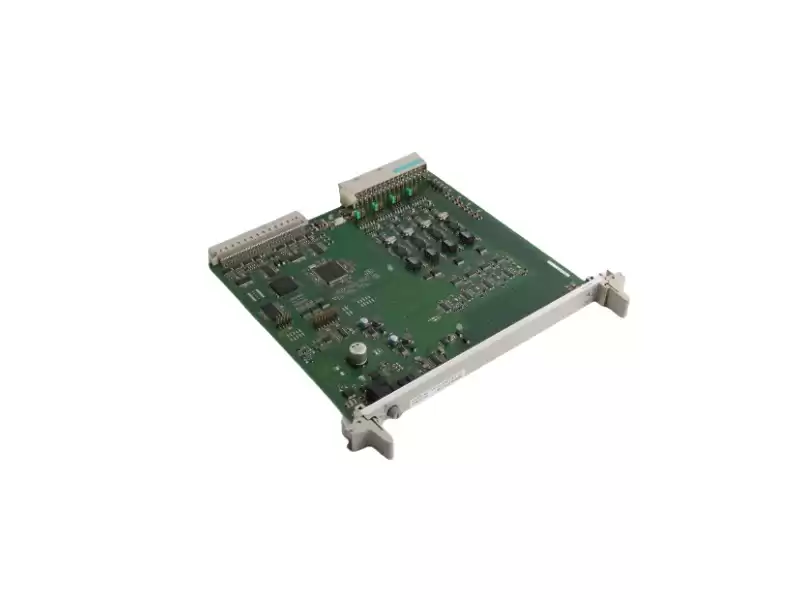

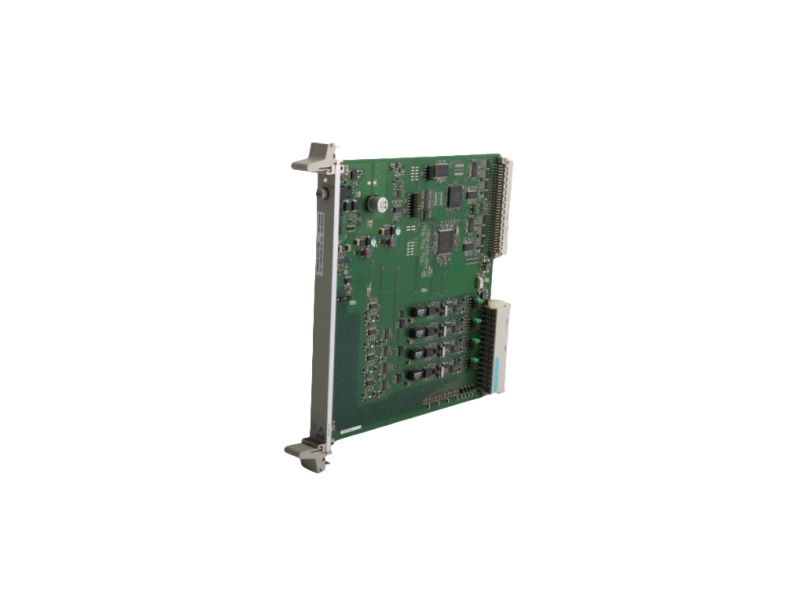

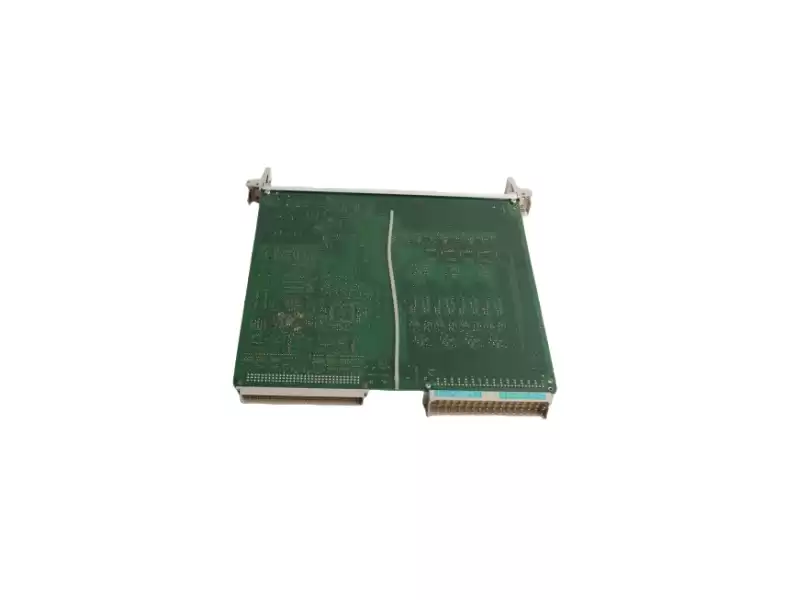

6DP1231-7AA |4-channel general-purpose analog I/O
Sales Manager May | Email: ab@mooreplc.com | Phone: +8618106909650 (WhatsApp) | WeChat: dcsfcs
Need one slot that does both analog in- and output?
6DP1231-7AA (FUM-231) packs 4 isolated inputs and 4 isolated outputs, software-selectable for ±10 V, 0-20 mA or 4-20 mA.
Hot-swap, 14-bit resolution, < 0.1 % accuracy – perfect for legacy TELEPERM M racks or PCS-7 migration frames.
Key Specifications
|
Feature
|
Value
|
|
Part No.
|
6DP1231-7AA
|
|
System
|
TELEPERM M / FUM rack
|
|
Channels
|
4 AI + 4 AO (isolated channel-to-bus)
|
|
Ranges
|
±10 V, 0-20 mA, 4-20 mA (per-channel)
|
|
Resolution
|
14 bit + sign
|
|
Accuracy @ 25 °C
|
≤ ±0.1 % full scale
|
|
Conversion time
|
0.8 ms AI / 1 ms AO (typ.)
|
|
Galvanic isolation
|
1 kV DC
|
Applications/Use Scenarios
|
u Used as an analog signal input/output module in DCS/process control systems, connecting sensors and actuators.
|
|
u Used in industrial locations such as power plants, petrochemical plants, chemical plants, and steel mills for control loops, monitoring, valve control, and actuators.
|
|
u Integrated with other Siemens control modules/hosts/exchange buses to serve as a signal bridge.
|
|
u Serves as a critical signal interface in systems requiring isolation and strong anti-interference capabilities.
|
|
u Used as a replacement module in Teleperm/SPPA systems during legacy system maintenance and spare parts replacement.
|
All items are factory-new, sealed, and supported by PLC Autocontroller with same-day quotation and worldwide overnight delivery.
