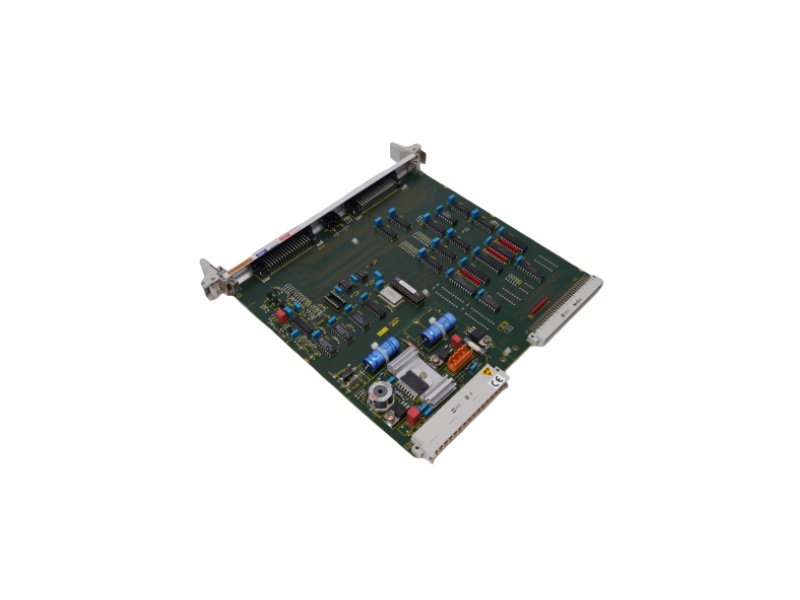

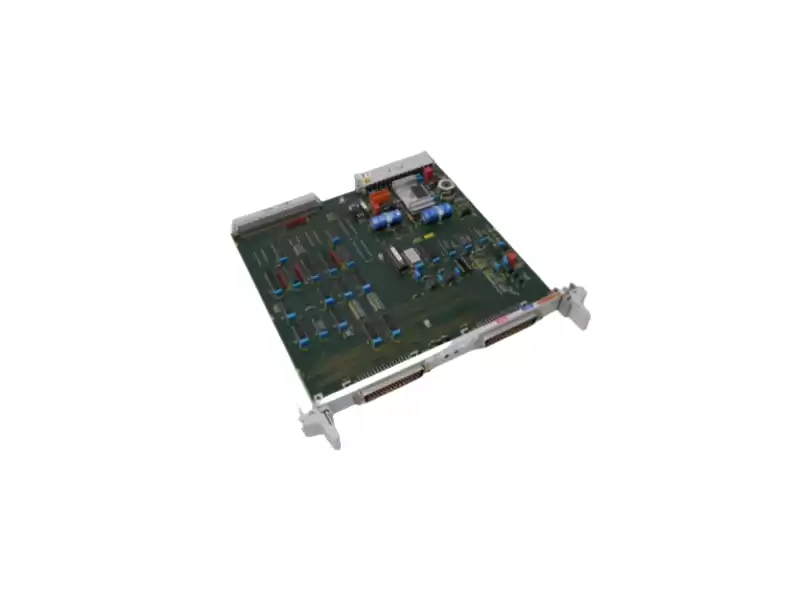

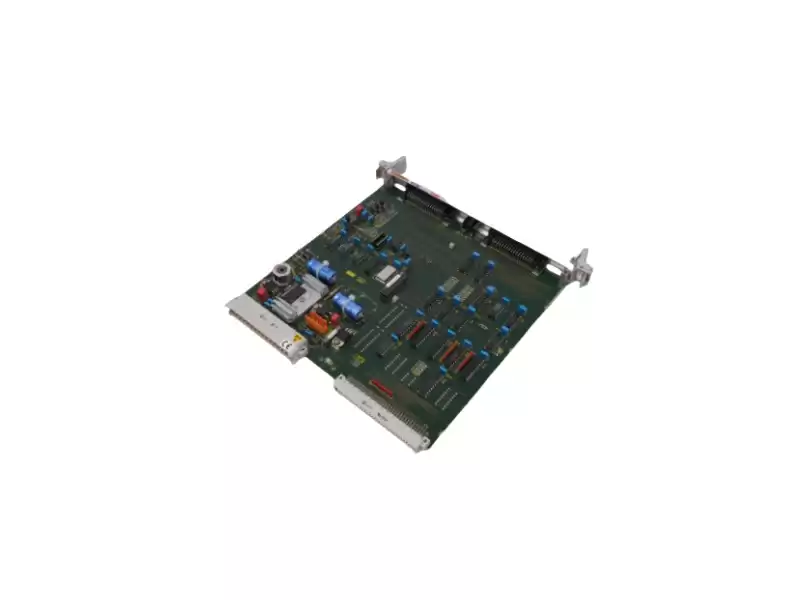

SIEMENS 6DP1641-8AA Interface Module

PLC Autocontroller | 20 years of excellence in industrial automation parts supply

6DP1641-8AA | interface module

PLC Autocontroller | Sales Manager May | Wechat id: dcsfcs

6DP1641-8AA  Overview

6DP1641-8AA is Siemens’ TELEPERM M interface module — 24 V DC, M12 connectors,

–25 … +70 °C, IP20 — certified for offshore and steel-mill environments.

Key Technical Specifications

Part number: 6DP1641-8AA TELEPERM M Series

Function: TELEPERM M interface module, 24 V DC, M12 connector

Connection: M12 connector, autobaud rate, no external gateway required

Temperature range: –25 … +70°C, IP20

Approvals: CE, UL, cULus, RoHS

Function Highlights

Signal/Bus Interface: Provides connections to the upper-level backplane/bus (Bus Interface Style C, 96-pin) and signal interfaces with lower-level submodules/functional modules.

Power/Power Distribution: Provides power input/distribution within the module, along with jumper functions (such as 1LEXT/2LEXT jumpers) to configure a standard power supply structure.

Module Connection/Wiring Management: Provides guide rails, cable ducts, and backplane bus covers to secure and isolate module wiring.
