u Product Overview

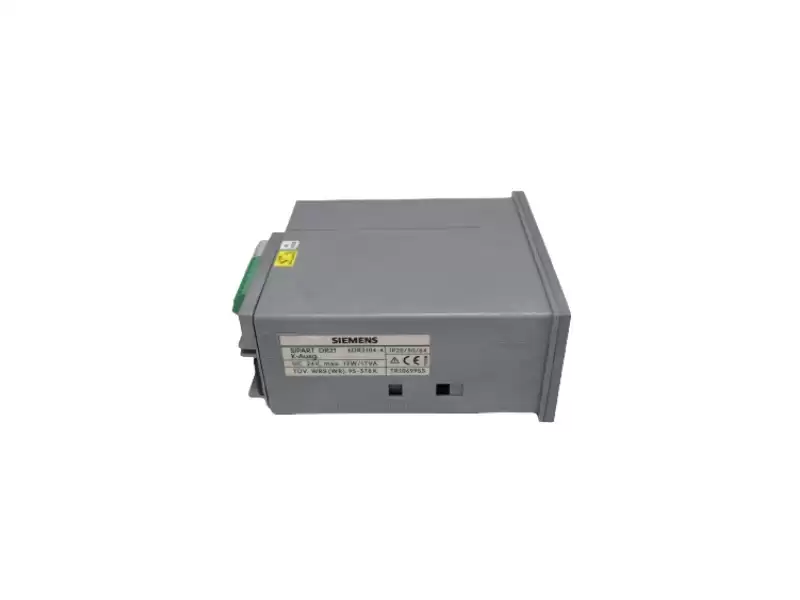

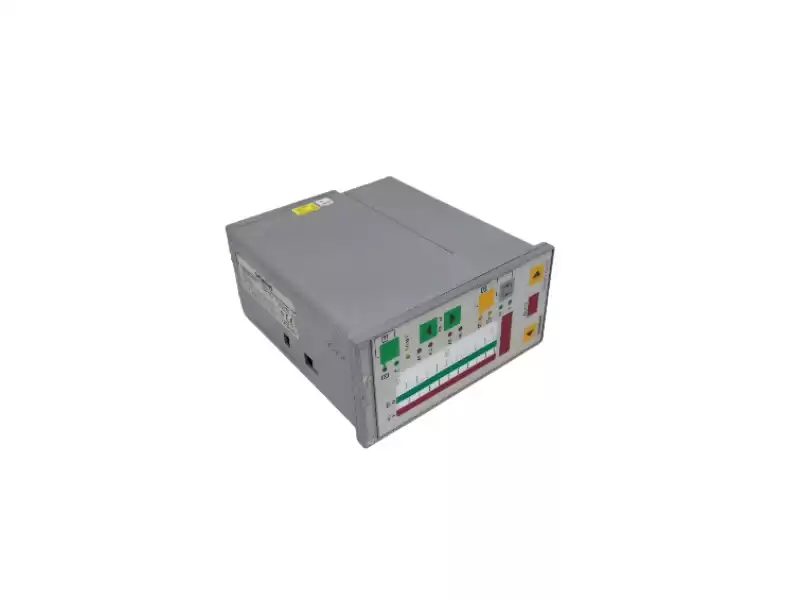

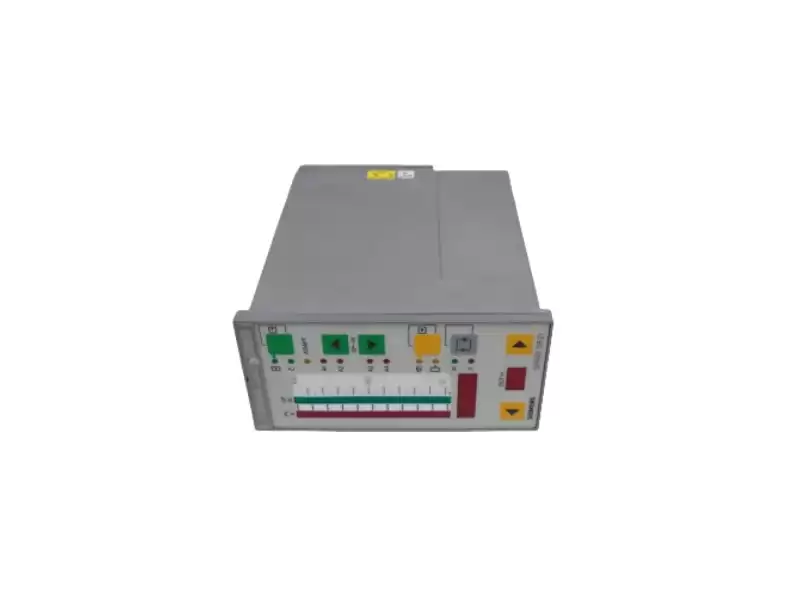

The 6DR2104-4 is a 24 V UC-powered SIPART DR21 process controller that packs 2 universal analog inputs,
2 binary inputs, 1 isolated 0/4-20 mA output and 2 interlocked relay outputs into a 72 × 144 mm housing—perfect for standalone
PID or cascade duty without extra I/O cards.
u Spec-Snapshot Table
|
Parameter
|
Value / Note
|
|
Part no.
|
6DR2104-4
|
|
Supply
|
20 – 35 V DC / 20 – 28 V AC, 48 – 63 Hz
|
|
Power draw
|
5 W typical
|
|
Analog inputs
|
2 universal: TC, RTD, 0-20 mA, 4-20 mA, ±200 mV, 248 Ω burden
|
|
Analog output
|
1 × 0/4-20 mA, 11-bit, load 0-500 Ω, isolated
|
|
Binary I/O
|
2 DI (≥ 13 V), 2 DO (19-26 V, 30 mA), 2 relays 250 V AC 8 A (interlocked)
|
|
Control
|
PID, PI, P, on/off; auto-tune; manual; cascade
|
|
Cycle time
|
100 ms (A/D + PID)
|
|
Accuracy
|
≤ 0.2 % of span, temp drift ≤ 0.1 % / 10 K
|
