What it is

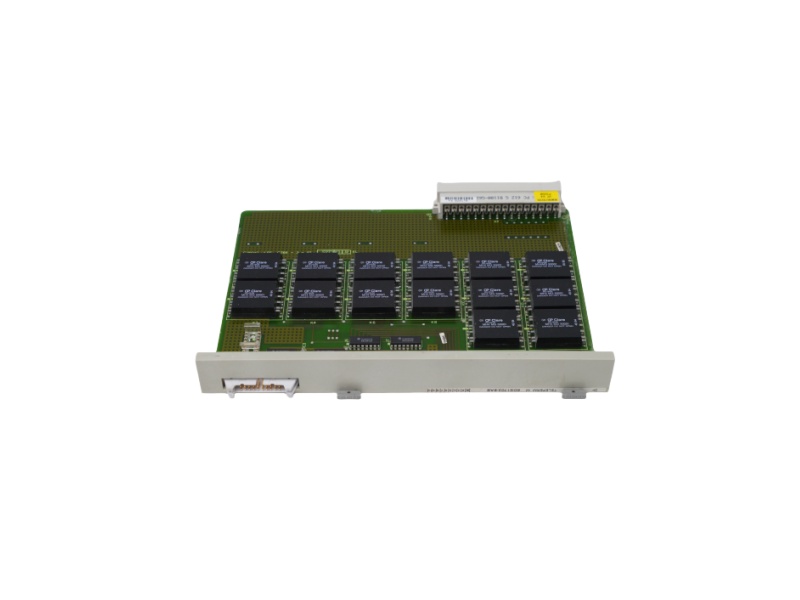

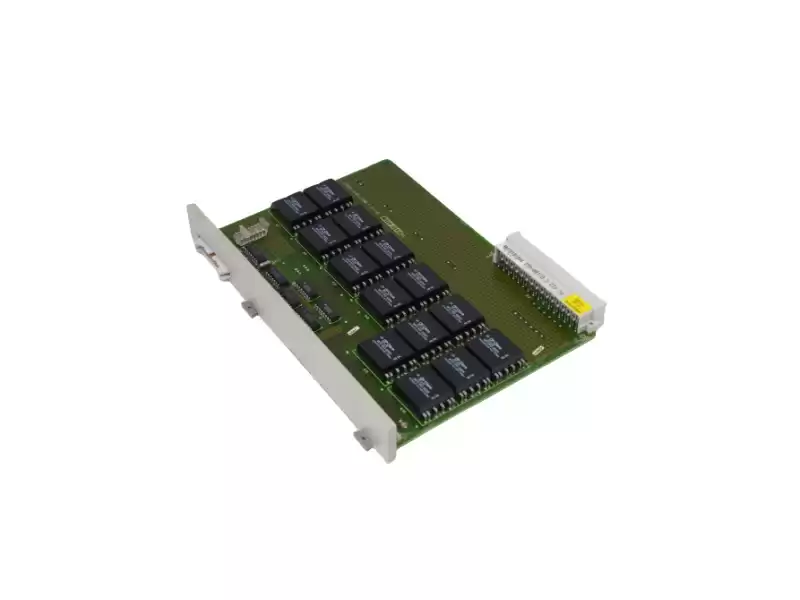

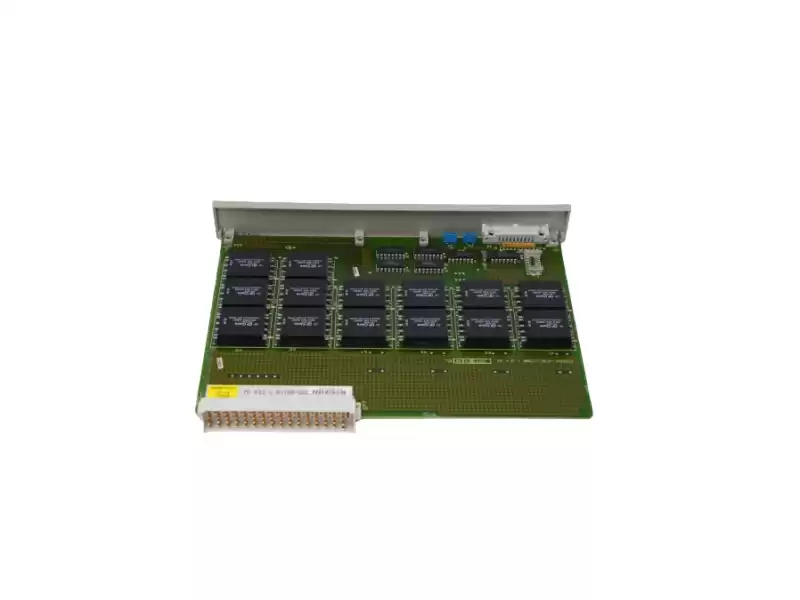

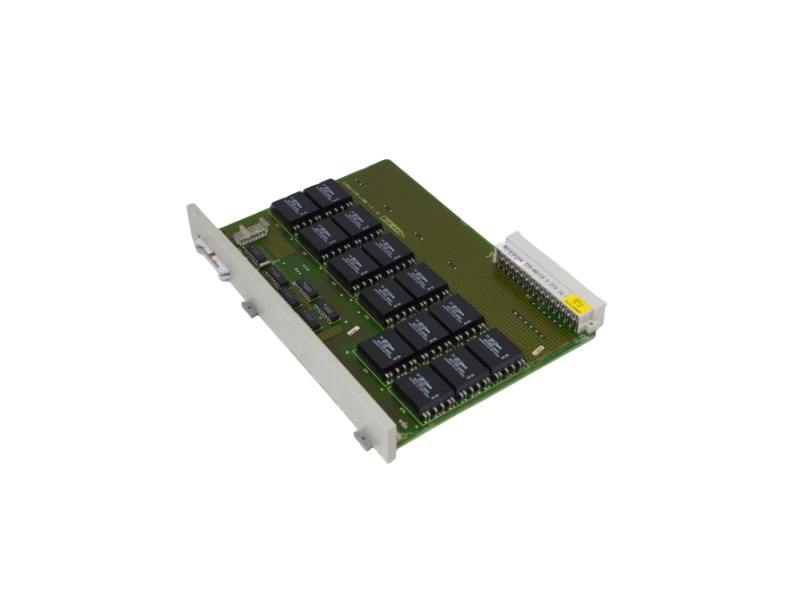

The 6DS1703-8AB is a 14-channel measuring-point extension module that snaps straight into any TELEPERM M
central rack and turns thermocouples or Pt100 signals into 0.1 °C-resolution digital data without stealing CPU cycles.
Technical Specifications
|
Parameter
|
Value / Note
|
|
Part no.
|
6DS1703-8AB (Siemens Spain)
|
|
Inputs
|
14, galvanically isolated, per-channel jumper TC / Pt100
|
|
Sensor range
|
–200…+850 °C (Pt100) or –270…+1370 °C (Type K)
|
|
Resolution
|
0.1 °C; conversion time 55 ms / all 14 ch.
|
|
Accuracy
|
±0.05 % of value ±0.3 °C
|
|
Power drawn
|
120 mW typ., 5 V bus only
|
|
Ambient
|
–25…+70 °C operating, –40…+85 °C storage
|
Function Highlights
l Reformer tube furnaces: 14-point profile keeps catalyst life > 5 yr
l Freeze-dryers: ±0.3 °C accuracy holds FDA validation without re-cal
l Glass fore-hearth: module survives 60 °C panel air, no drift in 18 months
