Siemens | 6ES5304-3UB11| interface module

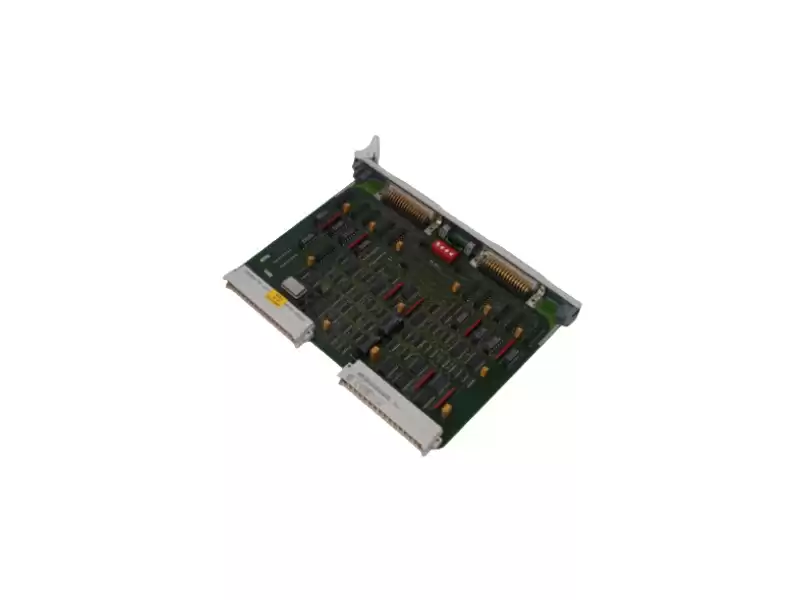

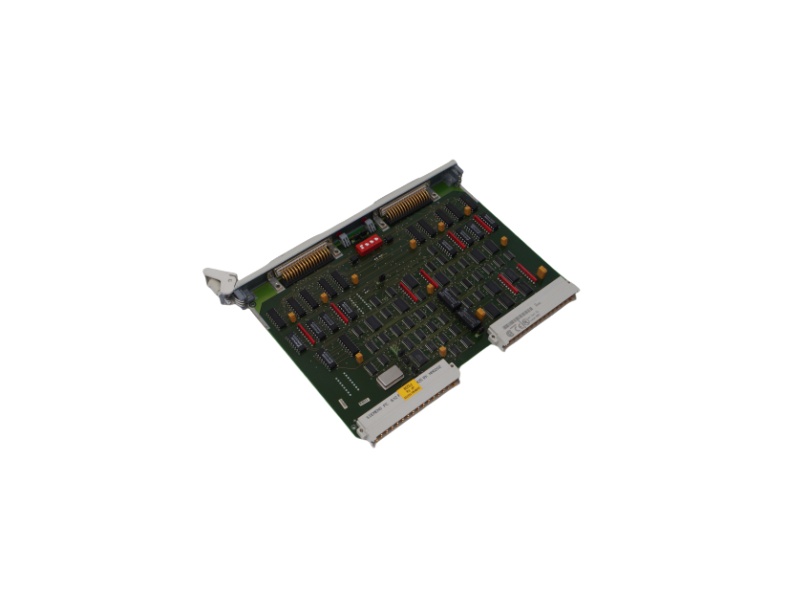

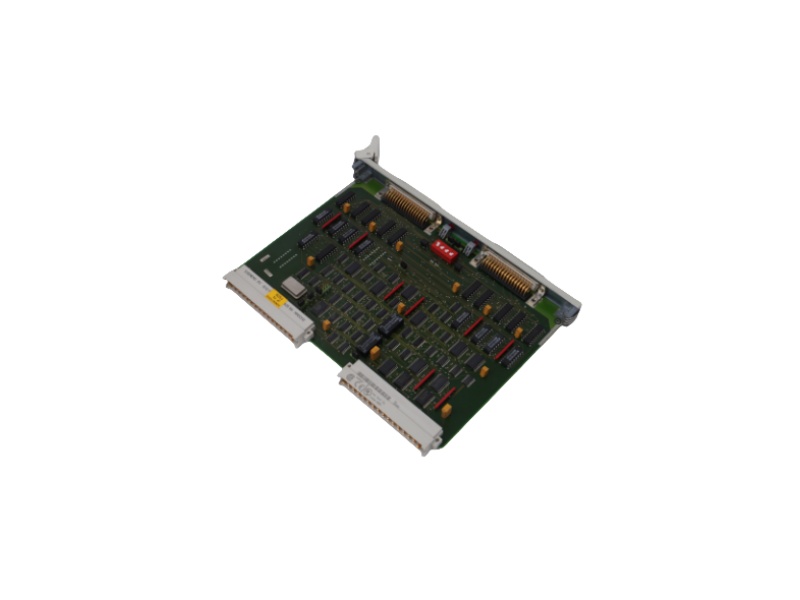

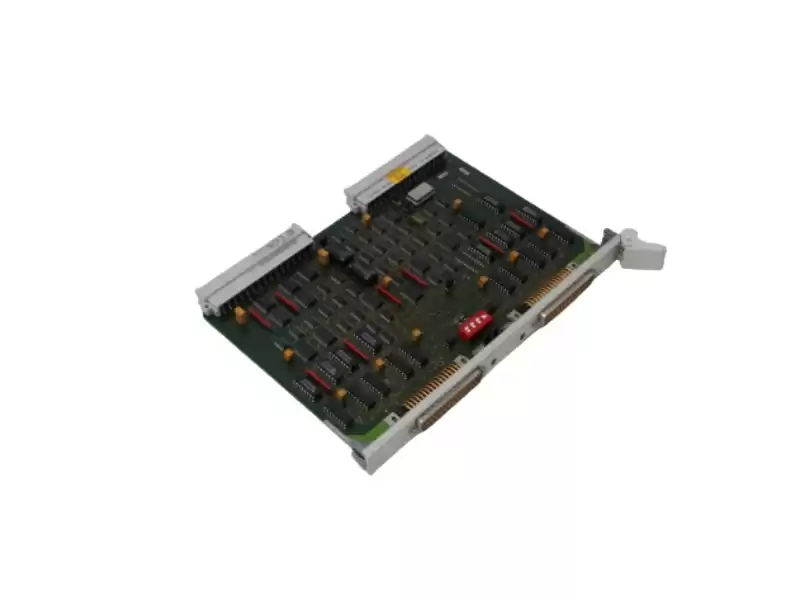

What is the 6ES5304-3UB11 interface module?
The 6ES5304-3UB11 is the Siemens IM304 interface module for SIMATIC S5 - 5 V only, hot-swappable,
-40 ... +70°C, hot-swappable - certified for offshore and steel mill environments.
Key Specifications
|
Attribute
|
Field Value
|
Benefit
|
|
Part Number
|
6ES5304-3UB11
|
SIMATIC S5 family
|
|
Function
|
IM304 interface module
|
Centralized connection of EU with CC
|
|
Voltage
|
5 V DC only
|
5 V only, hot-swap, no external gateway
|
|
Interface
|
RS-485, 9.6 k – 12 kbaud
|
Auto-baud, no external gateway
|
|
Temp range
|
–40 … +70 °C
|
IP20, conformal coat, offshore verified
|
|
Certifications
|
CE, UL, cULus, RoHS
|
Export-ready
|
Typical Application Scenarios
l In large S5 control systems, when the central controller's I/O channels are insufficient and expansion is needed, this module can be used to connect multiple expansion units to the central controller.
l In a distributed cabling architecture, I/O modules can be located remotely from the central controller. Connecting remote expansion units using this interface module reduces on-site cabling costs.
l In system designs requiring redundancy, this module can be used to connect dual central controllers or multi-channel links to achieve system redundancy and reliability.
