6ES5460-4UA12 Overview

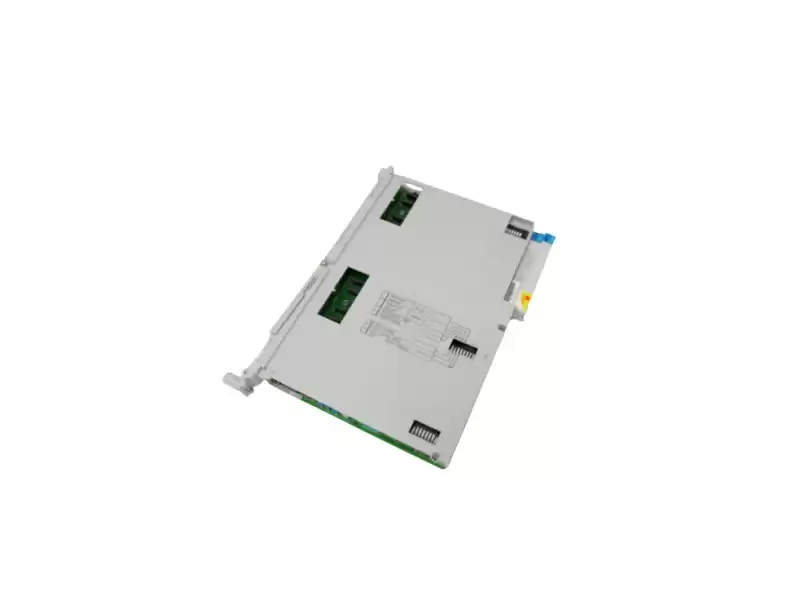

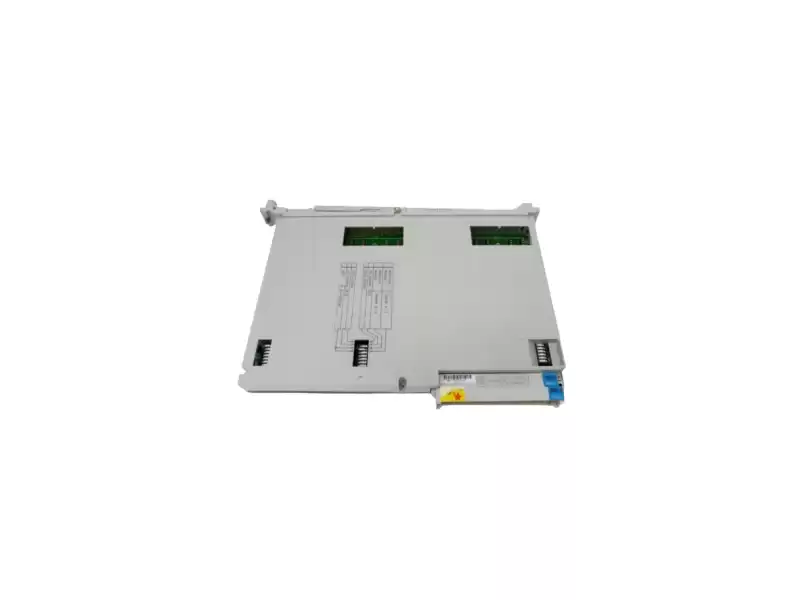

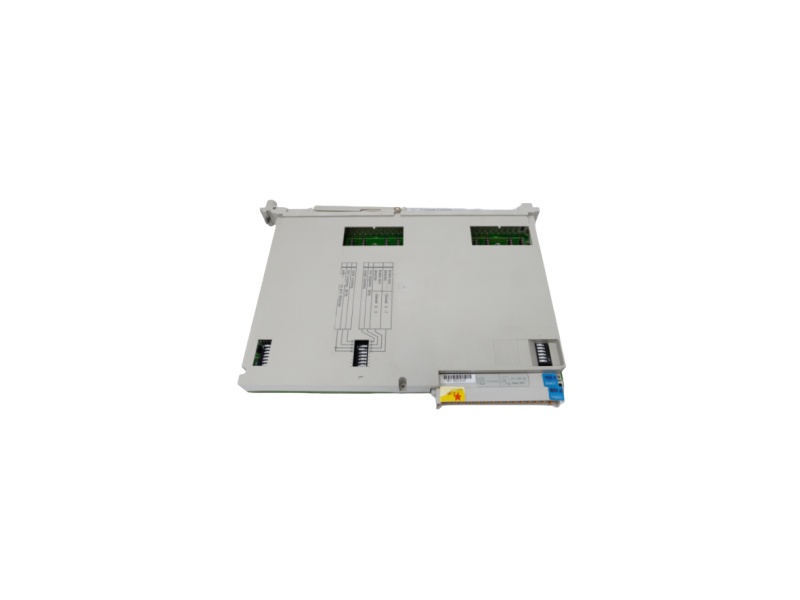

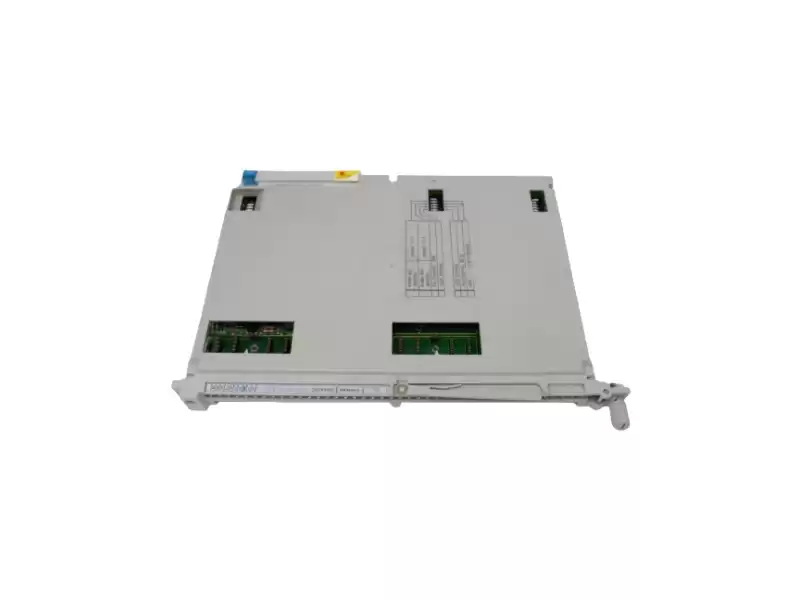

The Siemens 6ES5460-4UA12 is an analog input module belonging to the SIMATIC S5 series,

designed for PLC systems such as S5-135U, S5-155U, and S5-115U. The module supports 8 floating input

channels for voltage, current, and RTD (resistance temperature detector) signals.

Key Technical Specifications

Model: 6ES5460-4UA12

Series: SIMATIC S5 460

Input Channels: 8 floating input channels

Input Type: Supports voltage, current, and RTD signals

Measurement Range Module: Requires two 6ES5498-1AAx1 measurement range

modules to select the appropriate input range

Compatibility: Suitable for PLC systems such as the S5-135U, S5-155U, and S5-115U

Function Highlights

16-channel single-ended — ±10 V, ±20 mA, 4-20 mA, 13-bit, no external resistor

13-bit + sign — 0.1 % F.S., 880 ms scan

Hot-swap — Key-switch confirm, <200 ms break
