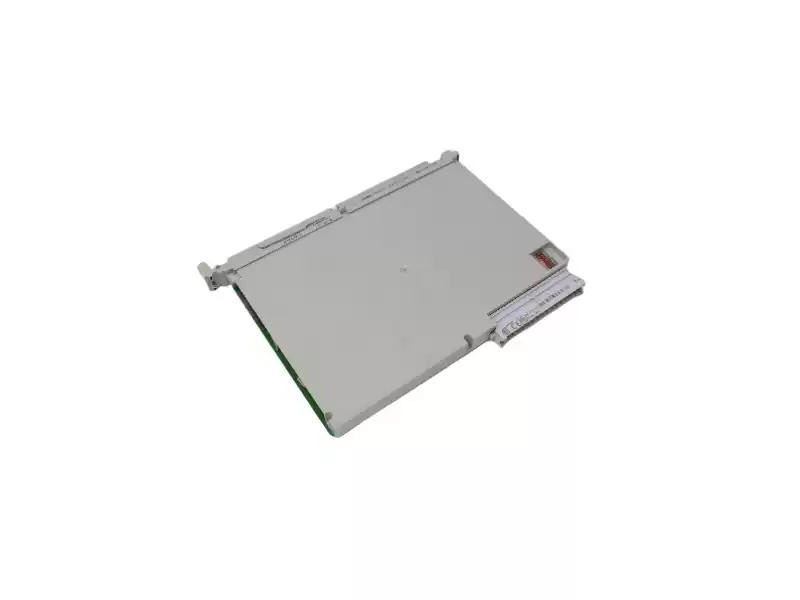

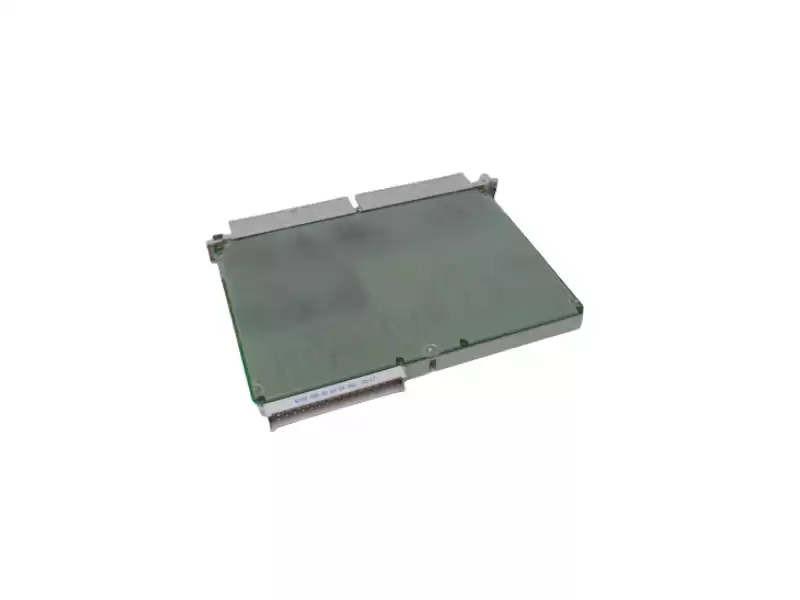

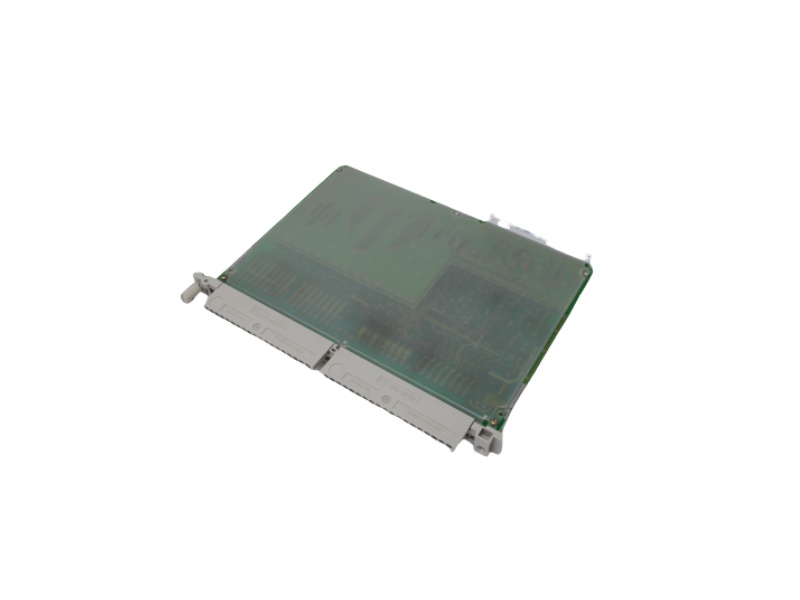

6ES5482-4UA20 Overview
The 6ES5482-4UA20 is Siemens’ 482-series digital I/O module: one card,
16 inputs + 16 outputs, 24 VDC, 0.5 A—all potential-separated.
Key Technical Specifications
Part Number:6ES5482-4UA20
Module Type:Digital I/O (482 family)
Inputs:16 × 24 VDC, 5 mA typ.
Outputs: 16 × 24 VDC, 0.5 A, short-circuit proof
Isolation Yes, channel-to-bus & channel-to-channel
Input Signal Delay:1.2 ms typ.
Output Leakage: ≤ 0.5 mA
Switching Freq. (res.): 100 Hz max.
Key Features
l Combination modules provide both digital input and output circuits. Users can read input status and control these outputs from the PLC program.
l Flexible configuration: Depending on specific needs, you can configure a higher number of inputs and a lower number of outputs, or a balanced input and output configuration.
l The isolated floating design helps reduce the risk of common ground interference and improves system stability and safety.
l For control and monitoring: The inputs can be connected to various switches, sensors, and contacts; the outputs can drive relays, indicator lights, small loads, etc. (but be careful not to exceed 0.5 A per output).
