Siemens | 6GK5204-2BB10-2AA3 | Industrial Ethernet switch
What is the 6GK5204-2BB10-2AA3 excitation board?

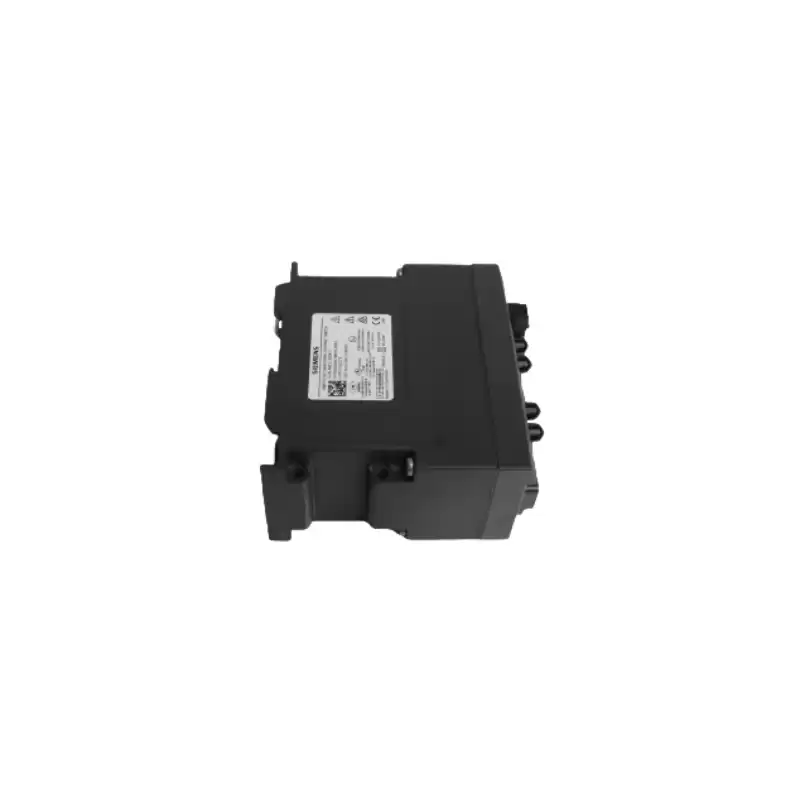

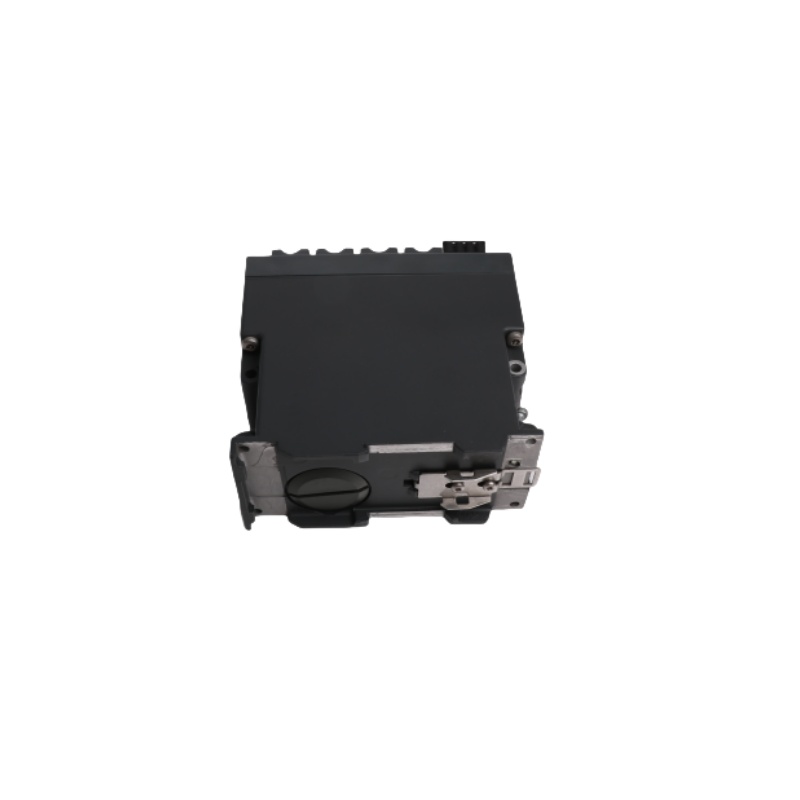

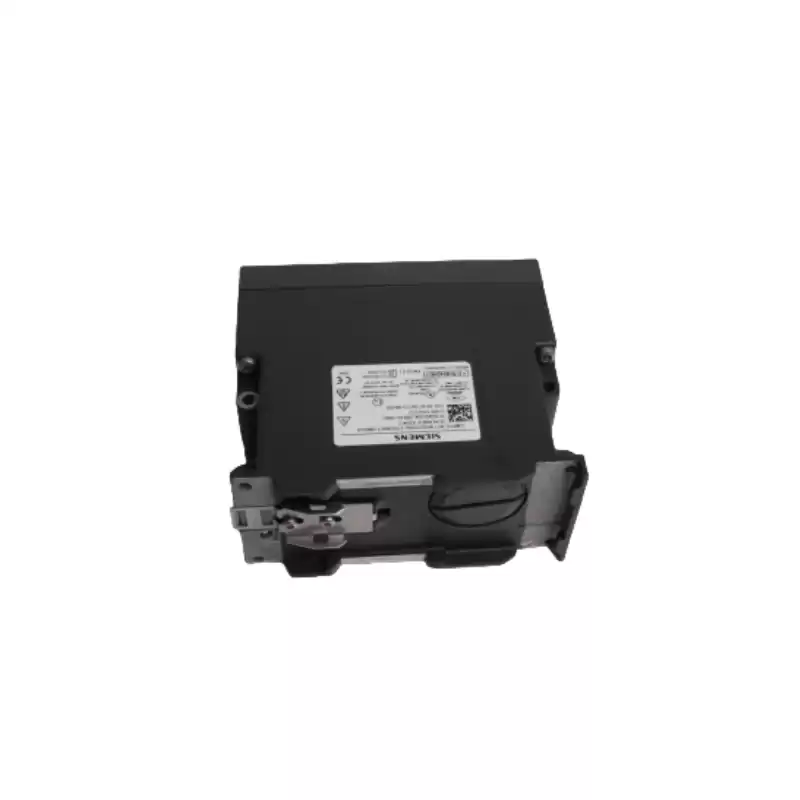

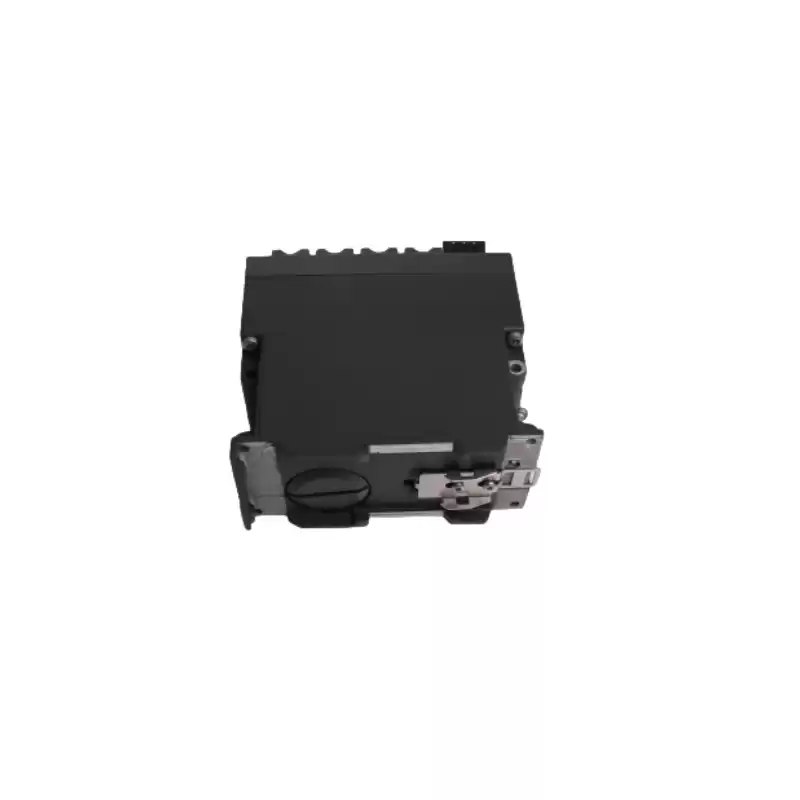

6GK5204-2BB10-2AA3 = SCALANCE X204-2 — a managed Industrial Ethernet switch from Siemens
— 4×10/100 RJ45 + 2×100 Mb multi-mode BFOC, 24 V DC, IP65 front, –10 … +60 °C, built-in redundancy manager
— certified for offshore and steel-mill environments.
Key Specifications
|
Attribute
|
Field Value
|
On-Site Benefit
|
|
Part Number
|
6GK5204-2BB10-2AA3
|
SCALANCE X-200 family
|
|
Ports
|
4×RJ45 10/100 + 2×BFOC 100 Mb
|
Auto-MDIX, no crossover cables
|
|
Speed
|
10/100 Mbps
|
Auto-negotiation, 9.6 k – 12 Mbps PROFINET ready
|
|
Power
|
24 V DC (18-32 V)
|
215 mA typical, 5.16 W, dual inlet possible
|
|
Distance
|
0-100 m (TP) / 0-3 km (MMF)**
|
Long conveyor, crane, yard gate
|
|
Temp
|
–10 … +60 °C
|
IP65 front, offshore verified**
|
|
Size / wt
|
60 × 124 × 125 mm / 0.998 kg**
|
Book-size, 35 mm DIN rail, front access
|
|
Certifications
|
CE, UL, cULus, RoHS, PROFINET device
|
Export-ready, GSD file supplied
|
Features
Ø Network Management: Supports SNMP v1/v2/v3, Telnet, HTTP/HTTPS, TFTP, FTP, DCP, LLDP, SNTP, and other protocols, providing comprehensive network management capabilities.
Ø Redundancy: An integrated redundancy manager supports redundancy protocols such as HSR and PRP, ensuring high network availability.
Ø Diagnostics: LED indicators and fault signal contacts provide real-time device status and fault information, facilitating maintenance and troubleshooting.
Ø Mounting Flexibility: Supports DIN rail mounting, adapting to various industrial environments.
