SIEMENS |6SE7012-0TP50 | Motion Control Compact Plus
Sales Manager May | WeChat: dcsfcs
u Overview of the 6SE7012-0TP50

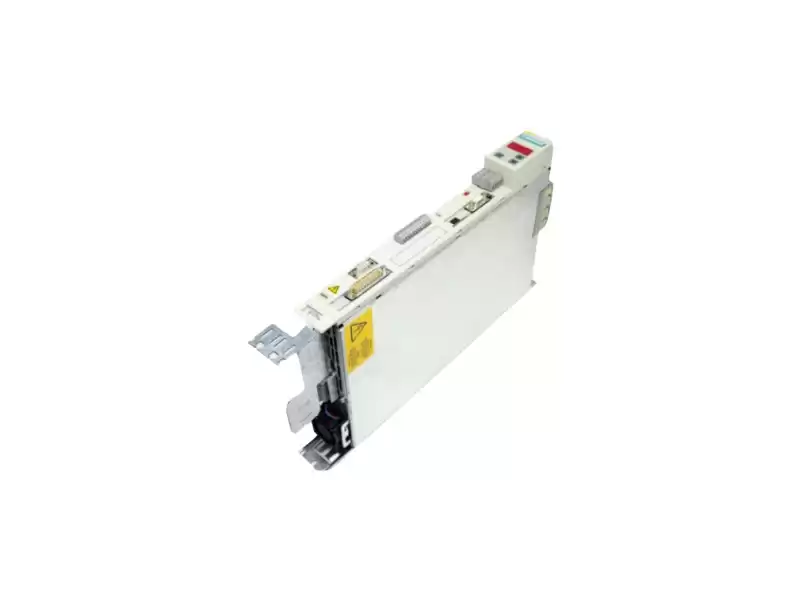

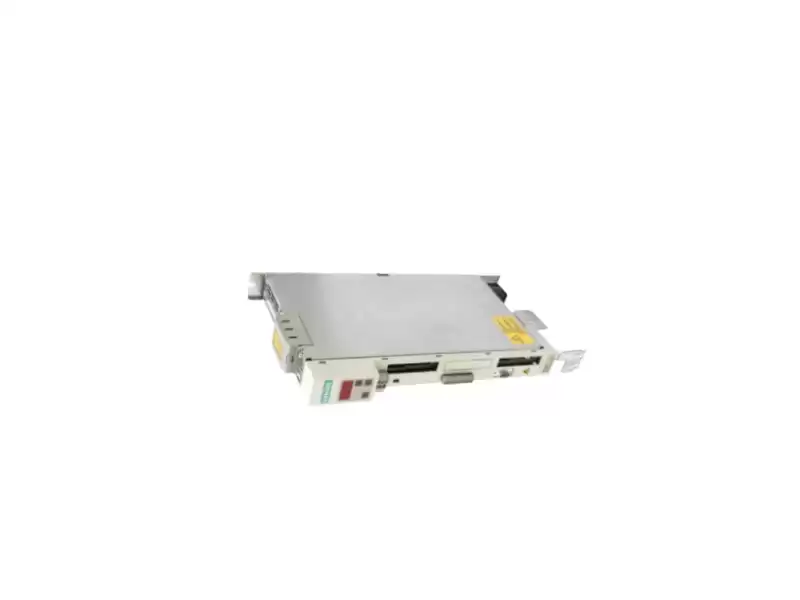

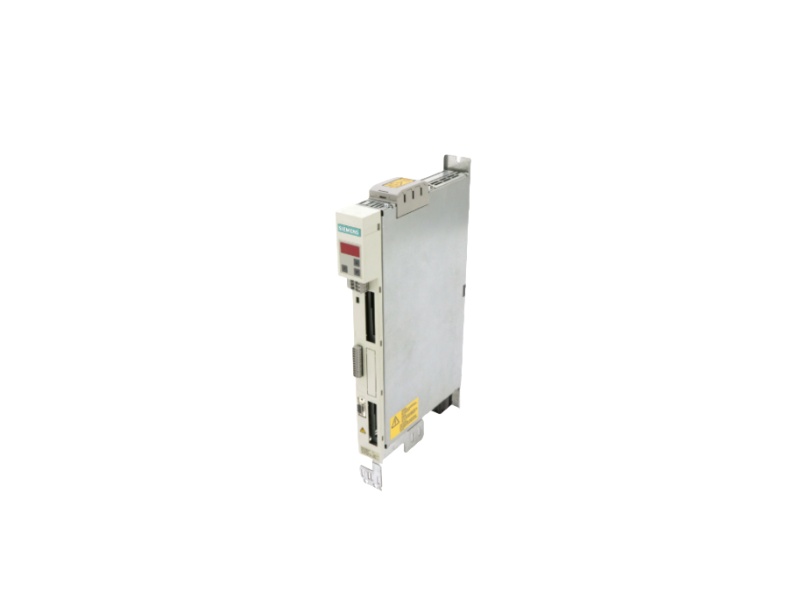

6SE7012-0TP50 SIMOVERT MASTERDRIVES Motion Control Compact Plus —
smallest book-size current-source inverter: 510-650 V DC input, 2 A rated output, 0.75 kW motor power,
built-in filter, IP20 — fits S120 side-by-side without extra fans.
u 6SE7012-0TP50 Core specifications
|
Knob
|
Factory Value
|
Field Bonus
|
|
DC input
|
510 – 650 V DC (±10 %)
|
direct from 6SL3130-6TE… or external rectifier
|
|
Output
|
3 AC 0 – 480 V, 2 A (0.75 kW)
|
current-vector control, 0.1 Hz resolution
|
|
Overload
|
150 % 60 s / 200 % 3 s
|
3 A peak, no external reactor needed
|
|
Control
|
Current-vector (VC)
|
0.1 % speed accuracy, 2 ms torque response
|
|
PWM
|
2 – 16 kHz carrier
|
auto-reduction above 8 kHz for thermal relief
|
u Same brand model
|
Part Number
|
Power
|
Frame
|
Output Current
|
Typical Use
|
|
6SL3224-0BE13-7UA0
|
0.37 kW
|
FSA
|
1.3 A
|
Small fans, mixers
|
|
6SL3224-0BE15-5UA0
|
0.55 kW
|
FSA
|
1.7 A
|
Conveyors, packers
|
|
6SL3224-0BE17-5UA0
|
0.75 kW
|
FSA
|
2.2 A
|
Pumps, rotary tables
|
|
6SL3224-0BE21-1UA0
|
1.1 kW
|
FSA
|
3.1 A
|
Lifts, blenders
|
|
6SL3224-0BE21-5UA0
|
1.5 kW
|
FSA
|
4.1 A
|
Pumps, fans, belts
|
|
6SL3224-0BE22-2UA0
|
2.2 kW
|
FSB
|
5.9 A
|
Belt drives, spindles
|
