Siemens | 6SL3055-0AA00-3AA1 | Terminal Module
l 6SL3055-0AA00-3AA1 Introduction

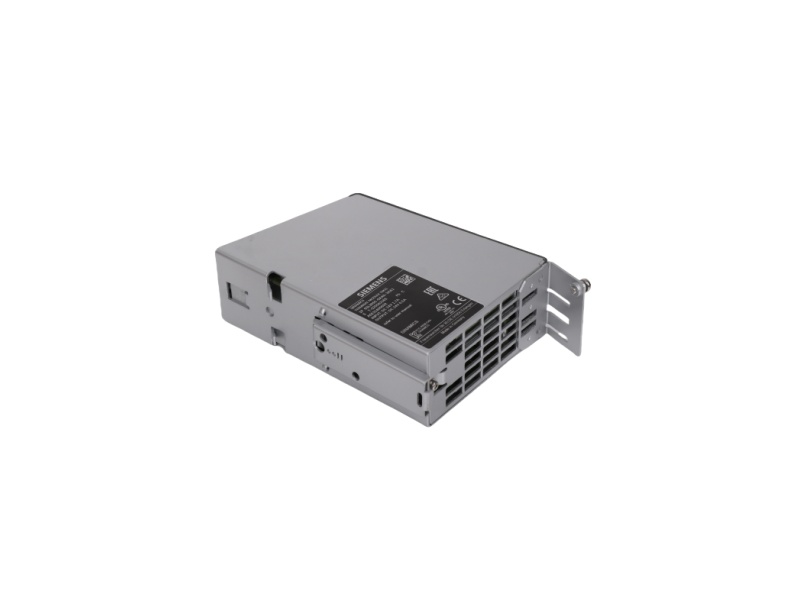

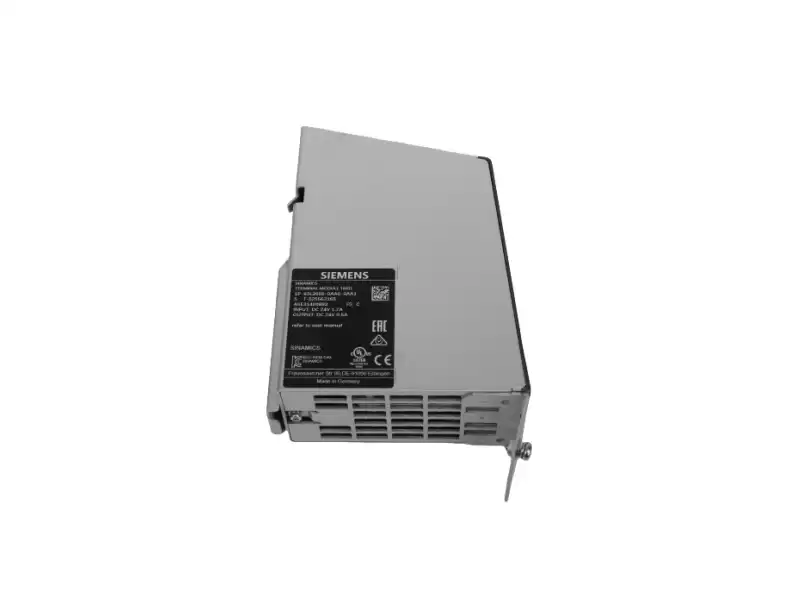

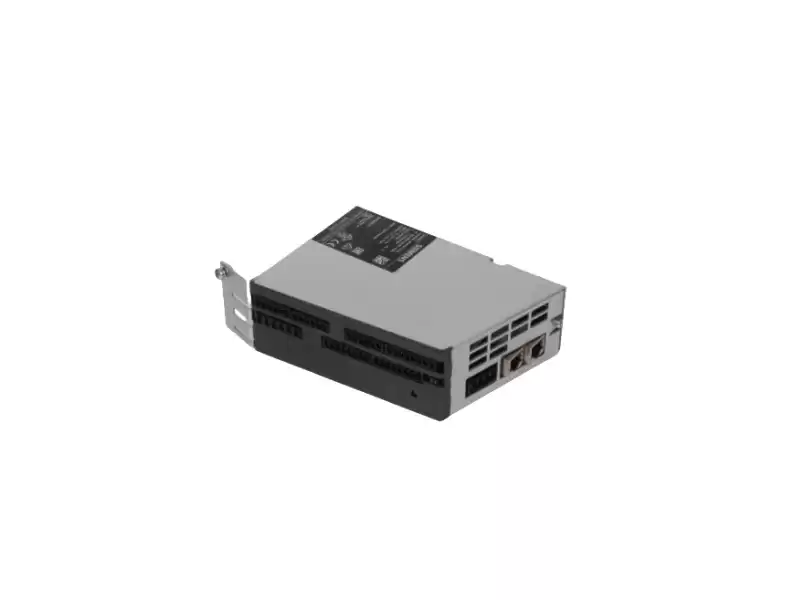

The Siemens 6SL3055-0AA00-3AA1 is a SINAMICS S120 Terminal Module (TM31) designed for integration
into the SINAMICS drive system. It serves as an add-on board providing digital and analog I/O capabilities, facilitating
communication between the drive and external control systems.
l Core parameters
|
Channel
|
Qty / Range
|
Update Time
|
Field Bonus
|
|
Digital In
|
8 × 24 V PNP
|
1 ms
|
4 × interrupt-capable (≤ 50 µs)
|
|
Digital Out
|
4 × 24 V / 0.5 A
|
1 ms
|
short-circuit proof, thermal limit
|
|
Analog In
|
2 × ±10 V / ±20 mA / PT100
|
1 ms
|
16-bit, software-selectable
|
|
Analog Out
|
2 × ±10 V / 0-20 mA
|
1 ms
|
16-bit, 5 mA load min.
|
|
Temp sensor
|
1 × PT100 / PT1000
|
1 ms
|
motor bearing or cabinet temp
|
|
Bus
|
DRIVE-CLiQ
|
100 Mb/s
|
auto-address, ≤ 100 m fibre
|
|
Power
|
24 V DC 0.13 A
|
from S120 DC-bus
|
no extra PSU
|
|
Temp
|
0 … +55 °C
|
IP20
|
35 mm DIN clip, side-by-side
|
|
