SIEMENS |6SL3224-0BE21-5UA0 | Power Module
Sales Manager May | WeChat: dcsfcs

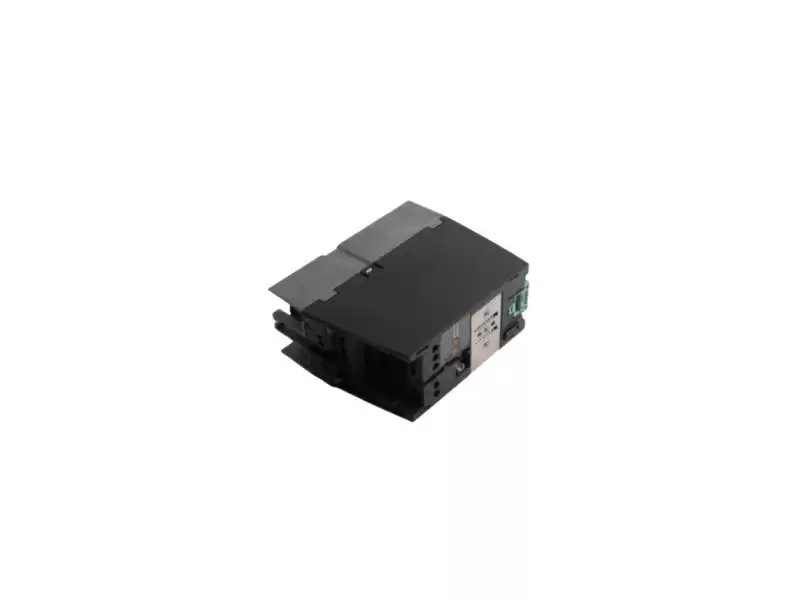

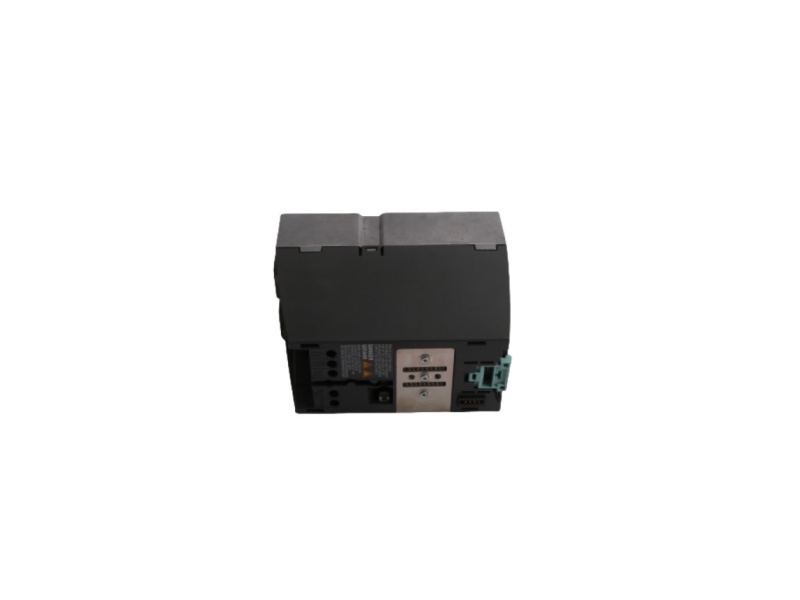

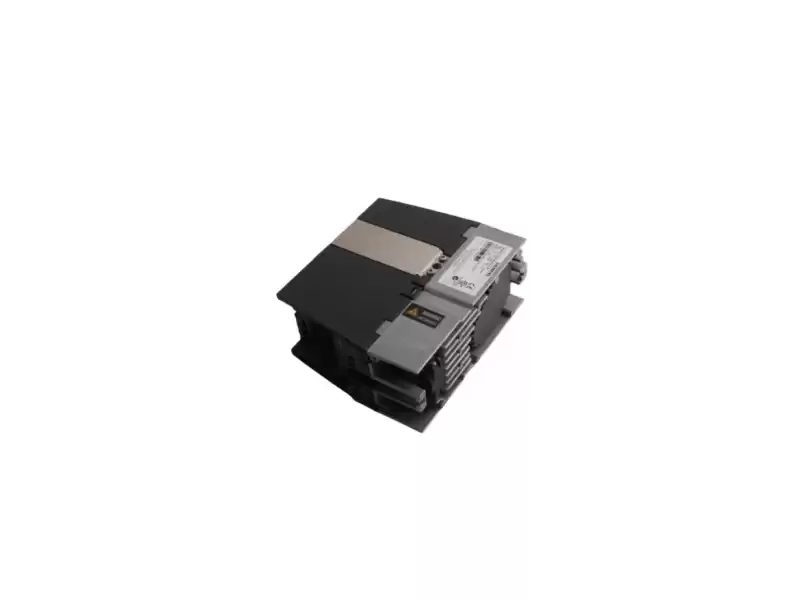

u Overview of the 6SL3224-0BE21-5UA0
6SL3224-0BE21-5UA0 is the PM240 power module inside SINAMICS G120:
1.5 kW, 3-phase 380-480 V, built-in brake-chopper, FSA frame—perfect for pumps,
fans & conveyors where cabinet space is money.
u 6SL3224-0BE21-5UA0 Core specifications
|
Power
|
1.5 kW (2.0 hp)
|
150 % overload 60 s, 200 % 3 s
|
|
Input
|
3 AC 380 – 480 V ±10 %
|
50 / 60 Hz, power factor 0.85
|
|
Output
|
0 – 480 V, 4.1 A
|
0 – 550 Hz, PWM 4 kHz
|
|
Brake
|
Built-in chopper
|
max 1 kW into external 200 Ω resistor
|
|
Loss
|
60 W @ 4.1 A
|
natural convection, no fan
|
|
Temp
|
–10 … +40 °C (HO)
|
60 °C with derating
|
|
Size / Wt
|
73 × 173 × 145 mm / 1.3 kg
|
side-by-side mounting, no gap
|
|
Protection
|
IP20 / UL open
|
CE, cULus, RoHS
|
u Same brand model
|
Part Number
|
Power
|
Frame
|
Output Current
|
Typical Use
|
|
6SL3224-0BE13-7UA0
|
0.37 kW
|
FSA
|
1.3 A
|
Small fans, mixers
|
|
6SL3224-0BE15-5UA0
|
0.55 kW
|
FSA
|
1.7 A
|
Conveyors, packers
|
|
6SL3224-0BE17-5UA0
|
0.75 kW
|
FSA
|
2.2 A
|
Pumps, rotary tables
|
|
6SL3224-0BE21-1UA0
|
1.1 kW
|
FSA
|
3.1 A
|
Lifts, blenders
|
|
6SL3224-0BE21-5UA0
|
1.5 kW
|
FSA
|
4.1 A
|
Pumps, fans, belts
|
|
6SL3224-0BE22-2UA0
|
2.2 kW
|
FSB
|
5.9 A
|
Belt drives, spindles
|
