Ordering Parameters
1)

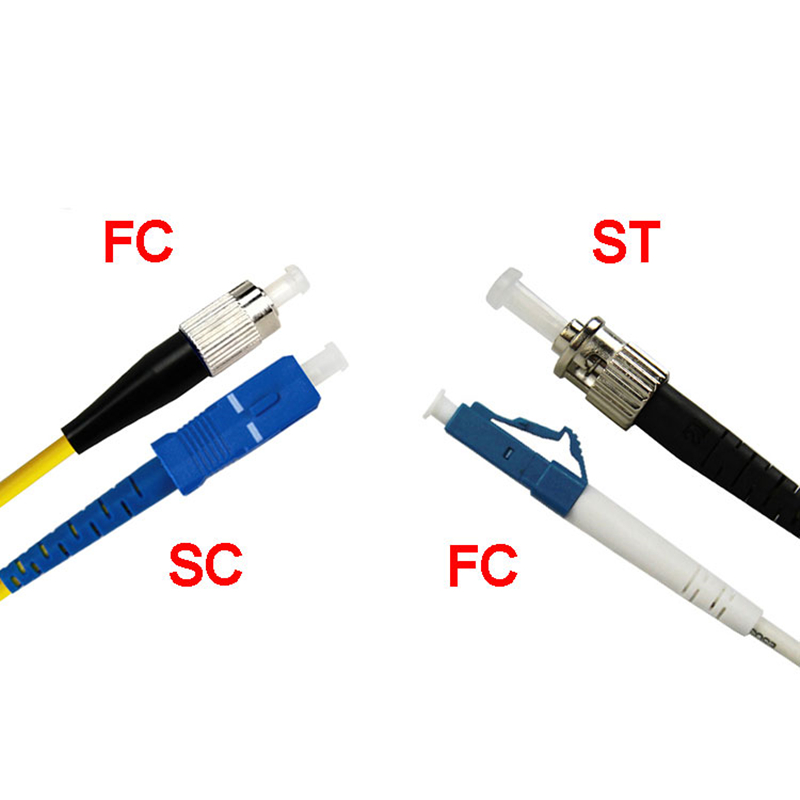

Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPC,APC
3) Core Type: Single-mode (SM: 9/125um), Muti-mode (MM: 50/125um or
62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores,
48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
8) Patch cord/pigtail
Features
-
Low insertion loss and back reflection loss
-
Good changeability Good Durability
-
High temperature stability
-
CE, ROHS, FCC
-
Superior quality standard PC/UPC/APC polishing
Applications
-
Cabling
system, ODF
-
Optical fiber communication systems
-
Optical fiber data transmission
-
Telecom net
-
Optical fiber sensor
-
Optical fiber test equipment
-
Optical fiber communication system
-
FTTH, LAN,PON & Optical CATV
Specifications
|
Item
|
Unit
|

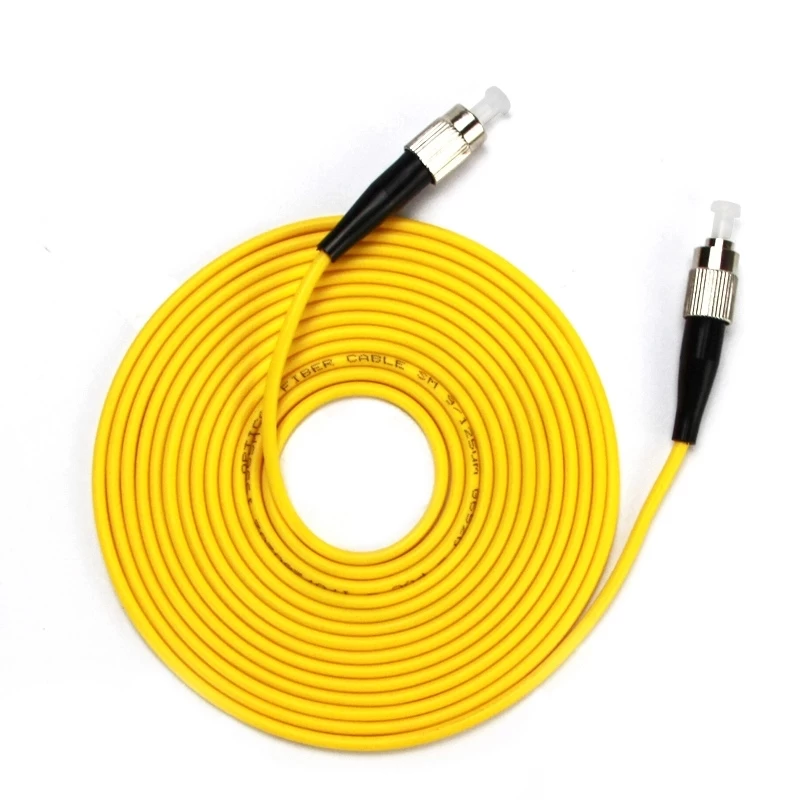

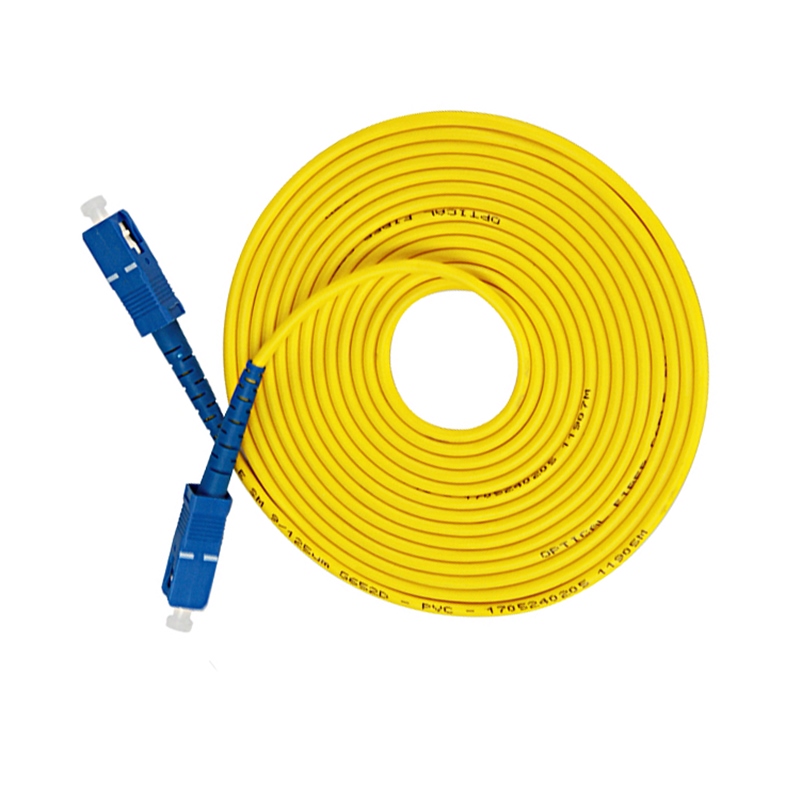

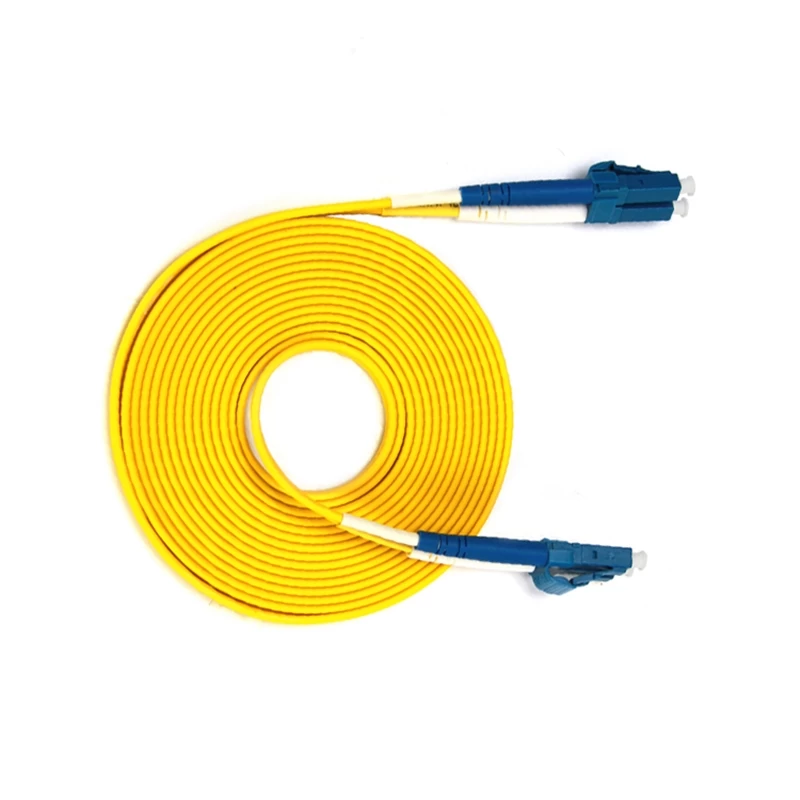

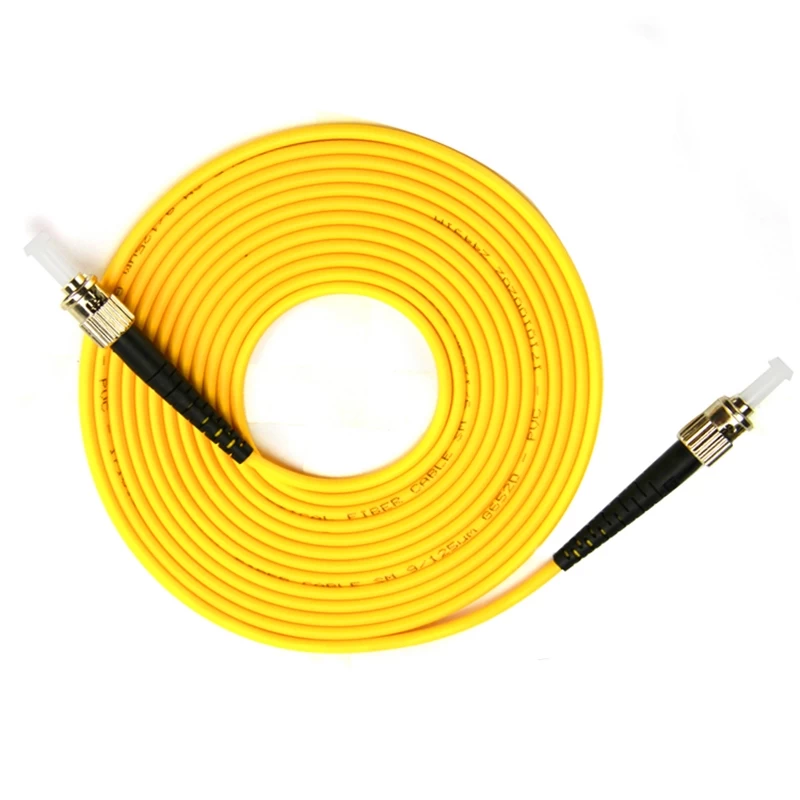

LC/SC/FC/ST Fiber Patch Cord
|
|
SM
|
MM
|
|
Fiber Diameter
|
UM
|
9/125
|
65.5/125
|
50/125
|
|
Polishing
|
|
PC
|
UPC
|
APC
|
PC
|
PC
|
|
Insertion Loss
|
dB
|
≤0.2
|
≤0.15
|
≤0.2
|
≤0.1
|
≤0.1
|
|
Return Loss
|
dB
|
≥55
|
≥50
|
≥60
|
≥35dB
|
≥35dB
|
|
Insert-pull Test
|
dB
|
≤0.2
|
≤0.2
|
≤0.3
|
≤0.15
|
≤0.15
|
|
Interchangeability
|
dB
|
≤0.1
|
≤0.1
|
≤0.15
|
≤0.1
|
≤0.1
|
|
Temperature Range
|
℃
|
-40~+80
|
|
Durability(1/Matings)
|
≥1000
|
|
Tensile Strength (N)
|
≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
|
|
Fiber
|
9/125um, 50/125um,62.5/125um, etc.
|
|
Diameter
|
0.9mm 2.0mm, 3.0mm etc
|
|
Cores
|
Simplex, duplex, 4cores, 6cores,
8cores, 12cores etc.
|
