Introduction

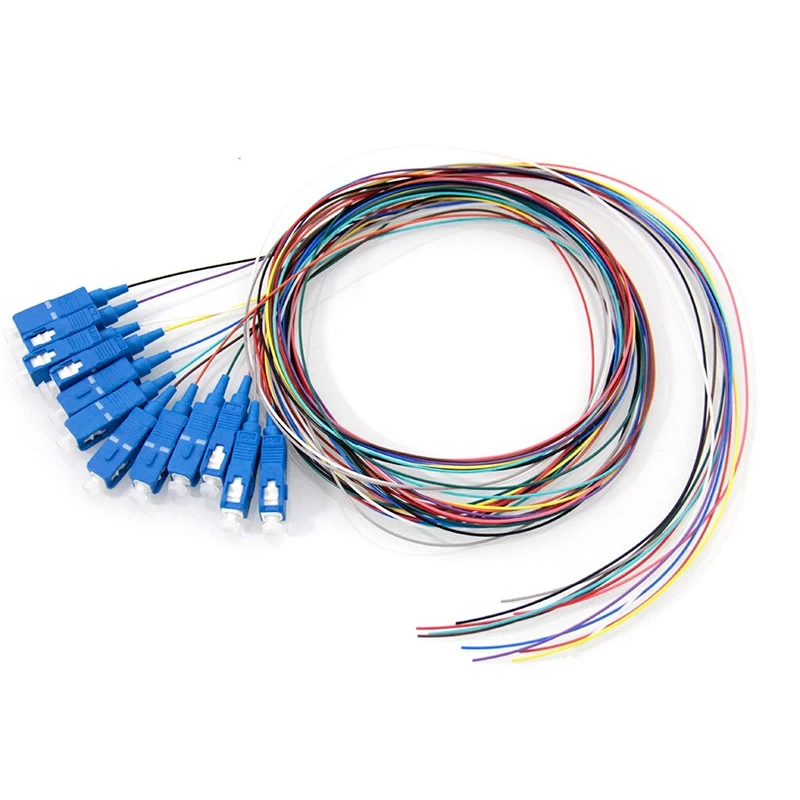

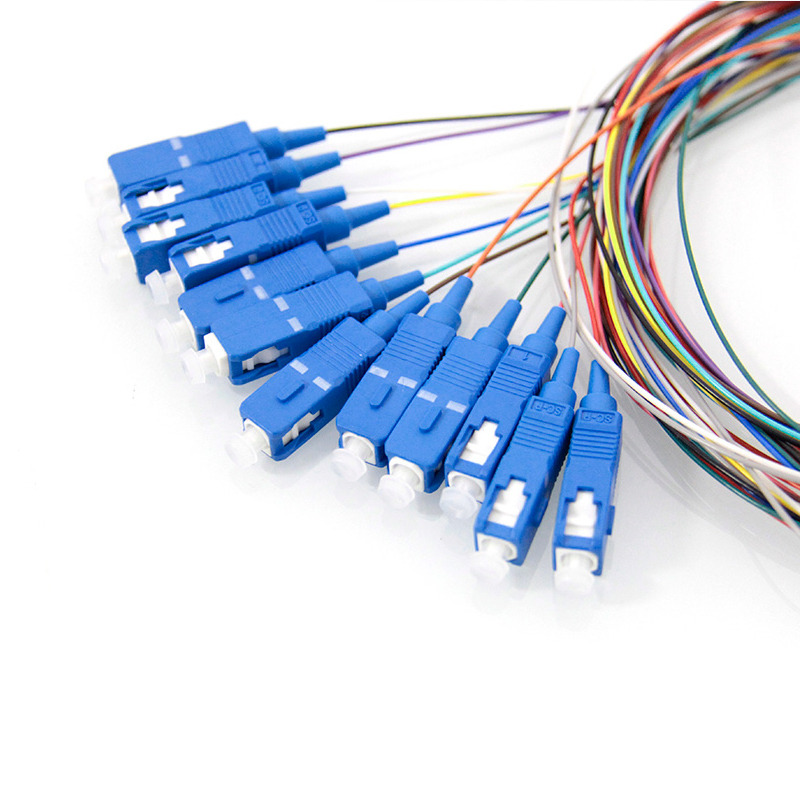

Fiber pigtails are a great solution for fusion

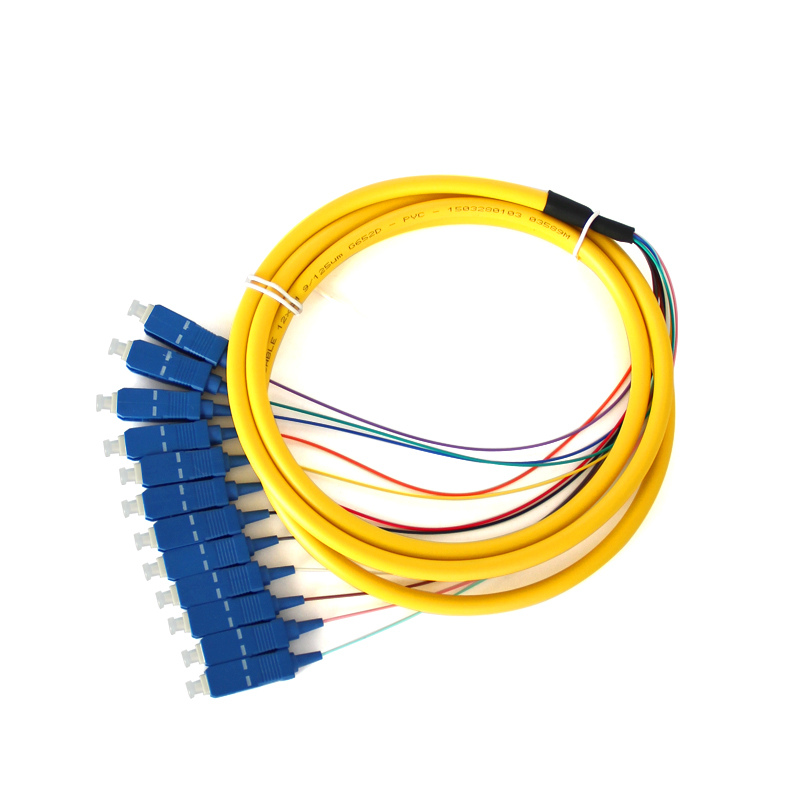

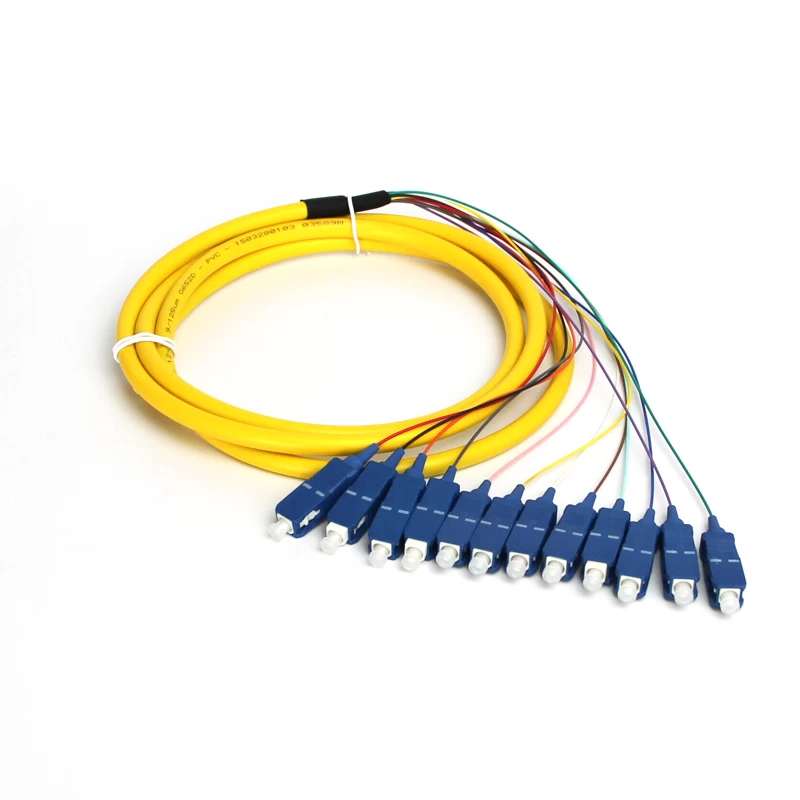

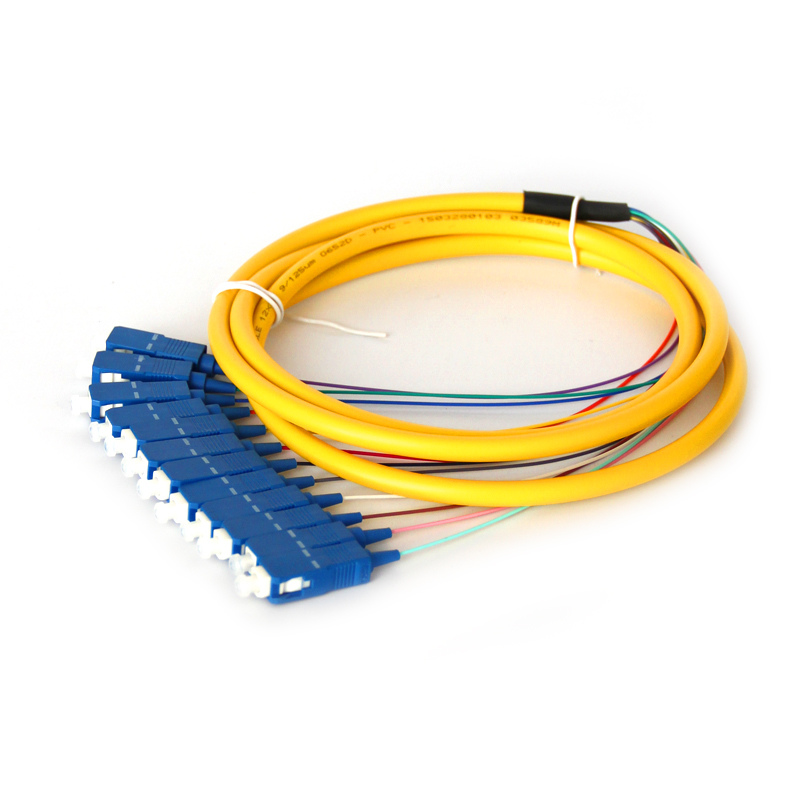

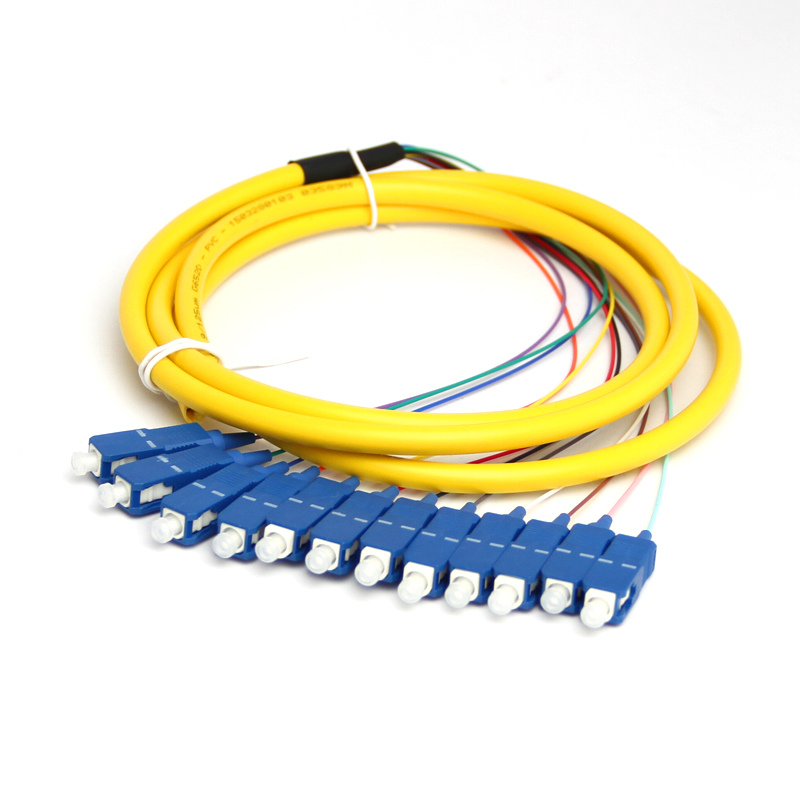

splicing inside of a fiber optic enclosure. The ribbon fan-out fiber pigtails
come with a partial outer jacket to help protect the tight buffer fibers from
being damaged. If space is a premium, the outer jacket can easily be removed,
allowing the pigtails to have a tighter bend radius and take up less space.
Features
-
Compliant with the standard
of IEC
-
High Return Loss
-
Low Insertion Loss
-
Good reliability and
stability
-
Polishing type: PC, UPC, and
APC
-
Various interfaces:
SC/FC/SC/ST
-
Core of cable: 12
Applications
-
Telecommunication Network
-
Testing Equipment
-
Local Ares Network
-
CATV
Specifications
|
Parameter:
|
Single
mode
|
Multi
mode(optional)
|
|
Insertion
Loss
|
≤0.3dB
|
≤0.20dB
|
|
Return
Loss
|
≥45 dB (PC)
≥50 dB (UPC)
≥60 dB (APC)
|
≥35 dB (PC)
≥45 dB (UPC)
|
|
Wavelength
|
1310nm,1550nm
|
850nm,1310nm
|
|
Repeat-ability
|
≤0.1
|
|
Durability
|
≤0.2 dB typical change, 1000 matings
|
|
Interchangeability
|
≤0.2dB
|
|
Cord
diameter
|
3.0mm
|
|
Connector
Available
|
SC,FC,ST,LC,MU,MTRJ
|
|
Fiber
core available
|
4,6,8,12,24
fiber…
|
