Product Name:
|

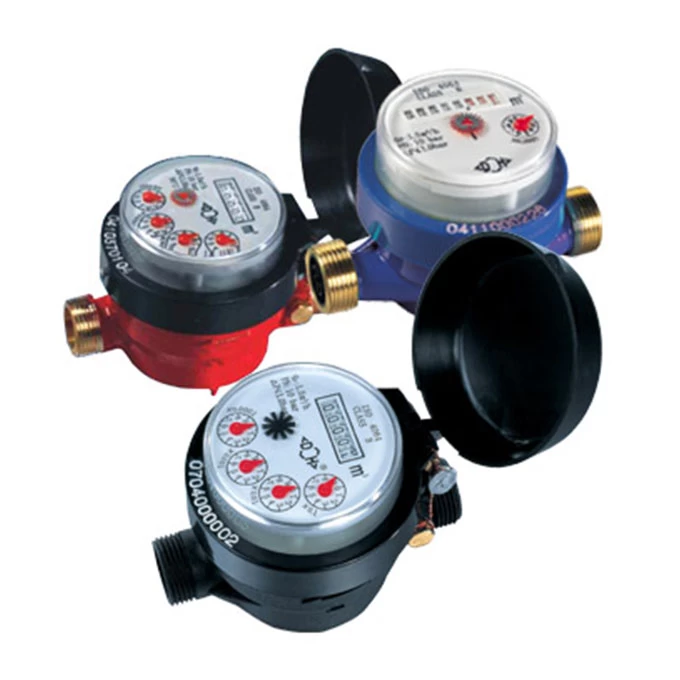

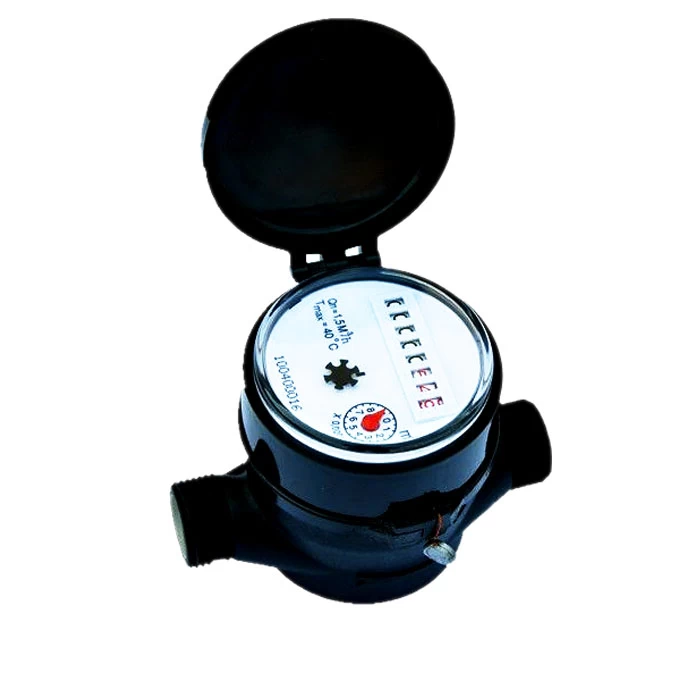

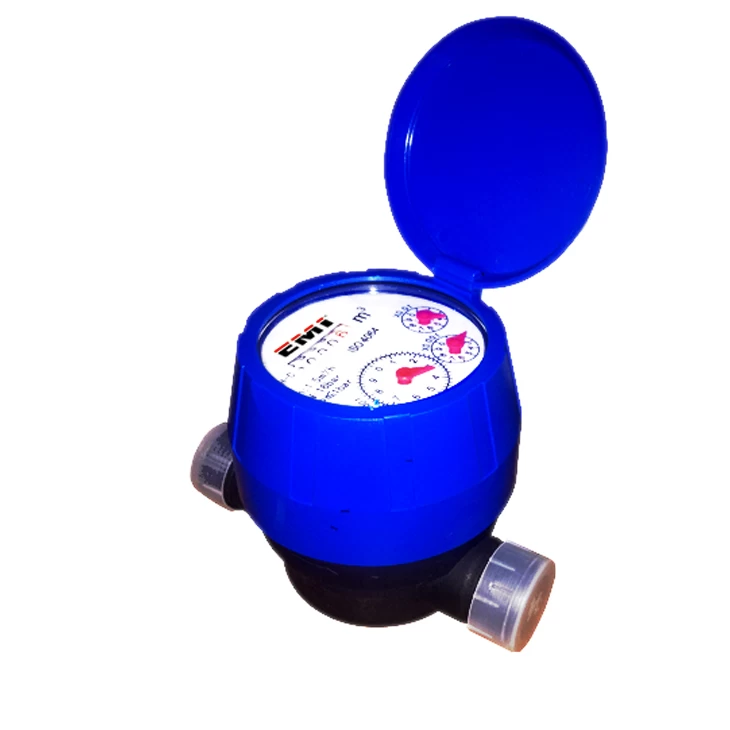

Single jet plastic cold Water Meter
|
Model NO:
|
LXSC-15EP
|
Dial:
|
Dry Dial
|
Feature:
|
Anti Magnetic
|
Material:
|
Plastic
|
Standard
|
ISO 4064|Class B
|
Type:
|
Single Jet|volecity principle
|
Application:
|
accurate in small sizes and widely used in
1/2" (15mm) to 2" (50mm) for domestic ,household,residential use
|
Product characteristics:
-
health and environmental protection, there is no secondary pollution;
-
acid resistance, alkali resistance;
-
no corrosion or exudate;
-
safe and reliable, does not contain any toxic elements;
-
high precision, anti-interference, strong reliability;
-
large measurement range, high accuracy, easy to read digital display;
Product structure:
-
the structure of the long life;
-
direct transmission is not affected by magnetic field;
-
measuring movement is easy to change;
-
connection head is connected with imperial thread;
-
all kinds of connections can be prepared according to user's needs.
Working condition:
-
Water temperature: 0.1℃～50℃ ( for cold water meter)
-
Water pressure : ≤1.0Mpa (PN:1.6Mpa/16bar)
Maximum Permissible Error:
-
From minimum flow-rate(qmin/q1) inclusive to transitional flow-rate(qt/q2),exclusive is ±5%
-
From transitional flow-rate(qt/q2)inclusive to overload flow1rate(qs/q4)exclusive is ±2%
