Single Output 5V 12V 24V 36V 48V Switching Power Supply 60W Open Frame SMPS
Features:
1,24V switching power supply with High efficiency, low temperature rise;
2, 24V DC power supply with Built-in filters, low output noise;
3, 24V 60W power supply with Wide range of AC input voltage;
4, Short circuit, overload, overvoltage protection;
5, 60W SMPS can be Used to LED light and other equipments etc.
Parameter
|
|
Item NO
|
KPS60-12
|
KPS60-24
|
KPS60-36
|
KPS60-48
|
|
Output
|
Output Voltage
|
+12V
|
+24V
|
+36V
|
+48V
|
|
Rated Current
|
5A
|
2.5A
|
1.7A
|
1.25A
|
|
Current Range
|
0-5A
|
0-2.5A
|
0-1.7A
|
0-1.25A
|
|
Rated Power
|
60W
|
60W
|
61.2W
|
60W
|
|
Ripple
|
100mVp-p
|
150mVp-p
|
300mVp-p
|
300mVp-p
|
|
Adjustable Output Range
|
±10%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500ms, 50ms, 20ms
|
|
Input
|
Input Voltage Range
|
90~264V AC
|
|
Input Current
|
0.3A/230V
|
|
Input Frequency
|
47~63Hz
|
|
Efficiency
|
86%
|
88%
|
89%
|
89%
|
|
Inrush Current
|
Cold start 15A@115V,30A@230V
|
|
Leakage Current
|
<0.3mA@240V
|
|
Protection
|
Over Load Protection
|
110~200%,Hiccup,automatic recovery
|
|
Short Circuit Protection
|
Hiccup,automatic recovery
|
|
Environment
|
Working Temp.,Humidity
|
-10~50℃,10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943,EN60950
|
|
Withstand Voltage
|
I/P-O/P:3KV,I/P-FG:1.5KV,O/P-FG:0.5KV DC 1min
|
|
Insulation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
GB9254,EN55022 CLASS B
|
|
Others
|
Dimension
|
102*51*27mm(L*W*H)
|
|
Weight
|
0.15kg
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

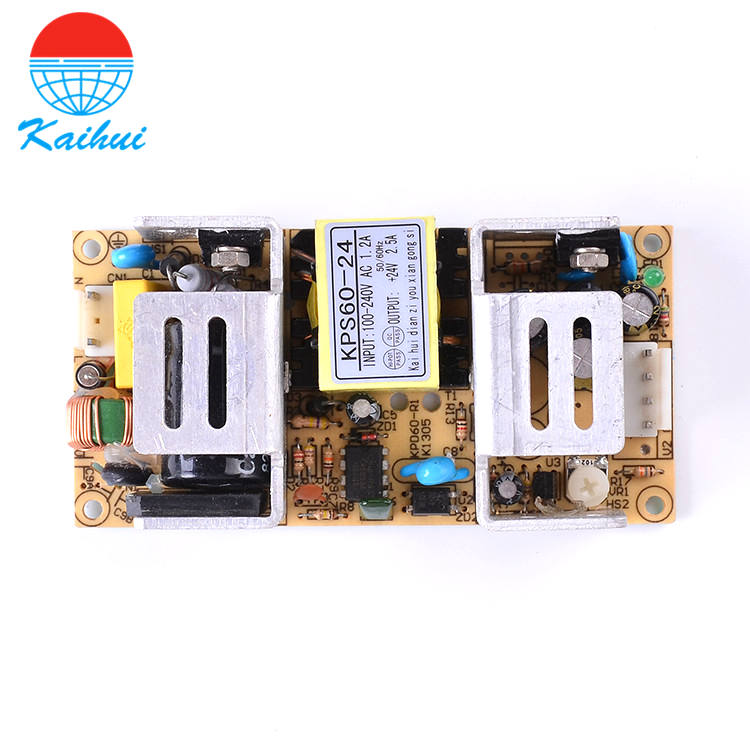

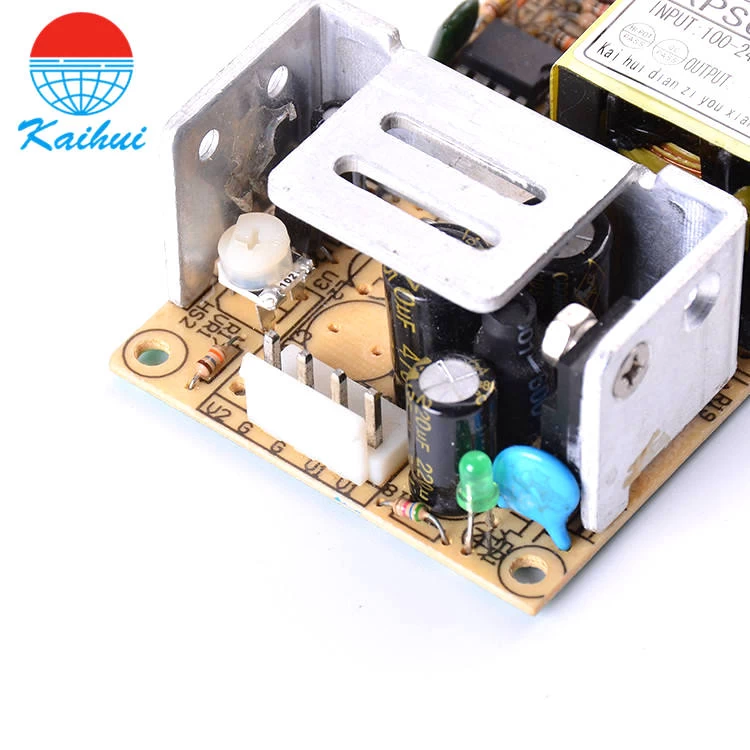

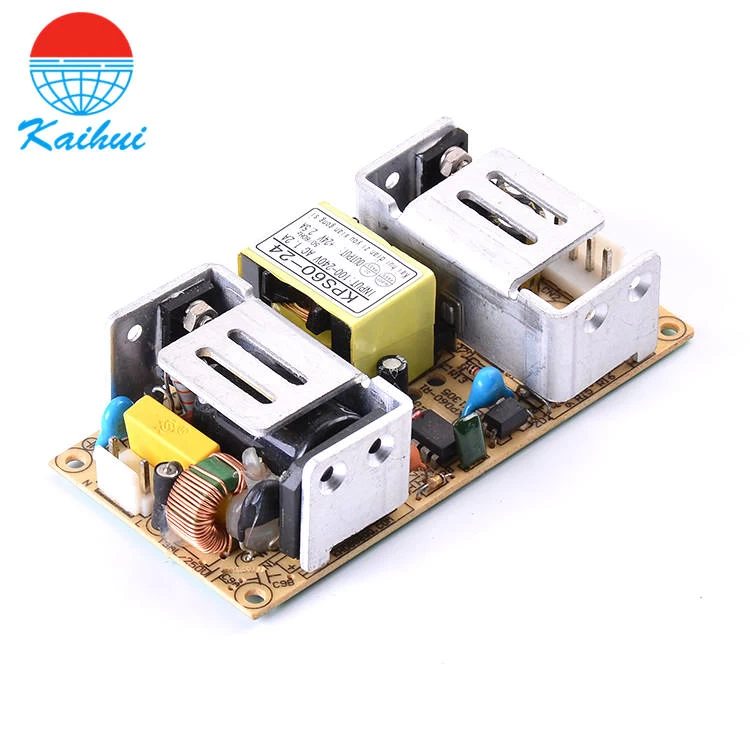

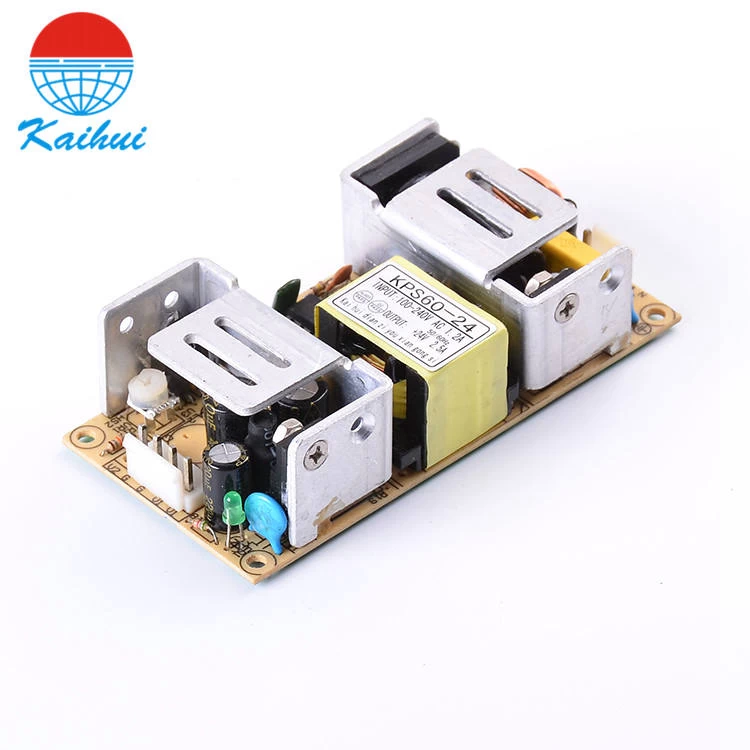

Product picture:
