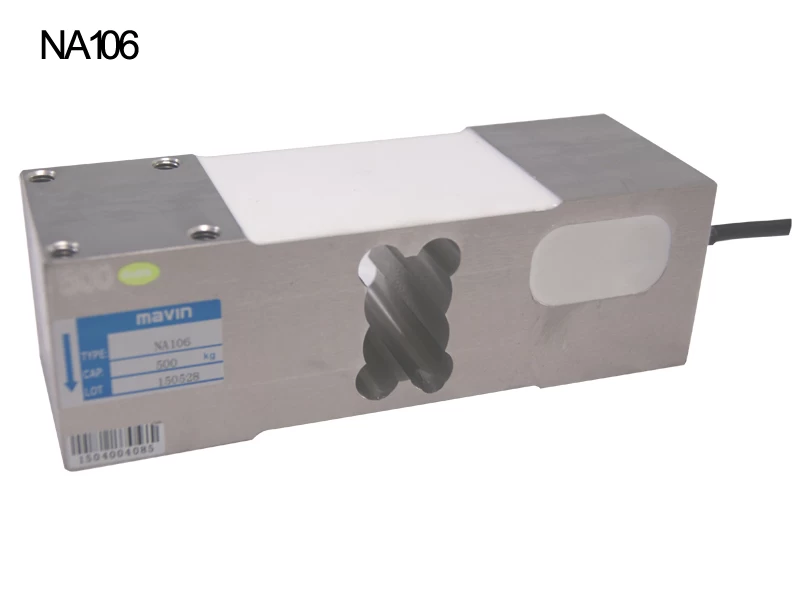

Single Point Platform Load Cell NA106
NA106 is a high-capacity, off-center loading aluminum single point load cell. This Platform Design Load Cell is specially coated to assure durability in harsh environments. Capacities range from 100-1000 kg.
Key Features：
Wide
range of capacities: 100kg-1000 kg
Potted
and silicone sealed construction
Calibrated
to national standards
Long
term, reliable operation
Usage & Applications：
Weighing
platforms up to 600mmx600mm
Bagging,
filling and dosing systems
Checkweighers
Small
buckets and hoppers
Big
bag (FIBC) filling
Medical
scales

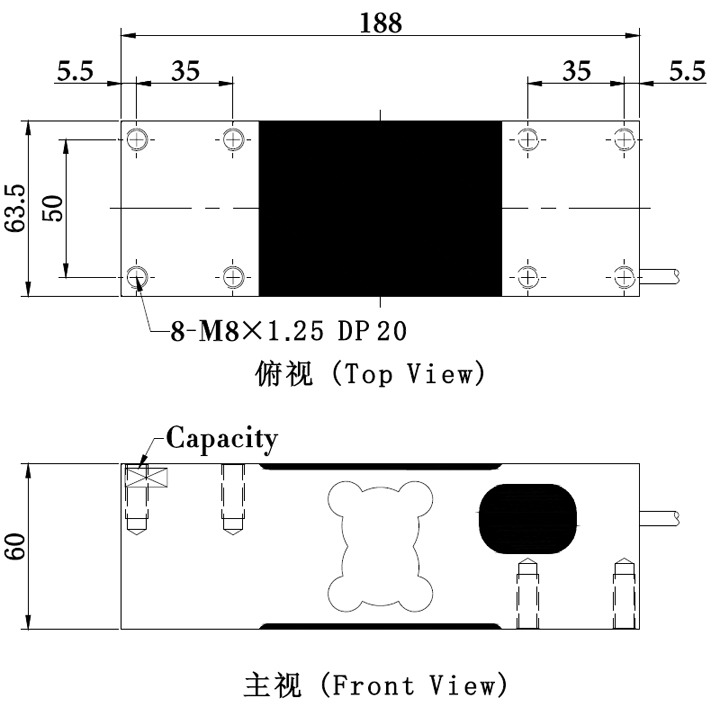

Dimension：
NA106 Specification：
|
Rated Capacities
|
200,250,300,500,600,750,800（kg）
|
|
Rated Output
|
2.0 mV/V±5%
|
|
Zero Balance
|
±0.0200 mV/V
|
|
Non-linearity
|
0.02 %R.O.
|
|
Hysteresis
|
0.02 %R.O.
|
|
Repeatability
|
0.02 %R.O.
|
|
30mins Creep
|
0.02 %R.O.
|
|
30mins Return
|
0.02 %R.O.
|
|
Safe Overload
|
150 %R.O.
|
|
Ultimate Overload
|
200 %R.O.
|
|
Temperature Effect On Output
|
0.002 %R.O./℃
|
|
Temperature Effect On Zero
|
0.003 %R.O./℃
|
|
Input Impedance
|
410±15 Ω
|
|
Output Impedance
|
350±5 Ω
|
|
Insulation Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended Excitation
|
5~12 VDC
|
|
Maximum Excitation
|
15 VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Aluminum Alloy
|
|
Protection Class
|
IP66 / IP67
|
|
Cable
|
φ5×2m
|
|
Recommended Platform Size
|
600×800 mm
|
|
Mode of Connection
|
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
|
