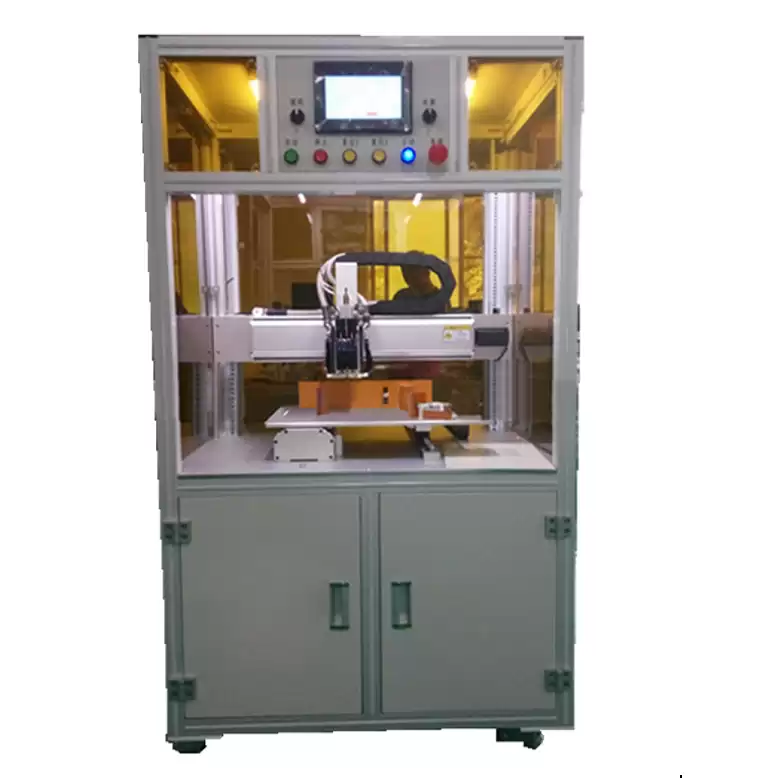

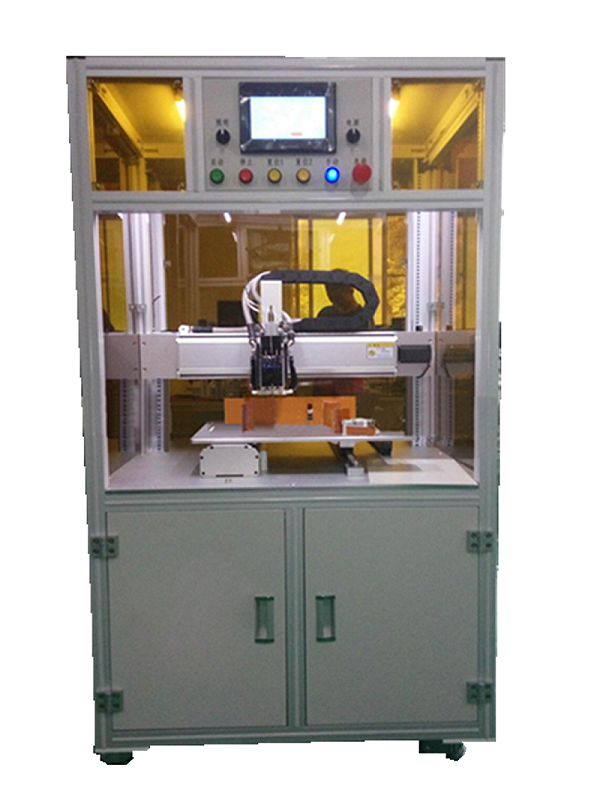

Single Side Automatic Rotary Welding Head Spot Welding Machine for Cylindrical Cell Battery Pack Assembly

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164



  • Certificate CE, IOS, ROHS, SGS, UL Certificate
  • Warranty Two years limited warranty with lifetime technical support

Single Side Automatic Rotary Welding Head Spot Welding Machine for Cylindrical Cell Battery Pack Assembly



FEATURE

This equipment is mainly used for welding batteries and nickel-plated steel strips or nickel strips in cylindrical/polymer battery assembly, and ensures that the welding tension between batteries and nickel-plated steel strips or nickel strips is greater than 30N. The spot welding range of the equipment can meet the welding requirements of 18650 batteries with 20 series battery packs and less than 20 series battery packs. The number of welding batteries is determined by the stroke, which can be set by man-machine.



ADVANTAGES:

1. Support breakpoint start, automatic start and manual start mode conversion.

2. Alarm function of false welding and desoldering.

3. The programming is simple, and supports any point programming and array programming. It can store 99 groups of programming files.

4. Warning of solder pin replacement forecast.

5. With welding current monitoring system, it can monitor welding current in real time



SPECIFICATION

Power Supply and Voltage for Equipment

AC 2210%50HZ±2HZ500W

Welding Power Supply and Voltage

AC380V±10%50HZ±2HZ2000W

Welding Material

Pure nickel sheet: 0.03-0.2mm

Nickel-plated steel strip :0.03-0.3mm

Transmission Mode

TBI screw + Taiwan silver precision linear guide

Drying Mode

Stepping servo motor

Rotation Function of Welding Head

The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.

Maximum Spot Welding Speed

0.35S/point2800pcs/h



Maximum speed of motor transmission

1000mm/S

Maximum No. of Load Cell

X-26; Y-26 (adjustable)

Repeat positioning accuracy

±0.02MM

Number of storable file groups

99

Operating system

Embedded system + man machine interface

Maximum Load-bearing Weight

30KG



Maximum Stroke Size Range

X500mmY400 mmZ35mmR180º

The distance between tooling platform and welding needle can be adjusted by 300 mm.

Welding Pressure

The pressure of the two welding needles can be adjusted independently. The pressure is stable, reliable and easy to adjust. The welding tension between the battery shell and the connecting piece is ensured to be more than 30N.

Welding Position

Cylindrical and top plane position of battery

Welding Process

Small spark spatter, no burr, no color change, beautiful welding, stable performance, no damage to the battery appearance;

Dimension

900L×900W×1650Hmm

Weight

200Kg



Power Cord

220V  10A



Pneumatic Connected Tube

Diameter 8 mm, easy to plug interface, air pressure 0.4 MPa

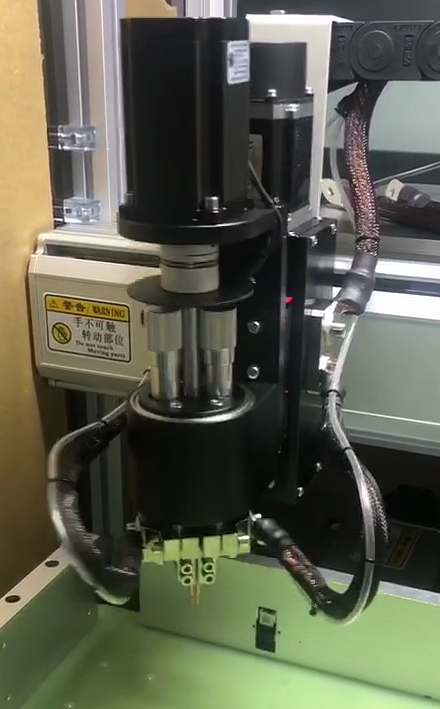

Rotary Welding Head







 Tmax CE
