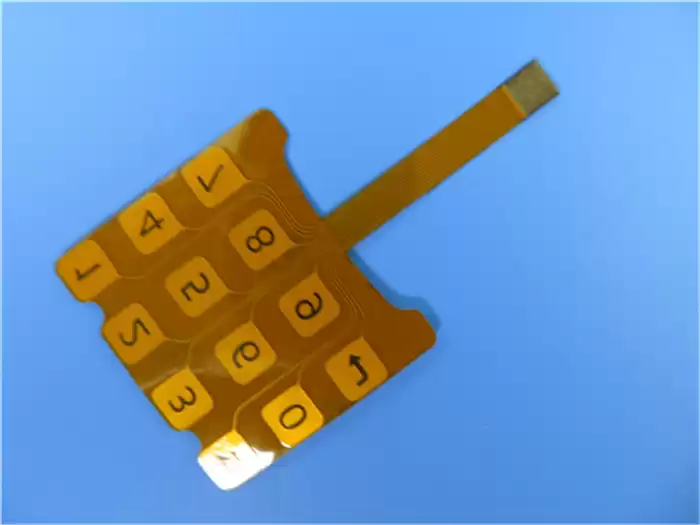

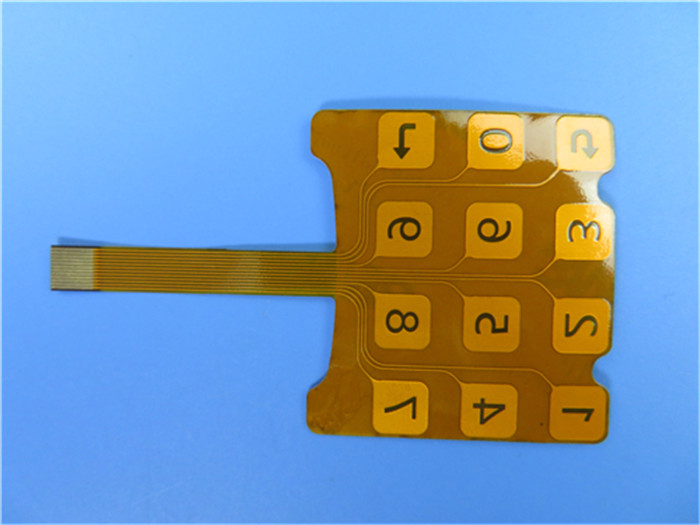

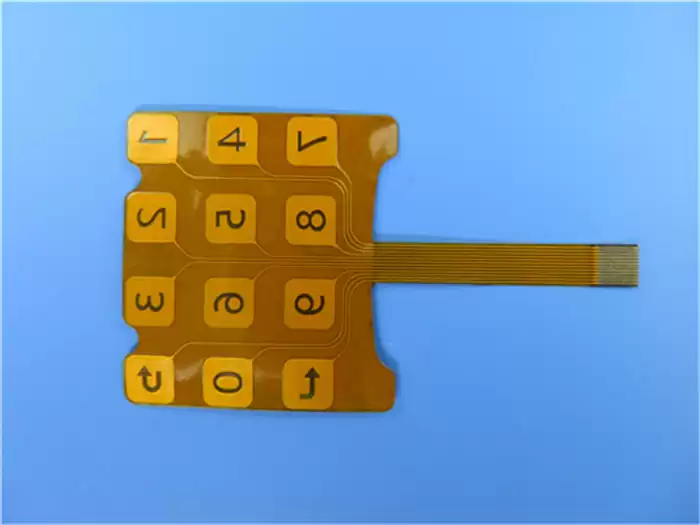

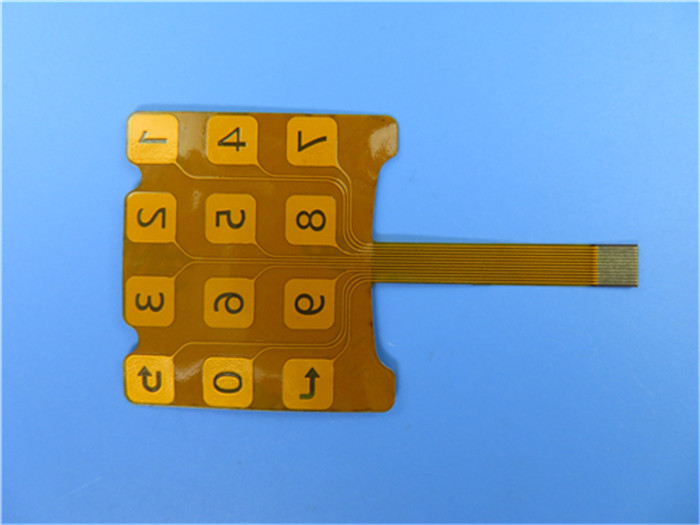

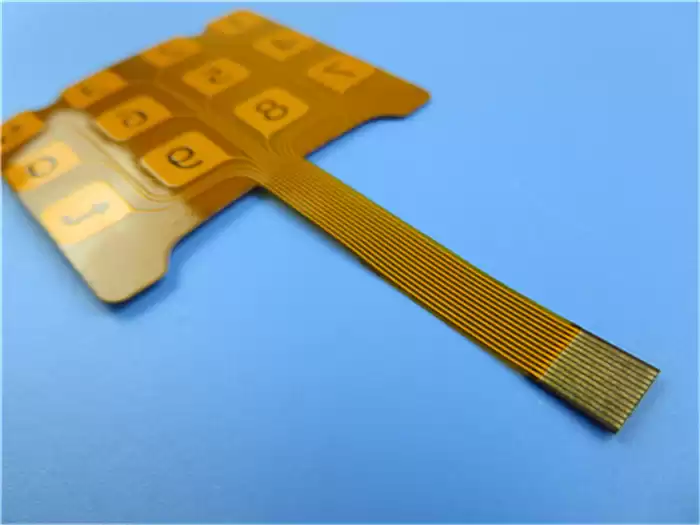

Single
Sided Flexible PCBs FPC On Polyimide Substrate With 3M Tape Tesa Tape
(Flexible
printed circuits are custom-made products, the picture and parameters shown are
just for reference)
General
description:
It’s a single layer FPC at 0.15mm thick. The base laminate is from Shengyi,
It’s fabricated per IPC 6012 Class 2 using supplied Gerber data. 3M Tape is
applied on the back side.
Parameter
and data sheet:
|
Size of
Flexible PCB
|
30.53 X 59.37mm
|
|
Number of Layers
|
1
|
|
Board Type
|
Flexible PCB
|
|
Board Thickness
|
0.150mm
|
|
Board Material
|
Polyimide
25µm
|
|
Board Material Supplier
|
ITEQ
|
|
Tg Value of Board Material
|
60℃
|
|
|
|
PTH Cu thickness
|
N/A
|
|
Inner Iayer Cu thicknes
|
N/A
|
|
Surface Cu thickness
|
35
µm
|
|
|
|
|
Coverlay Colour
|
Yellow
|
|
Number of Coverlay
|
2
|
|
Thickness of Coverlay
|
25
µm
|
|
Stiffener Material
|
Polyimide
|
|
Stiffener Thickness
|
0.2mm
|
|
|
|
|
Type of Silkscreen Ink
|
IJR-4000
MW300
|
|
Supplier of Silkscreen
|
TAIYO
|
|
Color of Silkscreen
|
White
|
|
Number of Silkscreen
|
1
|
|
|
|
Peeling test of Coverlay
|
No
peelable
|
|
Legend Adhesion
|
3M 90℃No
peeling after Min. 3 times test
|
|
|
|
Surface Finish
|
Immersion
Gold
|
|
Thickness of Nickle/Gold
|
Au:
0.03µm(Min.); Ni 2-4µm
|
|
RoHS Required
|
Yes
|
|
Famability
|
94-V0
|
|
|
|
Thermal Shock Test
|
Pass, -25℃±125℃, 1000 cycles.
|
|
Thermal Stress
|
Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering.
|
|
Function
|
100%
Pass electrical test
|
|
Workmanship
|
Compliance
with IPC-A-600H & IPC-6013C Class 2
|
Features
and benefits:
Excellent
flexibility
Reducing
the volume
Weight
reduction
Consistency
of assembly
Increased
reliability
The
end can be whole soldered
Low
cost
Continuity
of processing
Professional
and experienced engineers
More
than 18 years of experience
Applications:
Touch
screen, LED display soft board, Tablet antenna soft board
Adhesives
Base
laminates for rigid printed circuit boards are copper foils laminated together
with the base materials, the adhesive coming from the prepreg material during
lamination. Contrary to this is the flexible circuit where the lamination of
the copper foil to the film material is achieved by means of an adhesive
system.
It
is, however, necessary to distinguish between two main systems of adhesive,
namely thermoplastic and thermoset adhesives. The choice is dictated partly by
the processing, and partly by the application of the finished flexible circuit.

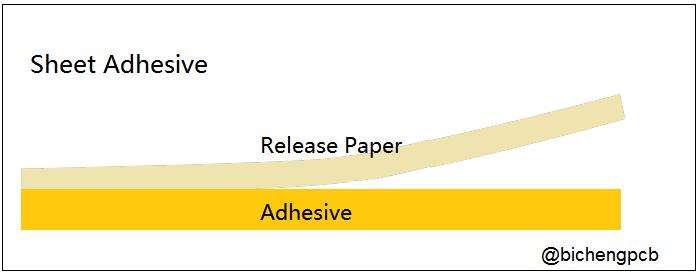

Sheets
Adhesives / 3M Tape / Tesa Tape
A
sheet adhesive, frequently in the form of a low-flow acrylic, is an adhesive
"cast" on a polypropylene paper from which the adhesive easily can be
removed. The application of sheet
adhesives is frequently used for bonding flexible circuits into multilayer
flexible circuits, or for attaching stiffeners to flexible circuits.
More

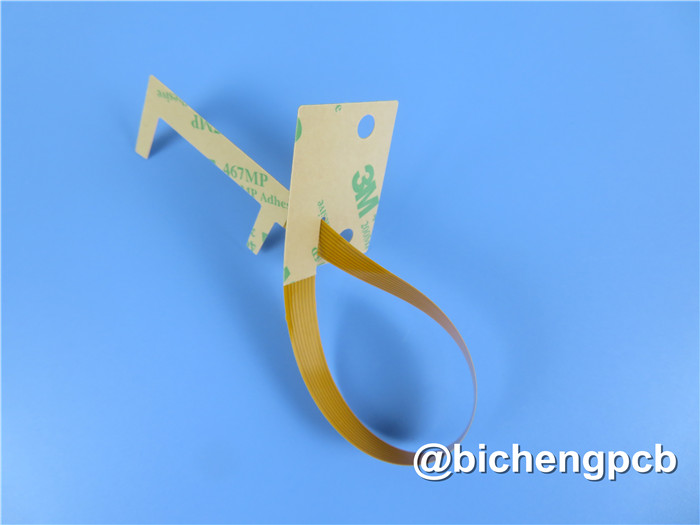

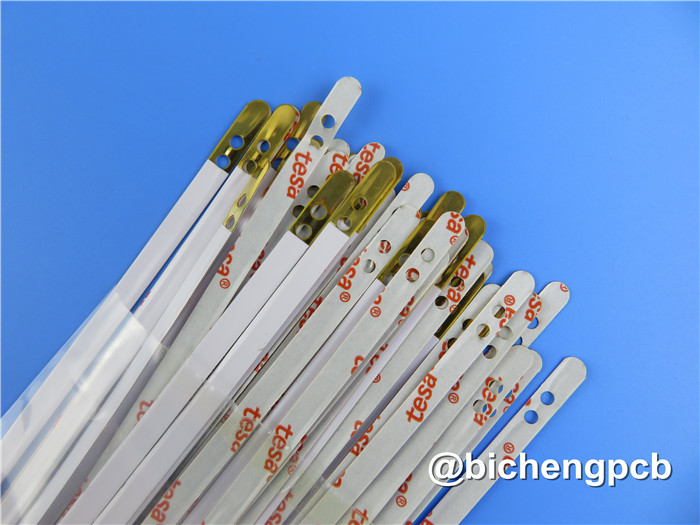

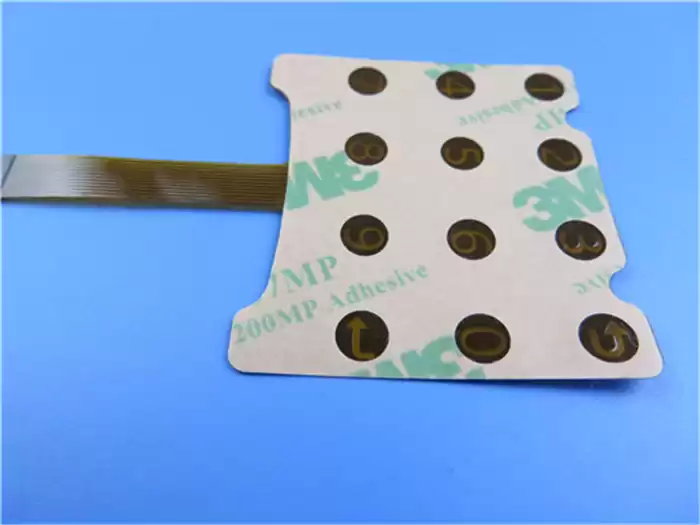

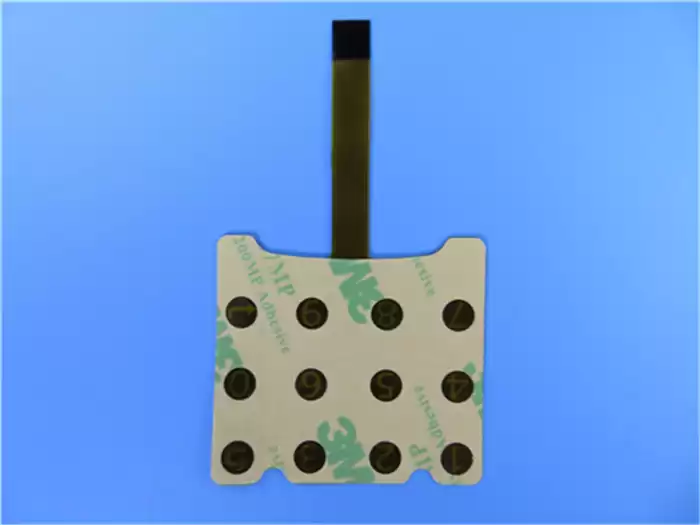

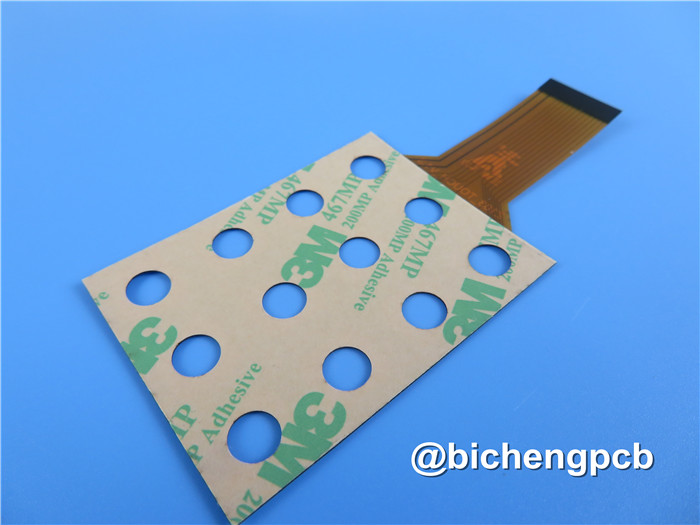

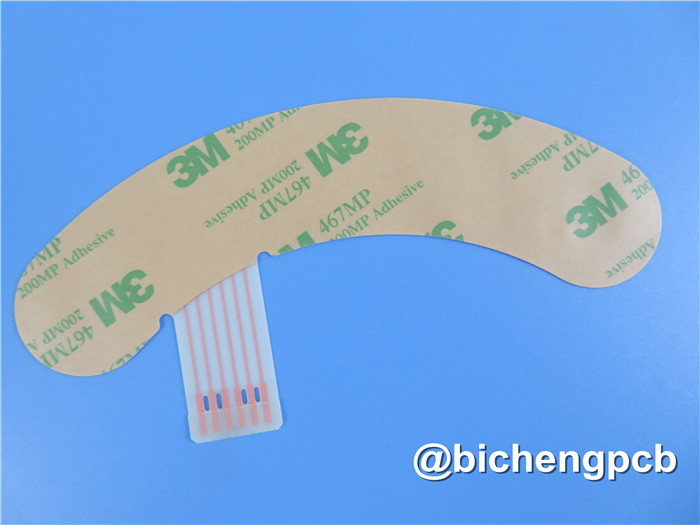

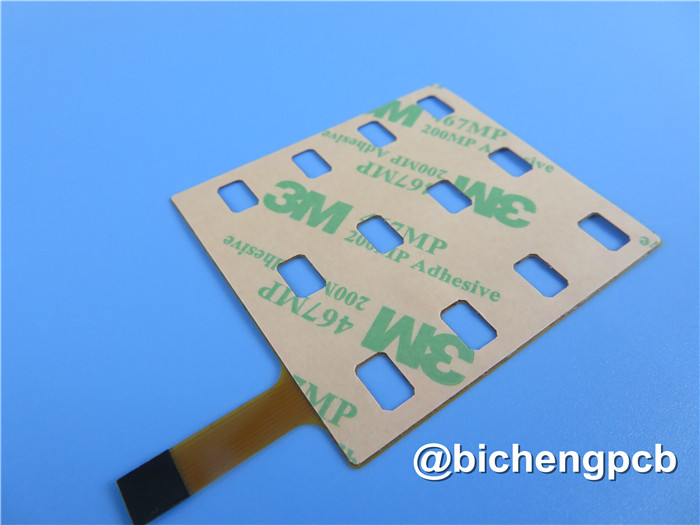

Displays of Flexible Circuits with 3M Tape:
