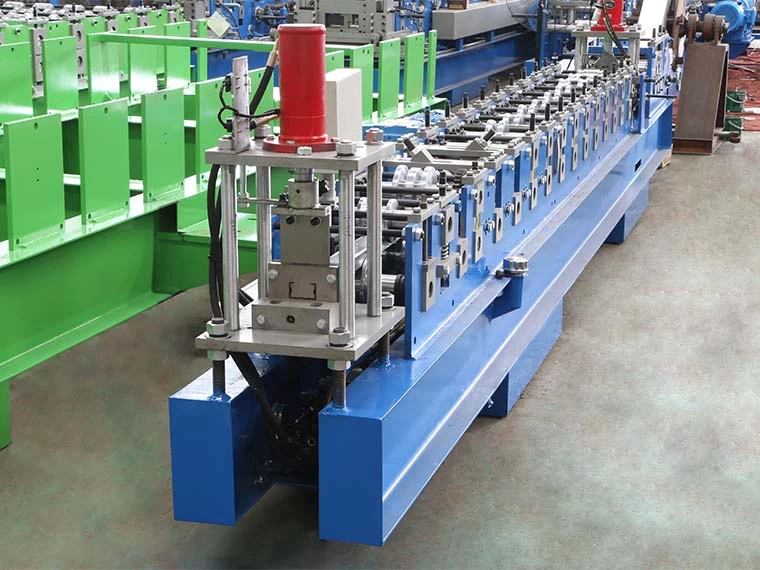

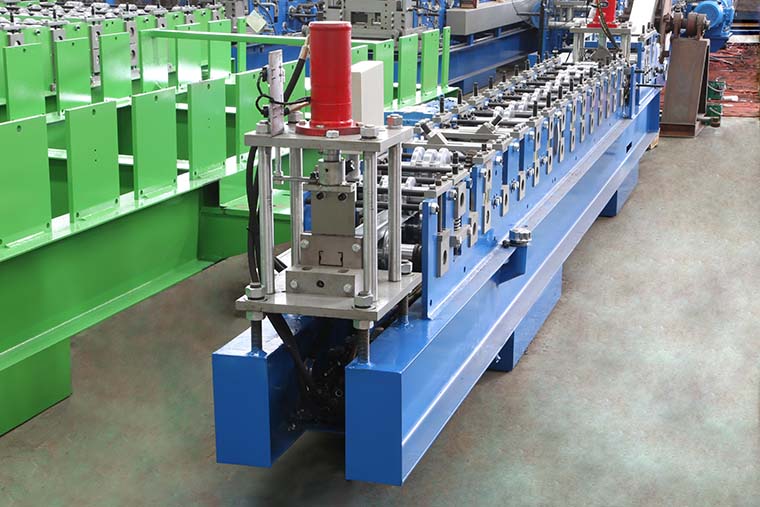

Single-Type C purlin roll forming machine

Stable

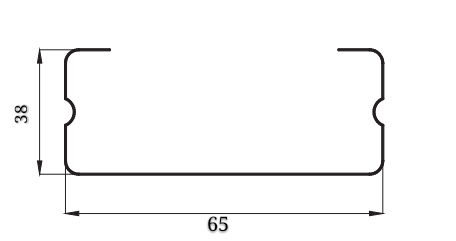

       Single-Type C38-65 Roll Forming Machine



single-type c purlin machine


1.Main features of quickly change C purlin roll forming machine


    The advantages of C purlin machine S type are as follows:

    1.Easy operation, low maintenance cost

    1.stable

    5.Profile apperance beautiful


2.Detailed Images of cz shaped steel forming machine


    Machine Parts

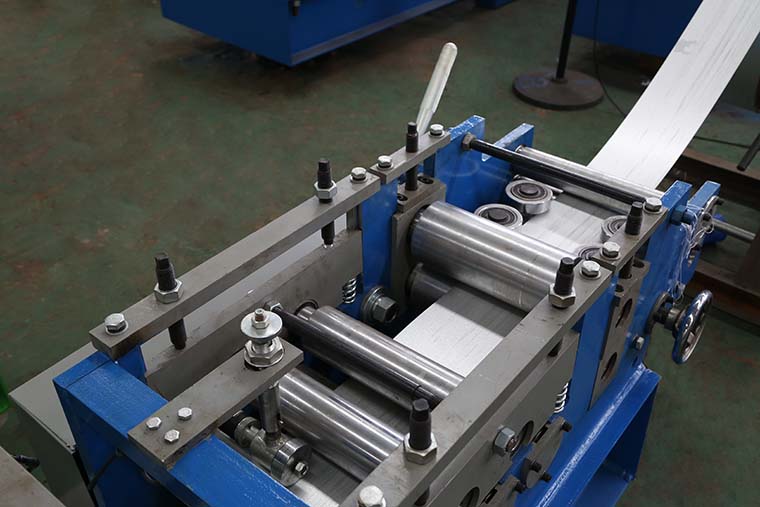

        1) C purlin machine leveling device

        Brand: BMS    Original: China

       with clutch to control the material feeding


single-type c purlin machine

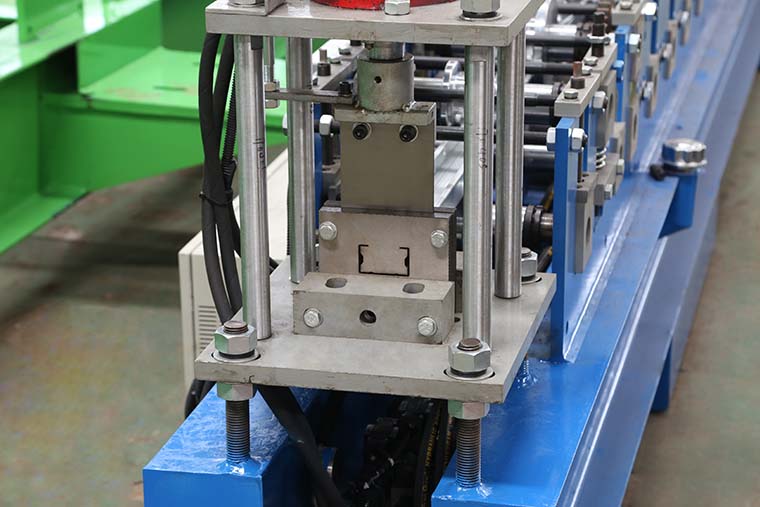

        2) C purlin machine puncher


 single-type c purlin machine


single-type c purlin machine


single-type c purlin machine


single-type c purlin machine

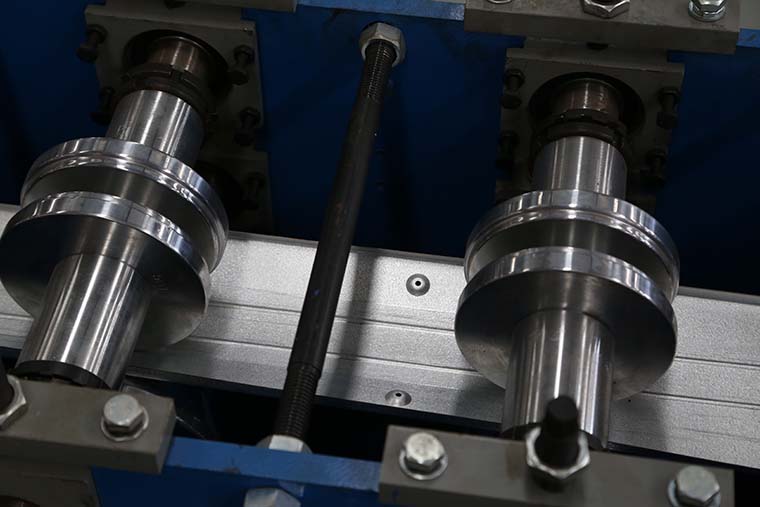

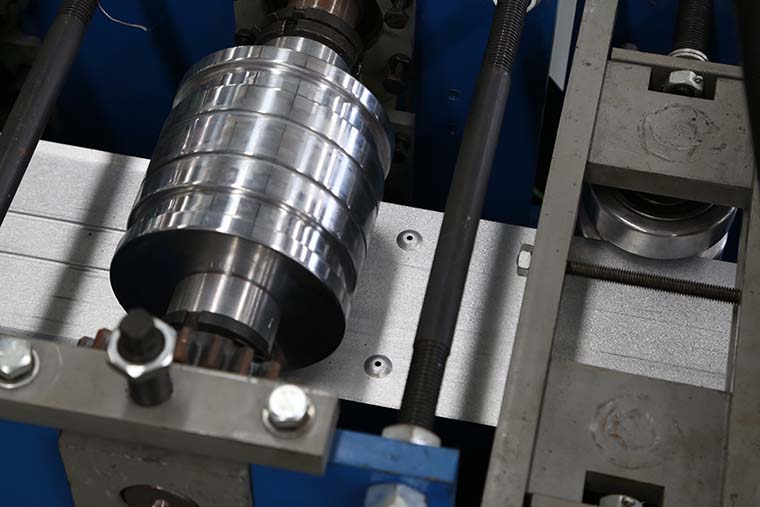

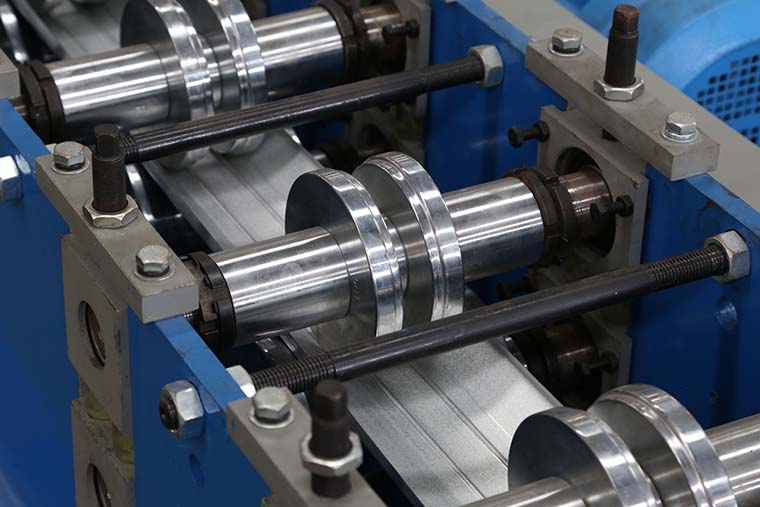

        3) C purlin machine rollers

        Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 400# H type steel by welding


single-type c purlin machine

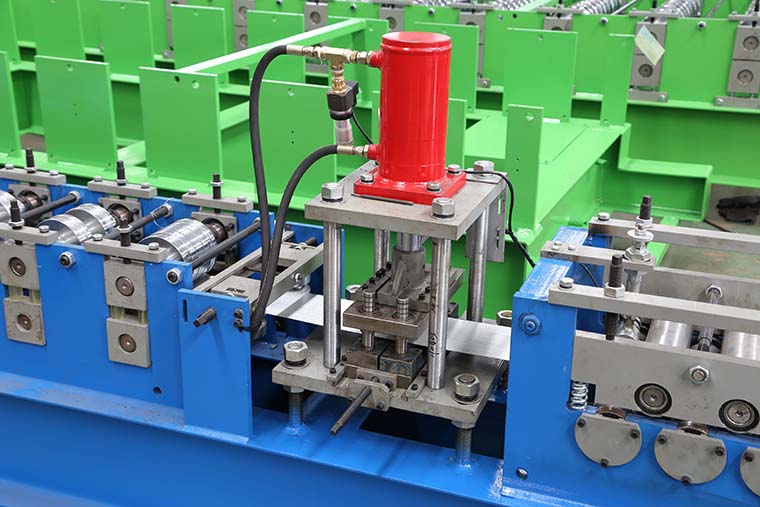

        4) C purlin machine post cutter

        made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 30mm steel plate by welding
        Stop to punch, stop to cut
        hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa


single-type c purlin machine

        5) C purlin machine decoiler

        ManualDecoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 470mm±30mm

        Capacity: Max. 3Ton






        With 3 tons hydraulic decoiler for option




        6) C purlin exit rack

        Un-powered,one unit





Other detailes of C purlin roll forming machine


Suitable for material with thickness 1.2-2.5mm

Shafts manufactured from 45#,Main shaft diameter=φ85mm,precision machined

Motor driving,Gear chain transmission, 16 rollers to form and 4 rollers for straightening and levelling

Main motor=18.5KW , Frequency speed control. Forming speed approx.18m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)



Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of C purlin roll forming machine


1. The warranty of C purlin roll forming machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Terms of trade


1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
