GT-LC05-1 Single Wing Falling Tester
Application
This Single Wing Falling Tester GT-LC05-1 is designed to test the damage of product packaging and to evaluate the impact resistance during transport.
Can be on the package surface, angle, edge for free drop test, equipped with digital display height meter and using the decoder for a high degree tracking, which can accurately give the product drop height, with the default drop height error of not more than 2% or 10mm.
This machine adopts single-arm double-column structure, with electric reset, electric drop and electric lift device:
Easy to use; Unique hydraulic buffer device greatly improves the machine life, stability and security.
Single arm, can easily place the product.
Drop angle, the angle between the impact surface and the plane of the bottom plate is less than or equal to 5.°

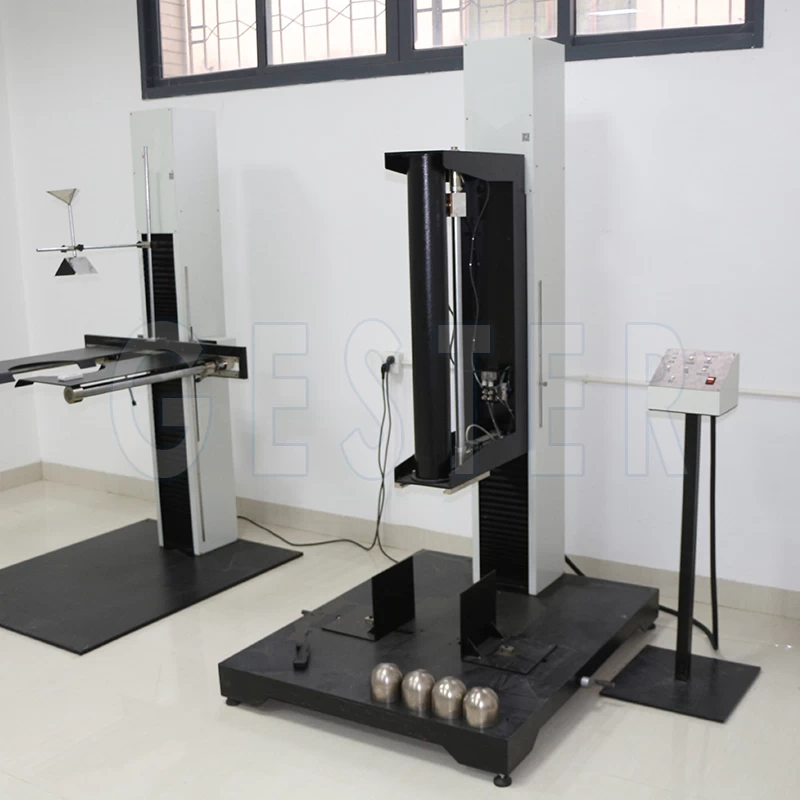

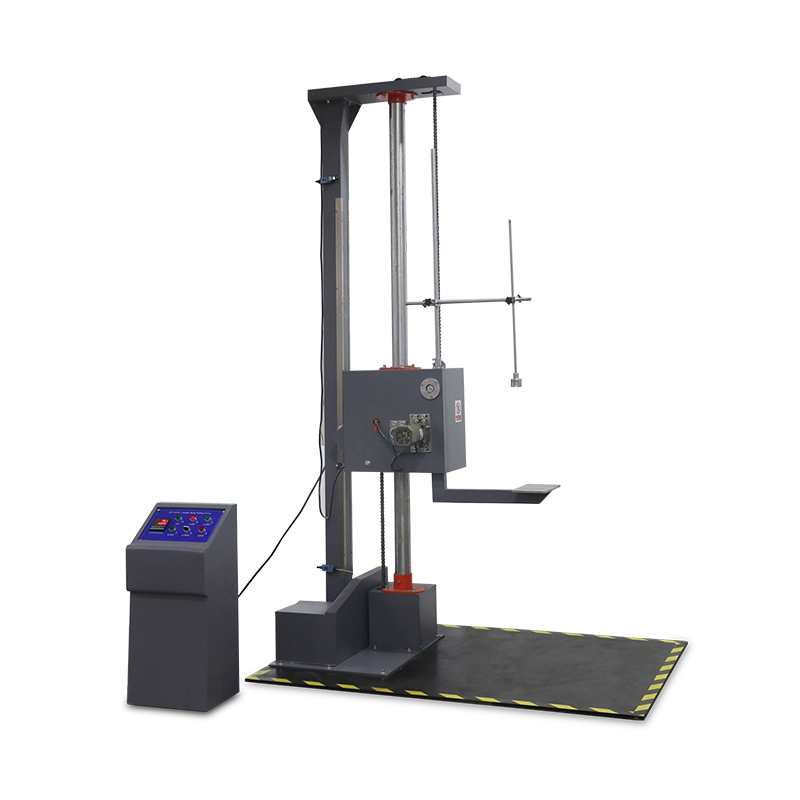

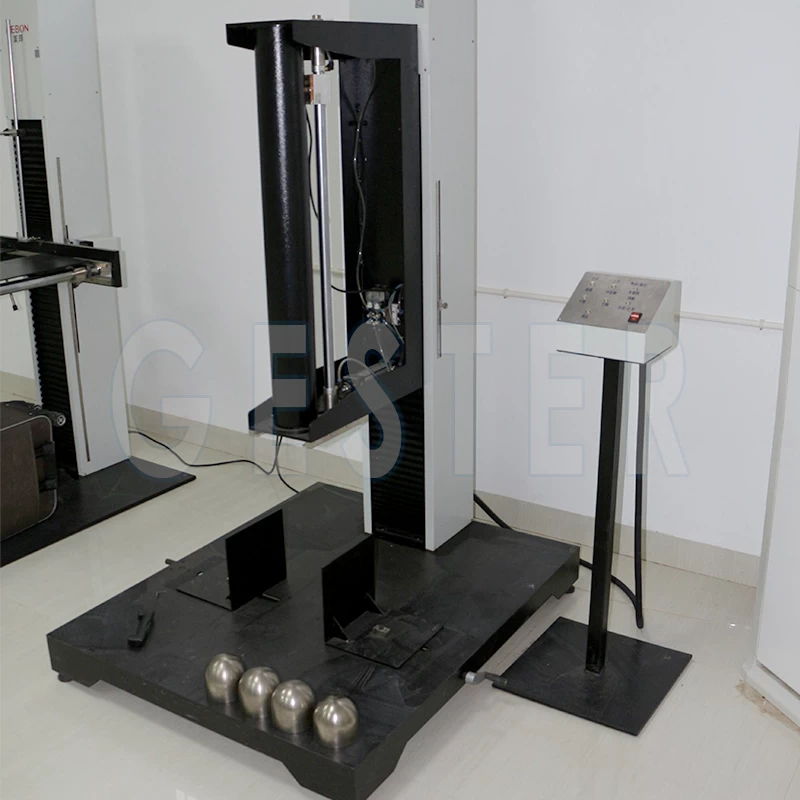

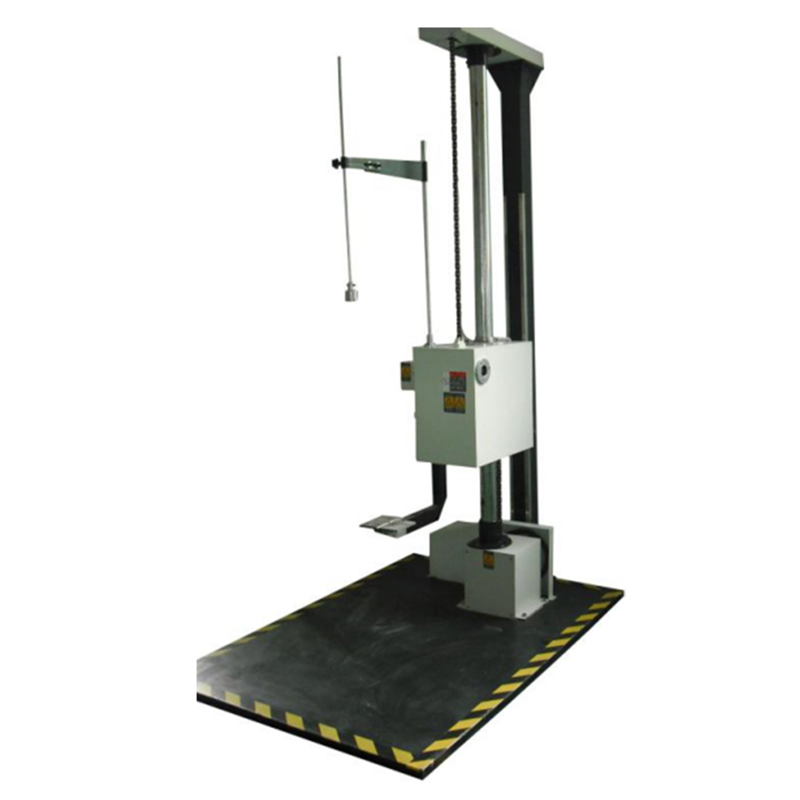

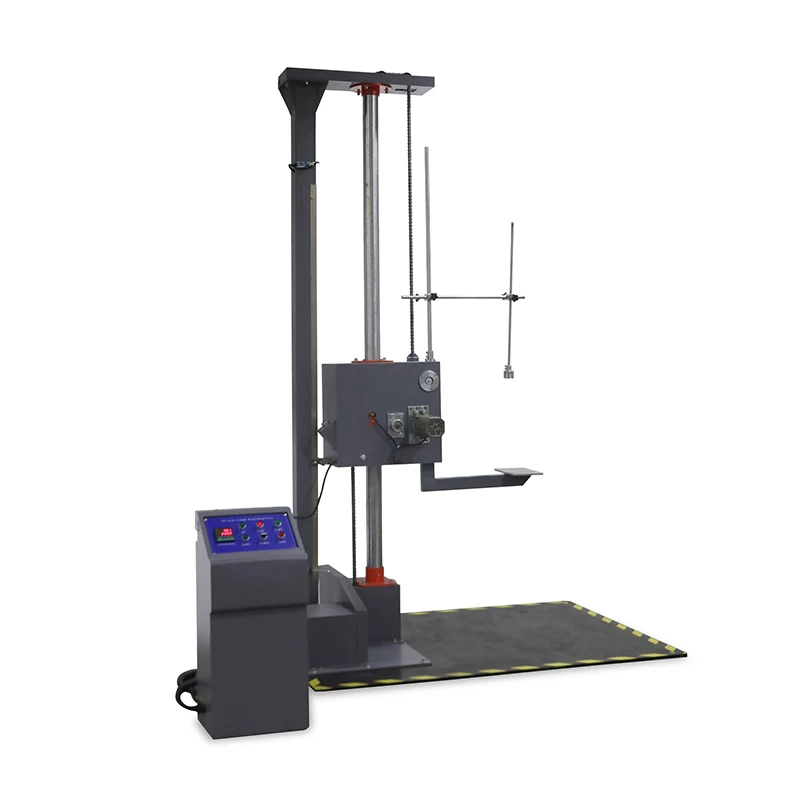

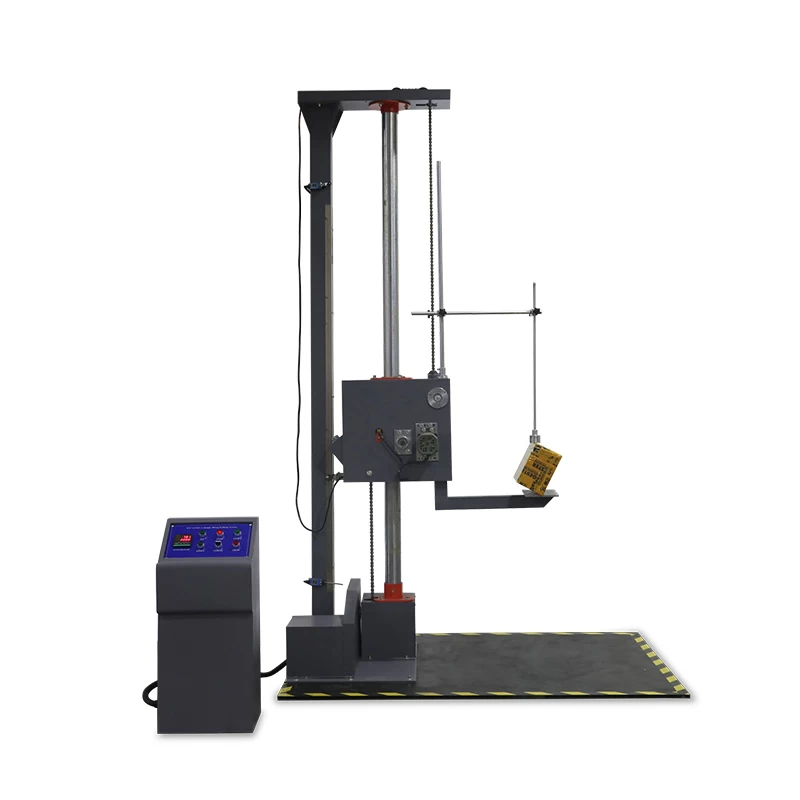

Product Images

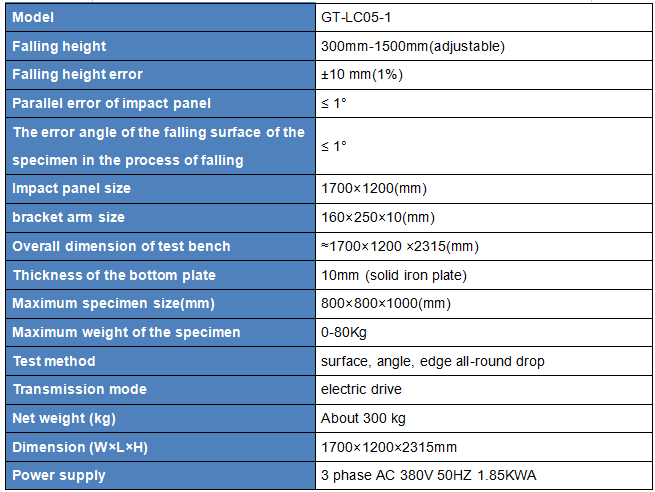

Key Specifications
