SINOTRUK HOWO 10 CBM Garbage Compactor Truck also can be called garbage
compactor truck，Trash Compressor Truck, Refuse Compression Truck,
Refuse Collection Truck, Rubbish Compactor Truck, Bin Lorry Truck etc. China best price Dongfeng / DFAC refuse compressor trucks are mainly
designed and produced to collect, compress and transport municiple solid
waste.

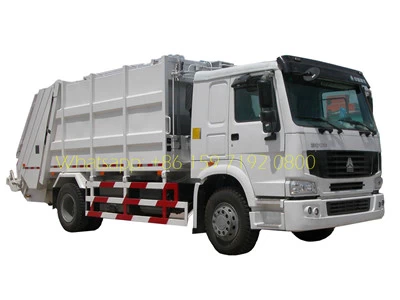

HOWO 10CBM refuse compactor trucks for Nigeria
Advanced Features for CEEC produced 12CBM trash compressor truck:
★ High anti-wear metal is adopted, long lasting
★ Self-lock and security stick is used to protect loading organ, safeand stable
★ Tailgate is movable and controlled by pneudraulic easily. Dustbin isairproof completely
★ Manual and automatic are optional. Drive can operate inside of cabor in the middle or back
★ 12 CBM compactor truck body made by high strength steel, the whole vehicle is light ,economical, stable and good at anti-rust

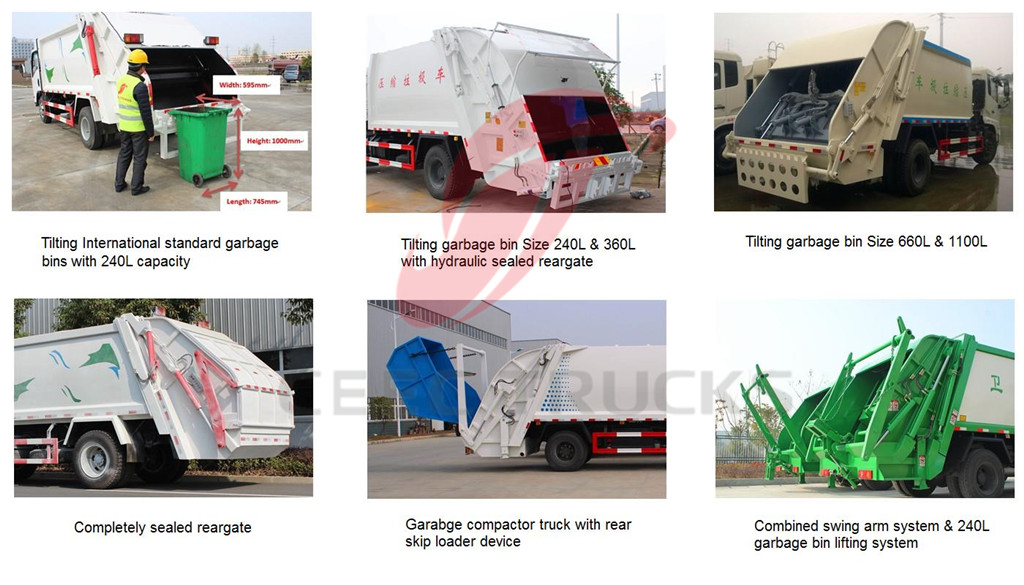

CEEC produced garbage compactor trucks rear loading system for choice
★ Container volume is big, comparing with that with compression rate,which can meets heavy load requirement
★ Refuse Education device operation of garbage releasing in the cab,vent all of garbage in loading body at one time.
★ Raise
and decline alarm device. To ensure the safety, the buzzermoos
automatically when the loading body rise or decline. After the
loadingbody raised, the scarping board and the slipping board could be
innovation tomake sure the garbage be cleaned off.
★ Uplifted Loading body. Loading body rises to the top, and thegarbage is released by the pushing board.
★ Defilade board falls automatically to ensure garbage pileup
CEEC TRUCKS produced and export garbage compactor trucks mainly export Africa countries, including Kenya,
Algeria, Ethiopia, Angola, Botswana, Togo, Gambia, Congo, Guinea,
Ghana, Zimbabwe, Cameroon, Cote d'Ivoire, Rwanda, Mali, Mozambique,
Sudan, Tanzania, etc. Our best selling models mainly as below: 5 CBM garbage compactor trucks, 8 CBM compressed garbage truck, 12 CBM refuse compression truck, 20 CBM trash compactor trucks. with ISUZU, Dongfeng, SINOTRUK HOWO, FAW, Foton, Beiben chassis LHD / RHD for optional.
Similar Key Words: 12CBM
garbage compactor truck, isuzu trash compactor truck, beiben
compression garbage truck, 12cbm refuse compactor truck, waste
management truck, dongfeng rubbish compactor trucks
| Main details
|
| Production name
|
HOWO compactor garbage truck 16cbm
|

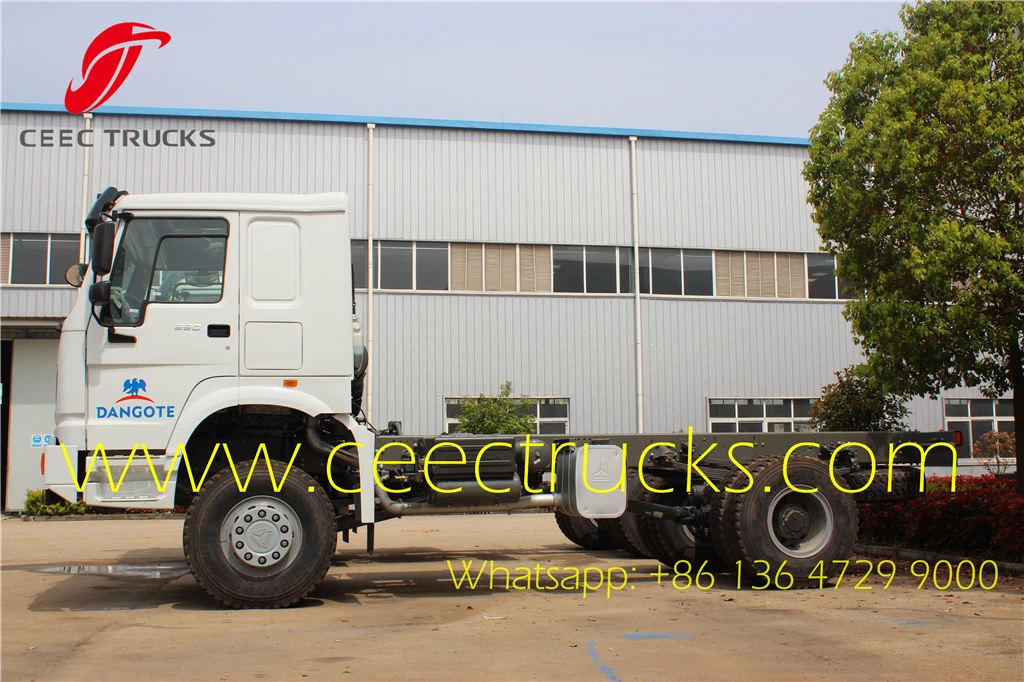

| Chassis model
|
ZZ11
|
| Type
|
6×4, Right/Left hand drive
|
| Weights
|
| Related weight (kg)
|
16000
|
| Curb weight (kg)
|
8900
|
| Dimensions
|
| Wheelbase(mm)
|
4500
|
| Overall Dimension(mm)
|
8000×2500×3400
|
| Box dimension (mm)
|
10m3
|
| Max speed(km/h)
|
90
|
| Engine
|
| Engine model
|
WD615 (266HP)
|
| Engine type
|
4 stroke water-cooled, inter-cooling
|
| No of cylinder
|
straight-6 cylinders
|
| Displacement(L)
|
9.726L
|
| Max power(kw)
|
192kw
|
| Drive Line
|
| Transmission
|
HW13710CL
|
| 9 speeds,9 forwards,1 reverse gear,manual operation
|
| Steering
|
ZF8098 Power steering
|
| Cab
|

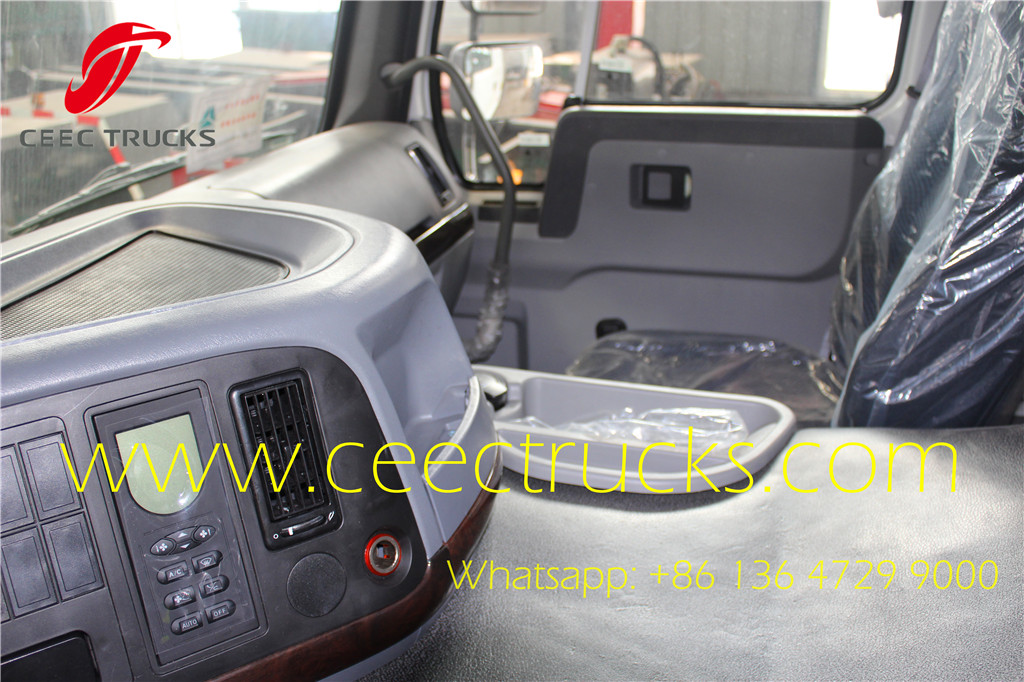

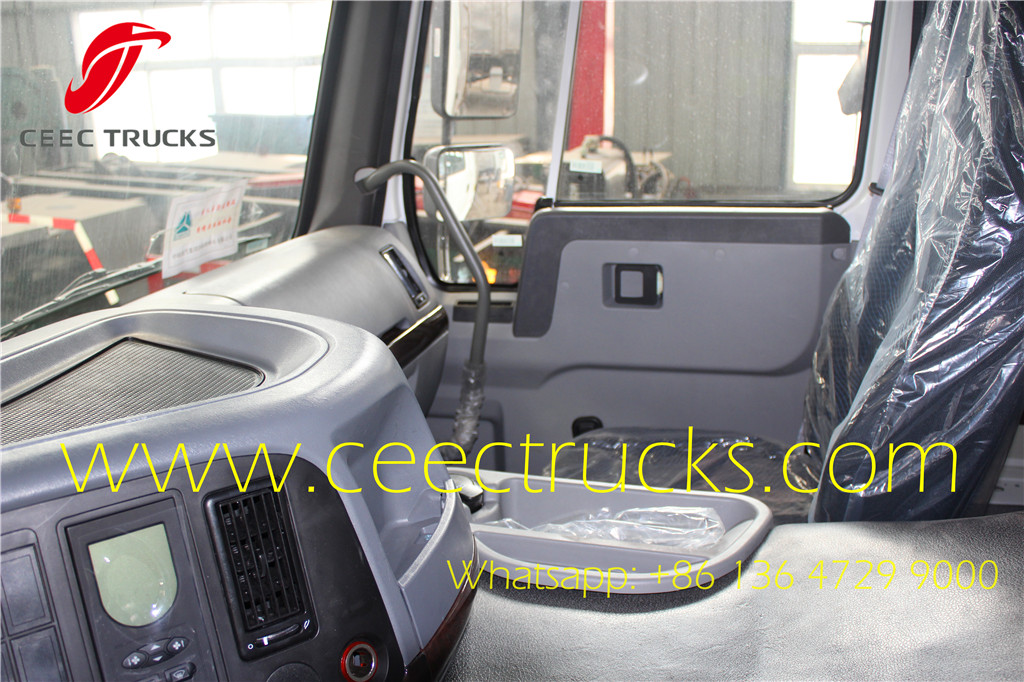

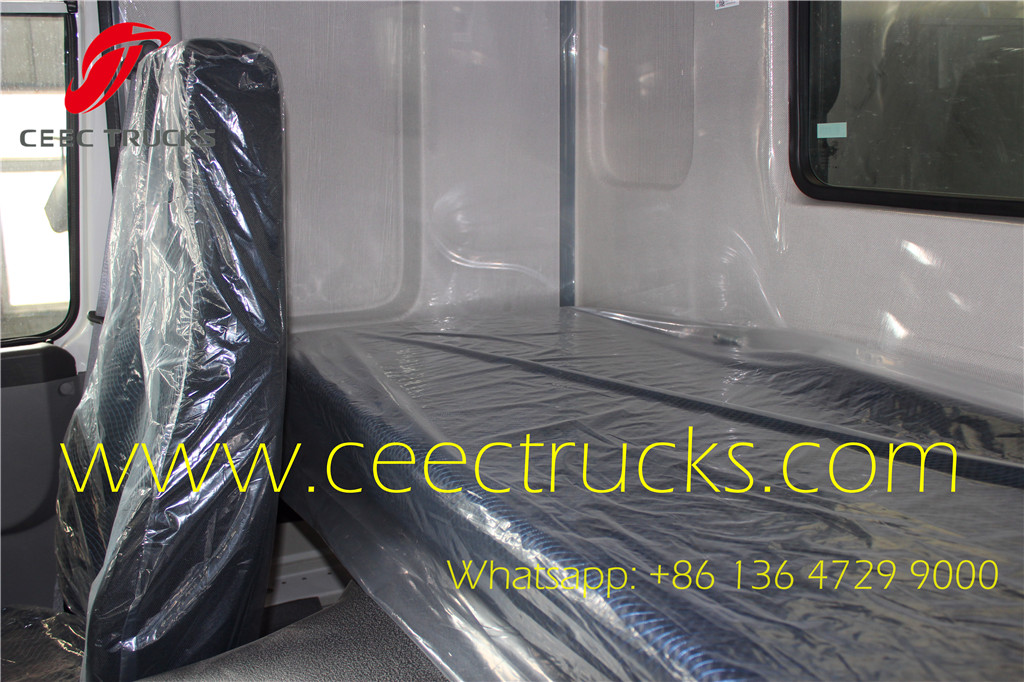

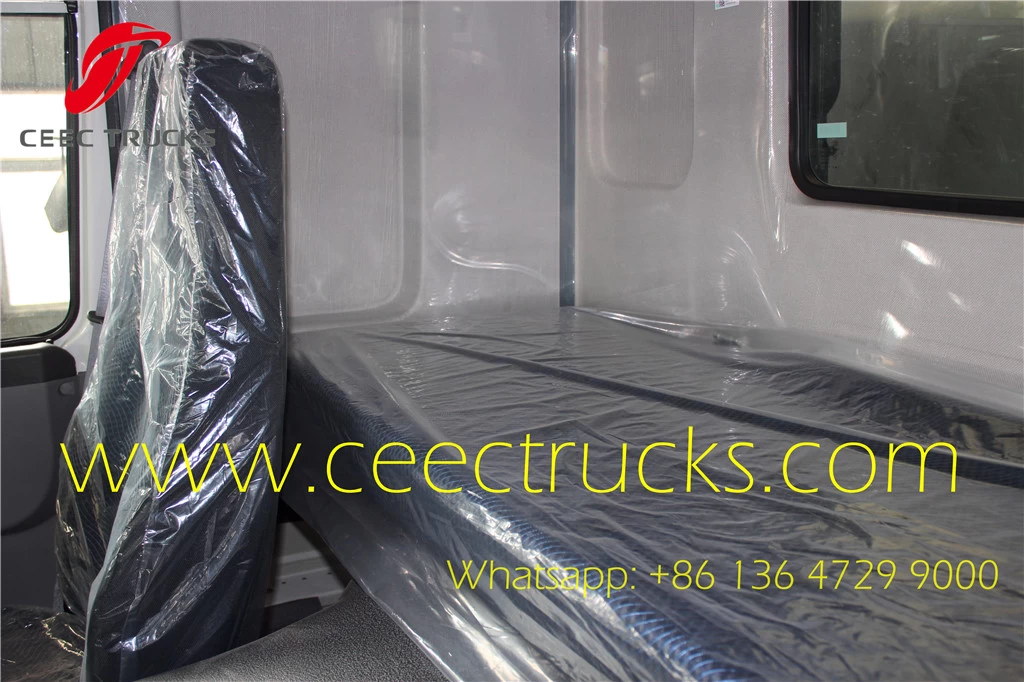

| Cabin
|
HW76 cab
|
| Configuration standard
|
Air conditioner ,and so on
|

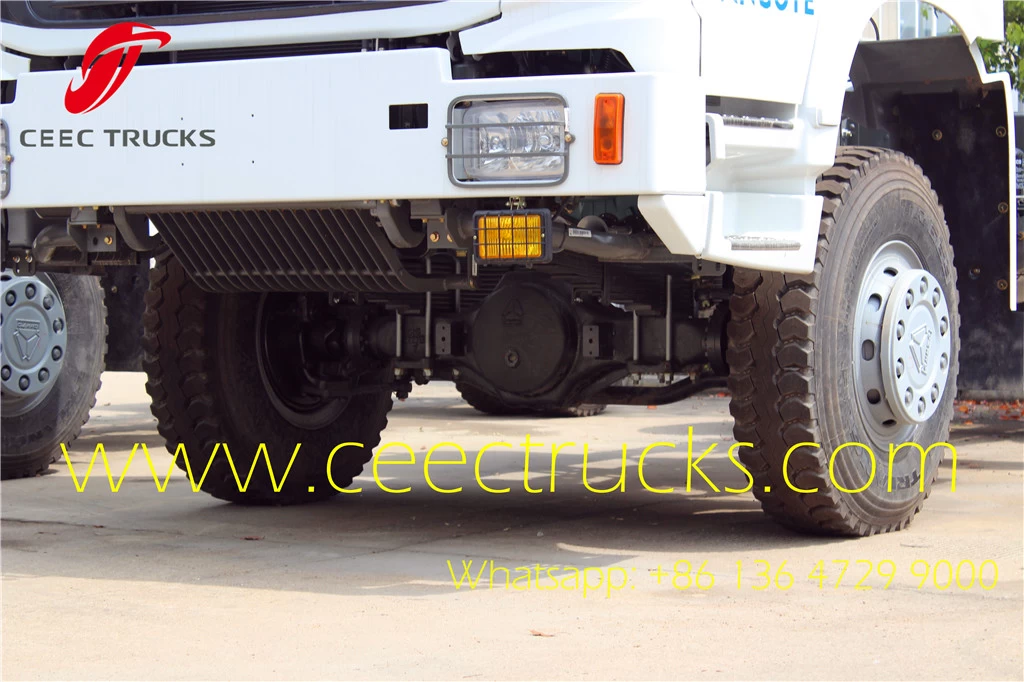

| Axles
|
| Front axles
|
HF7
|
| Rear axles
|
MCY13
|
| Tire specification
|
| Tire
|
11.00-20 standard tire,10 tires+1 spare tire
|
| Specification of compactor garbage truck
|
| Box valume
|
10m3
|
| Box material
|
Side 4mm,bottom 5mm
|
| Sewage tanker
|
200L
|
| Fill volume
|
1.2cbm
|
| Loading time
|
20-30S
|
| The cycle time of the loading
|
50-60S/per turn
|
| Unloading model
|
Dump
|
| Unloading time
|
40-50S
|
| Hydraulic system pressure
|
16Mpa
|
