SINOTRUK 20 m³ compressed refuse vehicle

Best SINOTRUK 6*4 garbage compactor truck, 22 m³ compressor tanker with carbon steel material, thickness for side and floor 5mm, WEICHAI 336HP engine, HOWO 9-shift transmission gearbox, 4600+1350mm wheelbase, with LHD and RHD for optional.

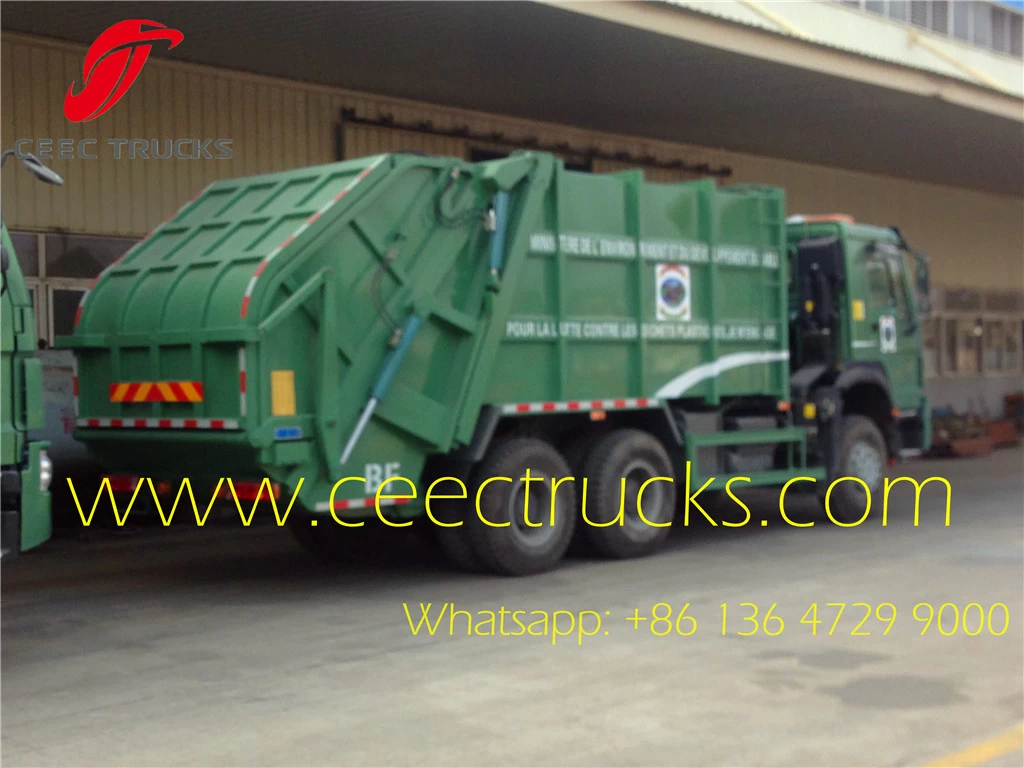

SINOTRUK 22 CBM compactor garbage trucks export Africa

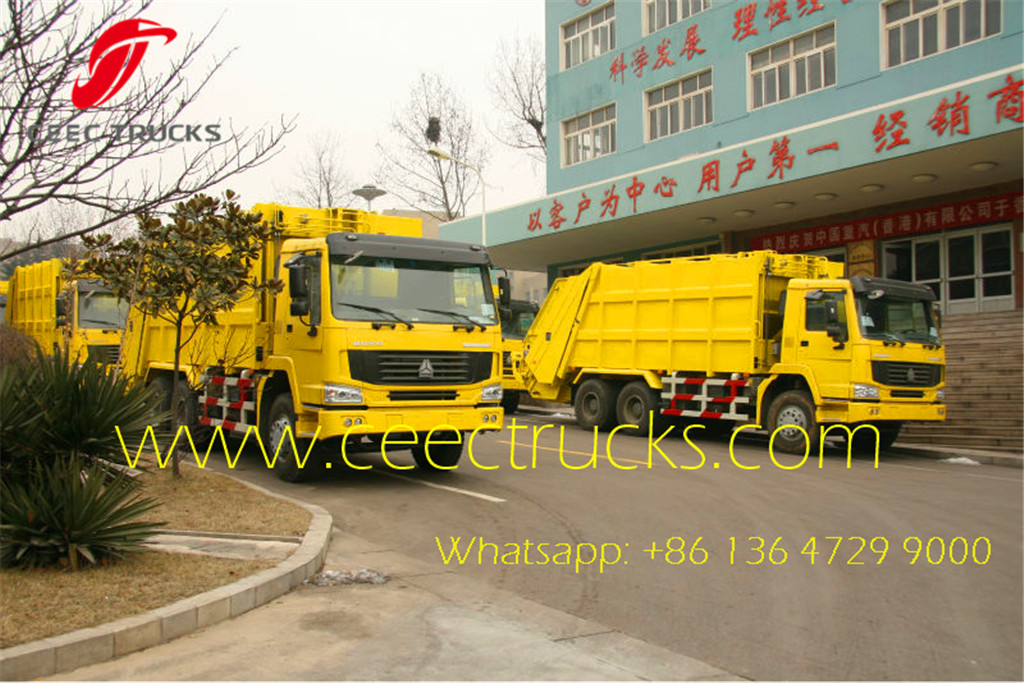

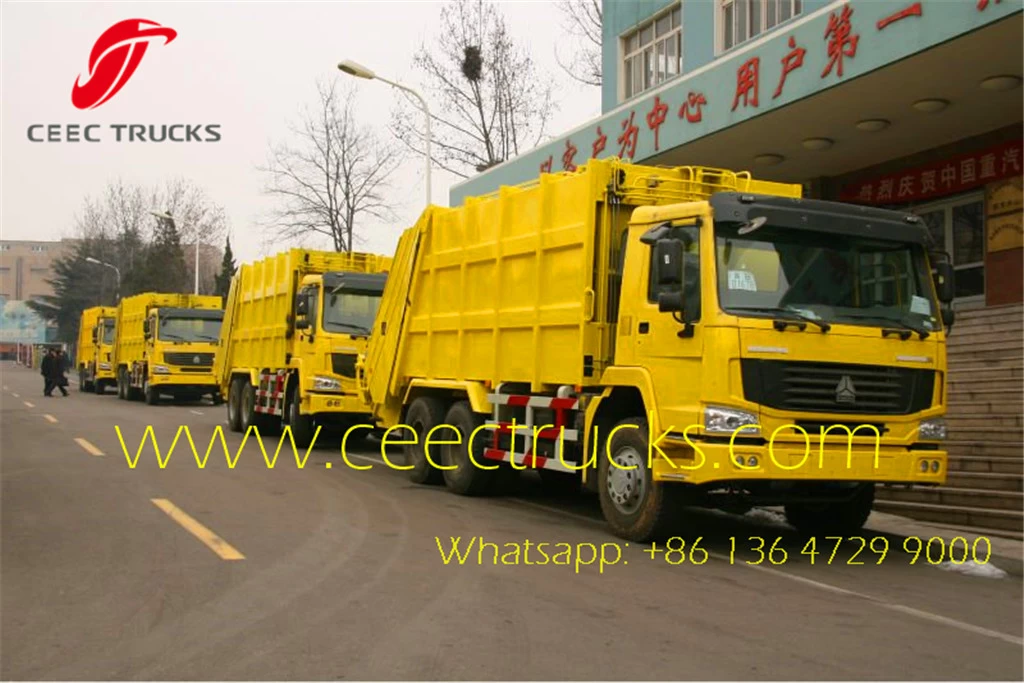

SINOTRUK HOWO 22 CBM refuse compressor truck



Africa Congo best SINOTRUK HOWO trash compressed trucks features:

1) The materials of upper parts fundamentally guarantee the performance and service life.

2) The accurate track and MC nylon slider of filler form the most advanced kinematic pair of sliding plate.

3) HOWO garbage compactor trucks Hydraulic system is equipped with dual pumps and dual circuits (popular in Europe) to improve the energy efficiency.

4) The trash compactor truck is controlled both manually and electronically, which is the best program for controlling compressed trucks in China.

5) The key hydraulic elements are imported, with advanced functions and reliable quality.

6) The sealing system is a hydraulic auto-locking and sealing mechanism, which completely solves the problem of sewage drops.

7) The filled waste is compressed in both directions, which expands the actual load capacity.

8) The truck is equipped with a multifunctional mechanical arm, 2 tiltable 240L double-square barrels, 2 rubbish bins of 1100L and 800L respectively.

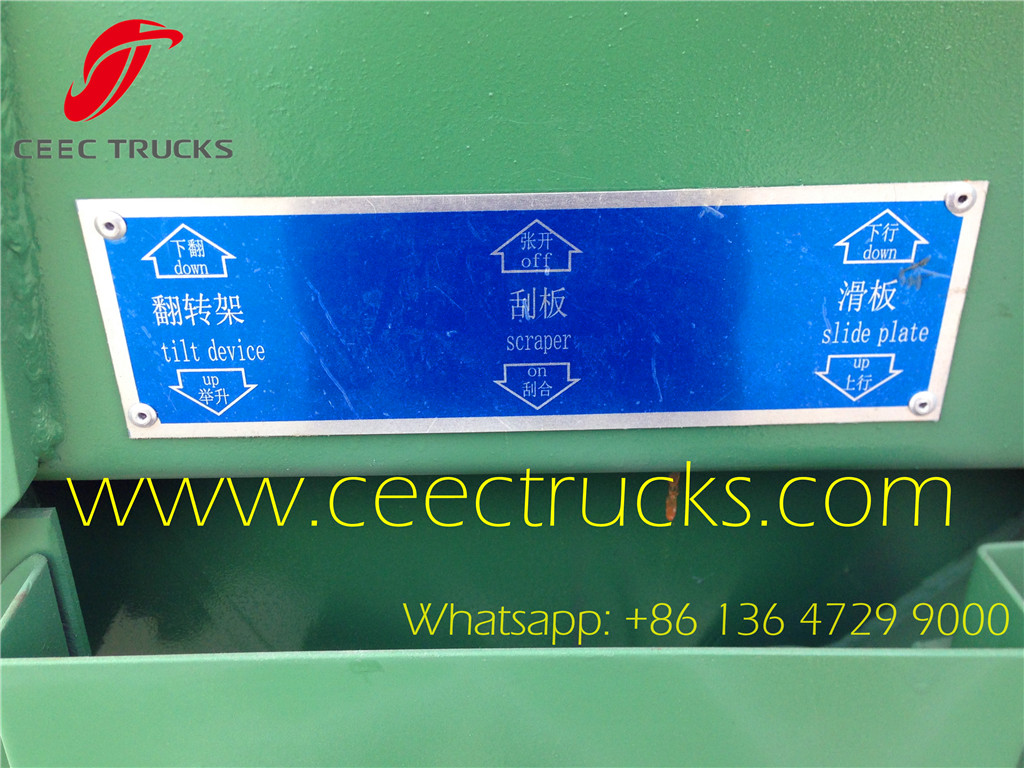

ceec produced compactor trucks rear loading system optional



CEEC TRUCKS produced and export garbage compactor trucks mainly export Africa countries, including Kenya, Algeria, Ethiopia, Angola, Botswana, Togo, Gambia, Congo, Guinea, Ghana, Zimbabwe, Cameroon, Cote d'Ivoire, Rwanda, Mali, Mozambique, Sudan, Tanzania, etc. Our best selling models mainly as below: 5 CBM garbage compactor trucks, 8 CBM compressed garbage truck, 12 CBM refuse compression truck, 20 CBM trash compactor trucks. with ISUZU, Dongfeng, Foton, Beiben chassis LHD / RHD for optional.

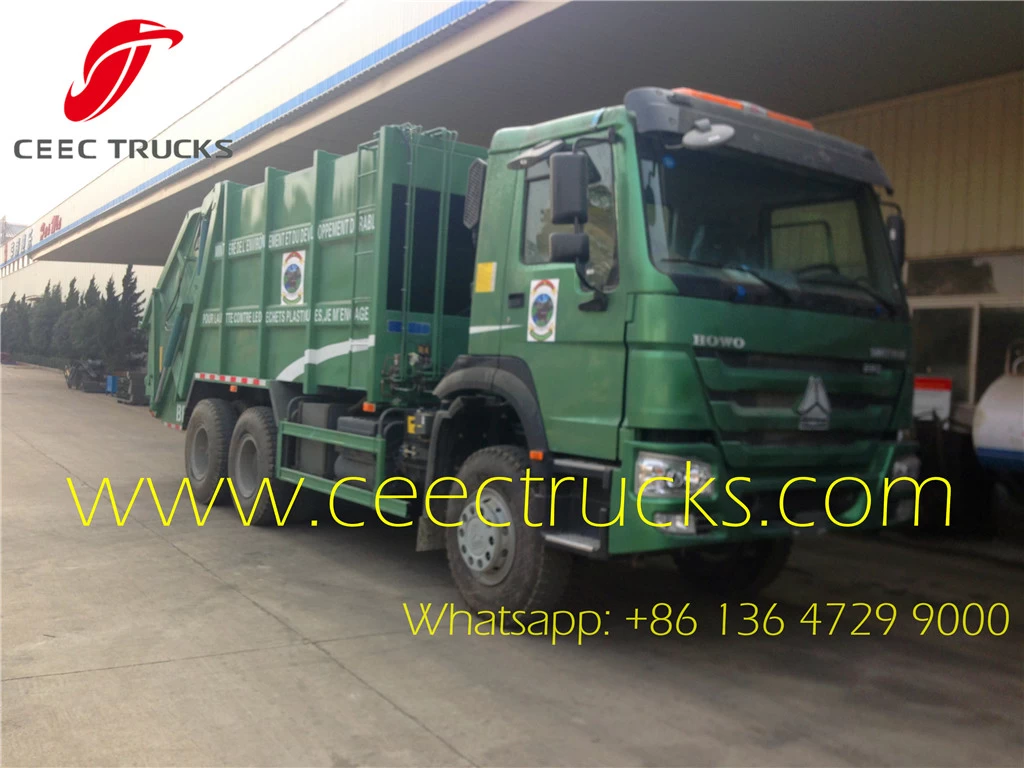

SINOTRUK 22 CBM refuse compactor trucks manufacturer

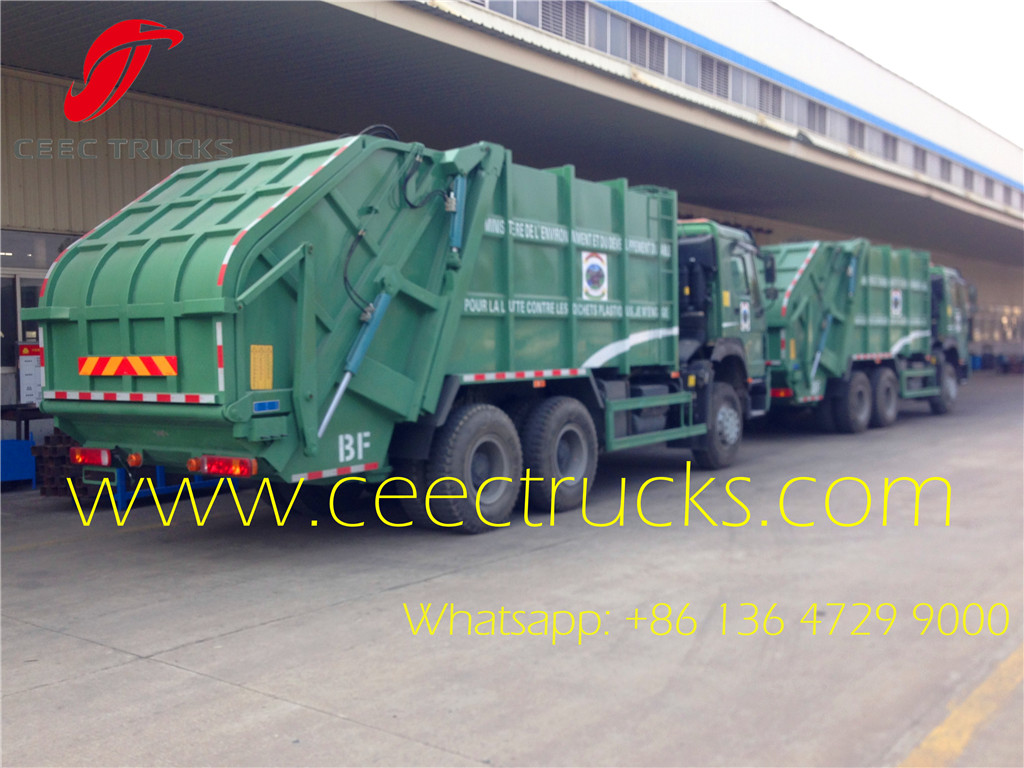

SINOTRUK 22 CBM refuse compactor trucks manufacturer

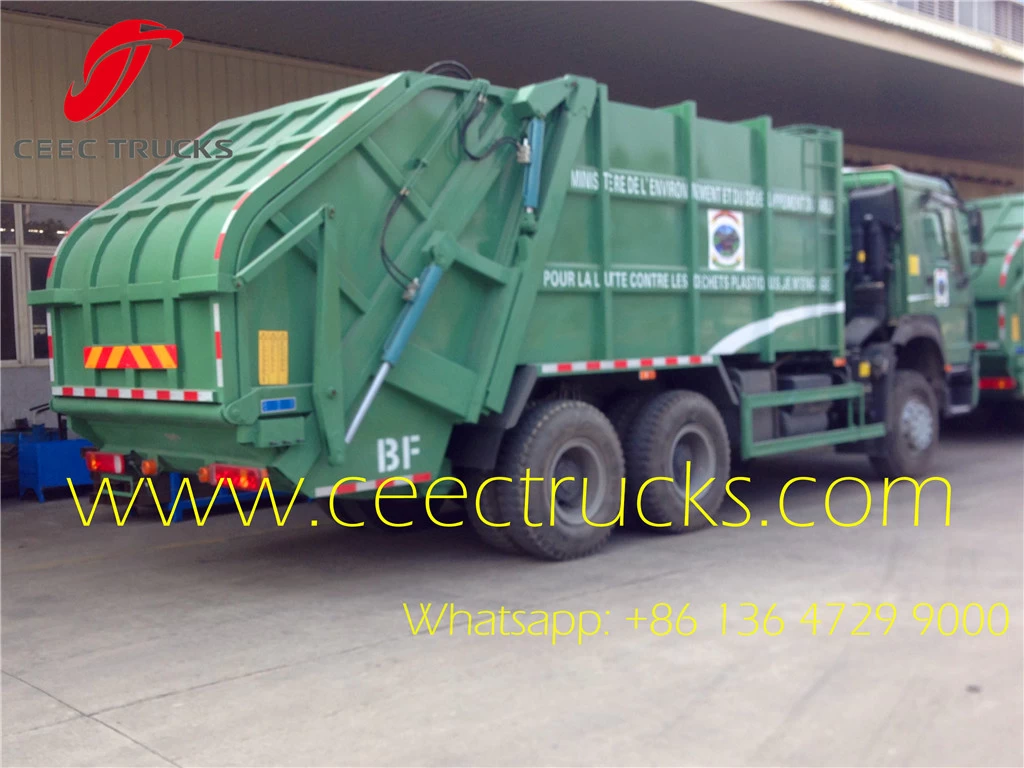

China TOP SINOTRUK HOWO 20-22 m³ garbage compactor trucks manufacturer supply



Main details

Production name

HOWO compactor garbage truck 16cbm

Chassis model

ZZ1257N4647C

Type

6×4, Right/Left hand drive

Weights

Related weight (kg)

30000

Curb weight (kg)

14000

Dimensions

Wheelbase(mm)

4600+1350

Overall Dimension(mm)

10100×2500×3400

Box dimension (mm)

16m3

 Max speed(km/h)

90

Engine

Engine model

WD615 (336HP)

Engine type

4 stroke water-cooled, inter-cooling

No of cylinder

straight-6 cylinders

Displacement(L)

9.726L

Max power(kw)

249kw

Drive Line

Transmission

HW13710CL

10 speeds,10 forwards,2 reverse gear,manual operation

Steering

ZF8098 Power steering

Cab

Cabin

 HW76 cab

Configuration standard

Air conditioner ,and so on

Axles

Front axles

HF7

Rear axles

MCY13

Tire specification

Tire

12.00-20 standard tire,10 tires+1 spare tire

Specification of compactor garbage truck

Box valume

22m3

Box material

Side 4mm,bottom 5mm

Sewage tanker

200L

Fill volume

1.2cbm

Loading time

20-30S

The cycle time of the loading

50-60S/per turn

Unloading model

Dump

Unloading time

40-50S

Hydraulic system pressure

16Mpa

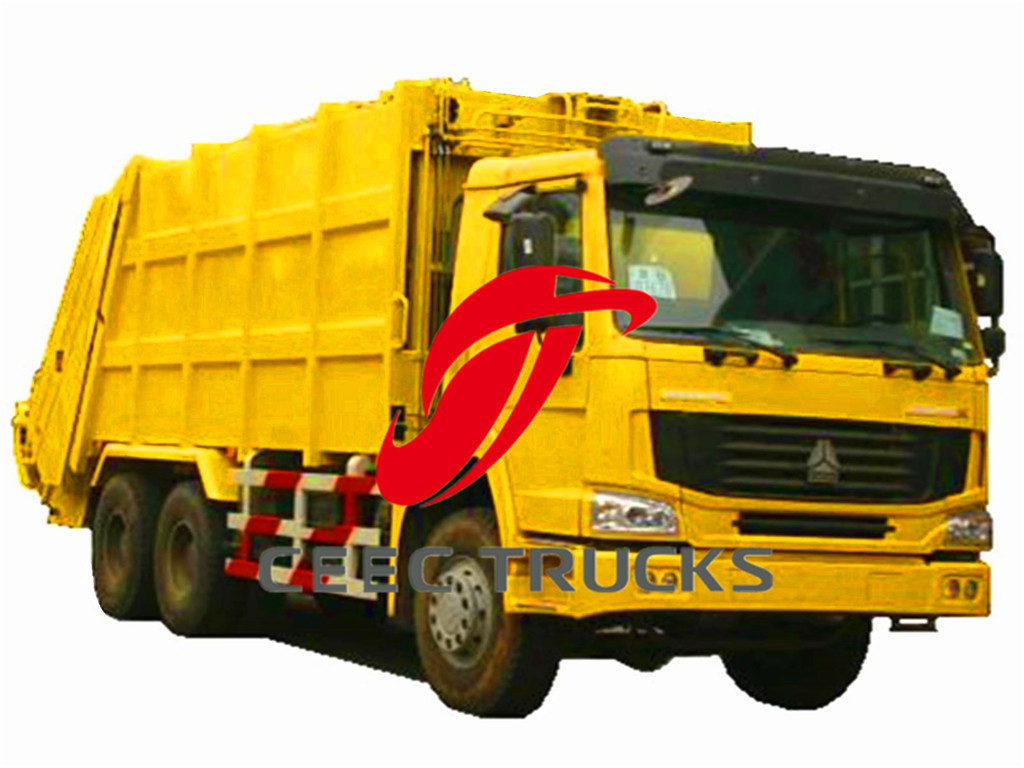

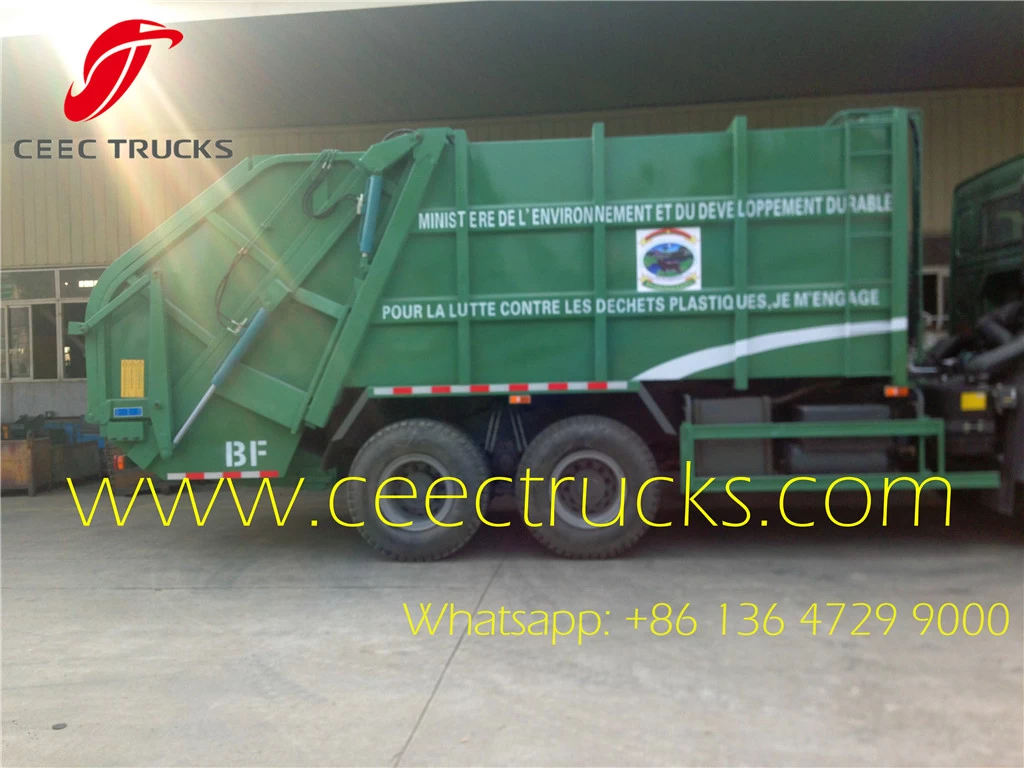

SINOTRUK 22 CBM refuse compactor trucks export model

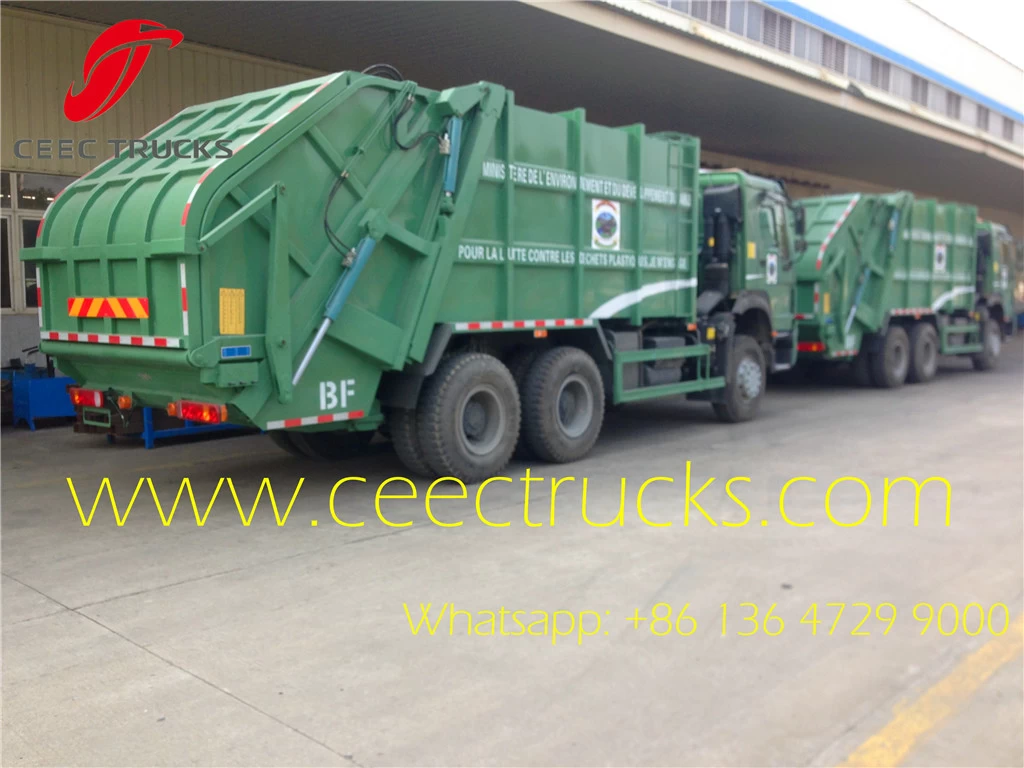

SINOTRUK 22 CBM refuse compactor trucks export model

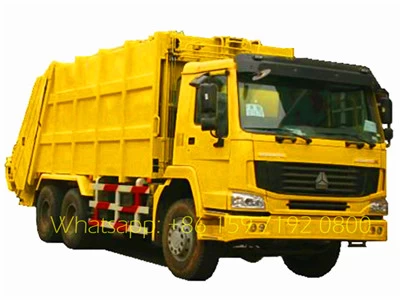

SINOTRUK 22 CBM refuse compactor trucks export model



2016 newly model Garbage compactor trucks Hot sale
