Sleeve/Ball Bearing Air Centrifugal Frameless Quiet Cooling Fan

The centrifugal fan with PWM function enables the motherboard to accurately run the fan at the required speed. This ensures the required cooling and minimizes noise levels.




Large Air Volume 67.47 CFM Frameless Bracket Cooling System Fan with PWM/Fg/Rd Function. Our frameless fans are quiet, consume minimal energy, and effectively reduce heat to safe levels.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
  • Dimension of outer the frame is 140 mm(L) x 140 mm(W) x 44 mm(H) / The size of fan in inch is 5.51 in(L) x 5.51 in(W) x 1.73 in(H).

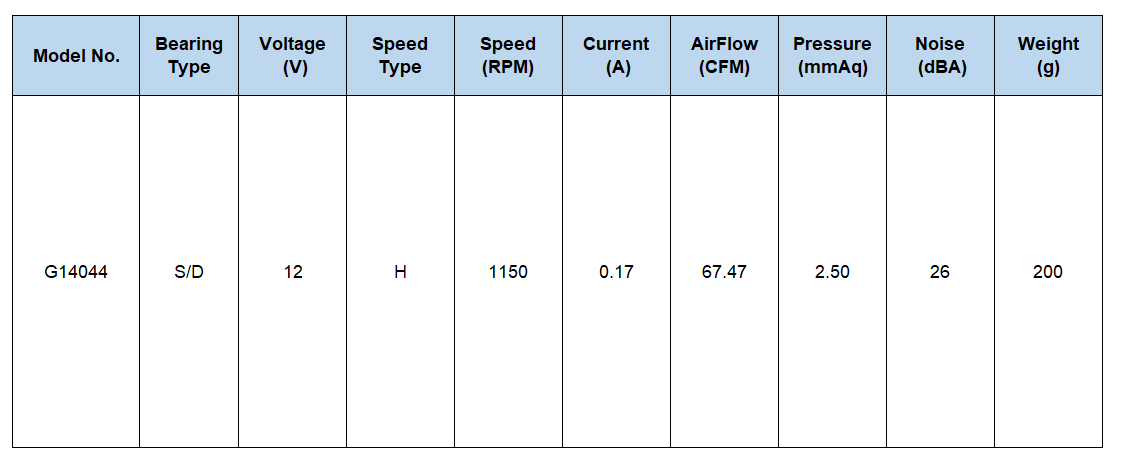

  • Operating Voltage Range: DC 12V | Current: 0.17 Amp | Speed: 1150 RPM | Airflow: 67.47 CFM | Noise: 26 dBA | Pressure: 2.50 mmAq.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50,000h at 25 degrees.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

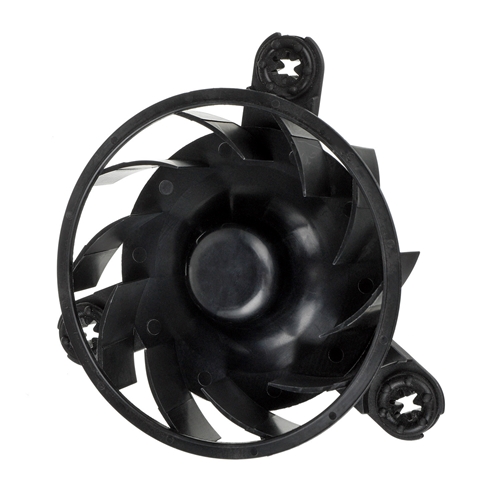

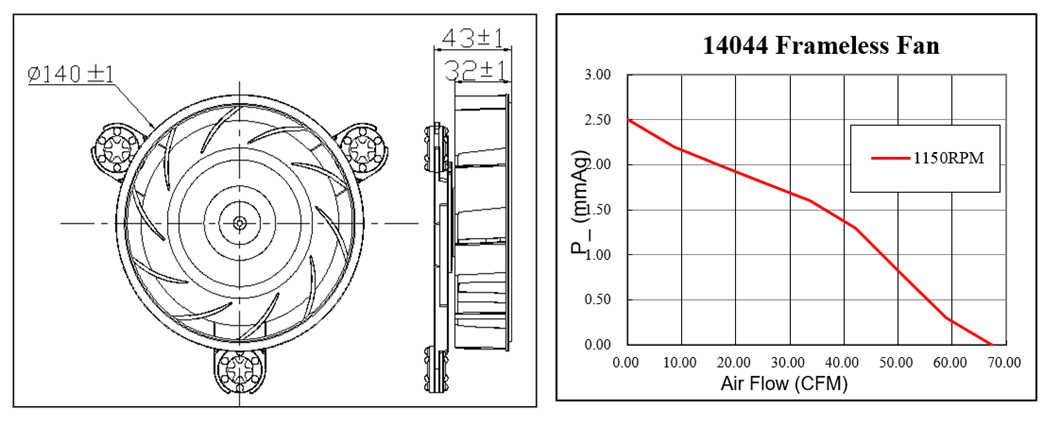

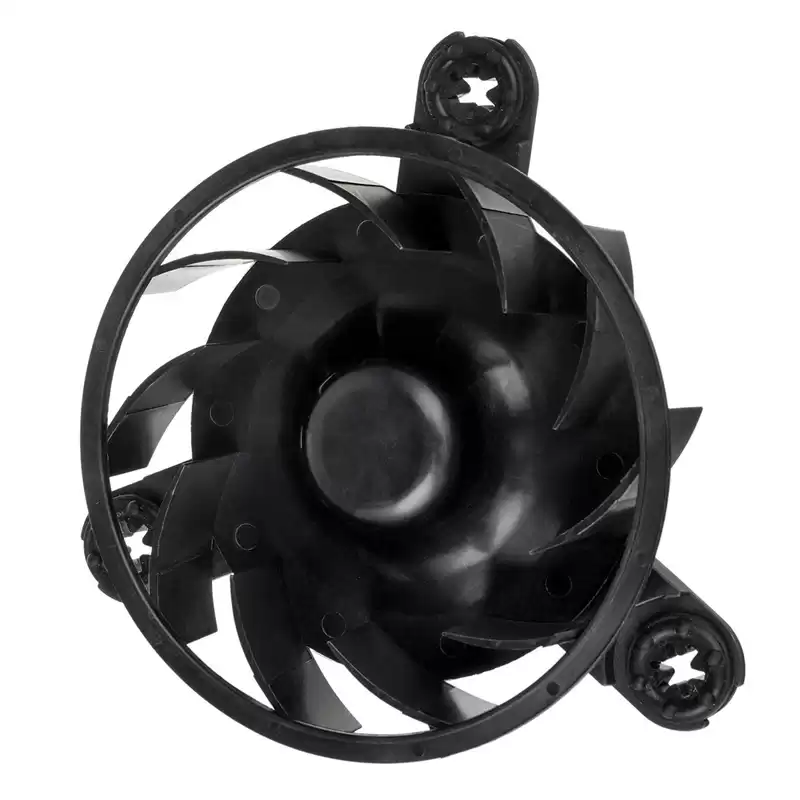

DC FRAMELESS BRACKET FAN φ140x44mm


 China factory dc centrifugal fan


General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing


12vdc centrifugal fan for cooling

    Dualball Bearing Centrifugal Fan 12V

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Short Production Time & Prompt Delivery;
  • Minimzing the noise level yet delivering the desired airflow and pressure;
  • The fan is made of environmental protection and fireproof PBT material;
  • Ball bearings design icreasing the fan’s operation stability and life span, more than 50,000 hours of operation;
  • It will be your first chooice when you need fan replacement.



More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type Model Size
DC FRAMELESS BRACKET FAN G09225 φ92x25mm
G11030 φ110x30mm
G12030 φ120x30mm
G12040A φ120x40mm
G12040B
G12040C
G12540 φ125x40mm
G14044 φ140x44mm


Application

DC frameless bracket fan products are mainly used for ventilation and heat dissipation of equipment and instruments, involving computers, power supplies, household appliances, oxygen generators, electric welding machines, projectors, communications, auto parts, new energy and so on.

12v centrifugal silent fan

  • Customized items related to cooling systems such as refrigerators, humidifiers, air purifiers, power supplies, radiators and electric welding machines, ect.
  • Create a cooling system to keep the ventilation system of household appliances, computers, power supplies and other electronic equipment running at the ideal temperature and the best speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.




Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
