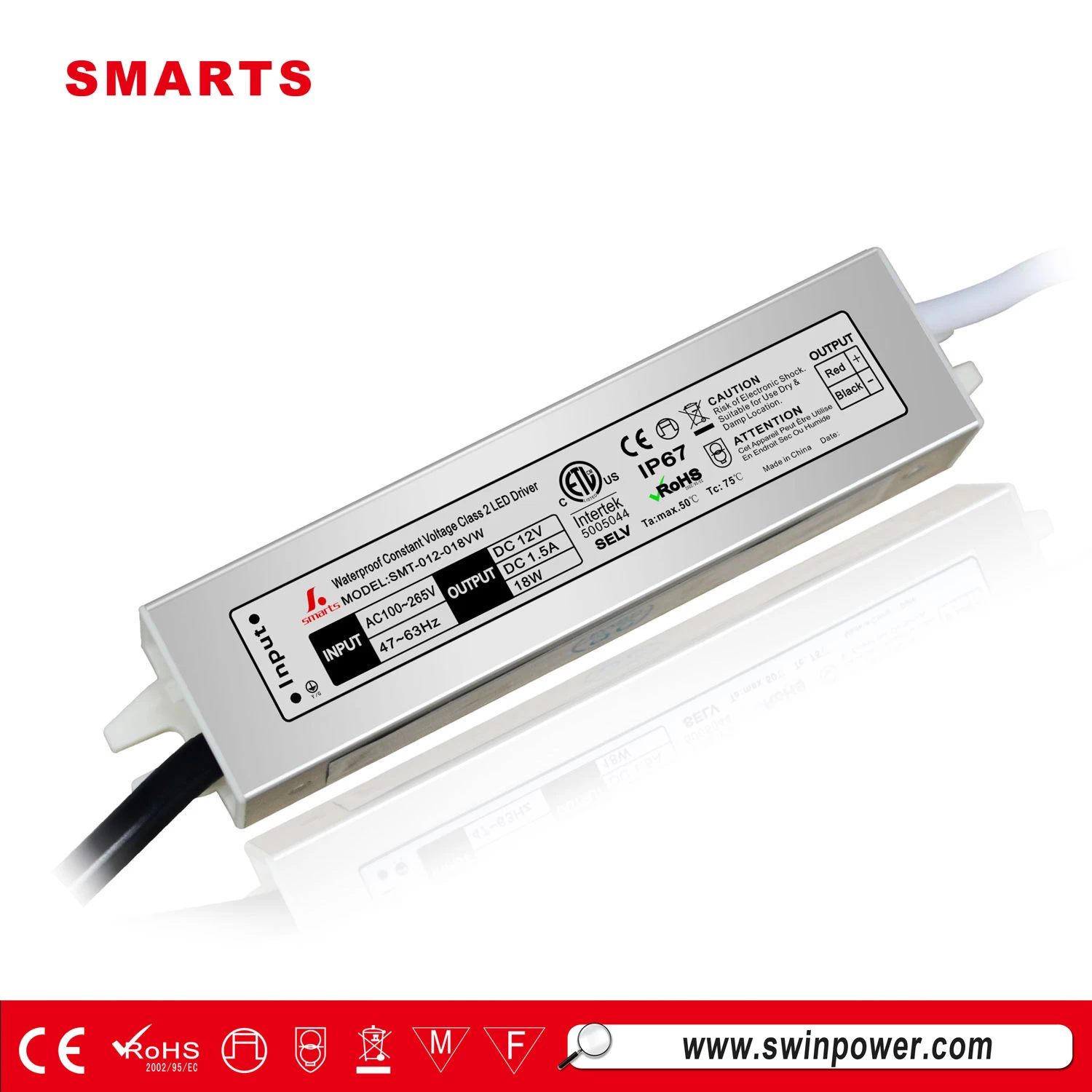

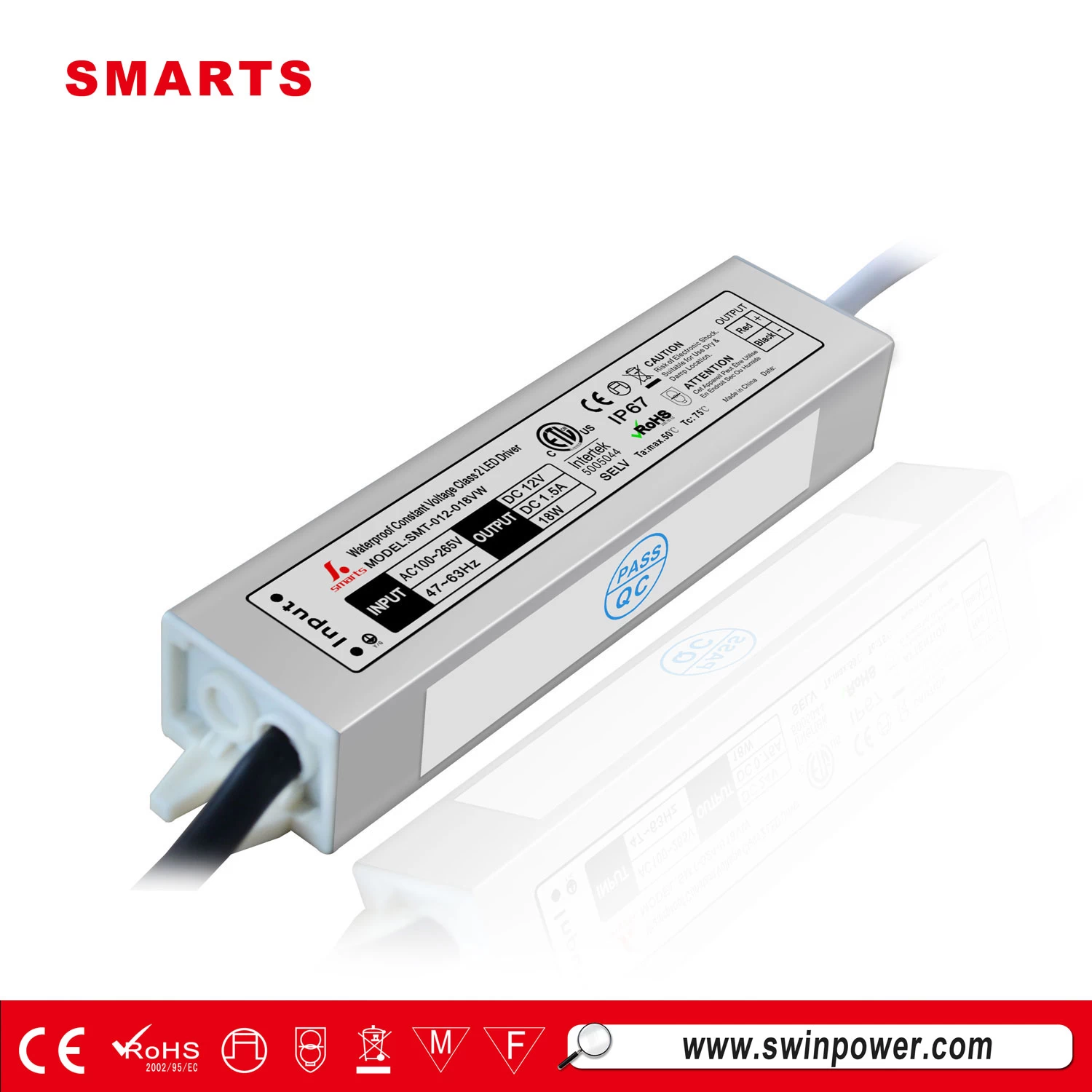

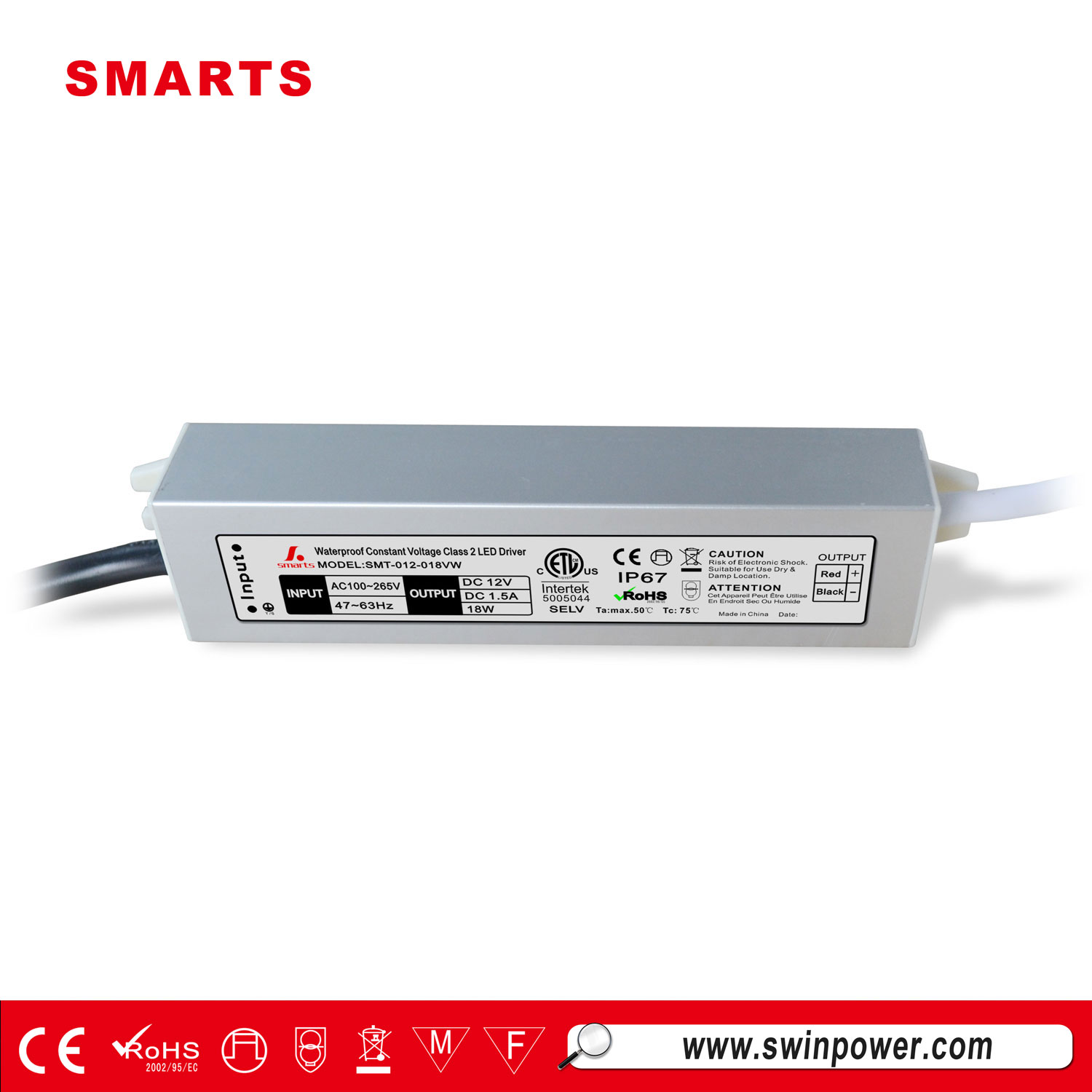

slim 12v 18w waterproof electronic led power driver
This slim 18w led driver is a hardwire class 2 driver. Allows to dim LED strip lights, LED tape light, LED mirror. The transformer will also need cable to travel from LED strips to the driver. (not included) Available in both 12v and 24v version.
Feature:
|
MODEL
|
SMT-012-018VW
|
SMT-024-018VW
|
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
|
RATED CURRENT
|
1.5A
|
0.75A
|
|
|
CURRENT RANGE
|
0~1.5A
|
0~0.75A
|
|
|
RATED POWER
|
18W
|
18W
|
|
|
RIPPLE&NOISE(max)
|
1.2V
|
1.2V
|
|
|
voltage TOLERANCE
|
12V±5%
|
24V±5%
|
|
|
SETUP RISE TIME
|
80ms/110,220VAC
|
80ms/110,220VAC
|
|
|
HOLD UP TIME(Typ.)
|
60ms/110,220VAC
|
60ms/110,220VAC
|
|
|
INPUT
|
VOLTAGE RANGE
|
100~265Vac
|
100~265Vac
|
|
|
FREQUENCY RANGE
|
50~60Hz
|
50~60Hz
|
|
|
POWER FACTOR(Typ.)
|
|
|
|
|
EFFICIENCY(Typ.)
|
>84%
|
>84%
|
|
|
AC CURRENT(Typ.)
|
0.5A/110V,220VAC
|
0.5A/110V,220VAC
|
|
|
INRUSH CURRENT (Typ.)
|
COLD START 30A/110,220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing(Waterproof)
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
ETL, CE Mark(LVD),IP67
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
|
|
EMC Test Standards
|
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input,
rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth
by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|

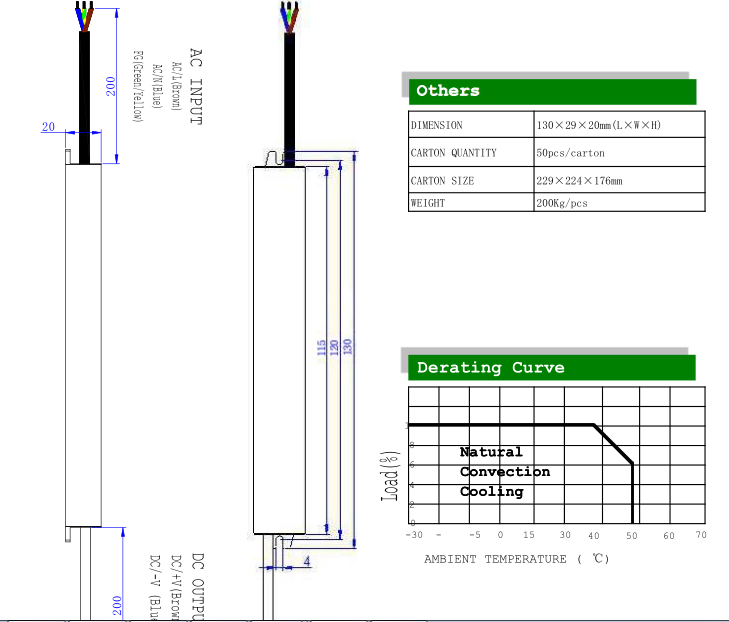

Specifications dimension:
Description of SMARTS constant voltage led driver
1). Class 2, ETL Listed, Certified to CSA Standard, Conforms to UL STD. 1310
2). Requires a cable to run from the dimmable transformer to the first light(s) – bulk in wall cables to wire nut into the transformer.
3). The enclosure is silver aluminum case IP67 rated for Commercial and Residential use.
