Slim Design 360 Degree Siphon Stainless Steel Shower Room Linear Shower Drain

Type: Slim 02

Material: 304 stainless steel

Length: 500mm,600mm,700mm,800mm,900mm,1000mm,1100mm,1200mm

Width: 30mm

Height:70mm

Edge: 20mm

Flow capability: 30L/min

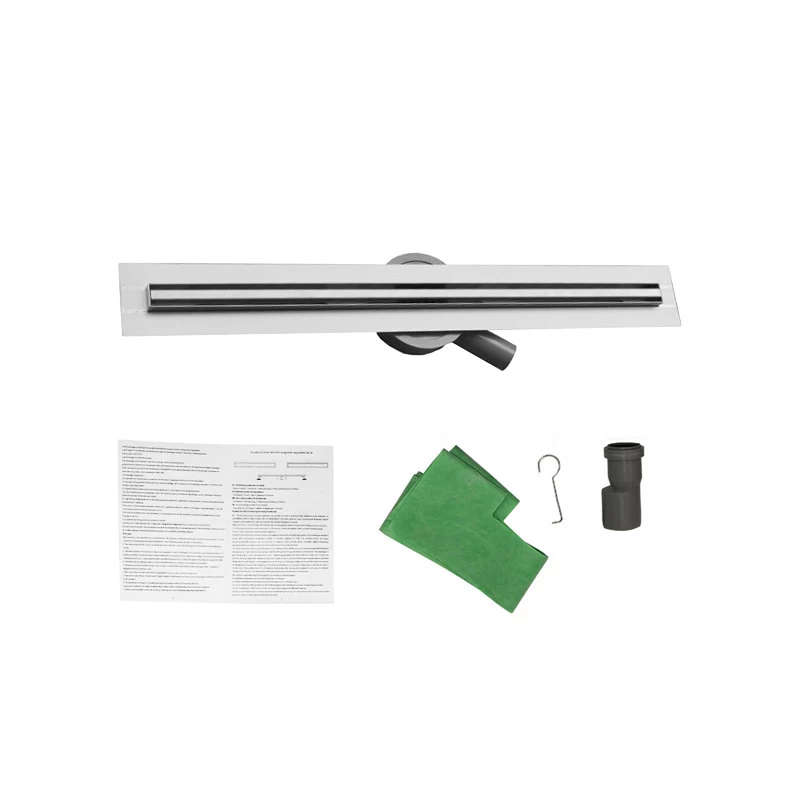

Siphon parts: Included

Hair trap: Included

Outlet: 40mm with 50mm adapter

Install height adjustable

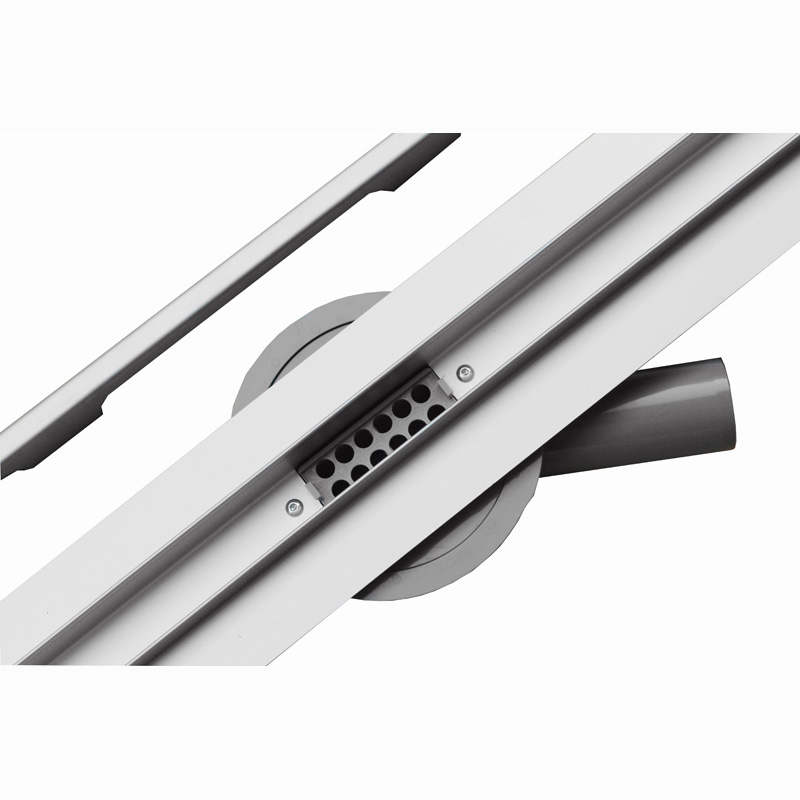

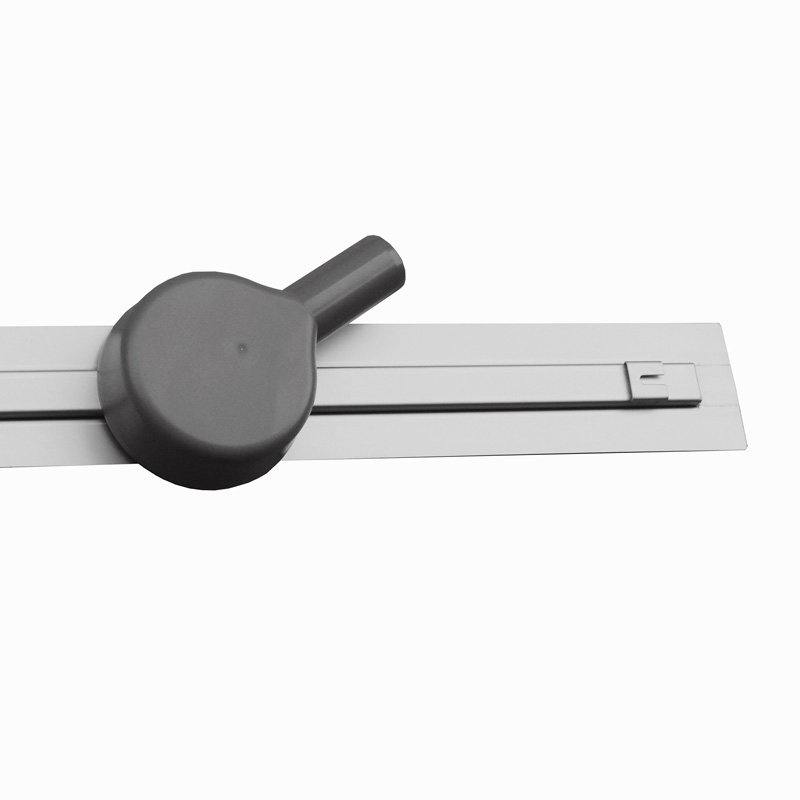

This is a new slim design NEUNAS floor drain, made by stainless steel 304 of shower room series has a modern design and barrier-free showering, with 360 degree movable outlet, more convience adjust the outlet position according to your installation.

Thanks to the slim design, after installation in shower room , the appearance looks more concise and design.

Up to 30 litres of water per minute can be drained directly through the floor drain after using a shower without the need for a step.

After tile installed in the adapted frame, you can only see the side leak gap with a width of about 6 mm.

The extremely flat design of the shower channel is suitable for extremely low heights. Since the anchoring feet are adjustable, you can also easily adjust the mounting height. The shower channel has a 40 mm drain and comes with a 50 mm adapter.

You can easily see hair trap through the slim removable drain cover, which makes the shower trough and drain pipe easy to clean. In addition, a built-in integrated deodorizer prevents odors from penetrating.

Choose the length you want 500mm,600mm,700mm,800mm,900mm,1000mm,1100mm,1200mm.
