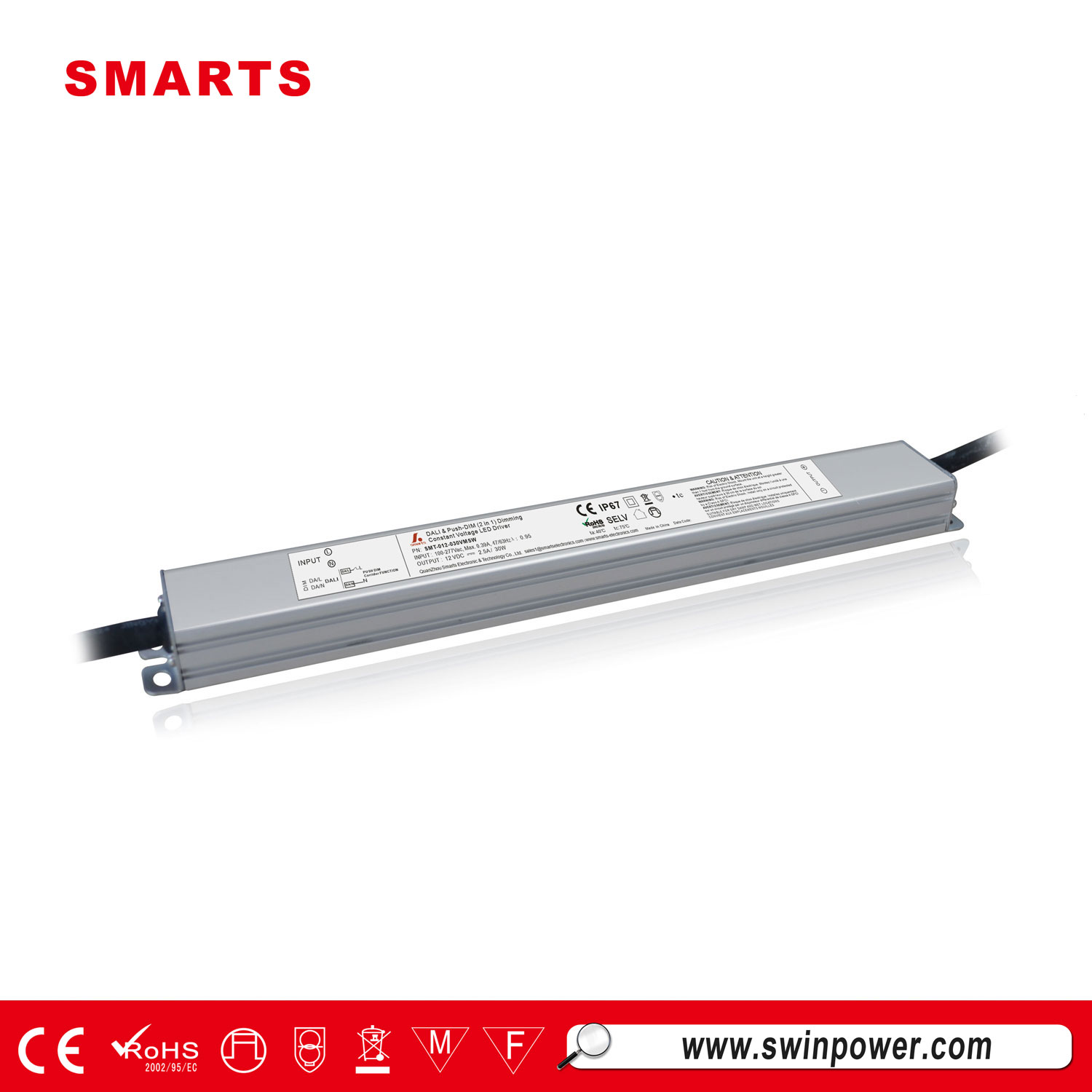

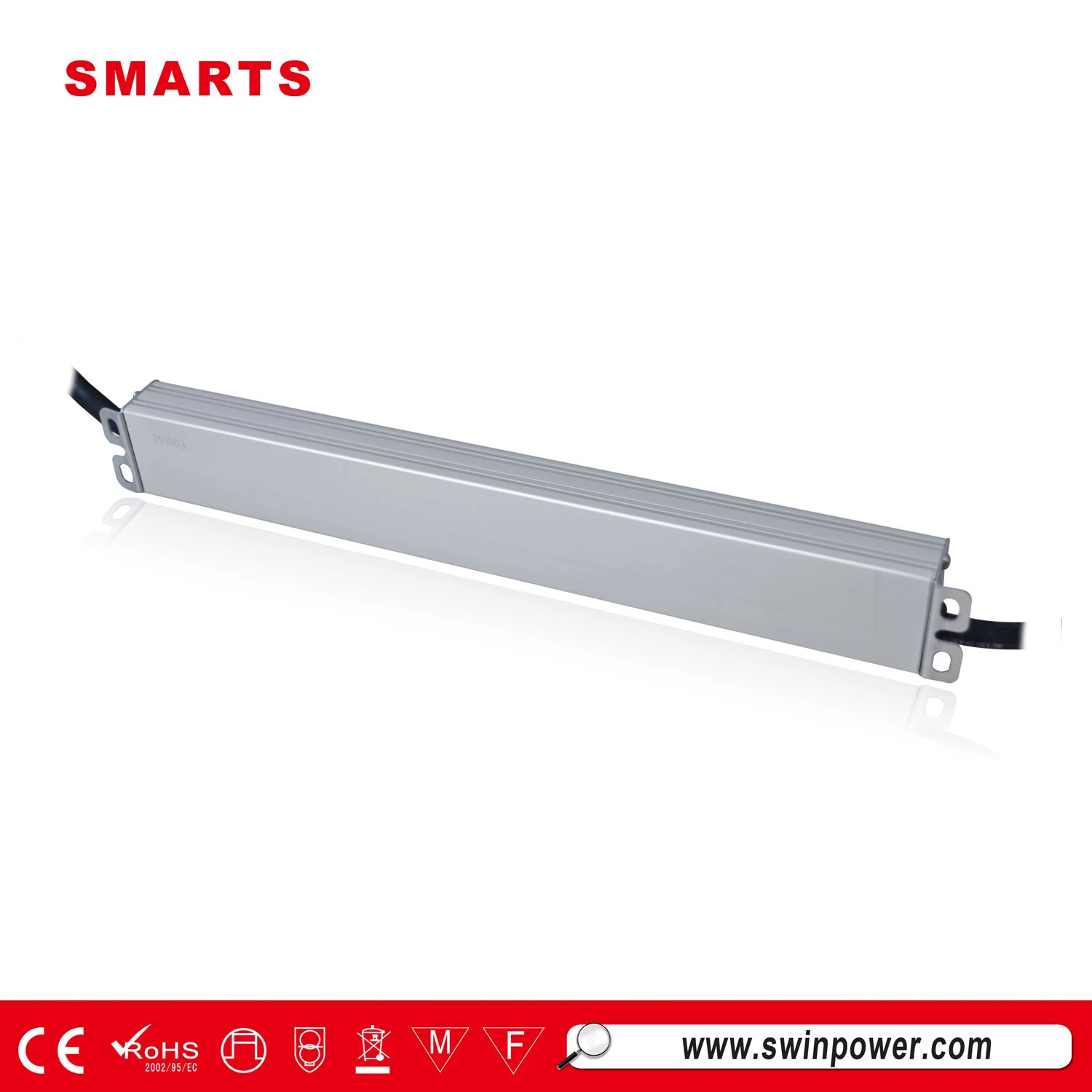

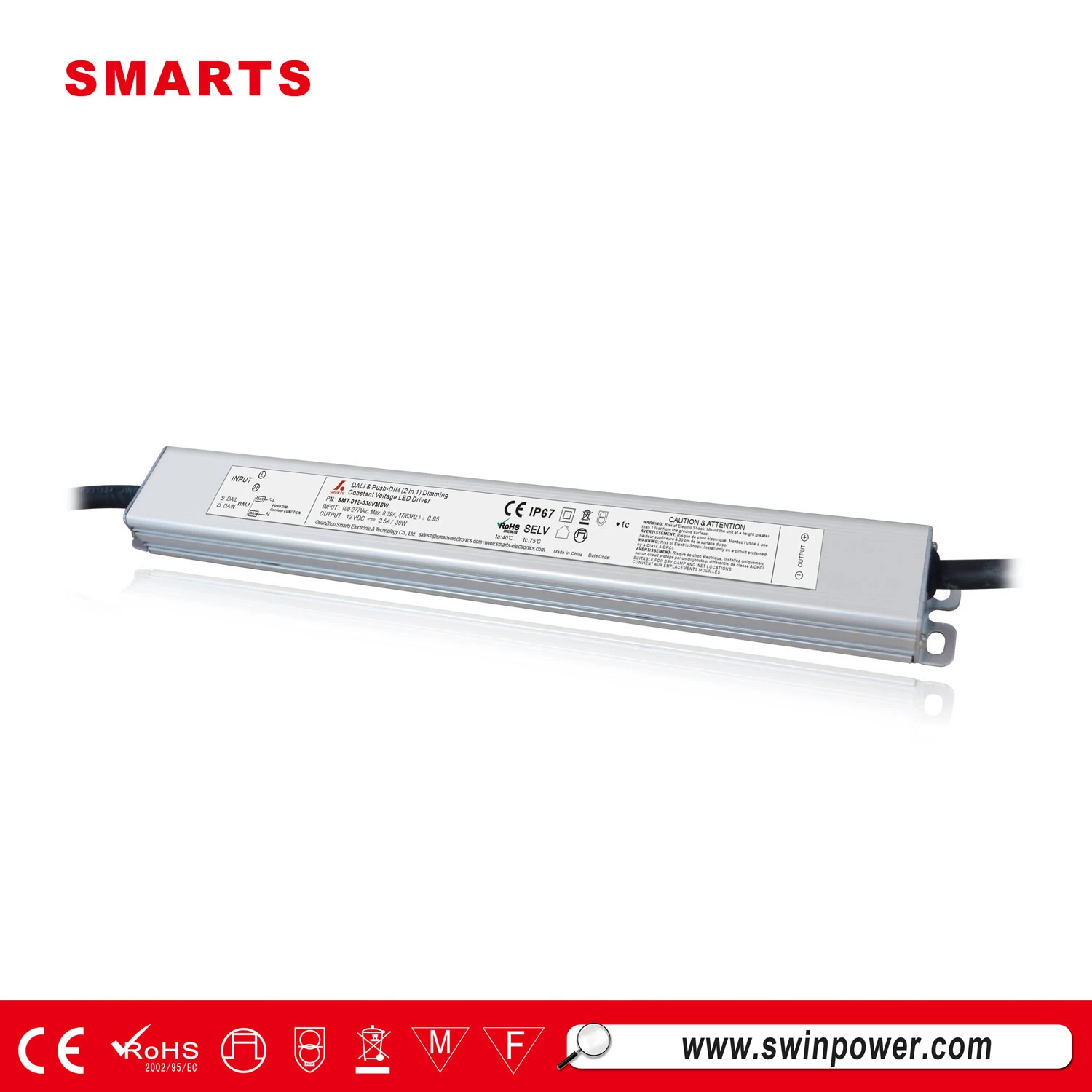

Slim size Dali dimmable led driver 12V 30w slender LED power supply
12v 30w led driver is a model for slim size Dali dimmable led driver.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Specification:
|
model
|
SMT-012-030VMSW
|
SMT-024-030VMSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
|
Rated current
|
2.5Amp
|
1.25Amp
|
|
|
Rated power
|
30W
|
30W
|
|
|
Voltage Regulation
|
±0.5%
|
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
PF≧0.99/110V ; PF≧0.98/277V
|
|
|
THD(Typ. ) @ full load
|
<10%@120VAC <15%@277VAC
|
|
|
Full Load Efficiency（Typ.）
|
>84%
|
>85%
|
|
|
AC Current（Typ.）
|
0.5A
|
|
|
Inrush Current（Typ.）
|
5A, 50%, 960us @120VAC; 13A, 50% , 1ms @277VAC
|
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13
|
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
|
|
Others
|
Weight
|
0.35Kg
|
|
|
Size
|
260*32*20mm (L*W*H)
|
|
|
packing
|
290*270*160mm , 50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Analysis problem:
Question:
What is the wire gauge that fits into the DALI Dimmable LED Driver?
Answer:
14-26 AWG

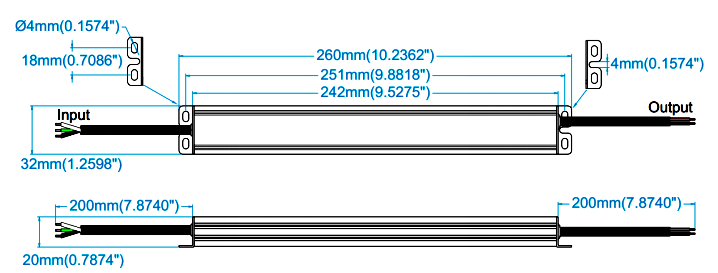

Mechanical Specification

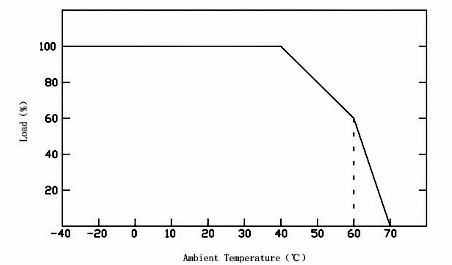

Derating Curve

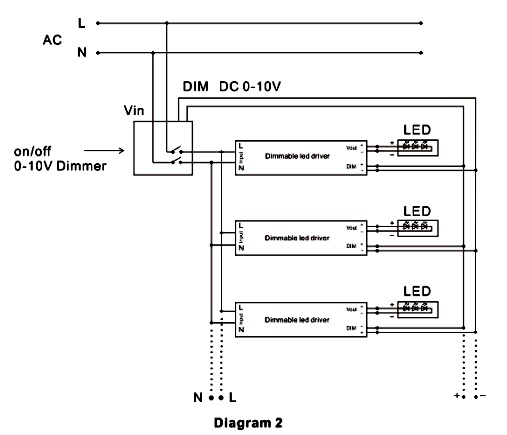

Connecting Diagram
